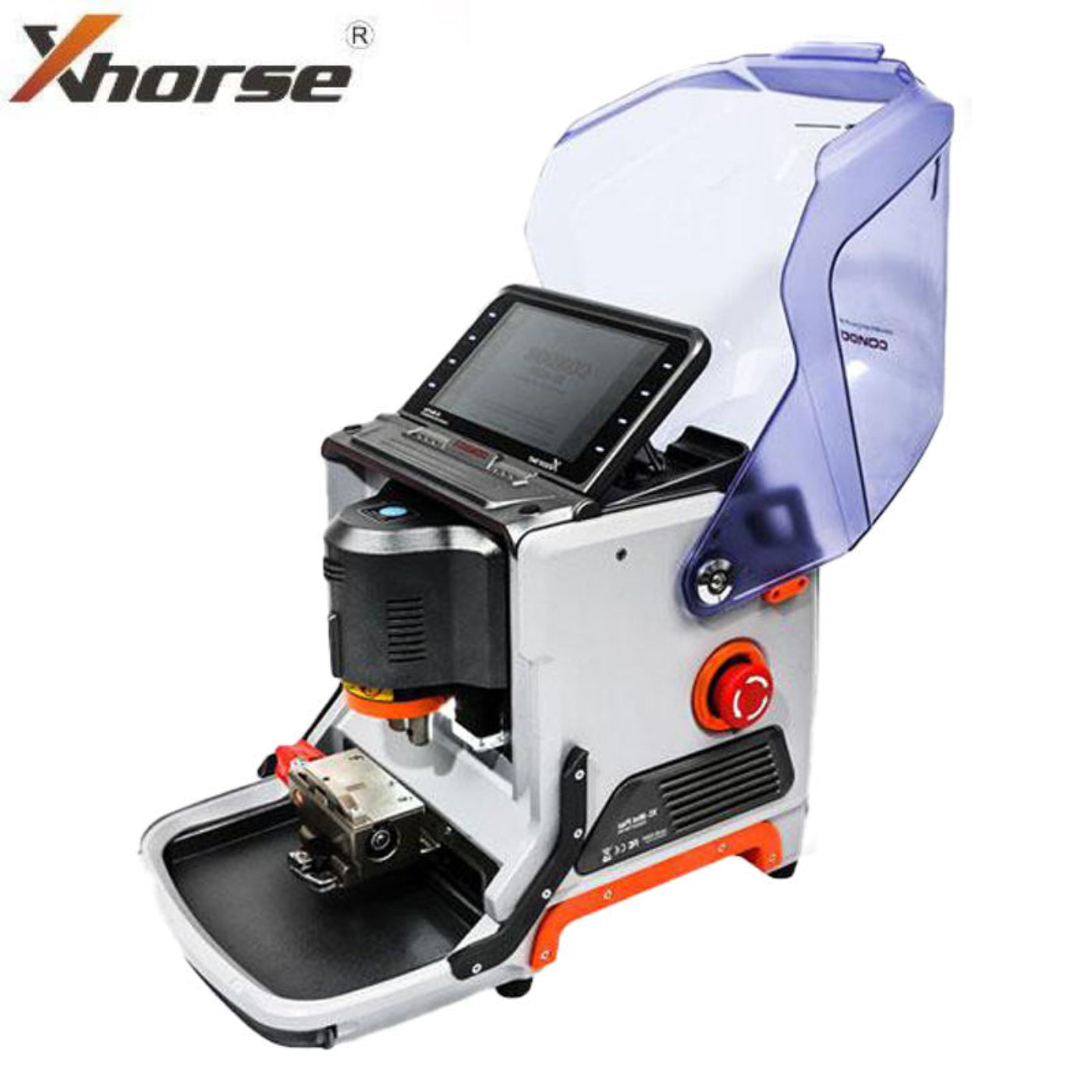

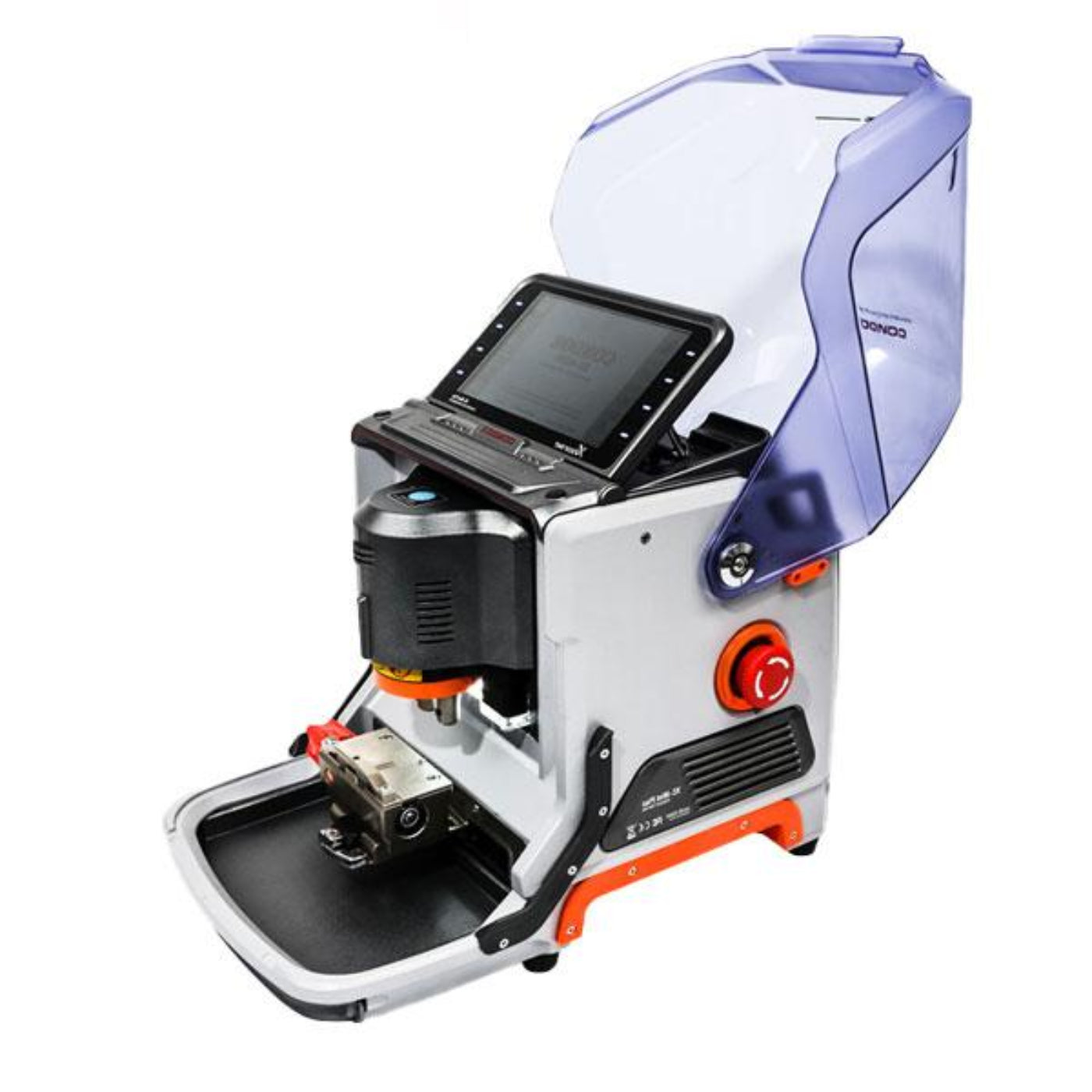

Xhorse Condor XC-Mini Plus – High Sec Key Cutting Machine (Xhorse) - XHS-CONXCMIN-PLUS

Xhorse Condor XC-Mini Plus – High Sec Key Cutting Machine (Xhorse) - XHS-CONXCMIN-PLUS

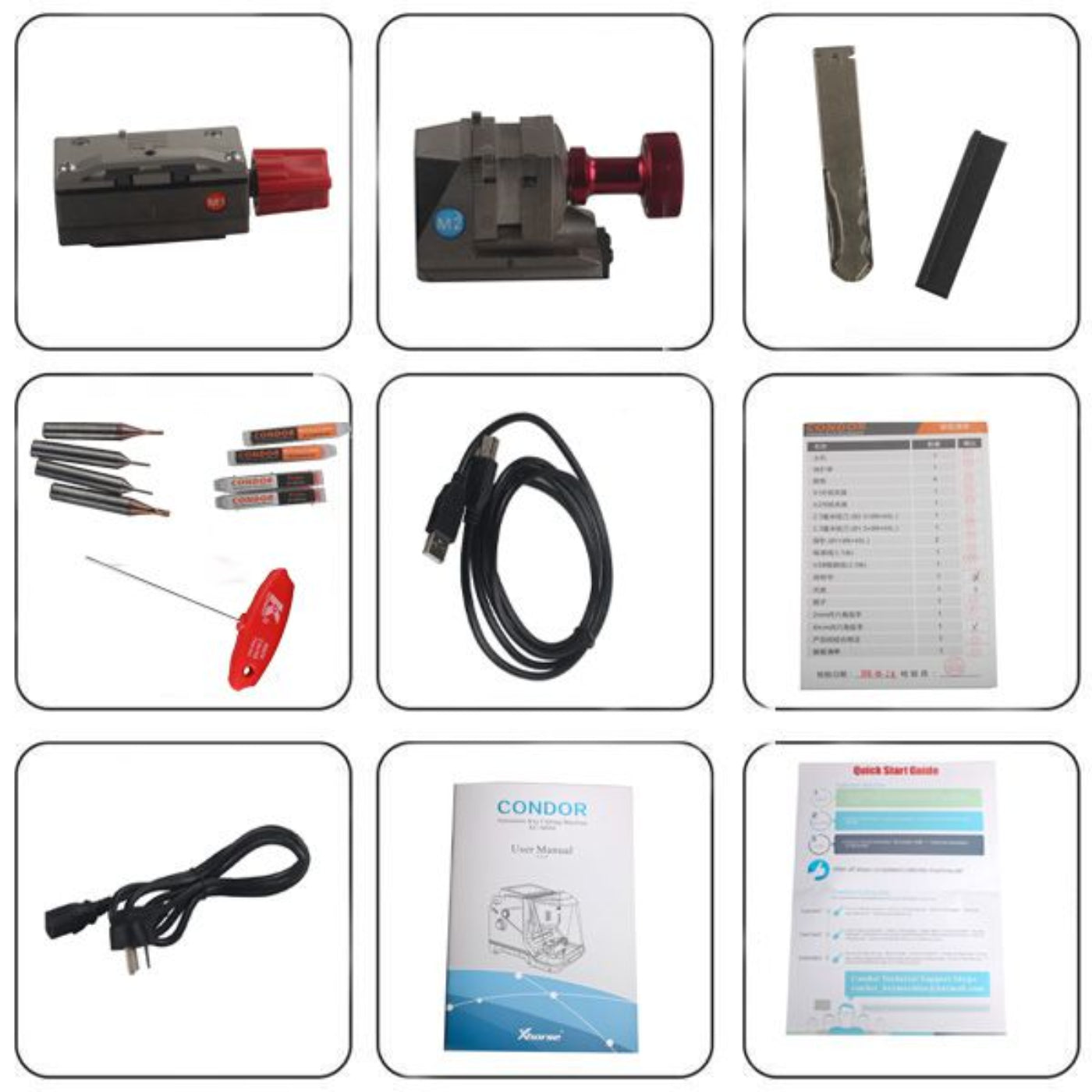

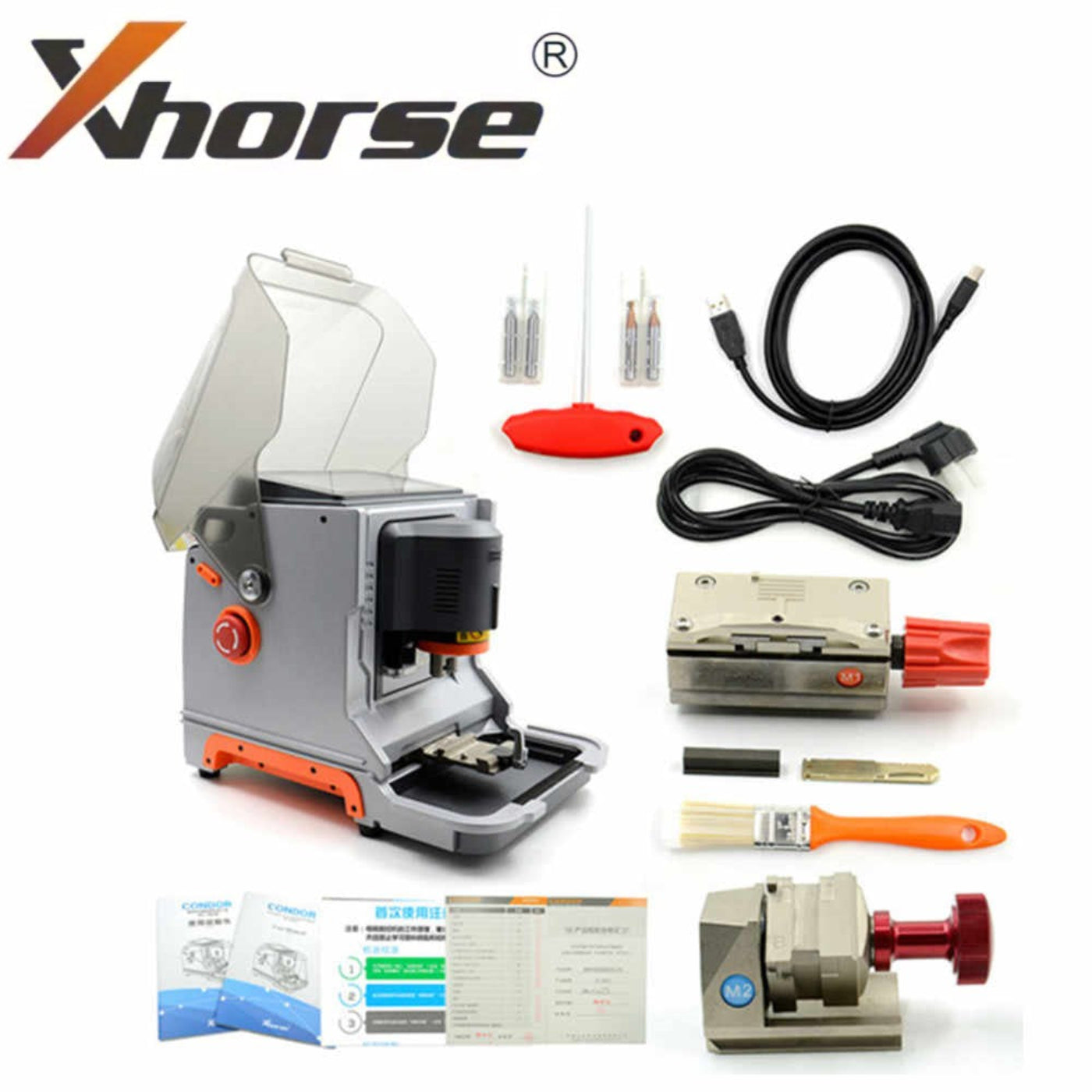

Clamp Equipped

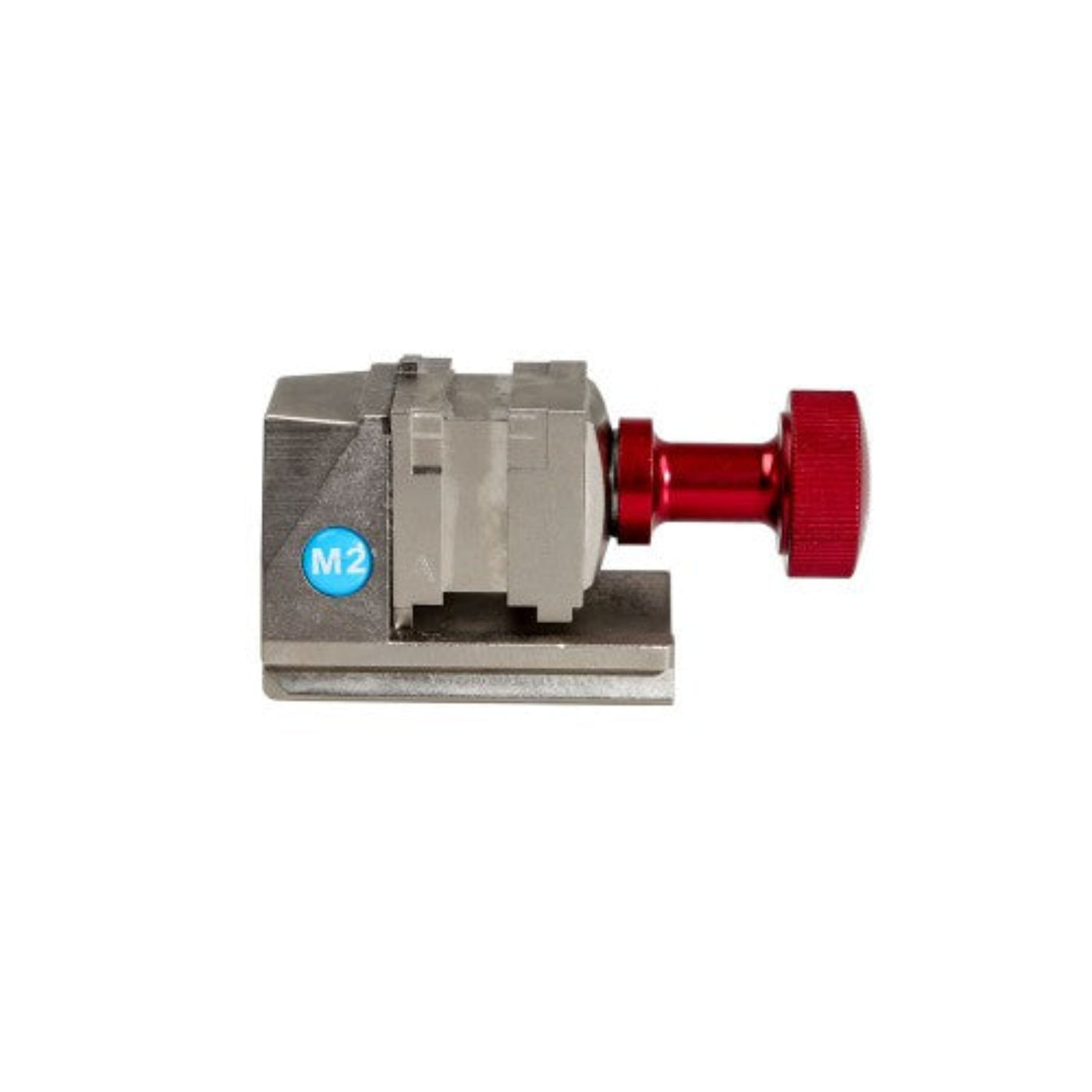

Condor XC-Mini automatic key cutting machine standardly includes two clamps M1 and M2 support sided, track,
dimple and tibbie keys, some dimple/tibbie keys need M3 optional clamps used for Ford FO21 & Citroen SX9 keys.

Built-in Database
Built-in actuate database, detailed parameters, schematic sample depth key tool available for users, according to the blank key data,
edit key shape, space flat, depth for making a new key data. It is convenient to synchronize the new key data to the machine.100% Genuine XHorse..no knockoffs. Condor XC-Mini Plus has an appearance Patent Certificate, computer software copyright registration Certificate, Utility Model Patent Certificate.

Essential Tool for All Key Lost
Condor Mini Plus contains three powerful functions for all keys lost key database, cut by bitting & find bitting,
an essential tool for locksmith all key lost job easier to be completed.

Improved Manufacture Process
The aluminum main body, partially made by 304 stainless steel materials. net weight 18KG is a lightweight machine with a stable structure.
The machine used 3-Axis precision Ball screw transmission with higher accuracy & stability than T screw transmission.

Features

• Space between the cover and key is bigger than the mini condor, fit larger size keys, for XC-MINI many keys with casings like VW flip key will not allow you to close the cover.
• The new screen is designed with an adjustable angle, easier to adjust the proper viewing angle. Many time the machine is on a higher / desk and it’s then difficult to operate and see what’s on the screen.
• Mounting support – to make it easier when mounting the machine on a Mobile unit as you don’t want it flying around in the back of your VAN….
• Multiple sealing designs to avoid debris.

Xhorse Condor MINI Plus Parameter

• Working Temperature 0-50
• Humidity: 10-90%
• Working Voltage: 90-264V/AC
• Input Frequency: 47-63Hz
• Package Dimension: 450 x450x350mm
• Machine Dimension: 265 x362x301mm
• Net Weight: 18kg
• Gross Weight: 22.9kg
• Power: 200W
• USB port: 2.0
• LED Display:
• 1024×600
• Motor Rotation Speed: 9000rpm


Videos

What Our Experts Think

• Compact & Powerful: The Xhorse Condor XC-Mini Plus packs pro-level key cutting capability into a compact design—perfect for mobile locksmiths or tight workspaces.

• High-Security Ready: Easily handles high-security laser and dimple keys, making it a versatile tool for modern automotive and residential key systems.

• Intelligent Interface: Features a large touchscreen with an intuitive interface, built-in database, and step-by-step guidance—ideal for both beginners and seasoned pros.

• All-in-One Performance: Cuts standard, laser, and dimple keys without the need for external computers or additional tools.

• Built for the Field: Rugged, lightweight build with a carry handle makes it easy to transport without compromising performance.

Q&A

Q: What is the Xhorse Condor XC-Mini Plus used for?
A: The Xhorse Condor XC-Mini Plus is a high-security key cutting machine designed for duplicating and cutting automotive and residential keys with precision.

Q: Is the XC-Mini Plus compatible with modern car keys?
A: Yes, it supports a wide range of high-security automotive keys, including laser, dimple, and tibbe keys, making it ideal for locksmiths working on modern vehicles.

Q: Does it come with a touchscreen interface?
A: Yes, it features a built-in touchscreen for easy navigation, real-time updates, and guided cutting procedures.

Q: Is the Xhorse Condor XC-Mini Plus suitable for mobile use?
A: Yes, it’s compact, lightweight, and portable, making it a great choice for both in-shop and mobile locksmith services.

Maintenance Tips

• Clean Daily: Use a brush or compressed air to remove metal shavings and debris from the cutter, clamp, and working area after each use.

• Lubricate Moving Parts: Apply light lubricant to sliding rails and moving components weekly to ensure smooth motion and reduce wear.

• Check Cutter & Probe: Regularly inspect and replace the cutter and probe when worn to maintain precision cutting.

• Update Firmware: Keep the machine’s software updated via Xhorse’s official system to ensure optimal performance and new key profiles.

• Calibrate Regularly: Perform cutter and clamp calibration to ensure accurate key duplication.

• Avoid Moisture: Keep the machine in a dry, dust-free environment to prevent electronic or mechanical damage.
