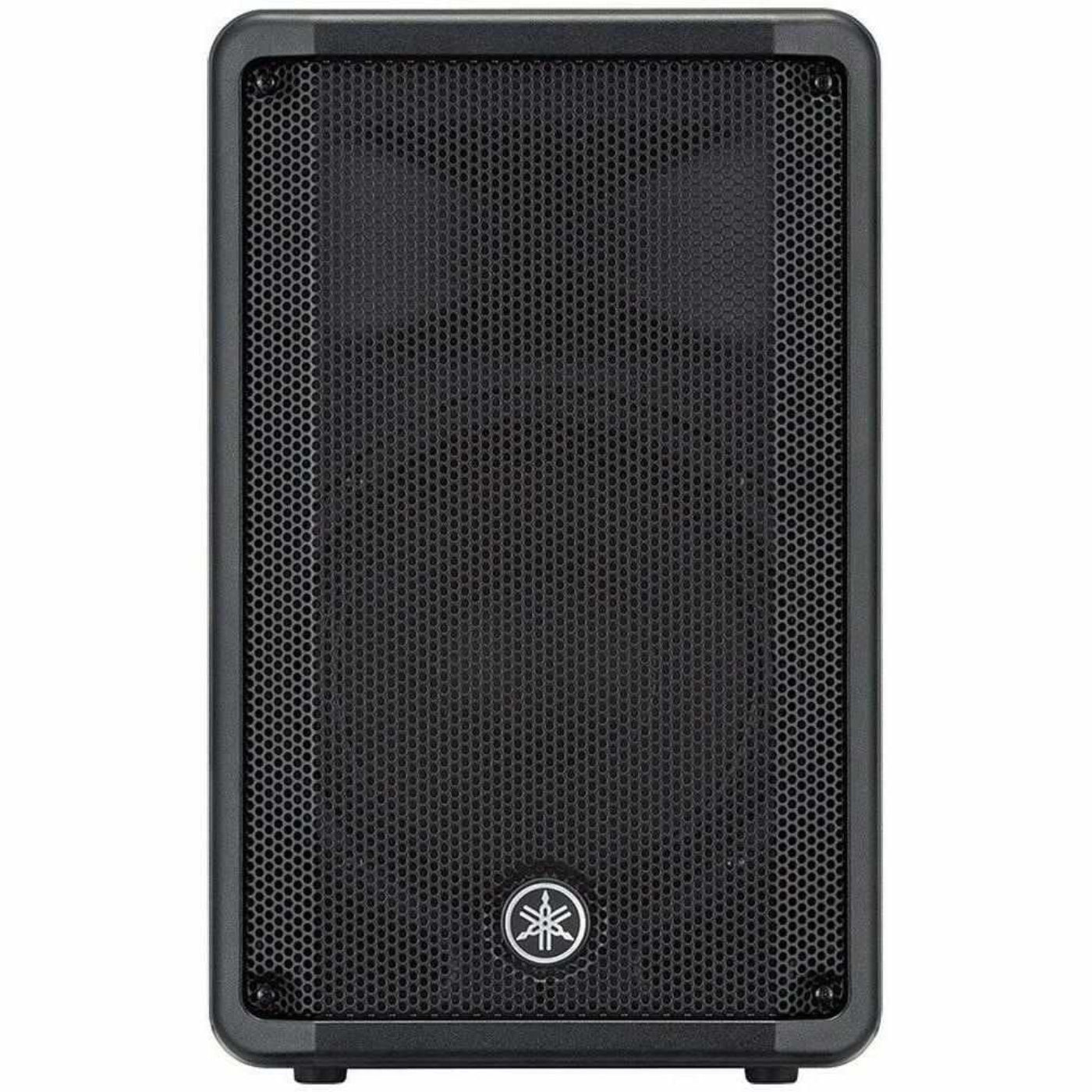

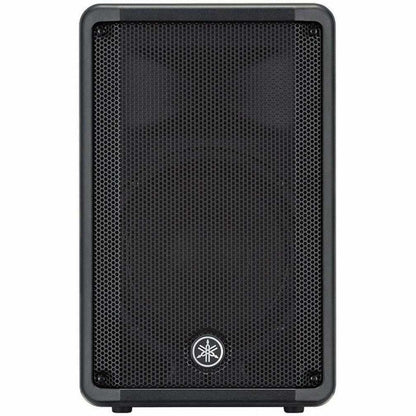

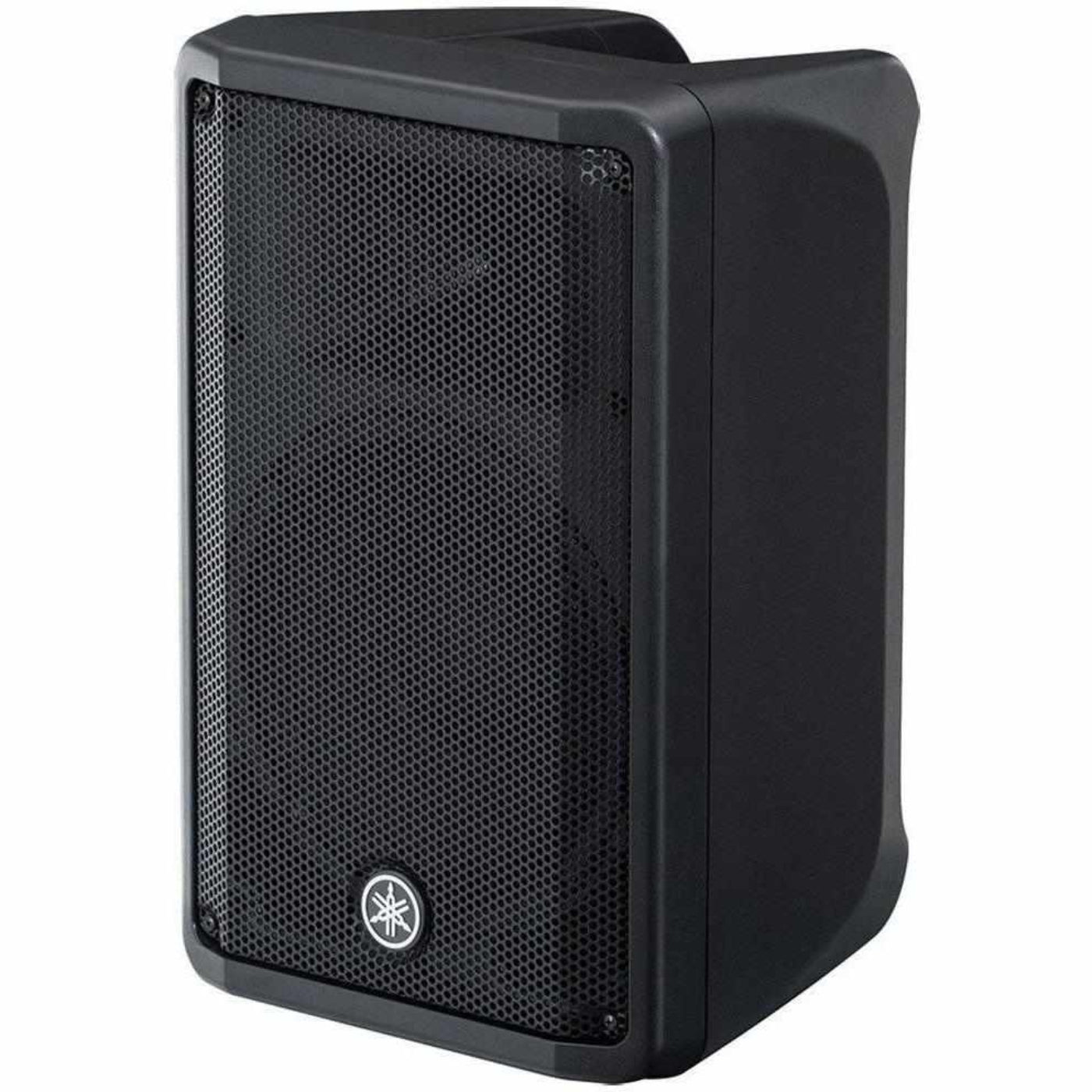

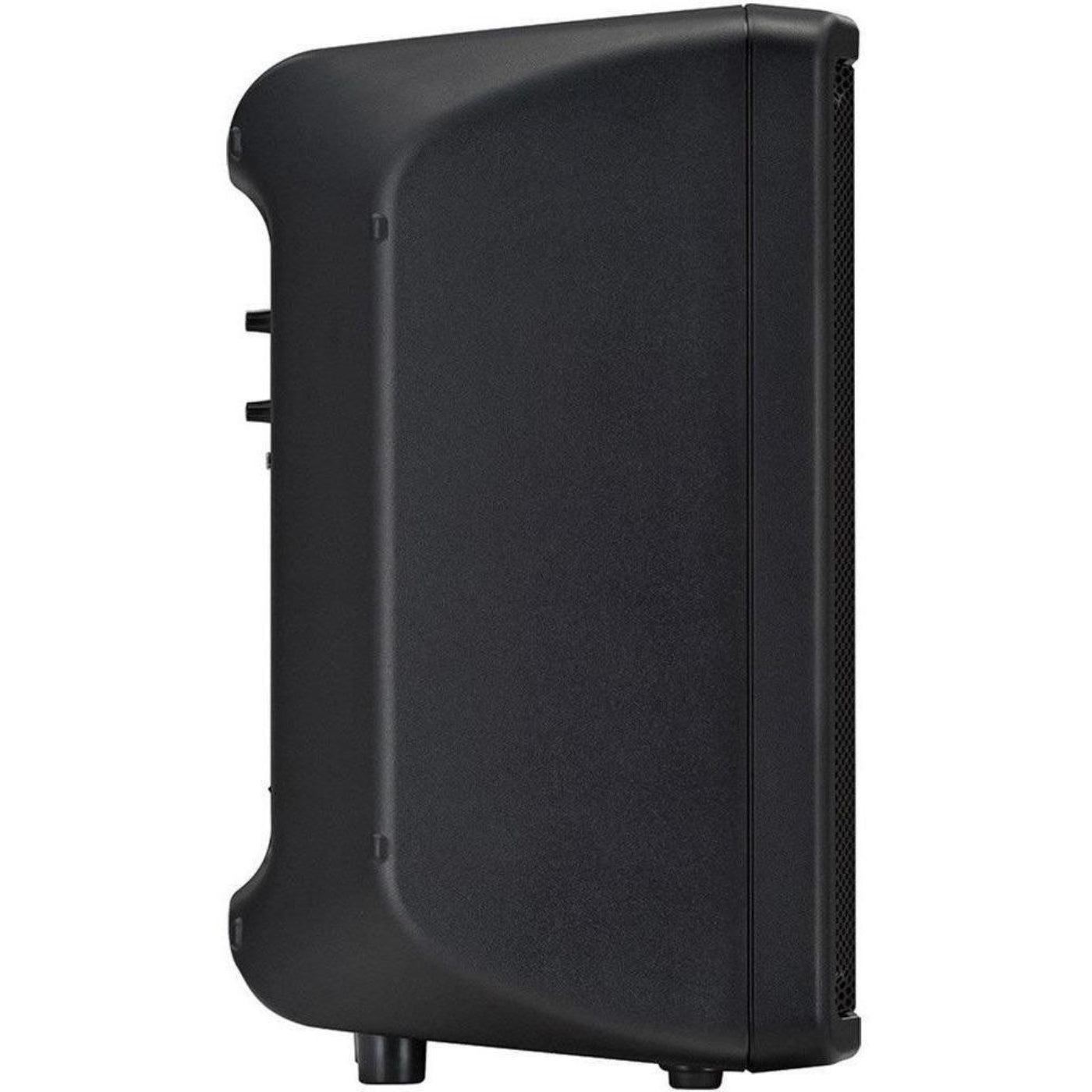

Yamaha DBR10 10" 2-Way Powered Speaker - DBR10

Yamaha DBR10 10" 2-Way Powered Speaker - DBR10

The Yamaha DBR10 powered speaker boast a newly designed, durable, lightweight cabinet optimized for FOH (front of house) sound, floor monitoring, and even rigged applications like those in large concerts. With 700 watts of output, it can be your partybox!

The high-performance Class-D amplifier in the Yamaha DBR10 active speaker can produce up to 700 watts of power, achieving an SPL of 129dB, delivered with remarkable clarity and dynamics. The high power output powered woofers deliver well-defined, powerful bass with minimal distortion, and the 1" precision compression driver produces accurate mid-range and high frequencies.

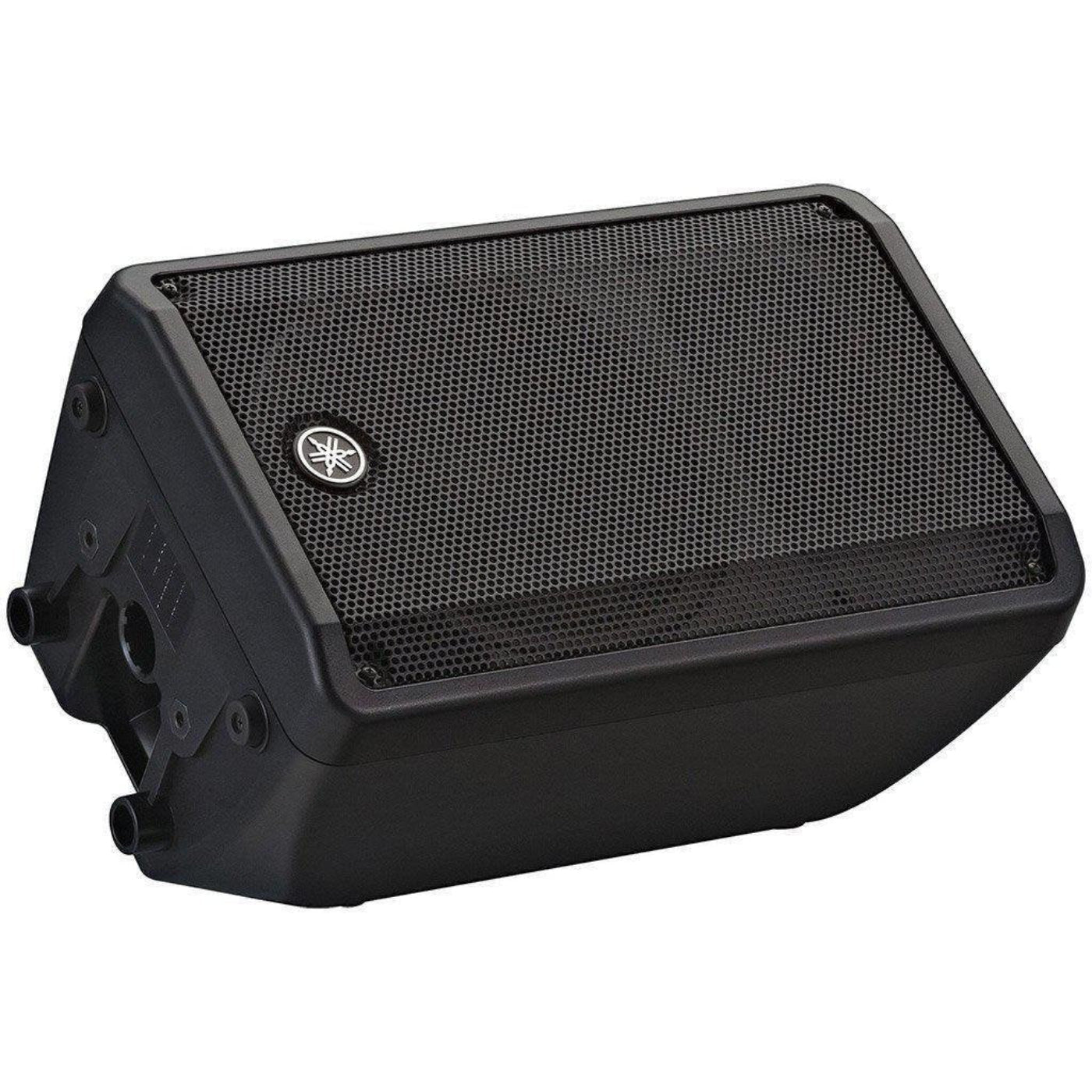

The Yamaha DBR10 powered speaker features an optimized 50° wedge angle for floor monitoring, and the symmetrical shape allows for the effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

Other important features of the DBR10 Yamaha powered speaker include two input channels with versatile input connectors, including RCA pin jacks for CD players or other stereo line-level sources; an onboard mixer for selecting either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only; M8 rigging threads, for rigged applications with optional speaker brackets or standardized eye-bolts (speaker brackets and eye-bolts are not included).

The Yamaha DBR10 active speakers have the same state-of-the-art Yamaha DSP, amplifier, and speaker technologies as the more expensive DSR and DXR Series. They deliver powerful, high-quality sound with an unmatched economy and setup time.
Call Andy’s and get yours on the way today.

When you buy from Andy's Music, you're in partnership with a NAMM Top 100 Dealer and a family business with family values. We've been Keeping The Gift of Music Alive™ since 1977.

Yamaha DBR10 Powered Speaker Specs

• Speaker type 2-way, Bi-amp powered speaker, Bass-reflex
• Frequency range (-10dB) 55Hz – 20kHz
• Nominal coverage H 90° V 60°
• Components LF Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
• HF Diaphragm:1", Type: 1" throat compression driver, Magnet: Ferrite
• Crossover 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
• Output power Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
• Maximum output level (1m; on axis) 129dB SPL

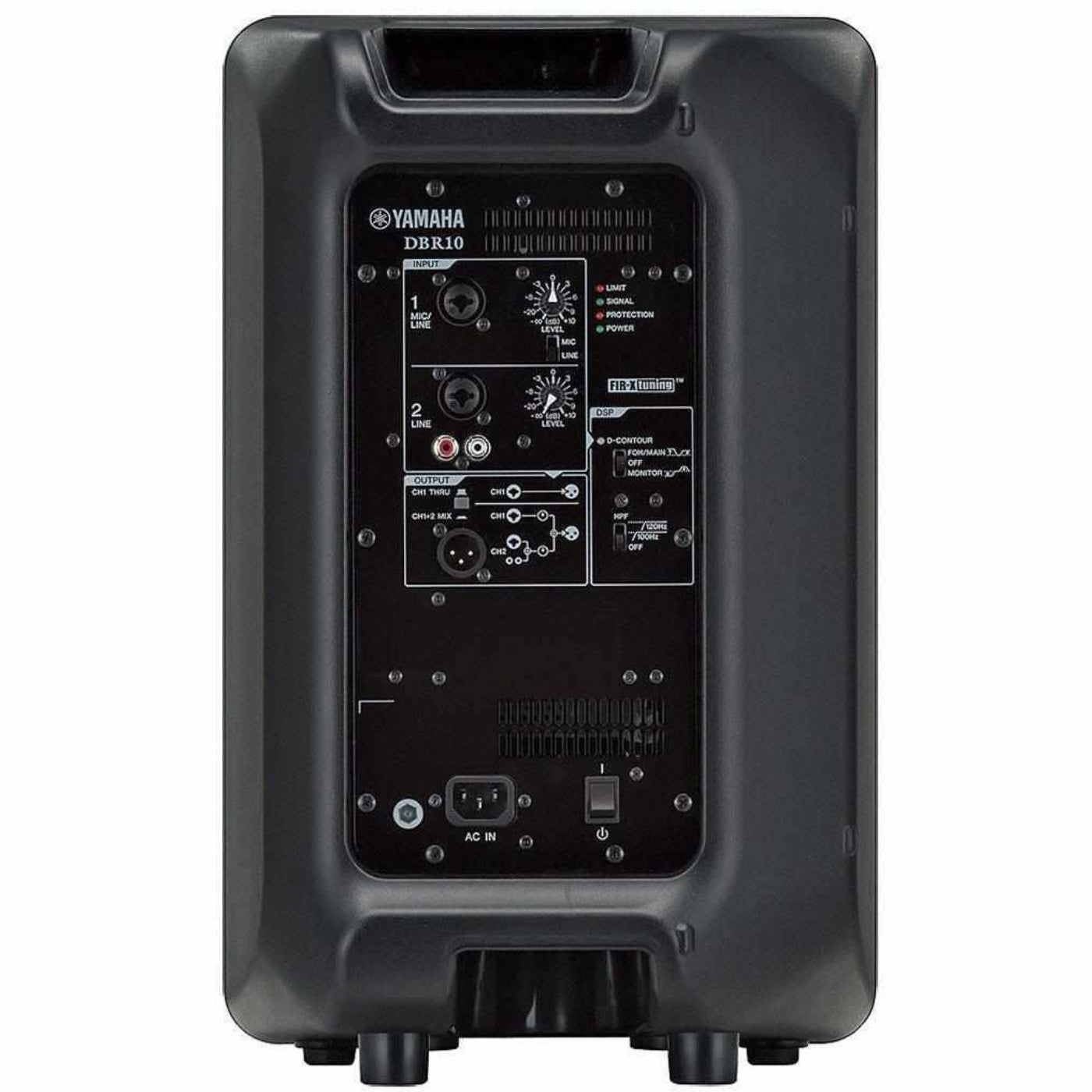

• I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
• Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
• Heat dissipation Fan cooling, 4 speeds
• Power requirements 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
• Power consumption 60W(1/8 Power Consumption), 18W(Idle)
• Cabinet material Plastic
• Finish Black
• Handle Top x 1
• Flying and mounting hardware Bottom x 2 (Fit for M8 x 15 mm eyebolts)
• Pole socket 35mm (Bottom x 1)
• Dimensions W 308mm (12.1")
• H 493mm (19.4")
• D 289mm (11.4")
• Net weight 10.5 kg (23.2 lbs)
• Accessories BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)

What Our Experts Think

• Compact & Powerful: The Yamaha DBR10 delivers 700 watts of power in a compact 10" design, making it perfect for smaller venues and portable setups.
• Clear, Detailed Sound: Features high-quality DSP processing, providing crisp, balanced audio with excellent clarity, even at high volumes.
• Lightweight & Portable: Its lightweight design makes it easy to transport, ideal for mobile DJs, musicians, and event organizers.
• Durable Construction: Built with durable materials to withstand the demands of frequent use, ensuring reliable performance.
• Versatile Performance: Multiple input options allow for easy integration with a variety of audio sources, making it a flexible choice for different events.

Q&A

Q: What is the Yamaha DBR10 10" 2-Way Powered Speaker?
A: The Yamaha DBR10 is a 10-inch 2-way powered speaker designed for delivering high-quality sound in compact and portable form. It features a built-in Class D amplifier with 700W peak power, making it ideal for small to medium-sized events, performances, and audio setups.

Q: What are the key features of the Yamaha DBR10?
A: The DBR10 includes a 10-inch woofer, 700W peak power, a Class D amplifier for efficient and powerful performance, and versatile input options such as XLR and 1/4-inch jack for easy connection to various audio sources. It is also lightweight and durable, ideal for easy transport.

Q: Is the Yamaha DBR10 suitable for live performances?
A: Yes, the DBR10 is perfect for live performances, small venues, and DJ events. Its compact size and powerful output make it an excellent choice for audio reinforcement in medium-sized spaces.

Q: Can I use the Yamaha DBR10 as a monitor speaker?
A: Yes, the DBR10 can be used as a floor monitor in live performance setups, offering clear and accurate sound in a portable format.

Q: What is the frequency response of the Yamaha DBR10?
A: The DBR10 has a frequency response of 55Hz to 20kHz, providing full-range sound reproduction for both vocals and instruments.

Q: How does the Yamaha DBR10 compare to other powered speakers?
A: The DBR10 offers a great balance of portability, power (700W peak), and sound quality at a competitive price, making it ideal for performers and venues needing a high-performance, cost-effective solution.

Maintenance Tips

• Keep the Speaker Dry: Avoid exposing the speaker to moisture or humidity. If it gets wet, immediately wipe it down with a dry, soft cloth to prevent internal damage.
• Dust Regularly: Use a soft, dry cloth or a microfiber cloth to dust the exterior and grille of the speaker. This helps maintain its appearance and ensures proper airflow to avoid overheating.
• Protect from Physical Damage: Use a protective cover or case when transporting the speaker to prevent dents, scratches, or other damage. Avoid placing heavy objects on top of it.
• Clean the Ports and Vents: Regularly check and clean the vents and ports to ensure proper airflow. Use a soft brush or compressed air to remove any dust or debris that could obstruct airflow.
• Check Cables: Inspect the power and audio cables for any signs of wear or damage. Replace any damaged cables immediately to avoid electrical issues or sound distortion.
• Avoid Overloading the Speaker: Keep an eye on the volume and power output to prevent overloading the speaker. Consistently overdriving the speaker can damage its internal components and reduce performance.
• Secure Connections: Before each use, ensure all audio and power connections are secure. Loose connections can result in poor sound quality or signal loss.
• Store Properly: Store the speaker in a cool, dry place when not in use. Avoid direct sunlight, extreme temperatures, or high humidity, which can damage the speaker’s internal components.
• Use Proper Power Source: Ensure you're using the correct power supply and voltage for the speaker. Using the wrong power source can cause internal damage to the speaker’s electronics.
• Servicing and Inspection: Have the speaker inspected and serviced by a professional if you notice issues such as distortion, low output, or power problems. Timely servicing can help extend the life of the speaker.
