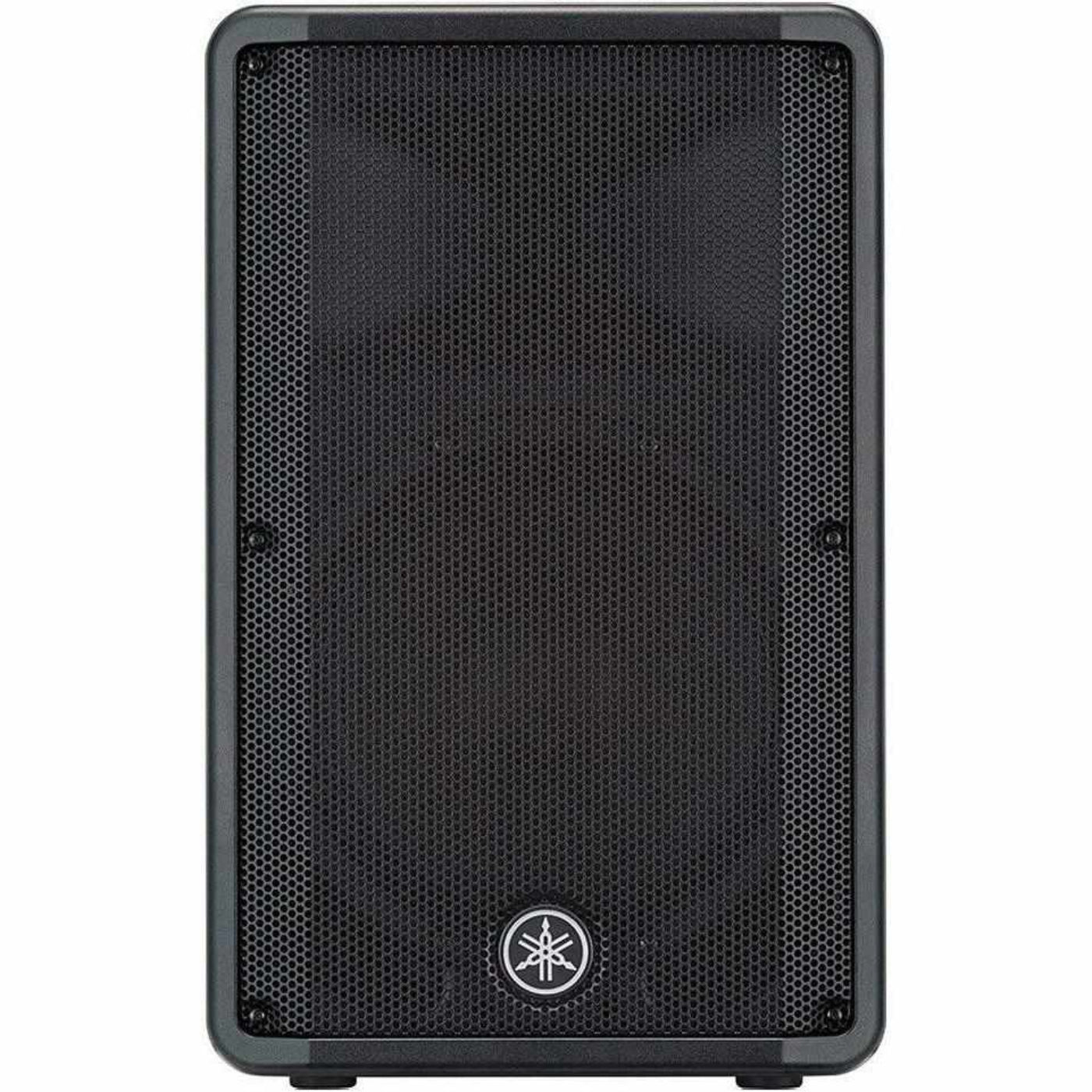

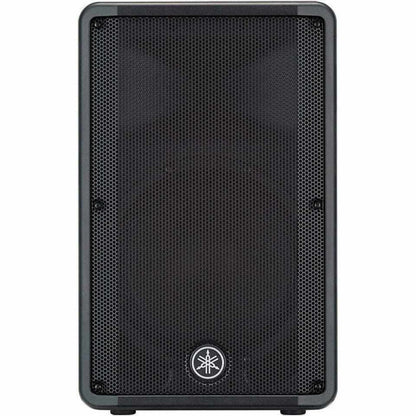

Yamaha DBR12 12" 2-Way Powered Speaker - DBR12

Yamaha DBR12 12" 2-Way Powered Speaker - DBR12

The Yamaha DBR12 is a 2-way, bi-amped powered loudspeaker with a newly designed, durable, lightweight cabinet optimized for FOH (front of house) sound, floor-monitoring, and even rigged applications like those seen in large concerts. With 1000 watts of output, it gives you the power to play!

The high-performance Class-D amplifier in the DBR12 can produce up to 1000 watts of power, achieving an SPL of 131dB, delivered with remarkable clarity and dynamics. The high power output woofers deliver well-defined, powerful bass with minimal distortion, and the 1.4" precision compression driver produces accurate mid-range and high frequencies.

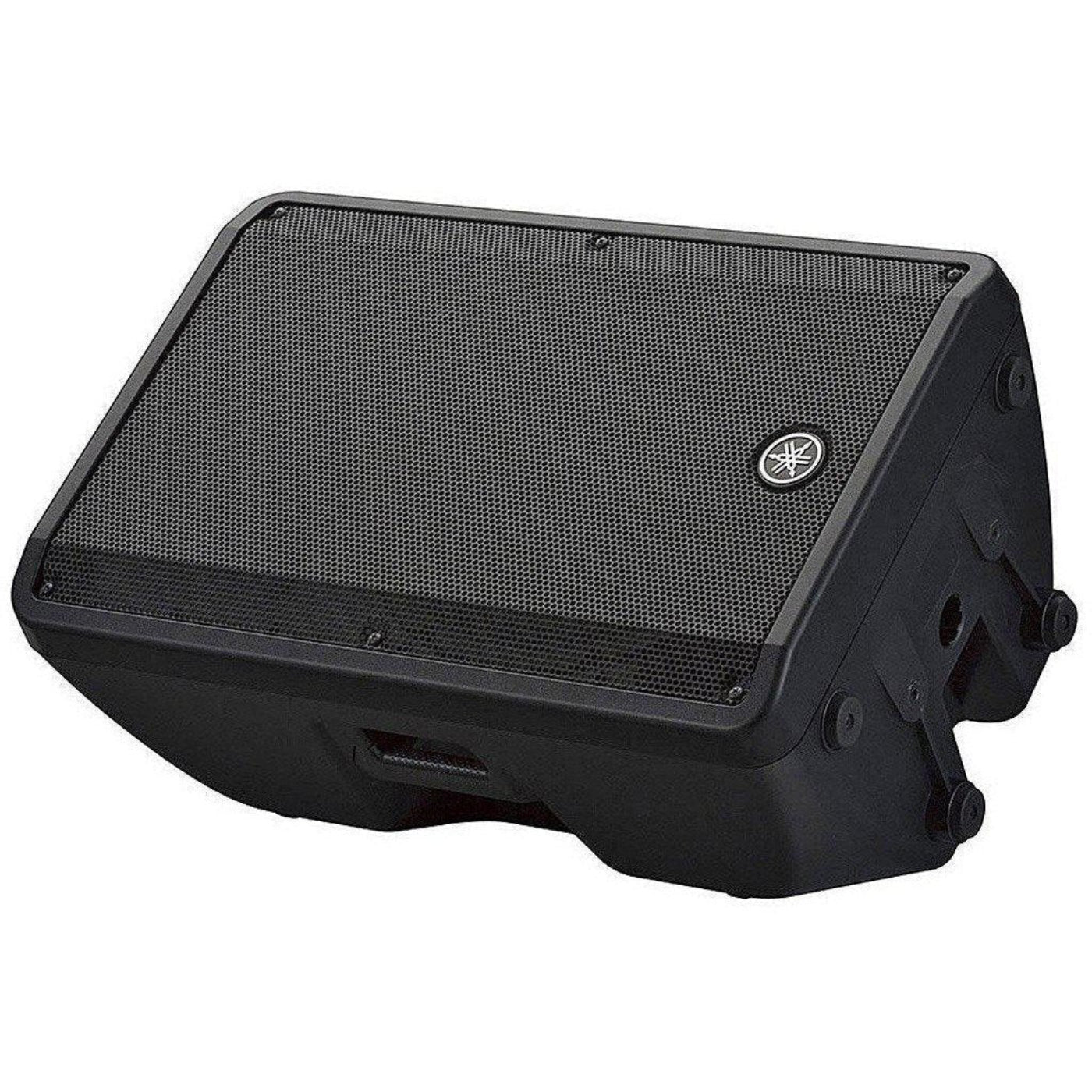

The Yamaha DBR12 powered speaker features an optimized 50°wedge angle for floor monitoring, and the symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

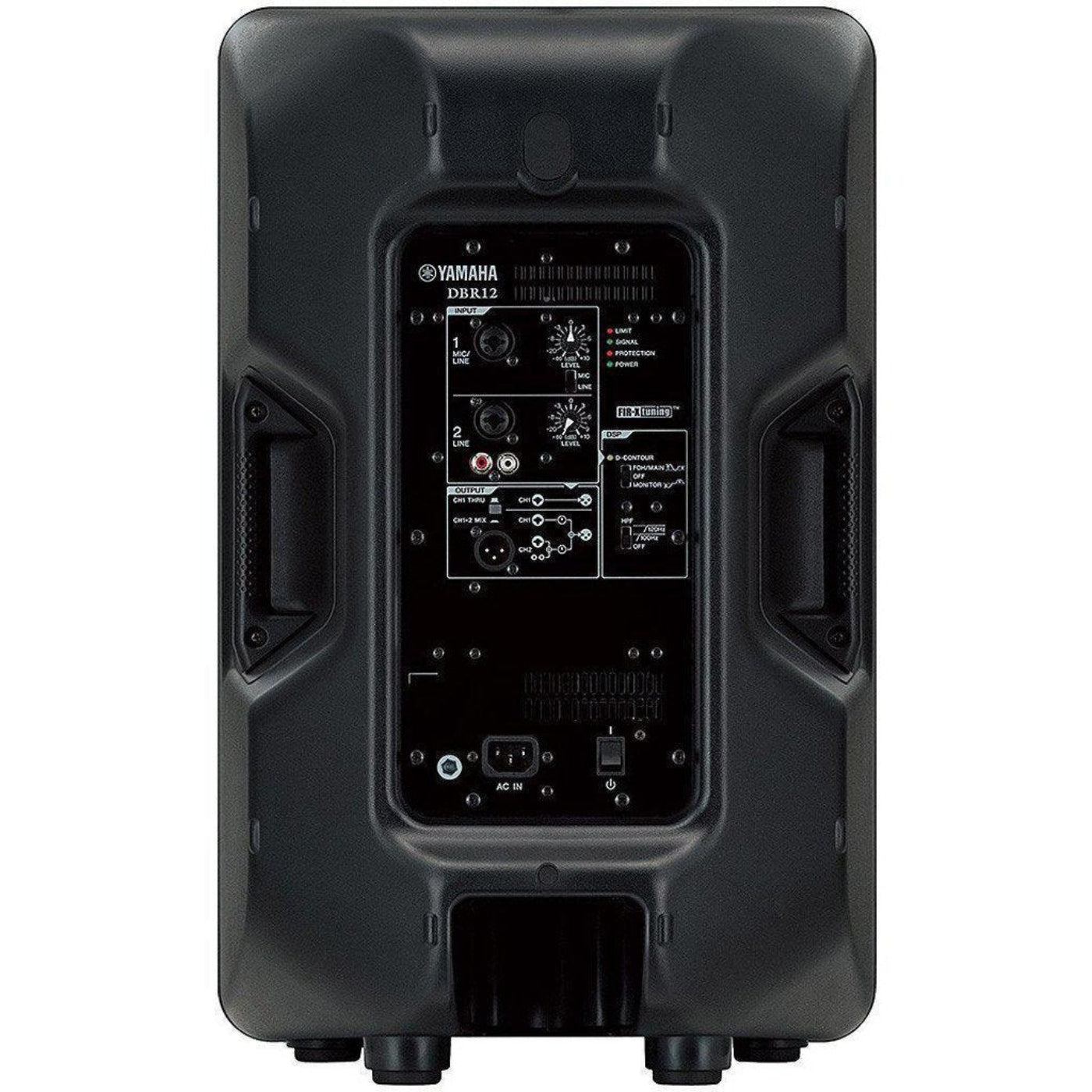

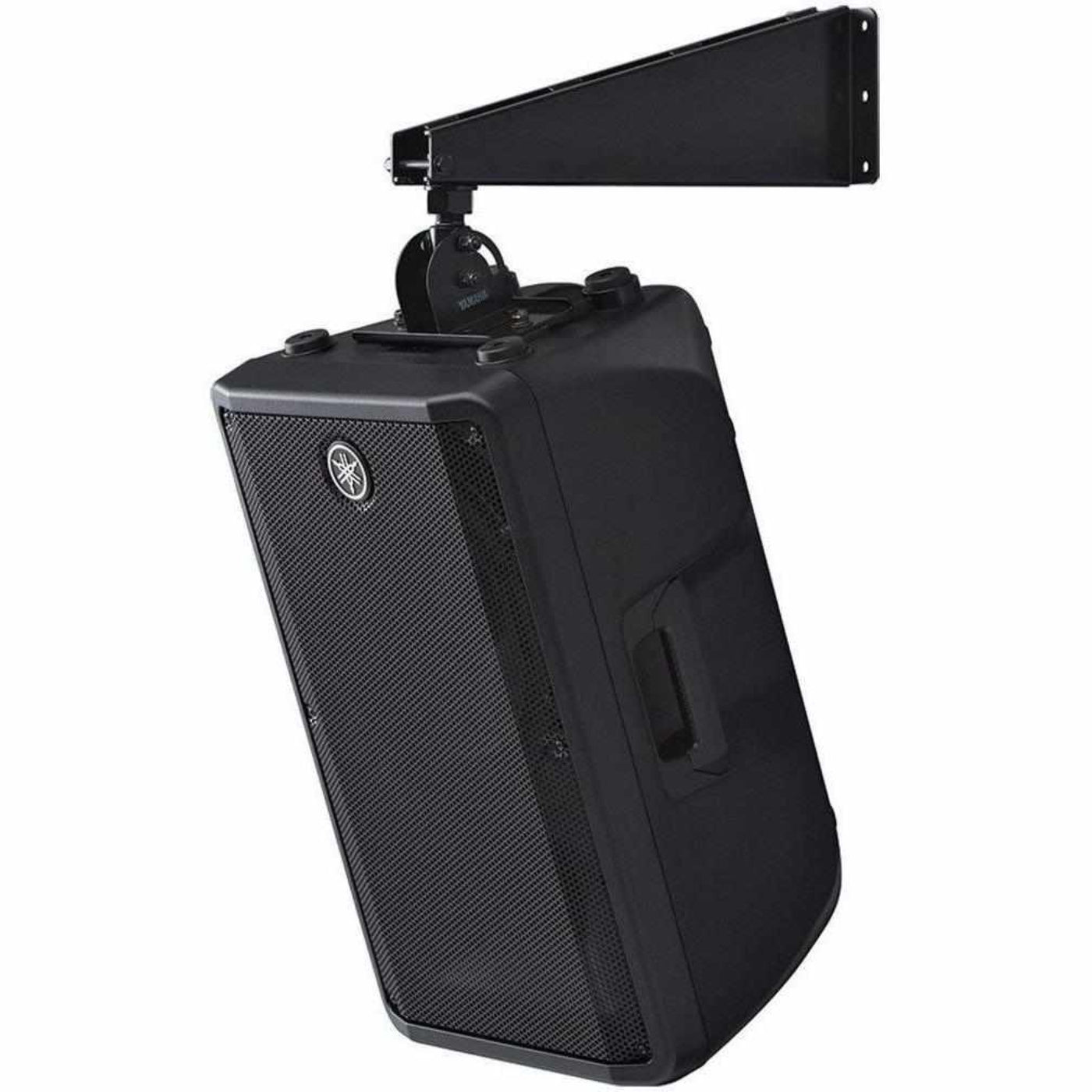

Other important features of the DBR12 include 1000 watts output power; two input channels with versatile input connectors, including RCA pin jacks for CD players or other stereo line-level sources; onboard mixer for selecting either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only; M8 rigging threads, for rigged applications with optional speaker brackets or standardized eye-bolts (speaker brackets and eye-bolts are not included).

The Yamaha DBR-powered speakers have the same state-of-the-art Yamaha DSP, amplifier, and speaker technologies as the more expensive DSR and DXR Series. They deliver powerful, high-quality sound with an unmatched economy and setup time.

Andy's Music, a NAMM TOP 100 Dealer, has been an authorized Yamaha dealer continuously since 1977 and is one of the few dealers in the U.S. that sells all Yamaha music products. If you have questions about a Yamaha product, please give us a call. Family-owned and operated since 1977.

YAMAHA DBR12 Active Speaker Specs

• 2-way, Bi-amp powered speaker, Bass-reflex type
• High-Efficiency 1000W Class-D Amplifiers
• Custom Designed Speakers

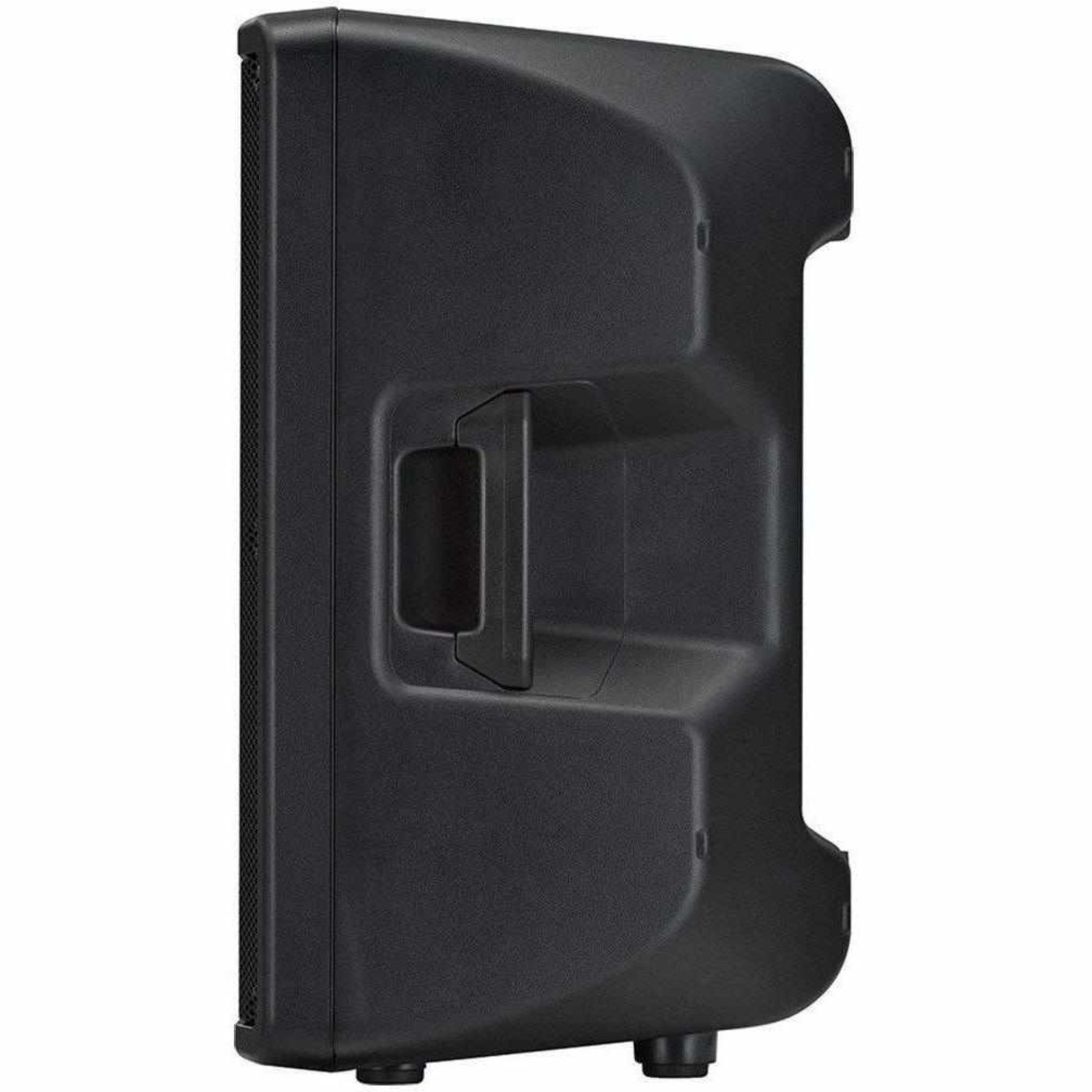

• Rugged & Portable Cabinet
• Smart Enclosure Design for Floor Monitoring
• Built-In 2-Channel Mixer
• 52Hz-20kHz frequency response
• 12" cone, Voice Coil:2", Ferrite magnet
• 1.4", Type: 1" throat compression driver, Ferrite magnet
• Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
• Dynamic: 1000 Watts (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
• 131dB SPL
• 4-speed fan
• Weight: 34.8 lbs.
• Dimensions: 14.8" W x 23.7" H x 13.7" D
• Rigging Points for Installation Applications
• Optional Functional Speaker Cover

What Our Experts Think

• Perfect for Beginners: The Yamaha YVN003 student violin offers a great balance of quality and affordability, making it ideal for new players.
• Warm, Rich Sound: Designed with a solid spruce top and maple back and sides, it delivers a resonant, clear tone to aid in developing technique.
• Durable & Reliable: Built with sturdy materials, this violin withstands the rigors of practice and learning, offering long-lasting performance.
• Complete Set: Comes with a case and bow, providing everything a student needs to get started on their musical journey.
• Easy Playability: The well-crafted fingerboard and smooth finish make it comfortable to play, helping beginners progress with ease.

Q&A

Q: What is the Yamaha DBR12 12" 2-Way Powered Speaker?
A: The Yamaha DBR12 is a 12-inch 2-way powered speaker that delivers clear, high-quality sound with 1000W peak power. It is designed for live sound reinforcement, offering great portability and durability for various performance settings.

Q: What are the key features of the Yamaha DBR12?
A: The DBR12 features a 12-inch woofer, 1000W peak power, and a Class D amplifier for efficient sound output. It has multiple input options (XLR, 1/4-inch jack), a lightweight yet sturdy construction, and a wide frequency response (55Hz - 20kHz), making it ideal for a range of audio applications.

Q: Is the Yamaha DBR12 suitable for live performances?
A: Yes, the DBR12 is perfect for live performances, offering powerful sound projection and clarity for medium to large-sized events, concerts, and DJ setups.

Q: Can I use the Yamaha DBR12 outdoors?
A: Yes, the DBR12 is designed to be versatile enough for both indoor and outdoor use, providing clear and reliable sound even in outdoor environments.

Q: What is the frequency response of the Yamaha DBR12?
A: The DBR12 has a frequency response of 55Hz to 20kHz, providing a full range of sound suitable for vocals, instruments, and recorded tracks.

Q: How does the Yamaha DBR12 compare to other powered speakers?
A: The DBR12 offers a good balance of power (1000W peak) and portability in its class, making it an excellent choice for users who need high-quality sound and convenience in a compact form.

Q: What is the warranty on the Yamaha DBR12?
A: The Yamaha DBR12 comes with a manufacturer’s warranty, ensuring customer support and coverage for your powered speaker.

Maintenance Tips

• Keep It Clean: Regularly dust the speaker with a soft, dry cloth to remove dirt and debris. Avoid using abrasive materials that could scratch the surface.
• Protect the Speaker from Moisture: Keep the speaker away from moisture and humidity. If it gets wet, immediately dry it off with a soft cloth to avoid internal damage.
• Store Properly: When not in use, store the speaker in a cool, dry area. If you need to transport it, use a padded cover or speaker bag to protect it from impacts and scratches.
• Avoid Overloading: Don't push the speaker beyond its power rating. Excessive volume or distortion can damage the internal components over time.
• Check the Cables and Connections: Inspect your speaker cables and connections regularly to ensure they’re secure and free from fraying. Replace any damaged cables immediately to prevent signal issues.
• Handle with Care: Always lift and move the speaker carefully. Avoid dropping or knocking it, as physical impact can cause internal damage or affect the sound quality.
• Ventilation: Ensure the speaker has adequate airflow to avoid overheating. Never block the vents or place the speaker in an area where heat can build up.
• Keep the Amplifier Cool: If your speaker has a built-in amplifier, make sure it has proper ventilation to prevent overheating. Avoid placing the speaker in direct sunlight or near heat sources.
• Regularly Check for Dust and Debris in Ports: Inspect the speaker's input/output ports for any dirt, dust, or debris that could affect the sound quality or connections.
• Periodic Professional Checkups: If you notice any issues with the sound quality or performance, consider taking the speaker to a professional technician for servicing or calibration.
