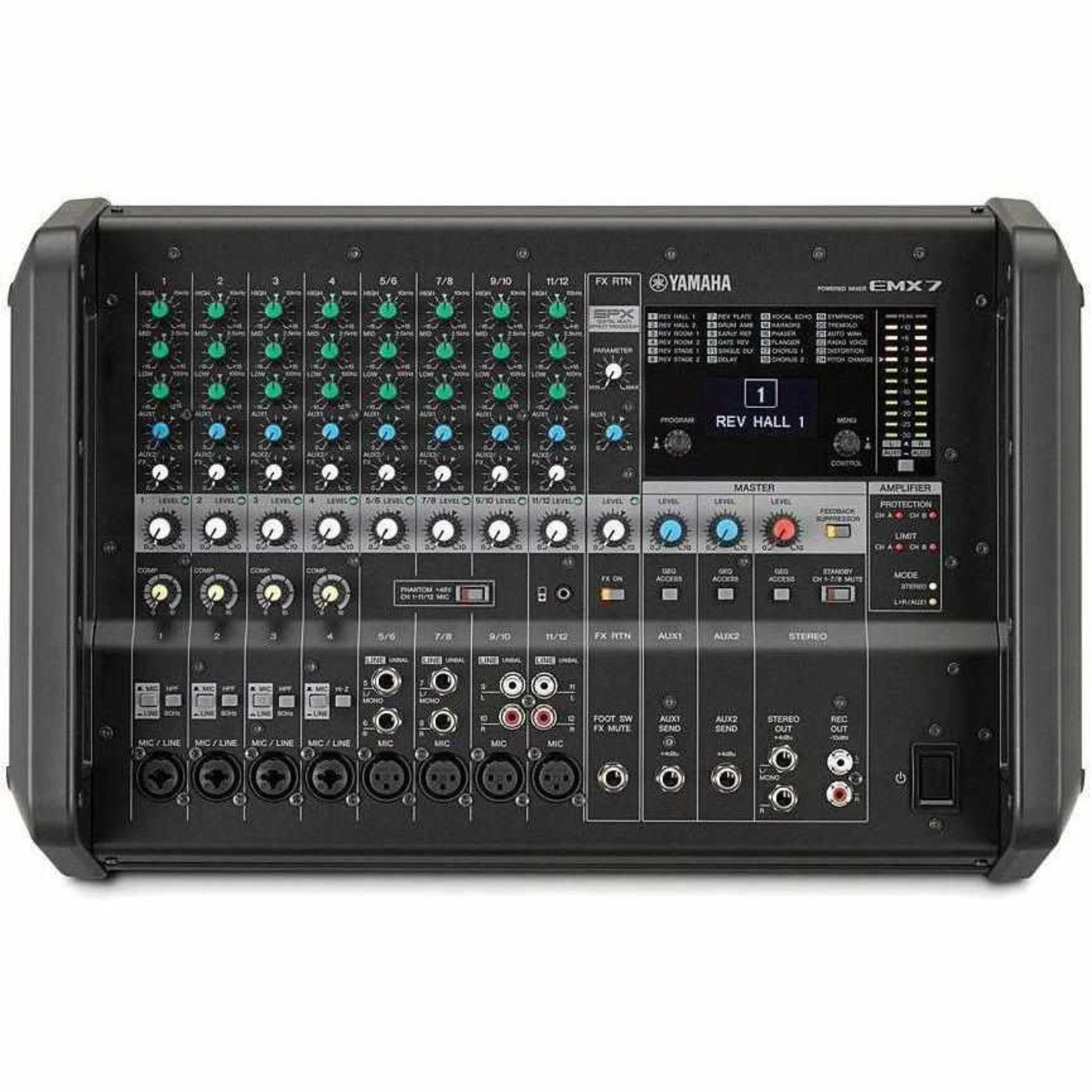

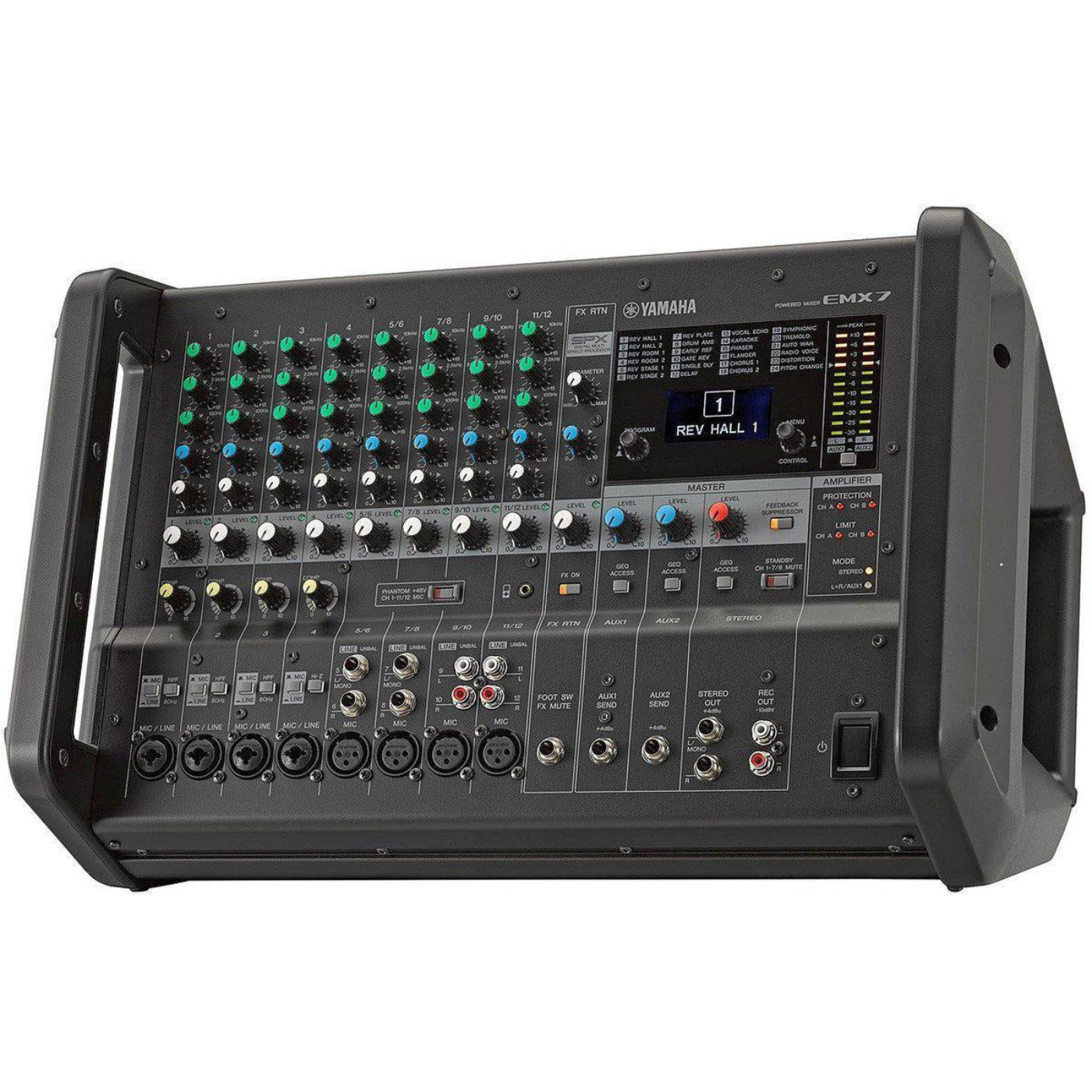

Yamaha EMX7 710 Watt Stereo Powered Mixer - EMX7

Yamaha EMX7 710 Watt Stereo Powered Mixer - EMX7

The EMX-7 features a built-in high-efficiency power amplifier of 710 watts of output power per side. Despite its low power consumption, it is capable of very high output volume, yet is surprisingly lightweight.

The sturdy and portable design of the Yamaha EMX7 mixer features an impact-resistant, powder-coated metal chassis built for extended operation and road use. Large handles on the front and back of the enclosure make it extremely portable and also help to protect knobs and terminals on the surface of the chassis from impact or pressure during transport.

COMPREHENSIVE INPUTS/OUTPUTS
The EMX7 is equipped with four mono input channels and four mono/stereo input channels. You can connect up to 8 microphones and line-level devices like keyboards and other instruments. Channel 4 can be used with Hi-Z inputs to connect guitars or basses directly. Other features included: 2 AUX SEND connections for a monitoring system or external effect devices, REC OUT unbalanced RCA pin output jacks to connect an external recorder and STEREO OUT TRS phone jacks to output the mixed stereo signal.

FEEDBACK SUPPRESSION
The EMX 7 comes equipped with a Feedback Suppressor that uses an exclusive Yamaha digital technology to instantly eliminate annoying feedback with the single switch of a button.

1 KNOB COMPRESSION & GRAPHIC EQ
The 1-knob COMP function is a single control that provides optimal compression for vocals and instruments. As the [COMP] control is turned to the right, the threshold, ratio, and output gain are adjusted simultaneously.

Flex 9 Graphic Equalizer is equipped with a Flex-type graphic equalizer (Flex9GEQ) that allows you to select up to nine bands out of a total of 31 for fine-tuning ±15 dB.

PRESET SPEAKER OPTIMIZATION
The speaker processor function allows you to select an appropriate setting to match the speakers you’re using. It features presets specifically tuned for each model in Yamaha’s passive speakers, including CBR, Club, A, and R series. This allows you to save time during system setup while optimizing speaker performance. A bass boost function is also available to significantly boost bass frequencies.

RENOWNED DIGITAL EFFECTS
The EMX7 has comprehensive digital effects - in the same league as the famous Yamaha SPX effects - that provide 24 different professional effects. You can add reverb and delay effects that simulate the sound of different performance environments, like small clubs and auditoriums.

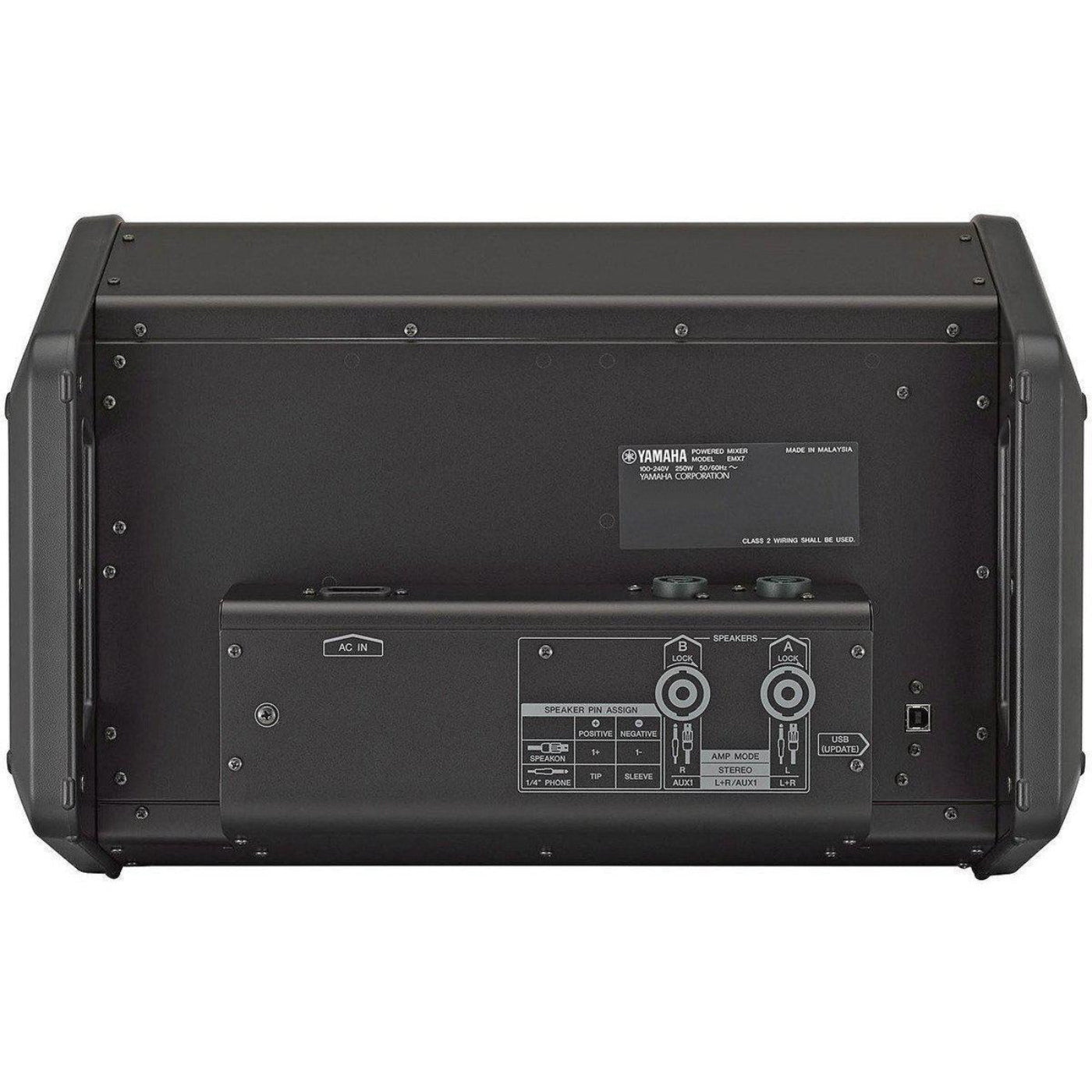

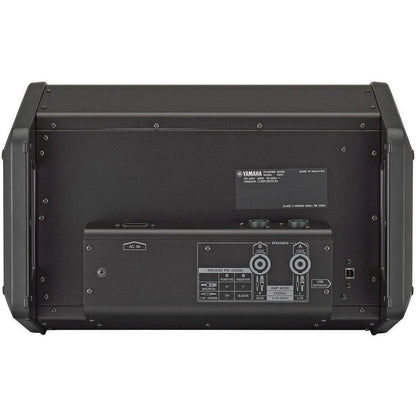

The EMX7 powered mixer can be mounted onto a 19-inch rack by using the optional RK-EMX7 rack-mount kit. It is also equipped with speaker jacks that can be used with both TS phone and speakON plugs.

A highly efficient internal universal power supply offers worry-free operation in any region around the world, even in environments prone to potentially damaging power fluctuations. An internal power supply also simplifies rack mounting of the console for installed applications, eliminating the need for additional connections.

Andy's Music has been selected by NAMM (National Assoc. Music Merchants), as a TOP 100 Dealer six times since 2011, and has been an authorized Yamaha dealer continuously since 1977. Andy's is one of the few dealers in the U.S. that sells all Yamaha music products. If you have questions about a Yamaha product, please give us a call. Family-owned and operated since 1977.

Yamaha EMX7 Powered Mixer Specs

• 2 x 710W @ 4 ohms, (1kHz THD+N less than 10% CEA2006)

• Powerful & High-Efficiency Class-D Amplifier
• 12 Line Inputs (8 mono + 4 stereo)
• High-Z input (channel 4) to connect guitars or basses directly
• Flex 9 Graphic Equalizer
• Onboard Feedback Suppressor
• Comprehensive, professional 24 different effects
• Yamaha Speaker presets
• Metal chassis for extended operation and robustness
• Large handles for extreme portability and protection
• Universal power supply eliminates concern about power fluctuations
• Optional rack-mount kit available

Video

What Our Experts Think

• Powerful Performance: 710 watts of stereo power ensure clear, consistent sound for both small and medium-sized venues.
• Built-In Effects: Features high-quality reverb, EQ, and compression effects for enhanced audio control and custom sound shaping.
• User-Friendly Interface: Intuitive layout with easy-to-adjust knobs and a color LCD display for quick adjustments during live performances.
• Rugged & Reliable: Durable construction designed to withstand the demands of live events and touring.
• Versatile Connectivity: Multiple input/output options, including XLR, line, and AUX inputs, to accommodate various audio setups.
• Integrated Mixer & Amp: Combines a mixer and power amplifier in one compact unit, simplifying transport and setup.

Q&A

Q: What are the key features of the Yamaha EMX7?
A: The EMX7 features 710 watts of power, 10 input channels, onboard digital effects, built-in USB audio recording and playback, and a rugged, lightweight design, making it ideal for live sound applications.

Q: Is the Yamaha EMX7 suitable for live performances?
A: Yes, the EMX7 is designed for live sound applications, providing ample power, high-quality sound processing, and easy portability for concerts, events, and rehearsals.

Q: How does the onboard digital effects processor improve sound?
A: The built-in effects processor offers a variety of reverb, delay, and modulation effects, allowing for customized sound shaping without the need for external gear.

Q: Does the EMX7 have enough power for larger events?
A: Yes, with 710 watts of power, the EMX7 is capable of driving most PA systems, providing clear, balanced sound for mid-sized to large venues.

Q: Can I record or play back audio using the EMX7?
A: Yes, the EMX7 includes a USB port for easy audio recording and playback, allowing you to record performances or playback music directly through the mixer.

Q: Is the EMX7 easy to transport?
A: Yes, the EMX7 is lightweight and compact, designed for easy portability while maintaining durability for frequent use on the go.

Maintenance Tips

• Regular Cleaning: Use a soft, dry cloth to wipe the exterior of the mixer. Avoid using harsh chemicals or abrasive materials that could damage the surface.
• Ventilation: Ensure that the mixer has proper ventilation during use to prevent overheating. Keep air vents clear of dust and obstructions.
• Connections: Regularly check all input/output connections for wear or damage. Ensure all cables are securely plugged in and in good condition.
• Keep Dry: Protect the mixer from moisture. Avoid using it in high-humidity environments and ensure it stays dry when in storage or use.
• Protective Case: When not in use, store the mixer in a protective case to avoid physical damage and exposure to dust or dirt.
• Check for Firmware Updates: Keep an eye out for any available firmware updates from Yamaha, as these can help improve the functionality of your mixer.
• Professional Servicing: Have your mixer professionally inspected periodically for any internal issues, ensuring it functions optimally.
