Yamaha PX Series Stereo Power Amplifiers - PX3, PX5, PX8

Yamaha PX Series Stereo Power Amplifiers - PX3, PX5, PX8

The Yamaha PX amplifiers are the newest members of Yamaha’s legendary power amplifier line that began in 1976. It is driven by a newly developed Class-D amplifier that delivers maximum output power with optimized digital processing.

The Yamaha PX series concentrates all the necessary operating functions into a single custom LSI chip that provides a higher output and improved performance in a light and dependable design. It provides reliable protection and excellent sound quality suitable for any sound reinforcement application.

There are several models to choose from:

• Yamaha PX3 2x 300W at 8Ω or 2x 500W at 4Ω
• Yamaha PX5 2x 500W at 8Ω or 2x 800W at 4Ω
• Yamaha PX8 2x 800W at 8Ω or 2x 1050W at 4Ω

Both basic and advanced setup modes are offered in the PX series. The Basic mode allows inexperienced users to easily configure a system, while the Advanced mode offers more precise control over every aspect of your sound settings. Eight programmable presets provide instant recall and reduce setup time, and can also be saved to a USB thumb drive and applied to other PX amplifiers.

The Config Wizard is a very useful feature that optimizes speaker settings to match your system configuration. Just select the appropriate filter and crossover for each speaker, and Config Wizard will do the rest. Config Wizard presets are tuned for each model in Yamaha’s speakers, including the CBR, Club, Installation, and VXS/VXC series. There is also an advanced mode that allows a more detailed configuration of parameters for input routing, input sensitivity, amp gain, and speaker impedance.

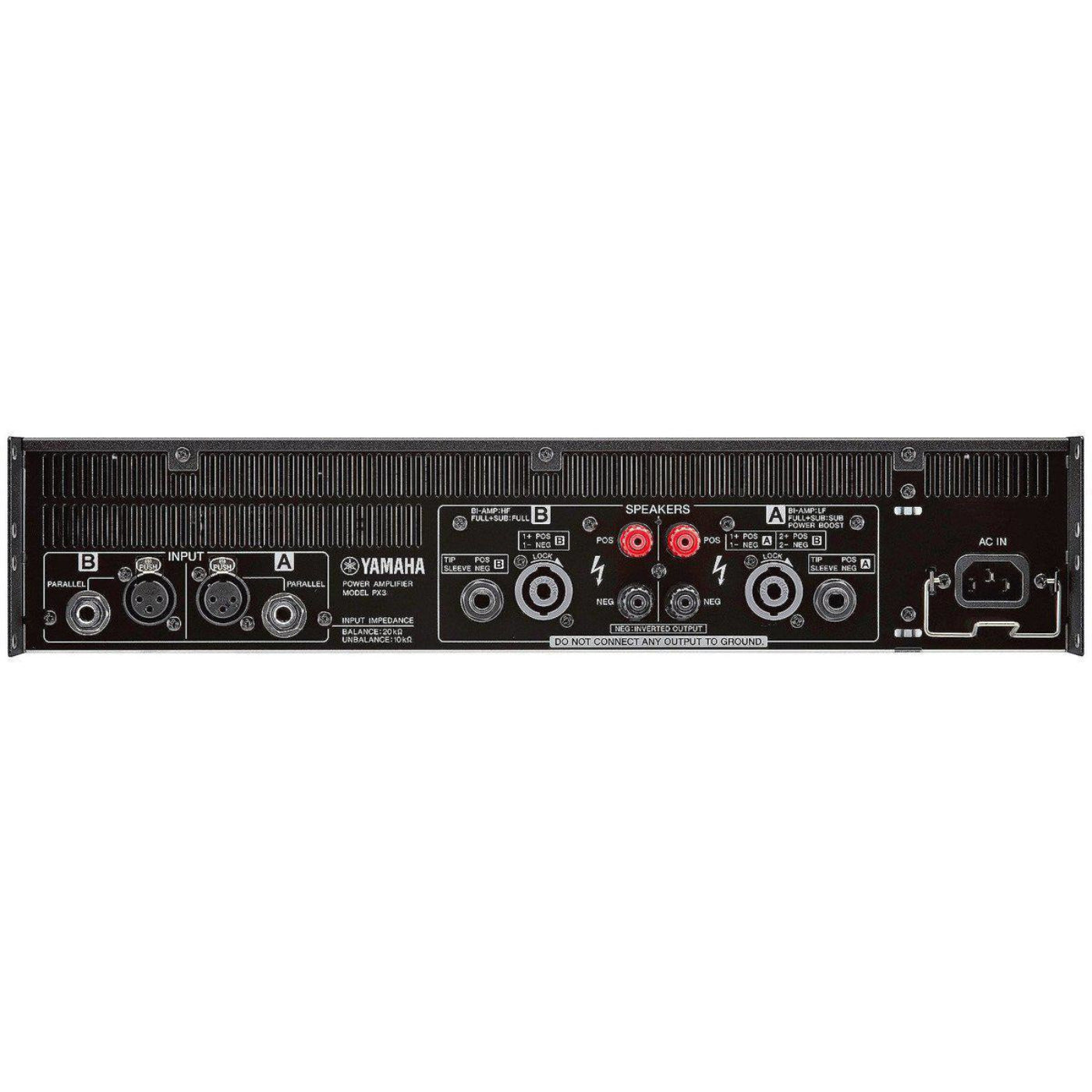

The output section of the PX Series has both XLR and TRS inputs, binding posts, SpeakON, and phone outputs. This provides you with the flexibility needed for a variety of environments, and the durability to stand up to extended road use, thanks to the sturdy chassis and carrying handle design.

The Yamaha PX3 power amplifier delivers performance, versatility, reliability, and affordability that make it a “must-have” in your pro audio setup. Get it from Andy’s Music, a NAMM Top 100 Dealer, and you have a winning combination that’s difficult to match. Sales and service since 1977.

Yamaha PX Series Amplifier Specs

• Dual-channel
• Lightweight Class-D design
• Built-in DSP
• 2 rack spaces
• Line inputs: XLR-3-31 x 2, 1/4 "PHONE (TRS) x 2
• I/O: USB 2.0 Standard-A Connector (Female) for Save/Load, Speaker preset update, Firmware update with USB memory; AC inlet x1 with AC cord clamp
• Speaker out: Neutrik speakON NL4 x2, Binding post x 2 pairs, 1/4" PHONE (TS) x 2
• Frequency response: ±1.0dB (1W, 8Ω, 20Hz to 20kHz)
• A newly developed Class-D amplifier engine with a custom LSI
• Flexible user setup
• Onboard PEQ, crossover, filters, delay, and limiter
• Yamaha Speaker presets
• Utilities for safe and secure operation
• Smart configuration wizard
• Legendary build and sound quality

What Our Experts Think

• Powerful Performance: PX series amplifiers deliver high output power (300W, 500W, and 800W models) for excellent sound clarity and strong performance in demanding environments.
• Advanced DSP: Equipped with sophisticated digital signal processing for optimal sound quality and customizable EQ settings.
• Efficient Cooling: Designed with advanced cooling technology to prevent overheating, ensuring long-lasting, reliable performance.
• User-Friendly Interface: Intuitive controls and LCD display for easy setup and monitoring of performance.
• Versatile Connectivity: Multiple input and output options, including XLR and TRS, allowing compatibility with a wide range of audio systems.
• Durable & Reliable: Built with rugged construction to withstand both touring and permanent installations.

Q&A

Q: What are the key features of the Yamaha PX Series Power Amplifiers?
A: The PX Series includes the PX3, PX5, and PX8 models, featuring efficient Class-D technology, advanced DSP for customizable sound, network control via the Yamaha PX Controller app, and multiple input/output options for versatile audio setups.

Q: What’s the difference between the PX3, PX5, and PX8 models?
A: The PX3 delivers 300W per channel, the PX5 offers 500W per channel, and the PX8 provides 800W per channel, offering varying power levels to suit different sound reinforcement needs.

Q: Are the PX amplifiers suitable for live sound applications?
A: Yes, the PX Series is designed for professional live sound environments, providing reliable, powerful amplification for events, concerts, and installations.

Q: Can I control the PX amplifiers remotely?
A: Yes, you can control the PX amplifiers via the Yamaha PX Controller app, allowing for easy monitoring and adjustment from a mobile device.

Q: Are the PX amplifiers energy-efficient?
A: Yes, the PX Series uses Class-D amplification technology, which is energy-efficient while delivering high output power.

Q: Do the PX amplifiers have protection features?
A: Yes, they feature built-in protection circuits to safeguard against overheating, overload, and short-circuit situations, ensuring reliable performance.

Maintenance Tips

• Regular Cleaning: Use a soft cloth to wipe down the amplifier, removing dust and dirt from the vents, knobs, and surface. Avoid using harsh chemicals or abrasive cleaners.
• Ventilation: Ensure the amplifier has proper ventilation to prevent overheating. Keep air vents clear of obstructions, and avoid stacking other equipment on top.
• Proper Storage: Store the amplifier in a dry, cool place to avoid moisture damage. If transporting, use a padded case to prevent physical damage.
• Cable Management: Check cables and connections regularly for wear and ensure they are properly connected to avoid signal loss or damage to the amplifier.
• Avoid Overloading: Do not exceed the recommended output levels to prevent damage to both the amplifier and connected speakers.
• Cooling: For models with cooling fans, ensure the fan is working properly. If the fan is noisy or not functioning, consider professional servicing.
