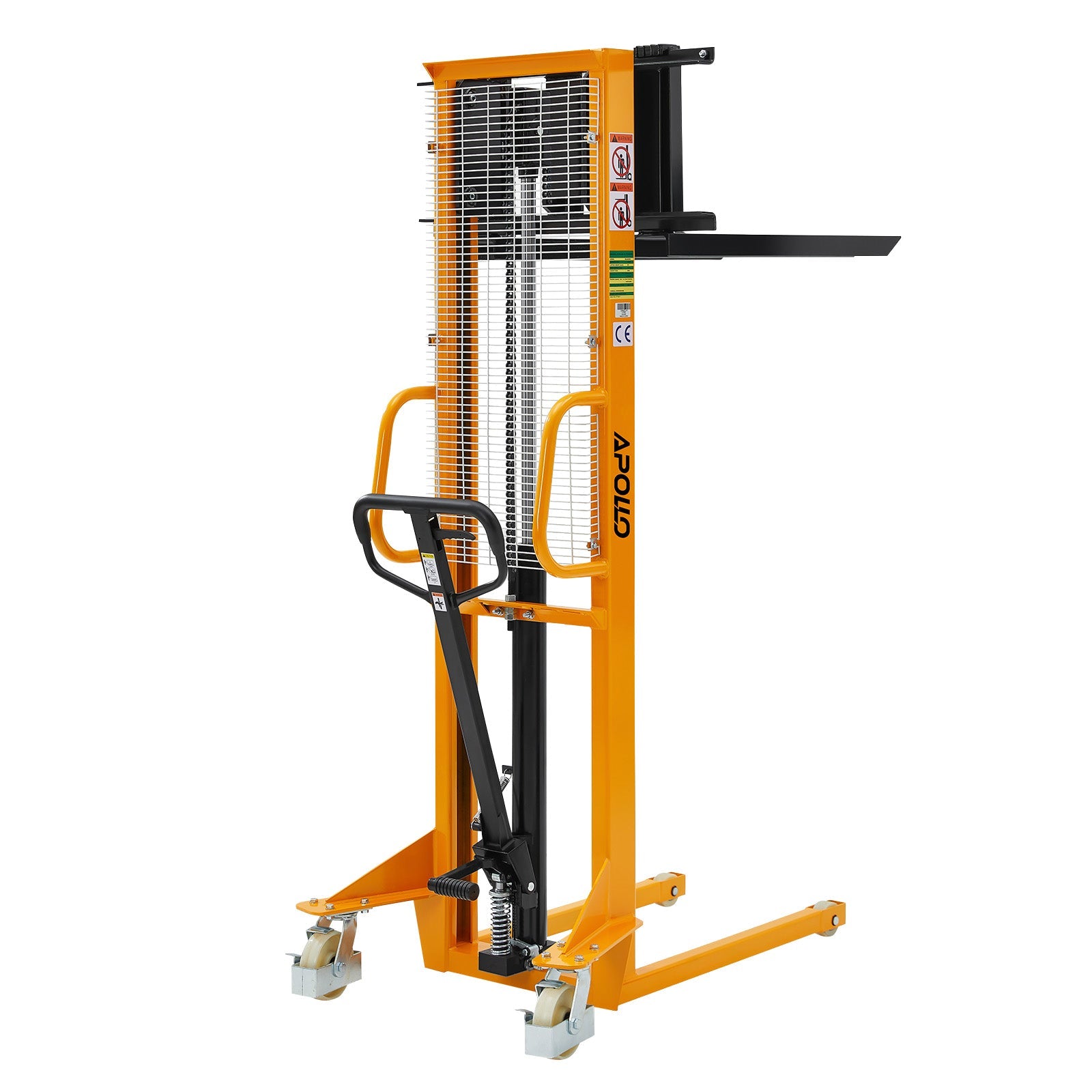

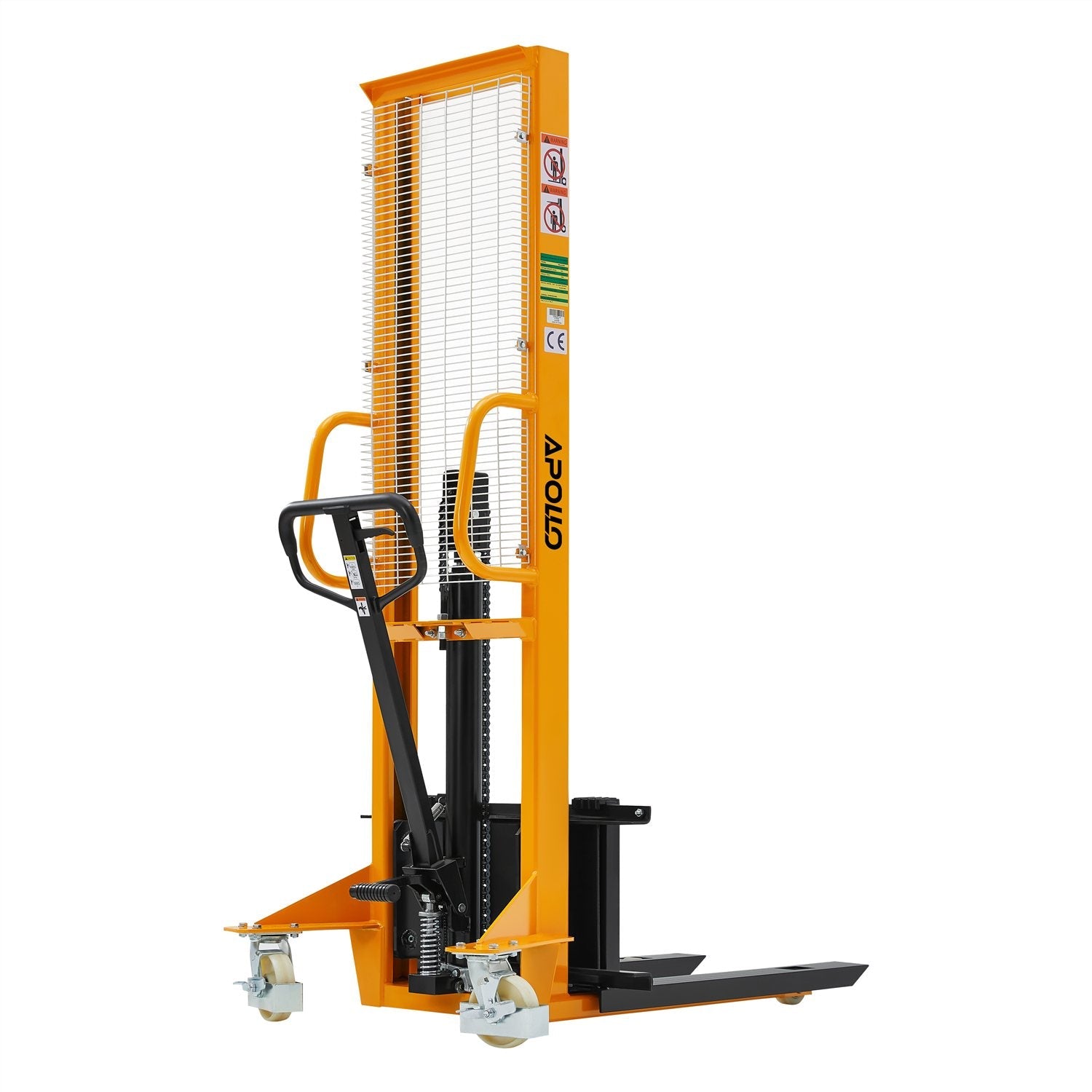

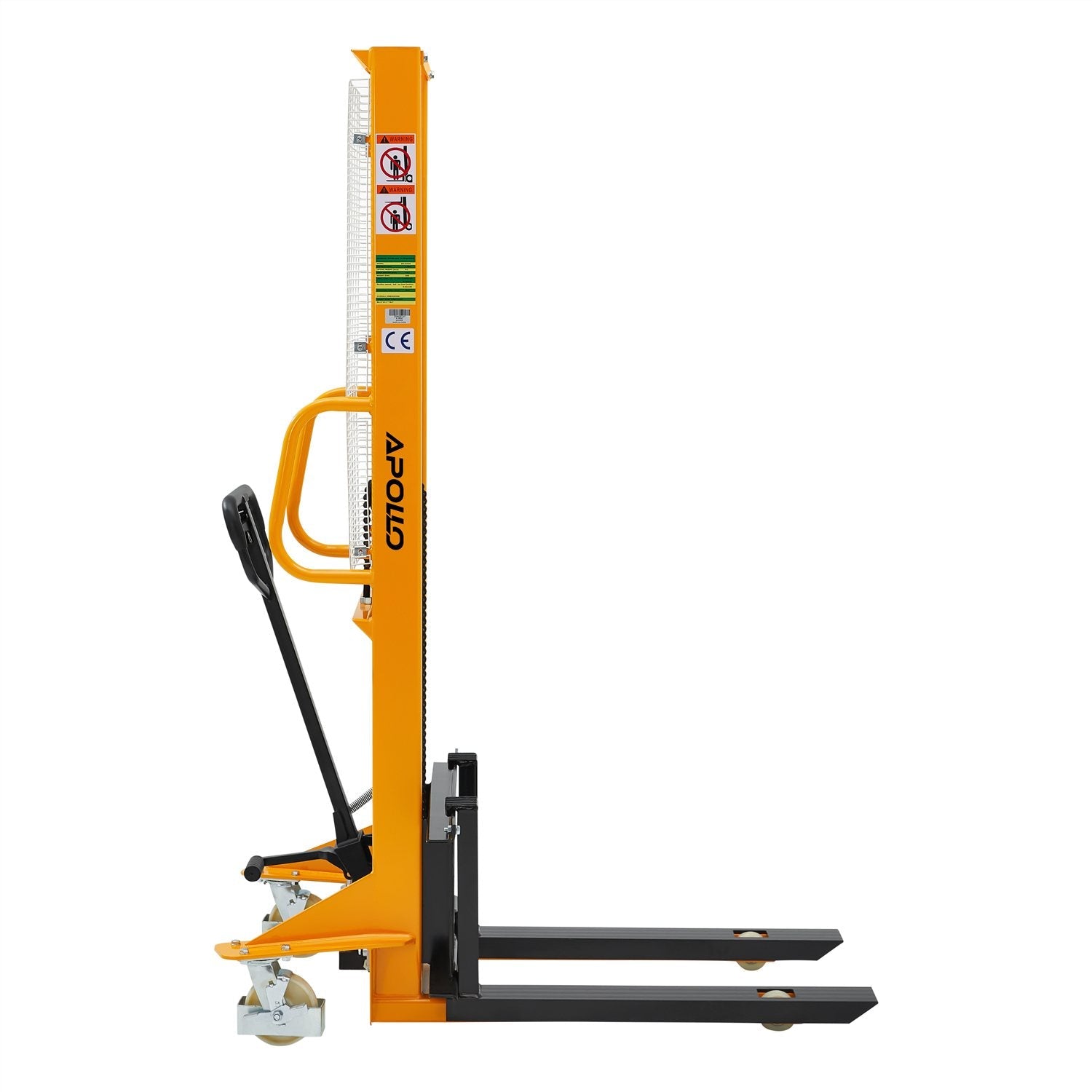

Apollolift Manual Fixed-Leg Stacker - A-3002

Apollolift Manual Fixed-Leg Stacker - A-3002

• Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
• High quality steel mast and strong steel construction ensures rigidity and durability.
• High efficient pumps makes the control easier to operate.
• Metal grid protects user from lift chains.
• With safety wheel guard and brake system to ensure safety during operation.

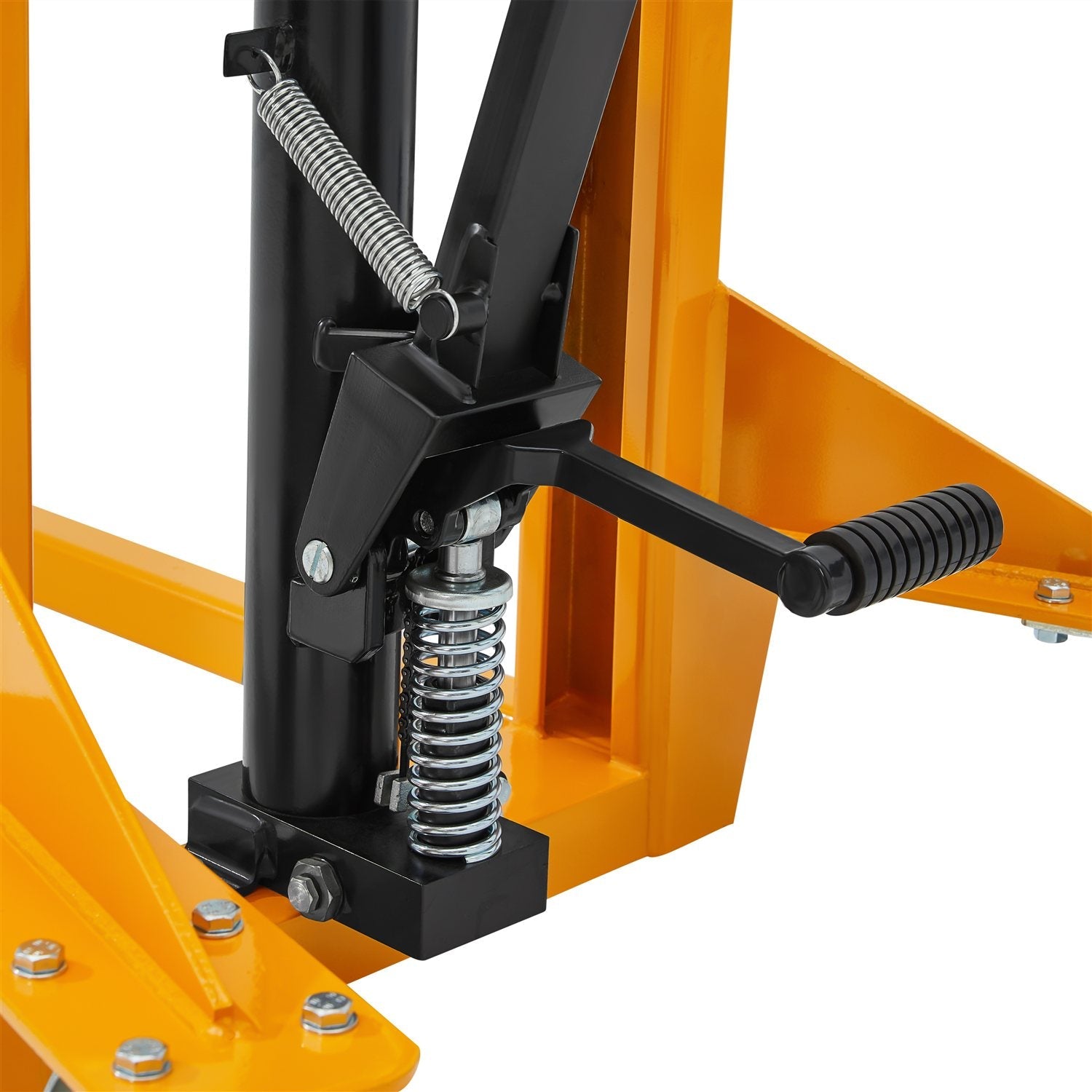

• Manually raise and lower loads with foot pump and handle operation.

Features

• Foot Operated Pump: Lift Height nearly 1'' per stroke.

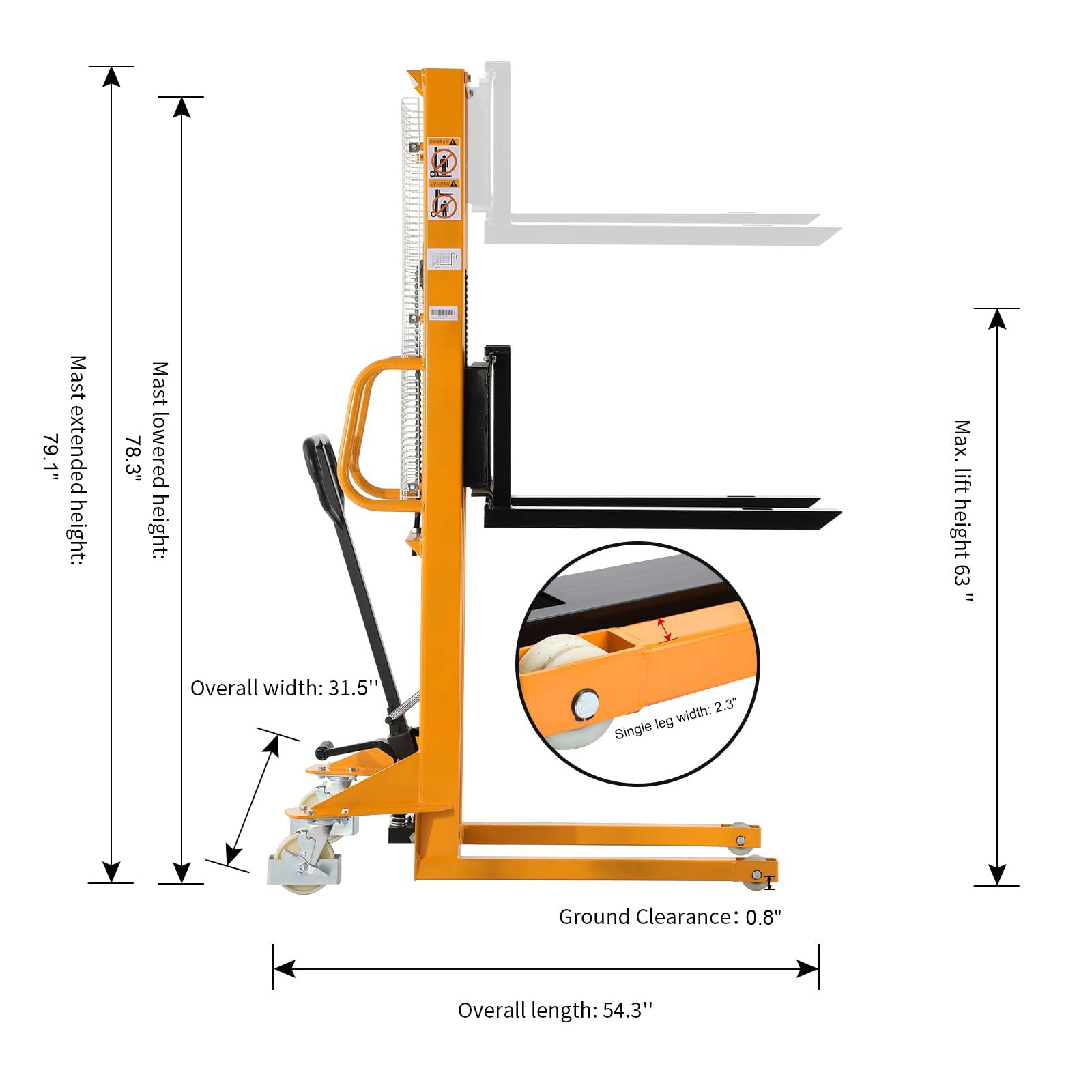

Dimensions

• Overall width: 31.7''
• Overall length: 54.3''
• Load center: 19.7''
• Recommended Aisle Width: 75.4"
• Turning radius: 48.6''
• Inner legs width: 16.5''
• Outer legs width: 20.5''

MAST

• Lifting height: 63''
• Mast lowered height:78.7''
• Mast extended height: 79''

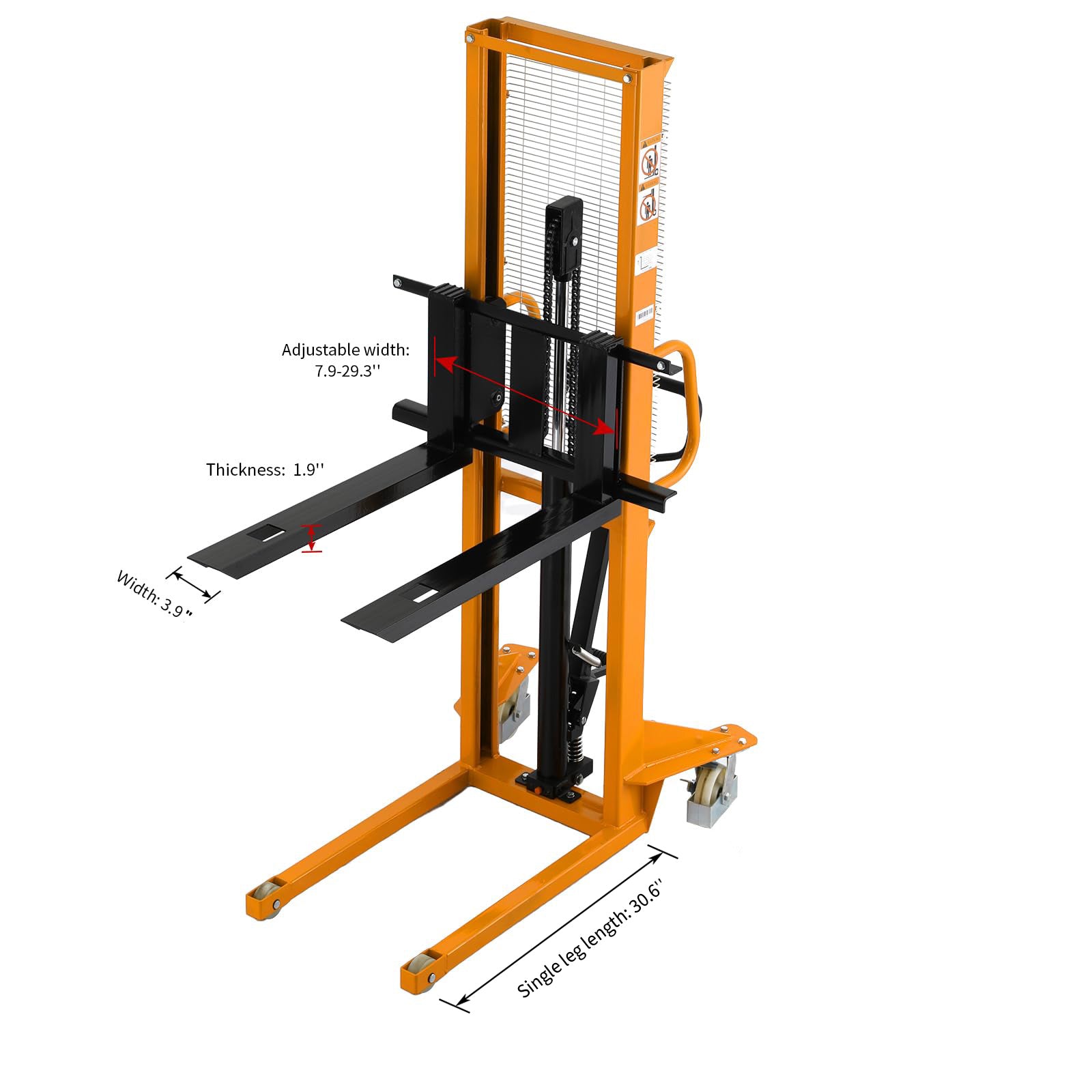

FORKS

• Adjustable width: 7.9-29.3''
• Thickness: 1.9''
• Width: 3.94''
• Length: 31.5''
• Fork lowered height: 3.5''

What our Experts Think

• Light-duty lifting capacity: Rated up to 1,100 lbs, making it suitable for small warehouses, retail stockrooms, and maintenance tasks rather than heavy industrial use.
• Standard lift height: Reaches up to 63 inches, providing practical access for low-to-mid shelving and basic pallet stacking needs.

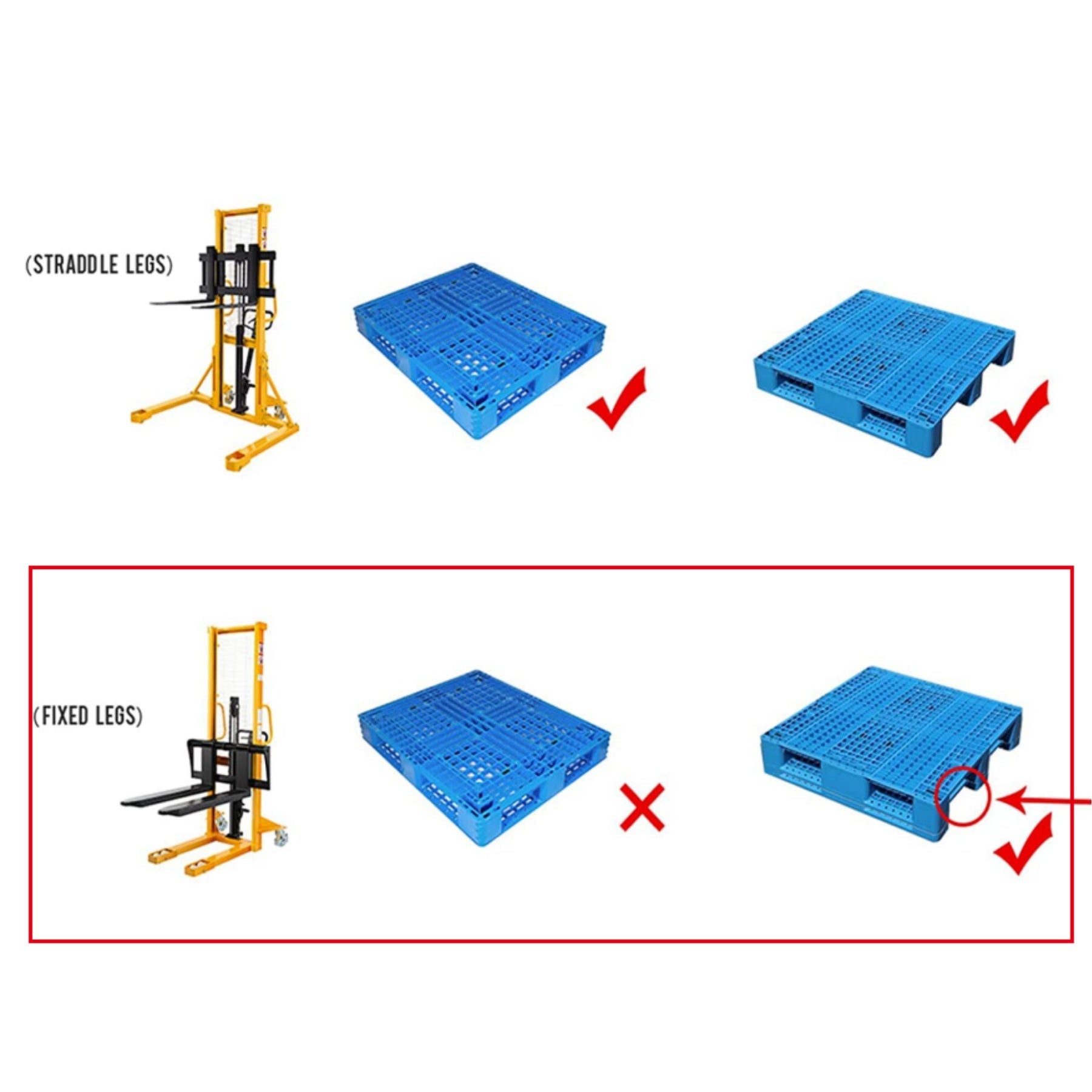

• Fixed-leg stability design: Built with fixed support legs, offering strong balance on flat indoor floors but best suited for open-bottom pallet configurations.
• Adjustable fork flexibility: Forks can be adjusted to handle different load widths, improving versatility for mixed warehouse tasks.
• Manual hydraulic operation: Foot-pump system delivers controlled lifting with minimal maintenance and zero electrical dependency.
• Compact warehouse footprint: Designed for tight spaces, making it ideal for backroom storage, light racking, and small facility workflows.
• Best suited for occasional use: Experts recommend it for low-frequency lifting tasks, not continuous daily industrial stacking operations.

Q&A

Maintenance Tips

• Hydraulic system: Check oil level regularly, inspect seals, and ensure smooth pump action for stable lifting.
• Daily inspection: Examine forks, fixed legs, mast, and wheels for cracks, bending, or wear before operation.
• Mast & chain care: Keep mast rails and chains clean, lightly lubricated, and properly aligned for safe lifting.
• Pump handle: Ensure foot pump and lowering valve operate smoothly without sticking or oil leakage.

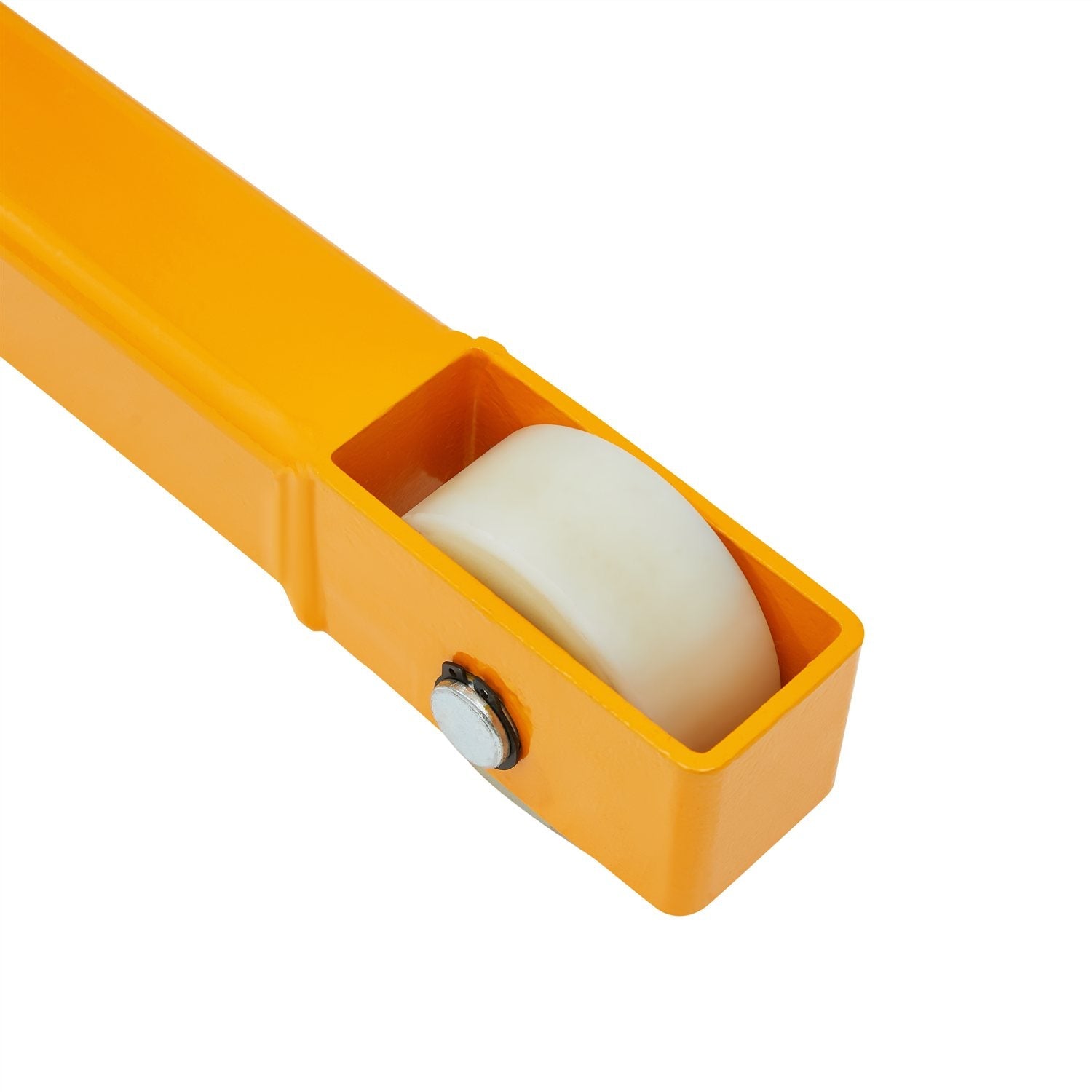

• Wheel maintenance: Keep load and steering wheels free from debris to ensure easy movement and stability.
• Load safety: Do not exceed rated 1100 lbs capacity and always use only compatible open-bottom pallets.
• Lubrication: Grease pivot points, joints, and moving parts regularly to reduce friction and wear.
• Cleaning routine: Wipe down after use; avoid dirt buildup around hydraulic and mast components.
• Storage: Store in a dry, indoor area to prevent rust and hydraulic system degradation.
• Routine servicing: Replace worn seals, wheels, or hydraulic oil when performance declines.
