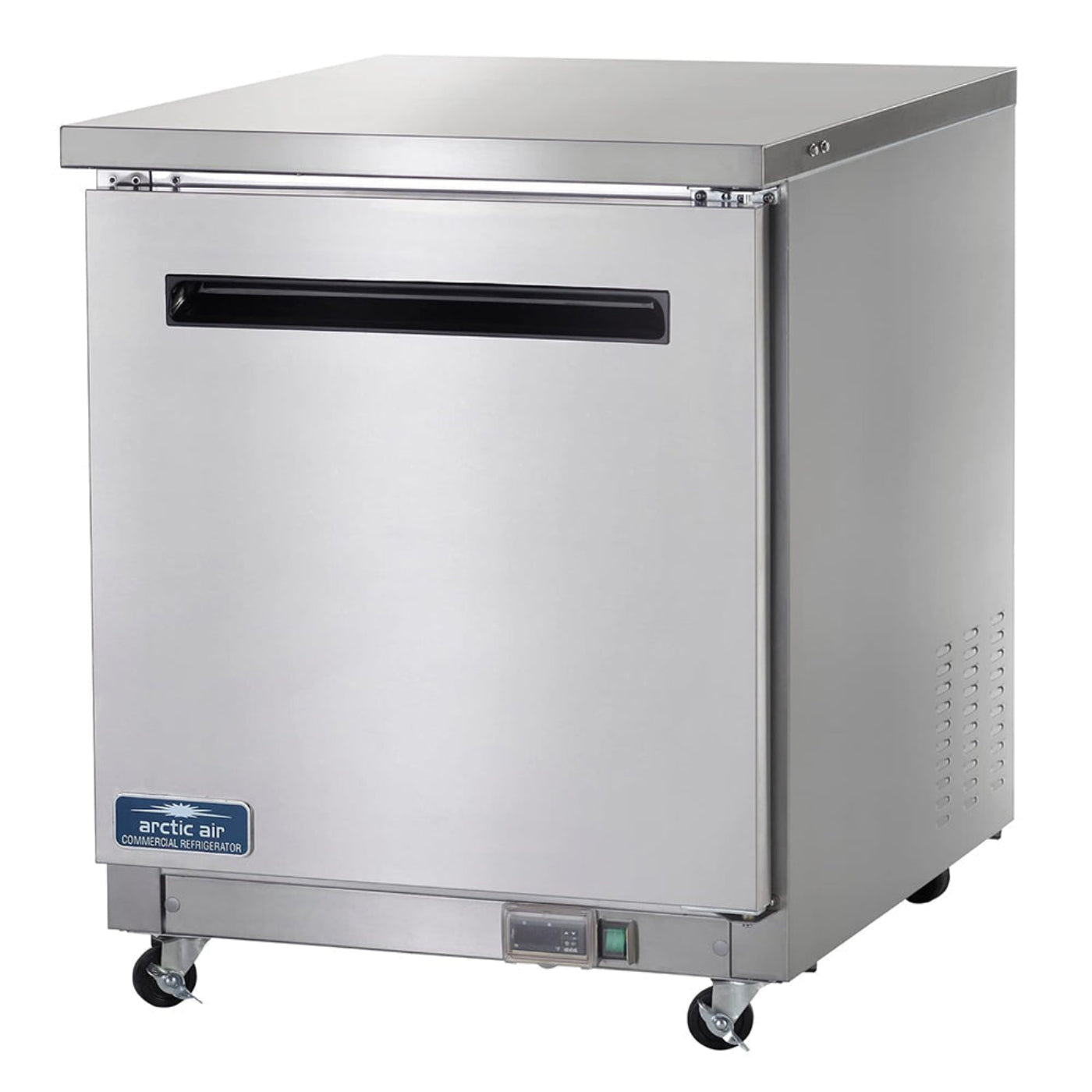

Arctic Air AUC27F 27.88" Single Door Under-Counter Freezer - AUC27F
The Arctic Air AUC27F 27.88" Single Door Under-Counter Freezer is designed for efficient food storage in commercial kitchens. With a shipping weight of 190 lbs, it features dimensions of 27 7/8 inches in width, 30 inches in depth, and 35 5/8 inches in height. It has a capacity of 6.5 cu. ft. operates on 1.9 amps at 115 volts and is powered by a 1/2 HP rear-mounted compressor, ensuring reliable cooling performance. The freezer is equipped with a solid swing door, which is hinged on the right for easy access. Inside, it includes one adjustable shelf for flexible storage options. The AUC27F utilizes R-290 refrigerant and maintains a low temperature of 10 degrees F, making it suitable for frozen goods. With a NEMA 5-15P plug type, this under-counter freezer is designed for commercial environments, providing efficient and reliable service. Weight & Dimensions Shipping weight: 190lbs Width: 27 7/8 Inches Depth: 30 Inches Height: 35 5/8 Inches
Features
- The Arctic Air AUC27F has a width of 27.88 inches, a depth of 30 inches, and a height of 35.625 inches, making it a compact and efficient choice for under-counter storage in commercial kitchens.
- Has a shipping weight of 190 lbs, reflecting its strong construction designed to withstand the rigors of daily use in busy environments.
- Operating at 115 volts and 1.9 amps, it ensures reliable freezing capabilities while maintaining energy efficiency.
- With a capacity of 6.5 cubic feet, the AUC27F provides sufficient space for storing frozen items, allowing for easy organization and accessibility.
- Rear-mounted compressor design allows for efficient use of space while keeping the compressor easily accessible for maintenance.
- Featuring a side/rear breathing compressor style, this freezer maintains optimal airflow while enabling installation in tighter spaces.
- Equipped with a solid swing door, which allows for convenient access to the interior while ensuring excellent temperature retention.
- Powered by a 1/2 HP compressor, it delivers reliable performance for maintaining the necessary low temperatures for frozen storage.
- Utilizing R-290 refrigerant, the AUC27F is both environmentally friendly and efficient, providing effective freezing while minimizing its impact on the environment.
- Designed to maintain temperatures as low as 10 degrees Fahrenheit, this freezer ensures that stored items remain adequately frozen for optimal preservation.
Specifications
| Manufacturer |
Arctic Air |
| Model Number |
AUC27F |
| Shipping Weight |
190 lb |
| Width |
27 7/8 Inches |
| Depth |
30 Inches |
| Height |
35 5/8 Inches |
| Amps |
1.9 Amps |
| Hertz |
60 Hertz |
| Phase |
1 Phase |
| Voltage |
115 Volts |
| Capacity |
6.5 cu. ft. |
| Compressor Location |
Rear Mounted |
| Compressor Style |
Side / Rear Breathing |
| Door Style |
Swing |
| Door Type |
Solid |
| Horsepower |
1/2 HP |
| Number of Doors |
1 Door |
| Number of Shelves |
1 Shelf |
| Plug Type |
NEMA 5-15P |
| Refrigerant Type |
R-290 |
| Temperature Range |
10 Degrees F |
| Hinge Location |
Right |
What our Experts Think
-
Compact & Efficient: With a 5.4 cu. ft. capacity, this freezer is perfect for kitchens with limited space while still offering ample storage.
-
Precise Temperature Control: Maintains temperatures between -10°F and 10°F, ensuring food stays frozen and preserved properly.
-
Durable Construction: Features a stainless steel exterior, white epoxy-coated steel interior, and stainless steel floor for long-lasting durability.
-
Energy-Efficient: Utilizes R290 hydrocarbon refrigerant, offering both energy efficiency and eco-friendliness.
-
User-Friendly Design: Includes a self-closing door, an adjustable wire shelf, and casters (two lockable) for easy mobility.
Q&A
Q: Is the Arctic Air AUC27F energy-efficient?
A: Yes, it uses eco-friendly R290 hydrocarbon refrigerant for improved energy efficiency.
Q: Is the Arctic Air AUC27F suitable for commercial use?
A: Yes, it meets NSF Standard 7 for open food storage and ETL sanitation standards, making it ideal for commercial kitchens.
Q: Does the Arctic Air AUC27F require special installation?
A: No, it features a self-contained refrigeration system and operates on 115V/60Hz/1-phase power, making installation straightforward.
Maintenance Tips
-
Clean interior and exterior with a mild detergent and damp cloth.
-
Clean condenser coils every 6 months to ensure efficient cooling.
-
Inspect door seals for proper closure and replace if damaged.
-
Defrost the freezer periodically to prevent ice buildup.
-
Monitor temperature to ensure it stays within the recommended range of -10°F to 10°F
