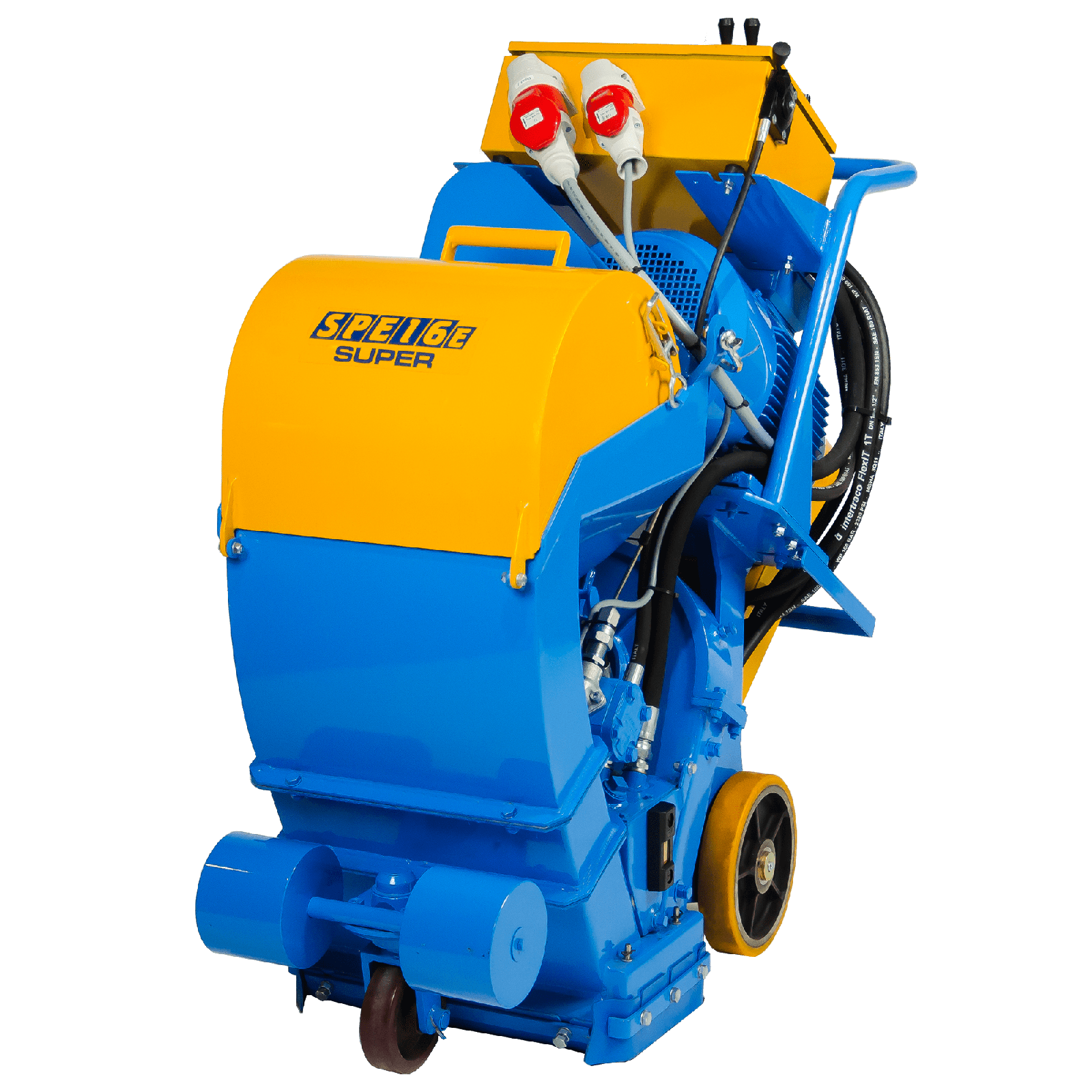

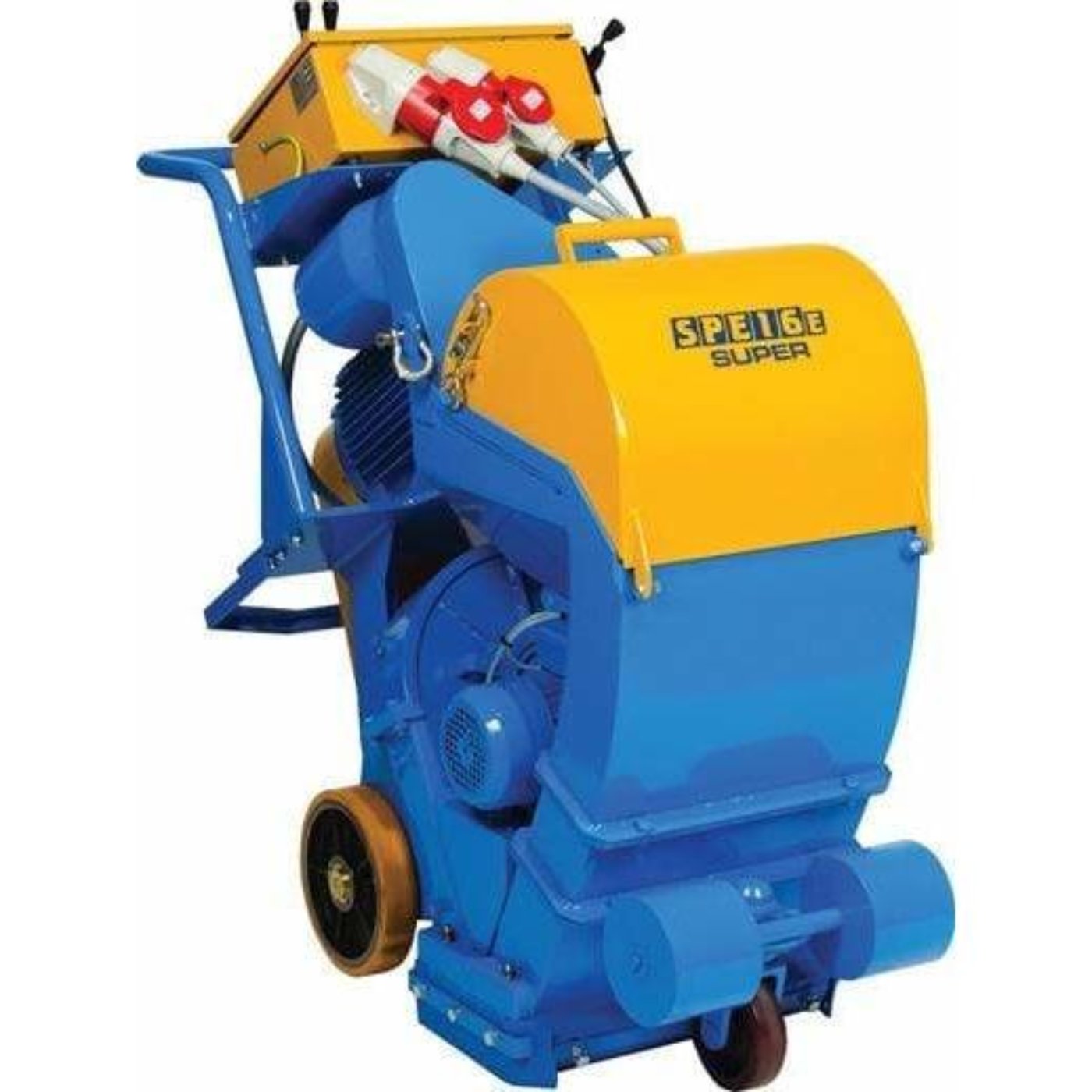

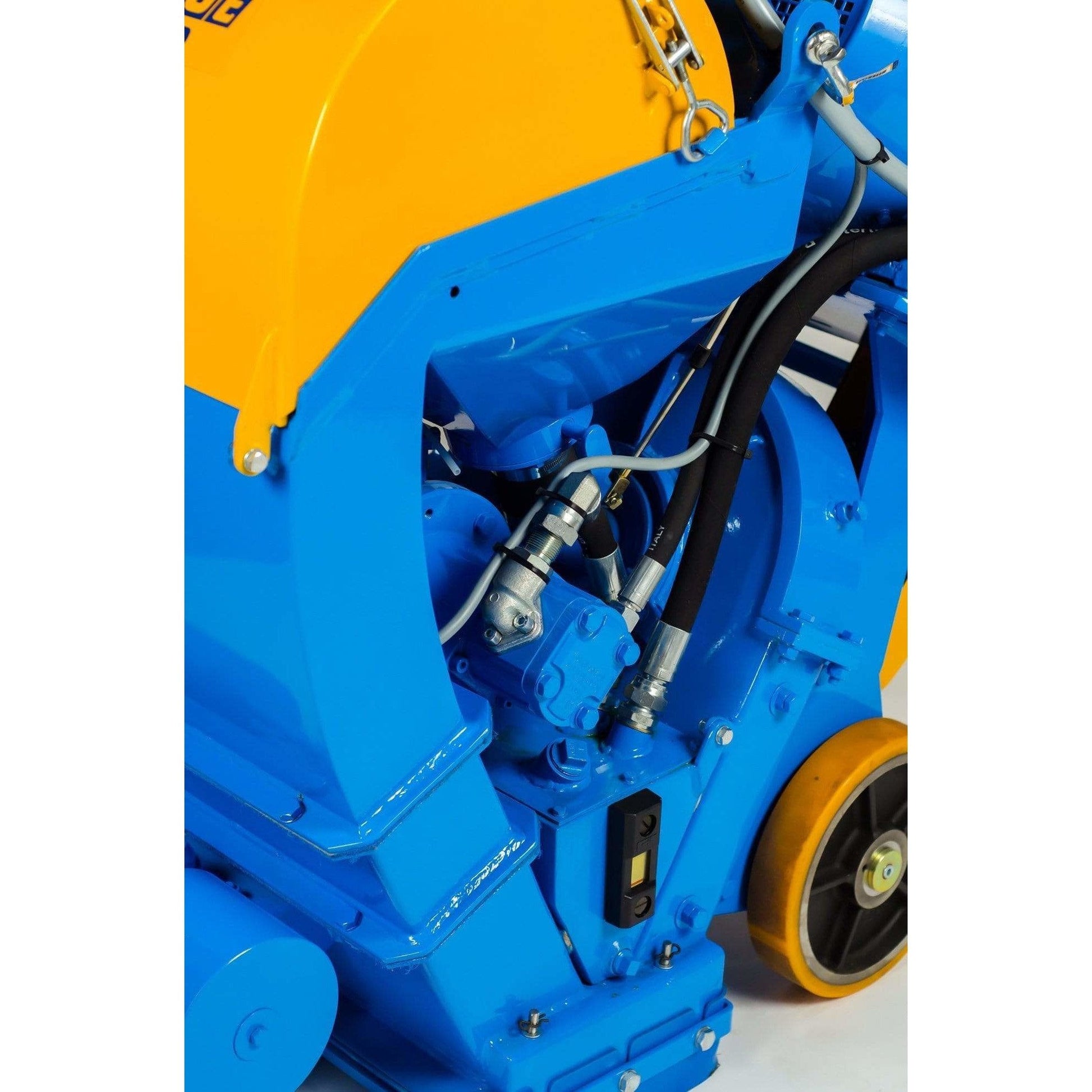

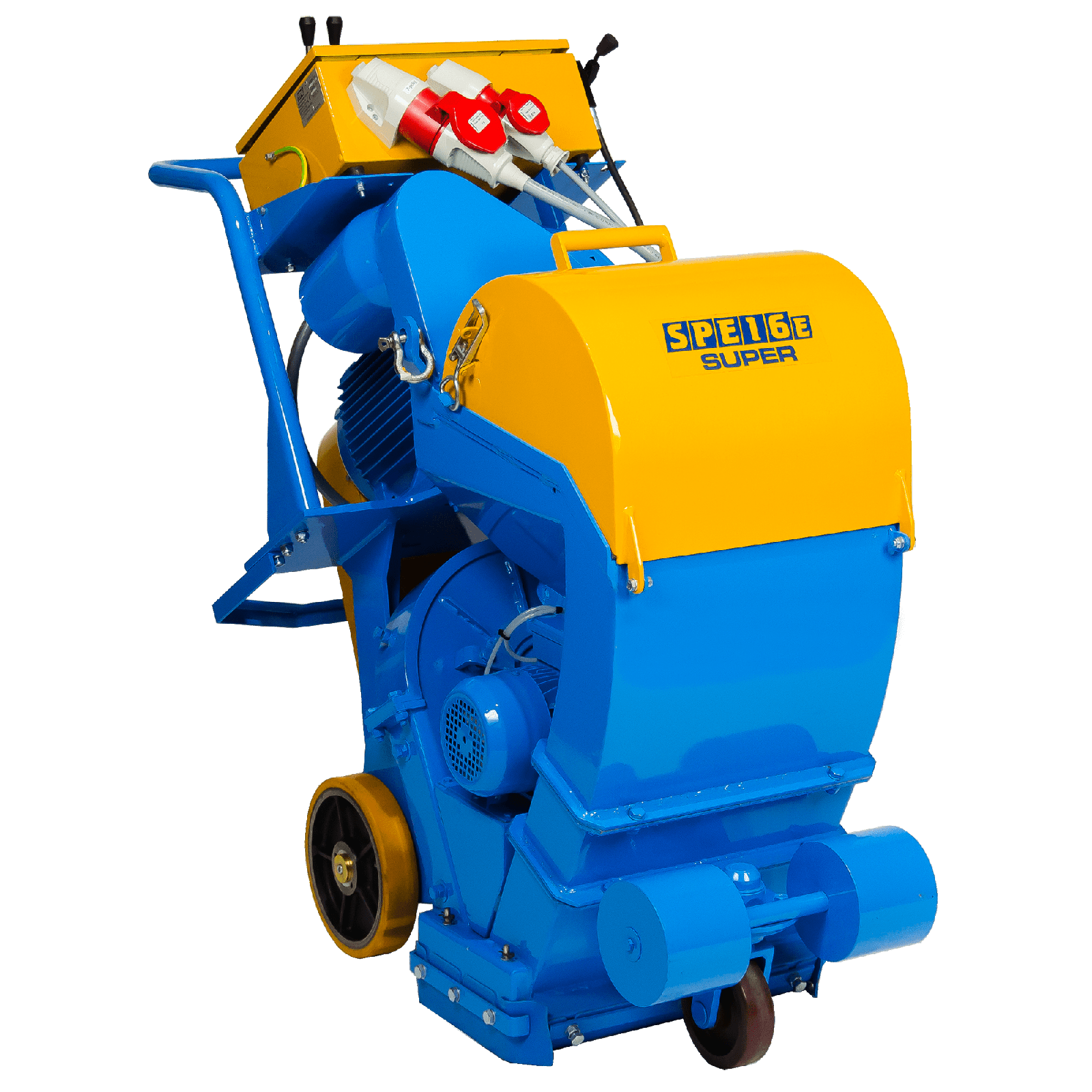

Bartell Global 16" Self Propelled Shot Blaster; 17HP 460V 3 Phase Electric - SPE16ES

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

The seal system feature as with all other machines can be varied to blast clean from 2″ up to 16″ wide for inspection of weld seams or line removal. Self propelled and infinitely variable in all operations. Can be dismantled to pass through 600mm access holes in storage tanks. Recognised in industry as the modern, fast, versatile, environmental dust free means to dry abrasive cleaning and texturing of horizontal or slightly inclined surfaces. This eliminates mess normally associated with hand blasting and leaves an ideal surface for coatings and overlays to be applied. Abrasive and debris is contained to prevent hazardous working and environmental pollution.

Typical Applications

• Removal of old coatings
• Cleaning concrete and tiles
• Exposing aggregates
• Providing non-slip surfaces
• Removing rubber deposits
• Steel preparation to SA3 standard
• Laitance removal on new concrete floors
• Multi-storey car parks
• Shopping precincts
• Food processing plants
• Storage tanks roofs and floors
• Ships decks
• Steel plates
• Ro-Ro bridges
• Ferries

Voltage: 400V/460V

Phase: 3 Phase

Blast Motor Output: 15hp / 20hp (11kW / 15kW)

Cycles: 50/60Hz

Cleaning Width: 16” (406mm)

Length: 49.2”(1250mm)

Width: 20.1” (510mm)

Height: 49.2” (1250mm)

Weight: 882lbs (400kg)
