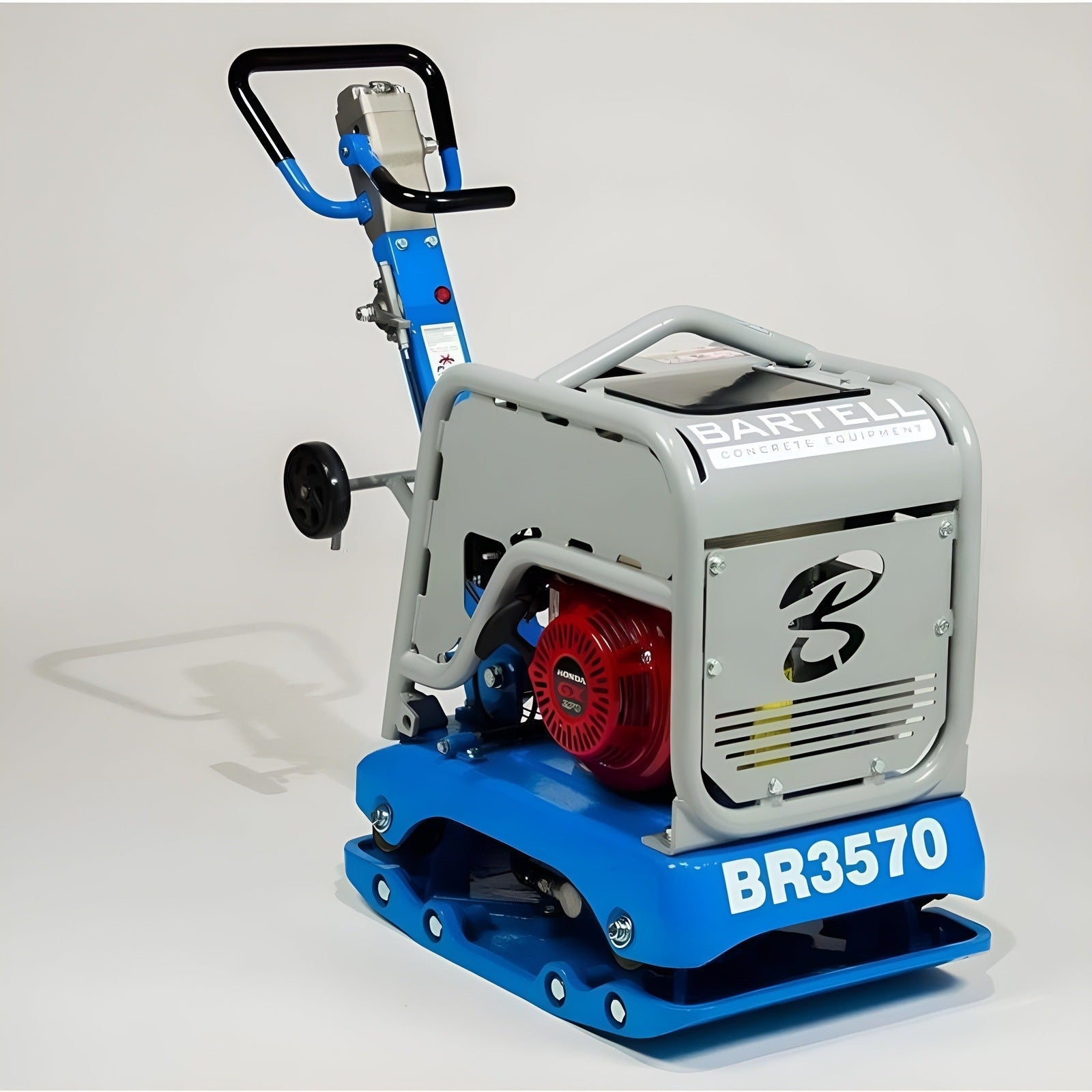

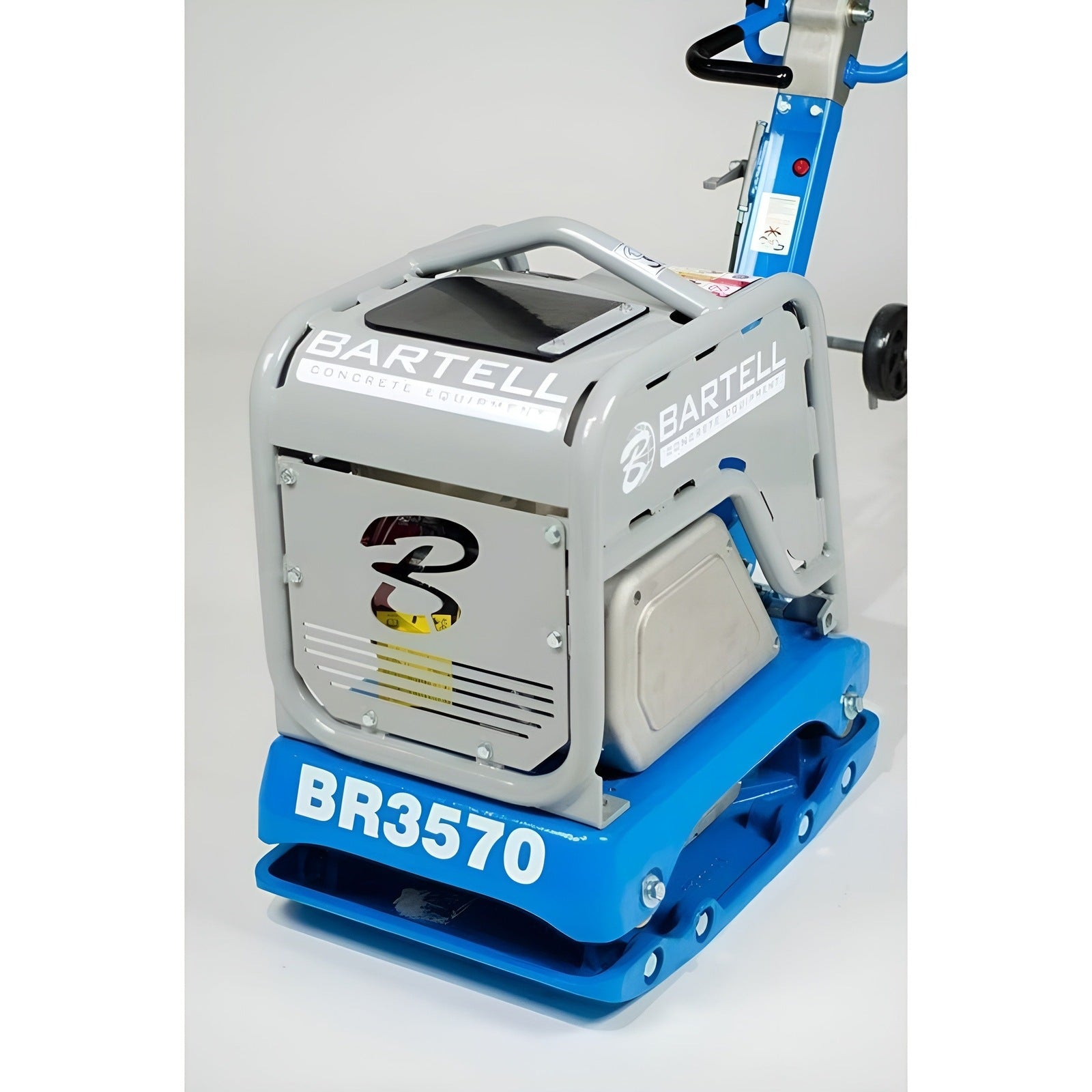

Bartell Global Reversible Plate Compactor, Honda Engine, 3750KG Force - BR3570

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

See Features Below

• Hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction

• Cast aluminum throttle lever for a more professional, stronger, and durable for tamping

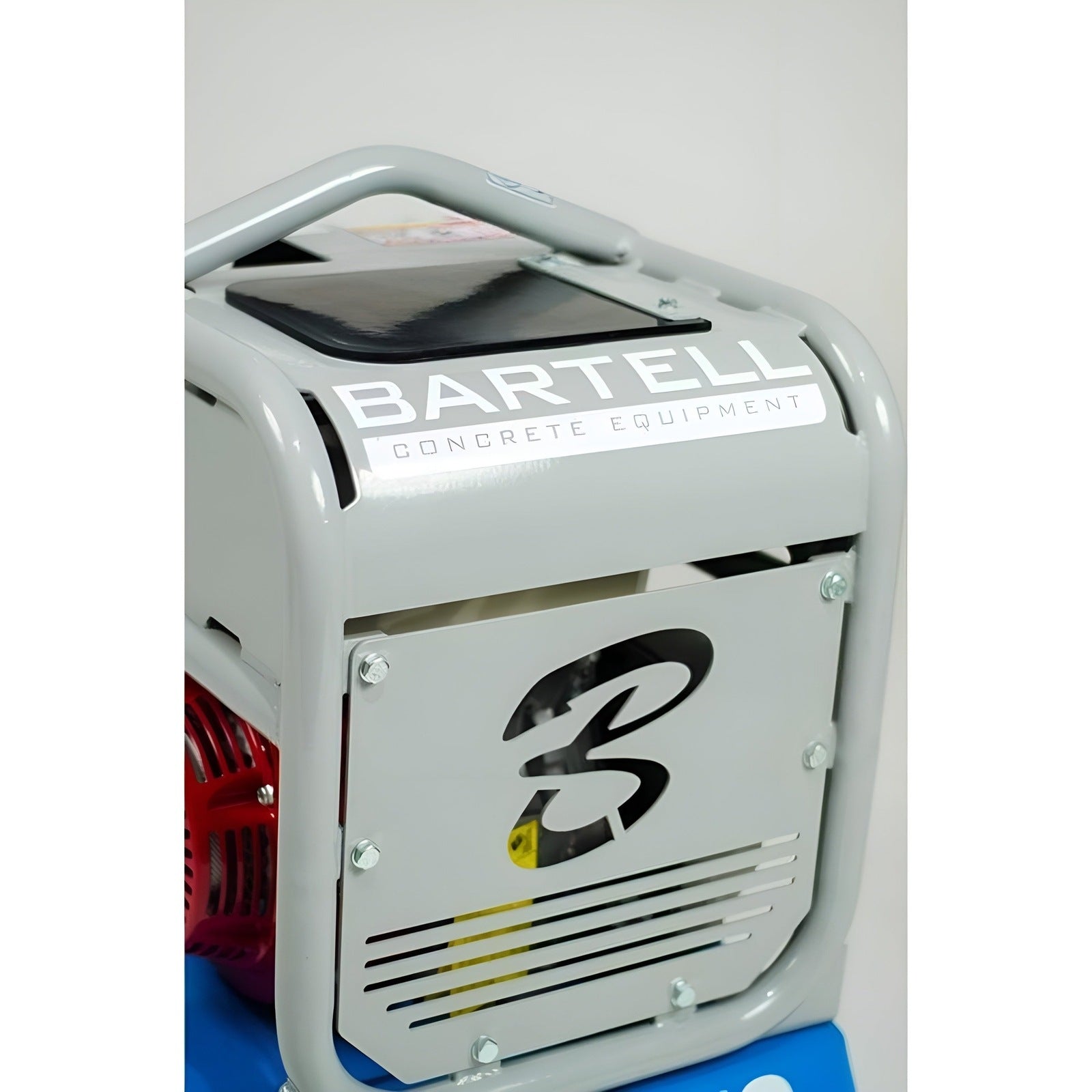

• New closed style frame for increased engine and guide hook protection

• Cast aluminum belt cover for increased clutch and engine longevity

• Ductile iron bases for increased strength and durability

• Optional extension plates and urethane mat options available

Specifications

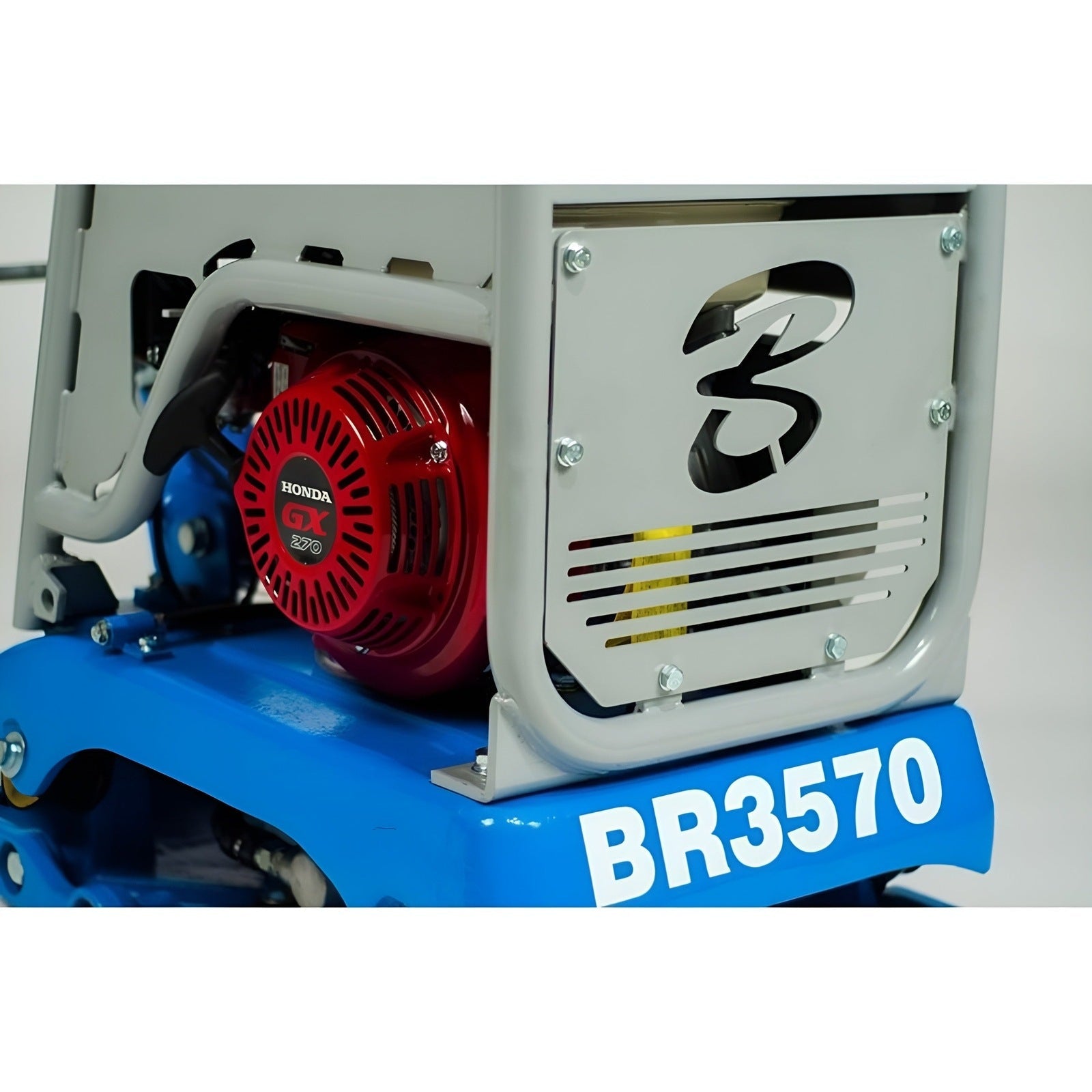

Engine: Honda

Spec: GX270

Power Output Hp (Kw): 8.5(6.3)

Width, in. (mm): 18” (450)

Height, in. (mm): 38” (960)

Length, in. (mm): 53” (1340)

Weight, lbs (kg): 529 (240)

Compaction Force: 7850 lbf, 35 kN, 3561 kgf

Max Travel Speed: 82 ft/min, 25 m/min

Manuals

Spec Sheet

What Our Experts Think

• Massive Compaction Force: The Bartell Global BR3570 Reversible Plate Compactor provides a powerful 3750 kg of compaction force, making it ideal for heavy-duty compaction tasks on tough materials like soil, gravel, and asphalt.
• Efficient Reversible Operation: Designed for both forward and reverse compaction, the BR3570 allows for easy maneuvering in tight spaces, enhancing job site efficiency and reducing labor time.
• Reliable Honda Engine: Powered by a reliable Honda engine, this compactor offers exceptional durability, fuel efficiency, and low maintenance, making it perfect for long-lasting, continuous operation.
• Large Plate Size: With a 17" x 28" plate, the BR3570 covers large areas quickly, improving work productivity by minimizing the number of passes required.
• Heavy-Duty Construction: Built to withstand the toughest job site conditions, the BR3570 is made with high-quality materials for long-lasting performance.
• Versatile and High-Performance: Whether for commercial construction, road work, or landscaping, the BR3570 delivers consistent and high-quality compaction for a wide range of applications.

Q&A

Q: What is the Bartell Global Reversible Plate Compactor BR3570 used for?
A: The Bartell Global Reversible Plate Compactor BR3570 is designed for compacting soil, gravel, asphalt, and other materials in heavy-duty construction, roadwork, and landscaping applications, offering high compaction force for demanding tasks.

Q: What are the key features of the Bartell Global Reversible Plate Compactor BR3570?
A: The BR3570 features a powerful Honda engine, a 17" x 28" plate, and delivers 3,750 kg of compaction force. It has a reversible design for easy maneuverability and enhanced productivity on large or confined job sites.

Q: Is the Bartell Global Reversible Plate Compactor BR3570 easy to operate?
A: Yes, the BR3570 is user-friendly with simple controls, a comfortable handle, and a reversible plate, ensuring smooth and efficient operation even in challenging environments.

Q: What type of engine does the Bartell Global Reversible Plate Compactor BR3570 use?
A: The BR3570 is powered by a reliable Honda engine, known for its durability and consistent performance in heavy-duty compaction tasks.

Q: Does the Bartell Global Reversible Plate Compactor BR3570 come with a warranty?
A: Yes, the Bartell Global Reversible Plate Compactor BR3570 is backed by a manufacturer’s warranty, ensuring long-lasting performance and reliability in tough conditions.

Maintenance Tips

• Clean After Each Use: Thoroughly clean the compactor, including the engine, plate, and exposed components, to remove dirt, dust, and material buildup. This prevents clogging and corrosion, ensuring efficient operation.

• Engine Care: Change the engine oil regularly as per the manufacturer’s guidelines. Clean or replace the air filter to maintain engine performance and replace the spark plug if it shows signs of wear.

• Fuel Maintenance: Use fresh fuel and drain any remaining fuel if storing the machine for extended periods to prevent fuel degradation and clogging. Always check for fuel leaks before starting.

• Inspect the Compaction Plate: Regularly inspect the compaction plate for cracks, wear, or damage. Tighten any loose bolts, and replace damaged components immediately to ensure optimal compaction force.

• Lubrication: Lubricate all moving parts, including the vibration system and handle pivots, to reduce friction and prevent premature wear. Follow the recommended lubrication schedule for best results.

• Hydraulic System Check: Check for leaks in the hydraulic system and ensure the fluid is at the proper level. Replace worn or damaged hydraulic components as necessary.

• Belt and Drive System: Inspect the belt and drive system for any signs of wear, cracks, or misalignment. Replace belts that are frayed or damaged to maintain smooth operation.

• Tire and Handle Inspection: Examine the tires for damage, wear, or low pressure, and replace if necessary. Inspect the handle for stability, tightening any loose bolts or fasteners.

• Operational Monitoring: If you notice a decrease in compaction force or unusual vibrations, investigate potential mechanical issues and address them immediately to avoid further damage.

• Proper Storage: When not in use, store the compactor in a clean, dry place, away from moisture and extreme temperatures. Cover the unit to protect it from dirt, dust, and weather conditions
