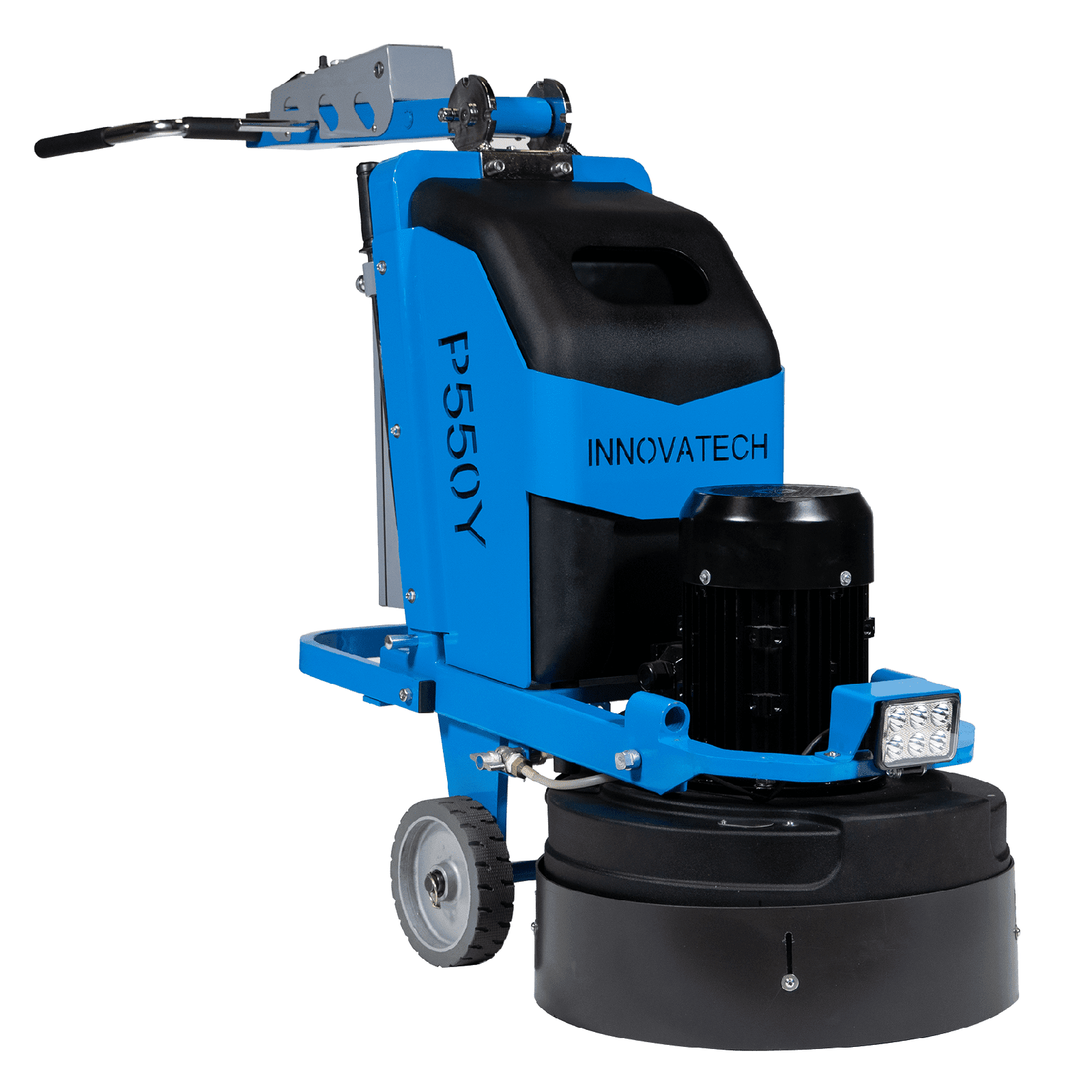

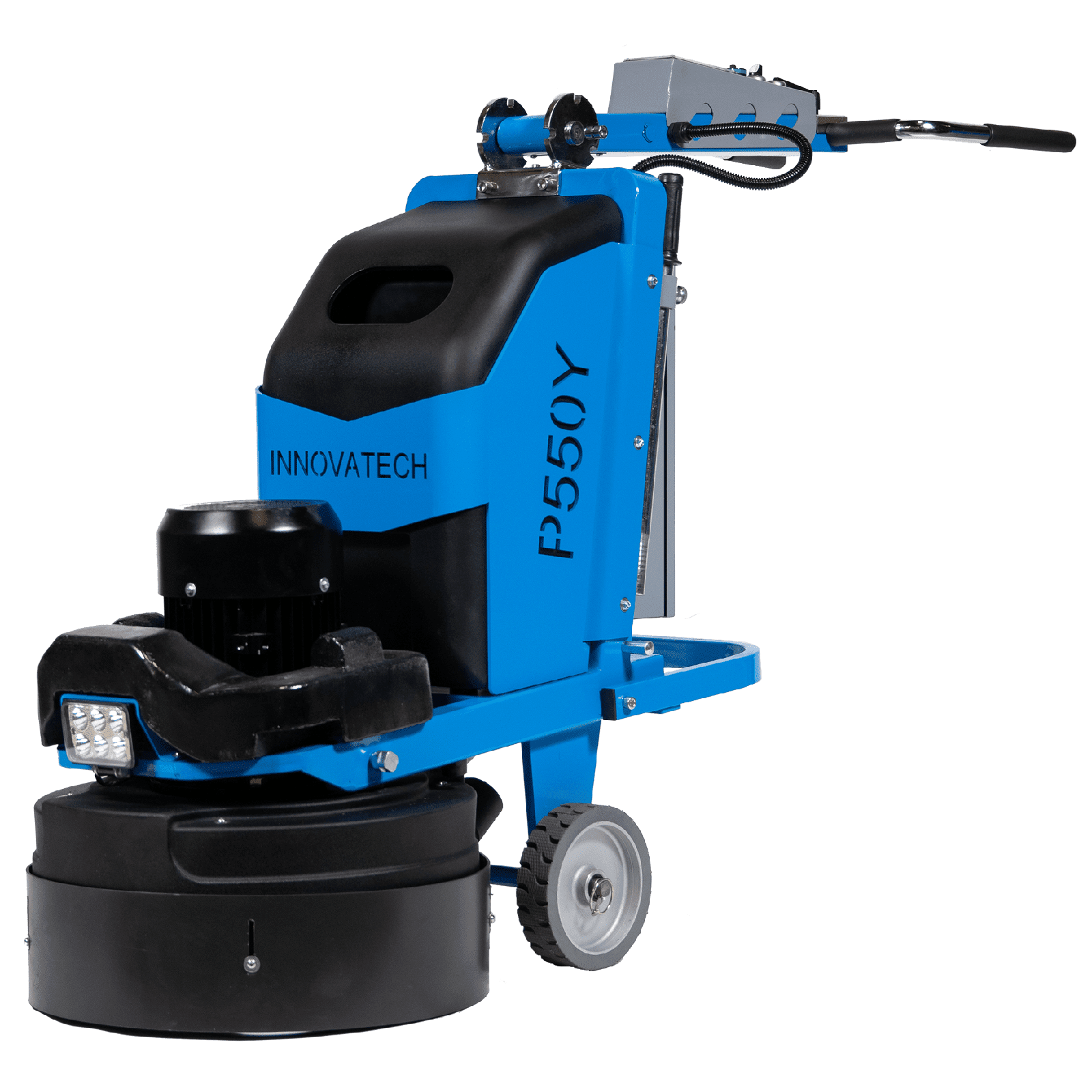

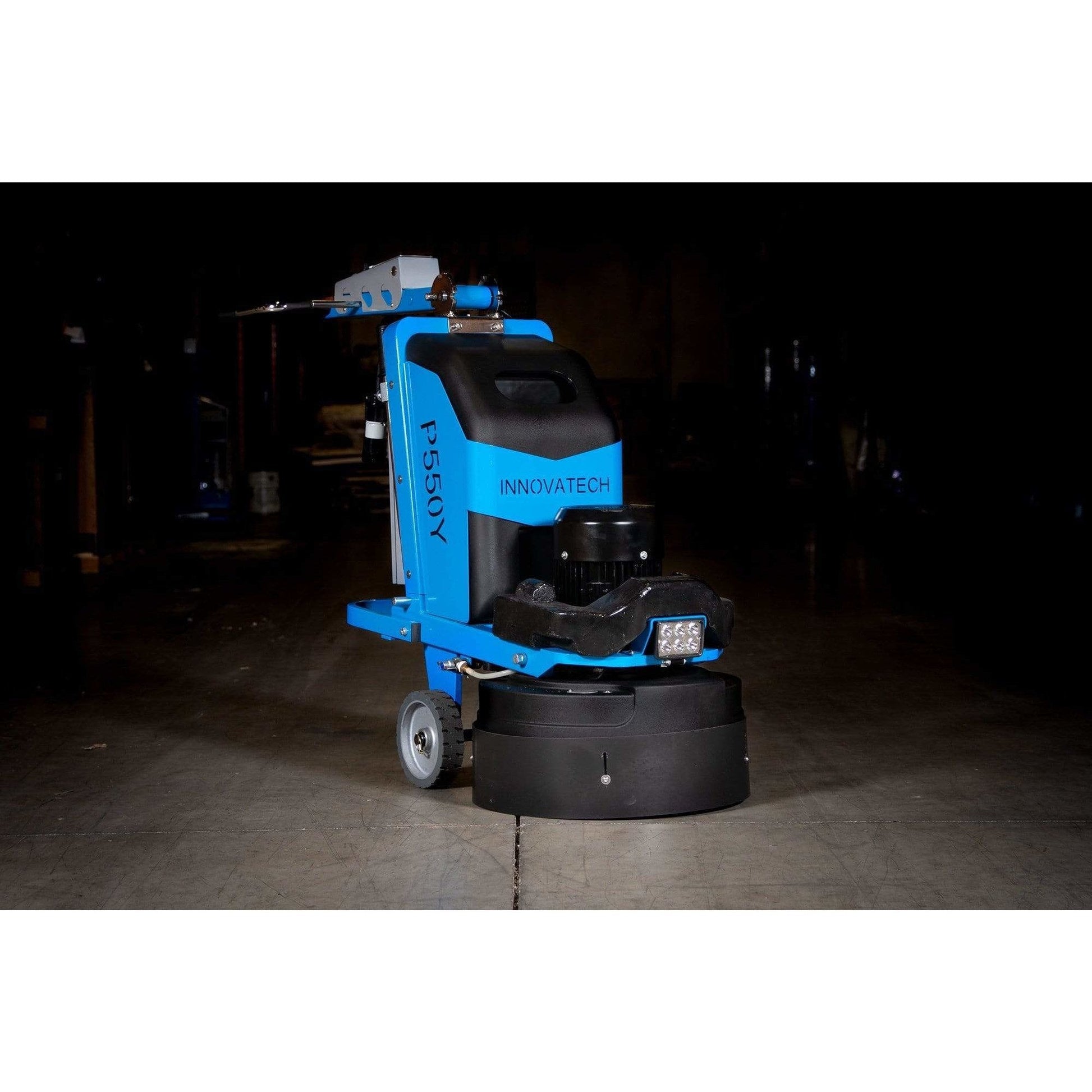

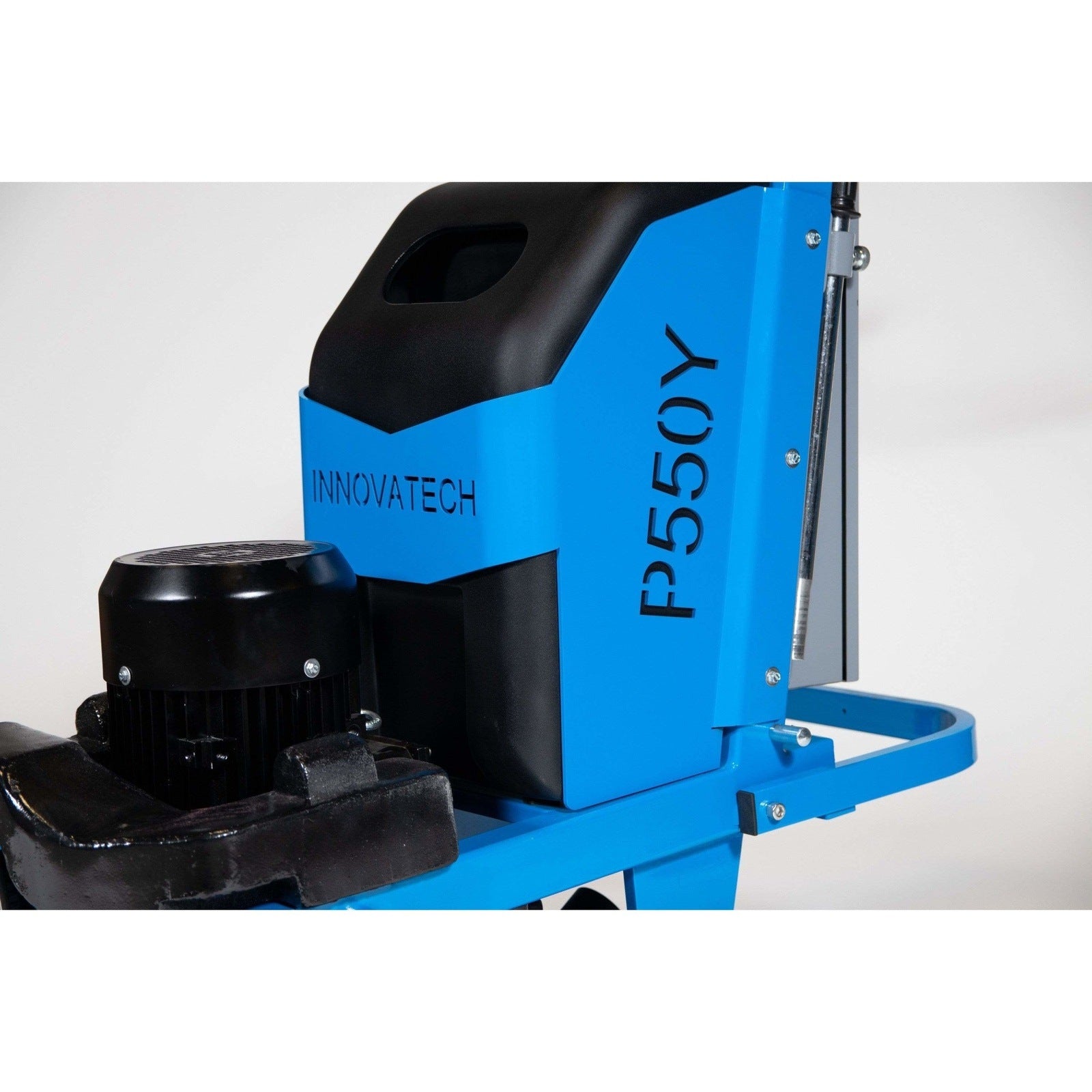

Bartell Innovatech 3 Head Planetary Grinder, 5HP, 220V, Single Phase (21.5" Working Width)- P550Y

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

See Features Below

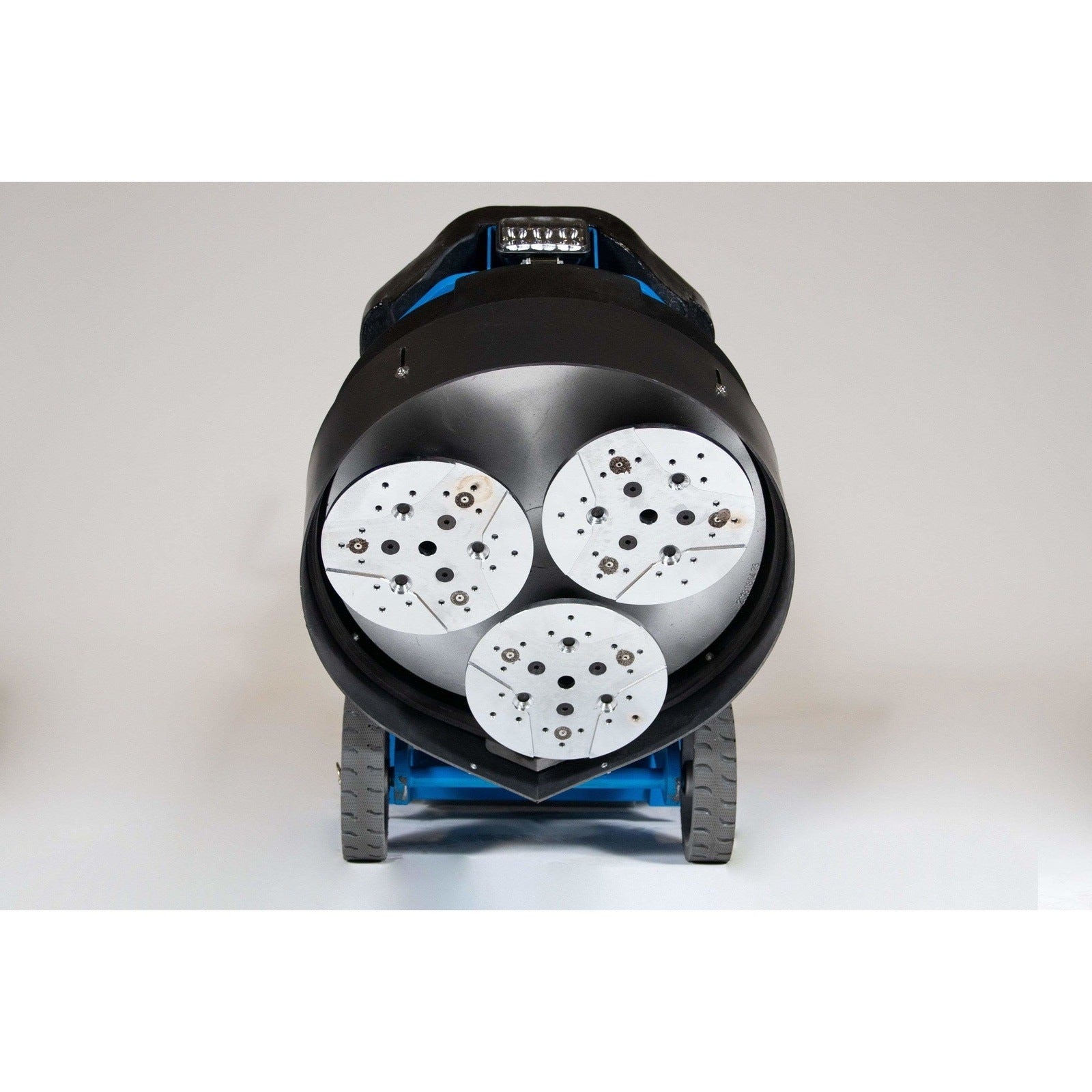

• 3 Head planetary design

• Exceptional balance

• Heavy Duty Steel Frame

• Easy height adjustment handle

• Assortment of tooling available

• Easy on site maintenance or repair with standard tools

• Variable speed control

• Additional weight included

• Forward/reverse

• Integrated water tank

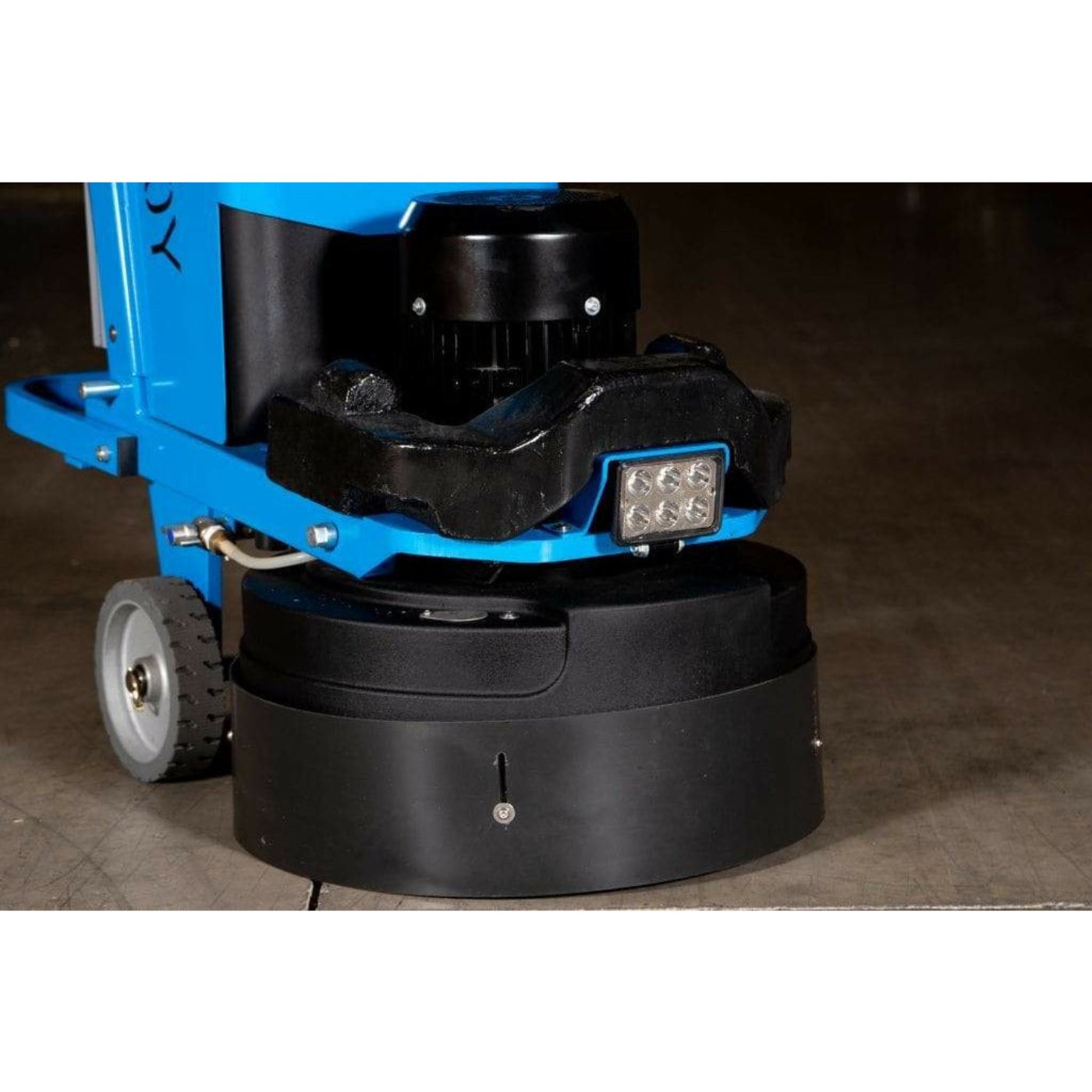

• Bright LED included

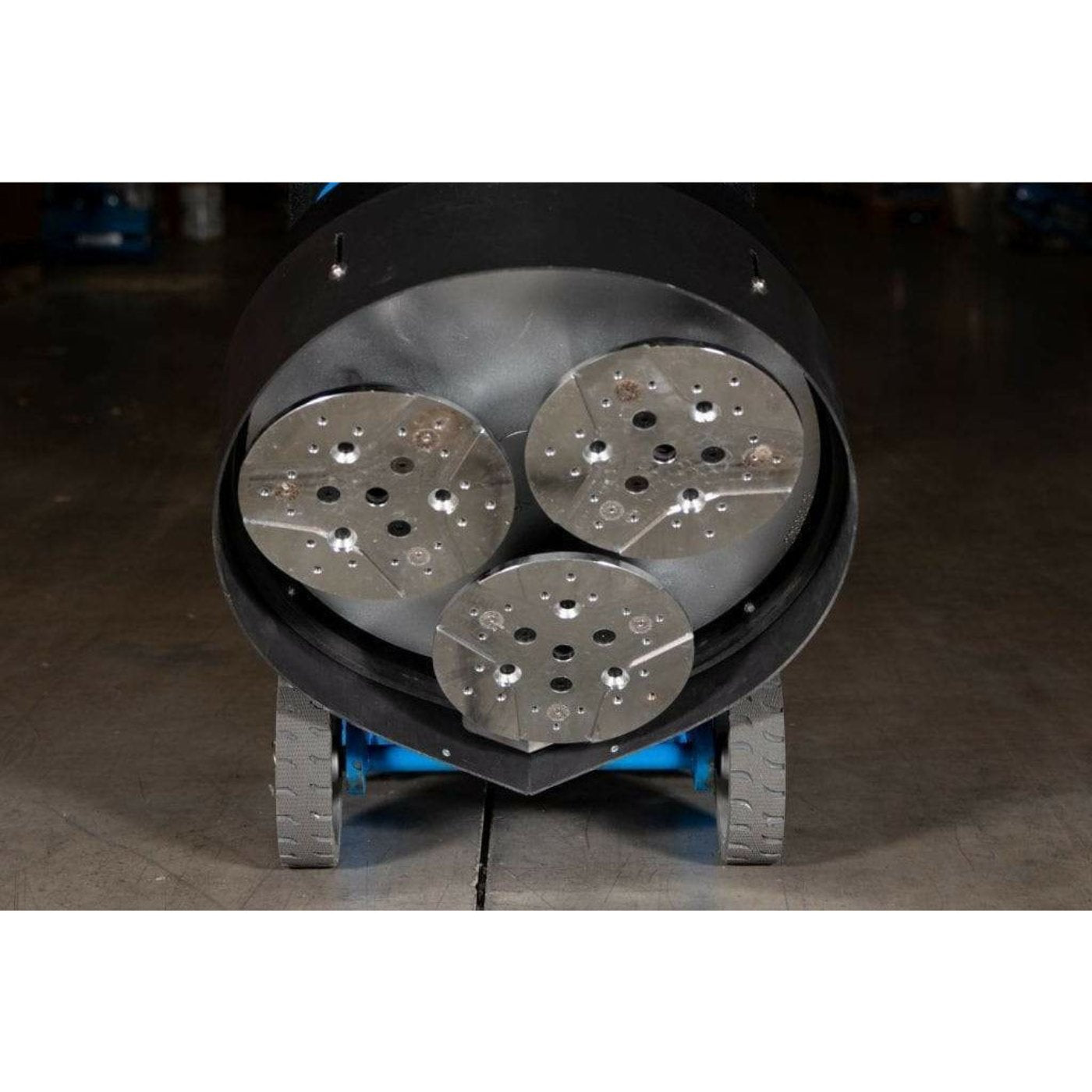

• Slide Mag or 3 hole tooling plates

Specifications

Voltage
220V Single Phase

Power Output
5HP (3.7Kw)

Power Frequency
50/60HZ

Grinding Width
21.7″ (550mm)

Number of Grinding Heads
3

Grinding Head RPM
0–1500 RPM

Grinding Head Diameter
9″ (230mm)

Planetary Grinding Plate RPM
0-540 RPM

Weight
369lbs (180kg)

Dimensions
38.2″ x 21.7″ x 33.5″
970 x 550 x 850 (mm)

Manuals

Spec Sheet

What Our Experts Think

• Powerful Performance: The Bartell Innovatech P550Y 3-Head Planetary Grinder is equipped with a 5HP motor, delivering exceptional grinding power for both residential and commercial applications.
• Wide Working Surface: With a 21.5" working width, this grinder covers large areas efficiently, reducing the time needed for floor preparation and surface finishing tasks.
• Versatile Applications: Ideal for grinding, polishing, and surface preparation, the P550Y excels on concrete, terrazzo, and other hard floors, providing excellent results on diverse surfaces.
• Easy to Use: Featuring intuitive controls and an ergonomic design, the P550Y ensures comfortable operation, even during long hours, enhancing productivity without compromising control.
• Durable Construction: Built with heavy-duty materials, this grinder offers exceptional durability, making it a reliable tool for tough, high-demand environments.
• Efficient Dust Control: Designed with effective dust collection capabilities, it minimizes airborne dust, maintaining a cleaner work environment while improving safety.
• Electric and Convenient: Operating on 220V single-phase power, the P550Y offers a reliable and efficient power source for a wide range of job sites, from residential to commercial

Q&A

Q: What is the Bartell Innovatech 3 Head Planetary Grinder P550Y used for?
A: The Bartell Innovatech P550Y is designed for concrete surface preparation, grinding, and polishing. It is perfect for commercial and industrial flooring projects, offering efficient results on concrete, terrazzo, and stone surfaces.

Q: What are the key features of the Bartell Innovatech P550Y?
A: The P550Y features a 3-head planetary system for optimal grinding and polishing, a 21.5" working width for large coverage, a 5HP motor, and a 220V single-phase power supply, making it suitable for heavy-duty use. It also offers adjustable speed and dust control options for clean operation.

Q: How does the Bartell Innovatech P550Y improve productivity?
A: The 3-head planetary system ensures fast and even grinding, reducing the time spent on each job. Its 21.5" working width provides efficient coverage, while its durable construction ensures consistent performance and reduced downtime.

Q: Is the Bartell Innovatech P550Y easy to operate?
A: Yes, the P550Y is designed with user-friendly controls, ergonomic handles, and adjustable settings, making it easy for operators to achieve high-quality results with minimal effort.

Q: Does the Bartell Innovatech P550Y come with a warranty?
A: Yes, the P550Y is backed by a manufacturer’s warranty, providing peace of mind and ensuring long-lasting reliability for all your grinding and polishing needs

Maintenance Tips

• Inspect Grinding Heads: Regularly check the grinding heads for wear, cracks, or damage. Replace the grinding pads or diamonds when they become worn to ensure consistent performance.

• Clean After Use: After each job, clean the machine thoroughly to remove concrete dust, slurry, and debris. Use compressed air or a vacuum to clear the dust from hard-to-reach areas.

• Lubricate Moving Parts: Lubricate the planetary gears, motor, and any other moving components as recommended by the manufacturer to reduce friction and ensure smooth operation.

• Tighten Fasteners: Before each use, check all nuts, bolts, and fasteners to ensure they are tight. Loose components can cause excessive vibration or machine malfunction.

• Check Electrical Connections: Inspect power cords, plugs, and electrical connections for wear or damage. If any components appear faulty, repair or replace them immediately to prevent electrical issues.

• Examine the Dust Collection System: Ensure that the dust collection system is functioning properly. Clean or replace filters as necessary to maintain optimal suction and effective dust removal.

• Check for Hydraulic Leaks: If your model uses hydraulic components, inspect for any leaks in the system. Address any issues promptly to maintain hydraulic efficiency.

• Monitor Motor Performance: Keep an eye on the motor during operation for signs of overheating or unusual noises. If the motor overheats, shut the machine down and inspect for obstructions or airflow issues.

• Inspect and Replace Grinding Discs: Inspect the grinding discs regularly for signs of wear or uneven wear patterns. Replace the discs if necessary to ensure uniform grinding and prevent damage to the surface.

• Proper Storage: Store the machine in a dry, cool environment when not in use to avoid exposure to moisture and extreme temperatures, which could cause rust and corrosion.
