Bartell Global Ride-On Power Trowel, Honda/Briggs Engine, Propane Option - BXR836

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

At just 728lbs, and very compact dimensions, this unit can be transported with ease and placed on a slab very early in the process. Great for getting into tight areas and for use where stickups are present. The BXR 836 is also great for multi-story applications due to its ease of hoisting. With its low profile, this unit gives the best sight-line of the slab and you can feel the concrete as it progresses in its finish transition. Also, a perfect jump to riding, for those currently only walking.

See Features Below

• Heavy-duty gearbox provides a longer life and less maintenance.

• Twin stick, multi-directional levers deliver immediate, responsive steering.

• Low rider version.

• Non-overlapping design for floating/panning.

• Dual 4 blade trowel standard.

Specifications

Type: Panning & Finishing

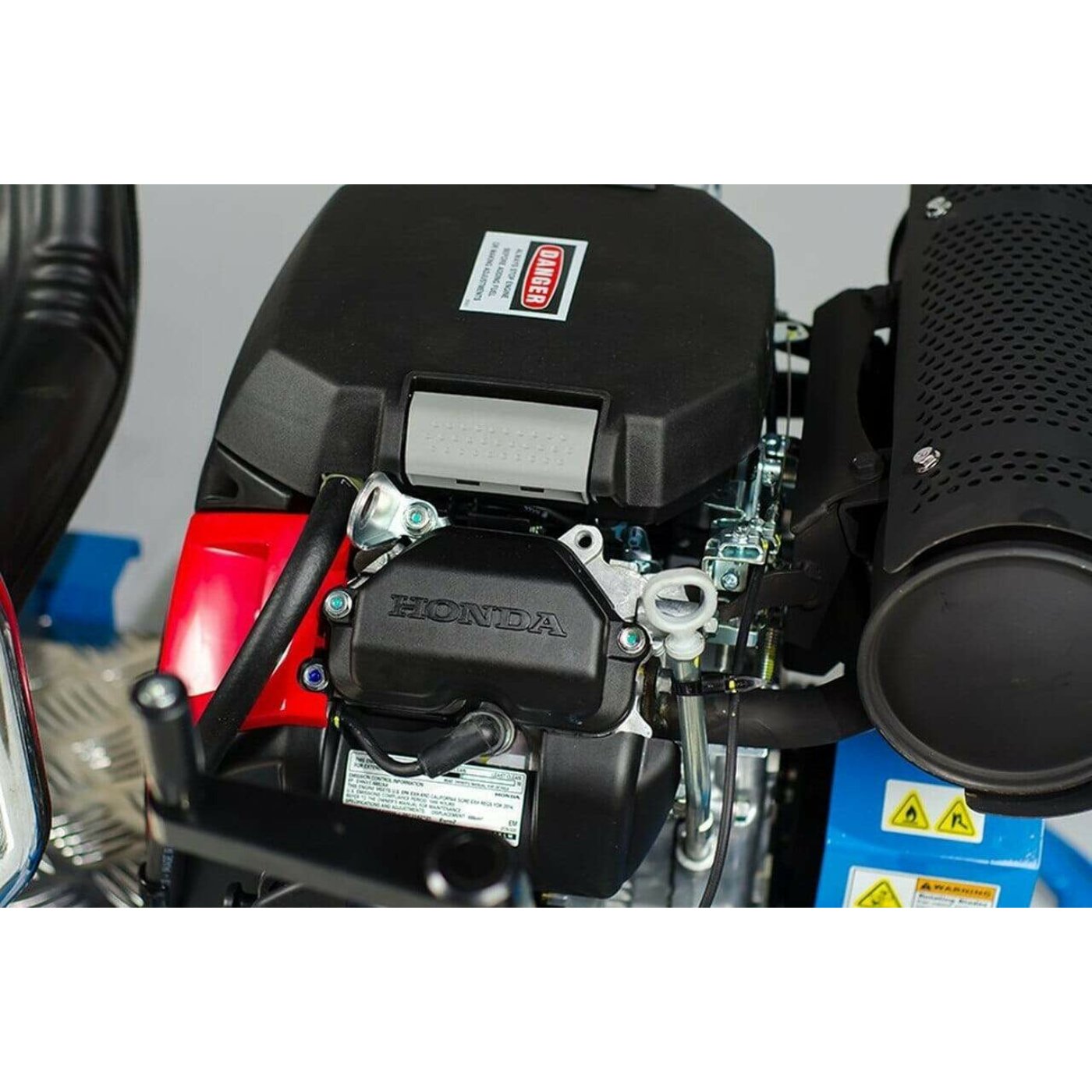

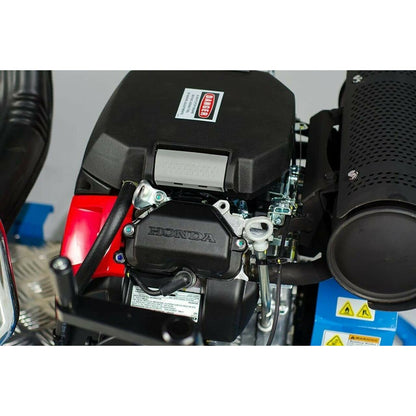

Power Source: Gas/Petrol – Honda GX690

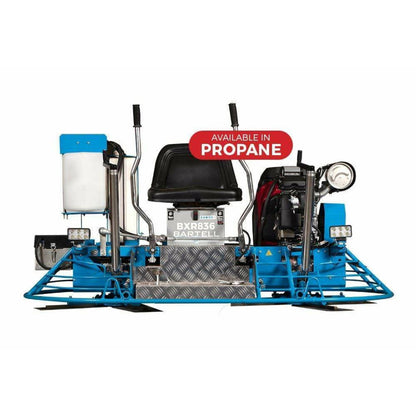

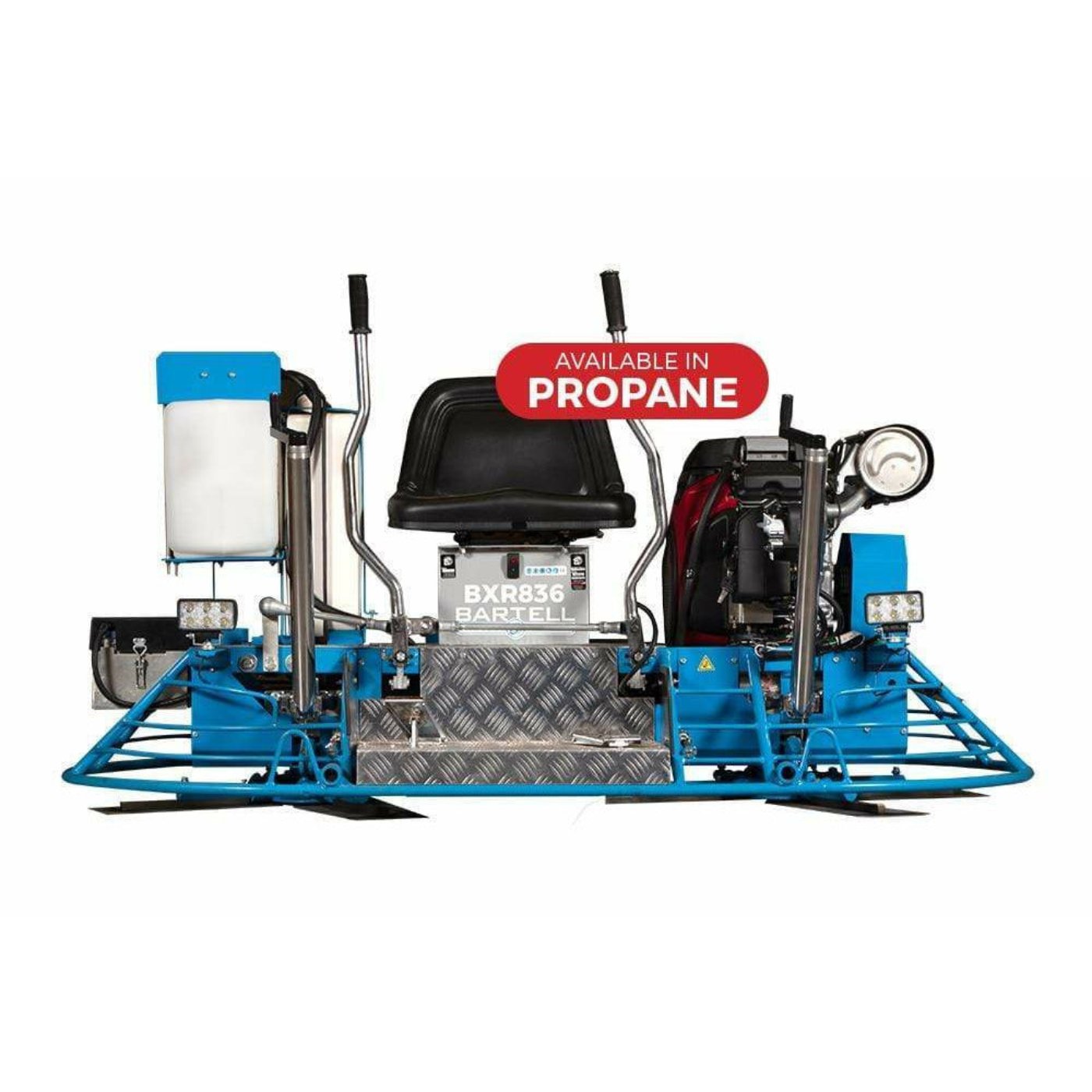

                          Propane – Vanguard 627cc

Power Output: Gas/Petrol – 22hp (16kw)

                           Propane – 21hp (15.7kW)

RPMs: 140

Float Blade Size: 10” x 14” (25cm x 36cm)

Finish Trowel Size: 6“ X 14” (15cm X 36cm)

Combination Blade Size: 8” x 14” (20cm x 36cm)

Float Pan: 36.5” (93cm)

Operating Weight: Up to 772lbs (350kg)

Length: 75.5” (192cm)

Width: 38.5” (98cm)

Height: 41” (104cm)

Weight: 728lbs (330kg)

Manuals

Spec Sheet

What Our Experts Think

• Powerful Engine Options: The Bartell Global BXR836 Ride-On Power Trowel is powered by either a Honda or Briggs engine, providing reliable performance, excellent fuel efficiency, and smooth operation on large concrete surfaces.
• Propane Option Available: With the added propane option, this trowel offers an environmentally friendly alternative to traditional fuel, making it ideal for long shifts on large-scale projects while minimizing emissions.
• Enhanced Maneuverability: Designed for ease of use, the BXR836 allows operators to navigate and finish concrete with precision, reducing labor time and ensuring a consistent, high-quality finish.
• Large Coverage Area: The 36" trowel size allows for wide coverage, reducing the number of passes needed and significantly improving work productivity on larger jobs.
• Durable and Reliable: Built with robust materials, this ride-on power trowel is designed for longevity and consistent, heavy-duty performance, even in challenging conditions.
• Ideal for Commercial Jobs: Perfect for large concrete slabs, the BXR836 excels in finishing high-quality surfaces for commercial construction, industrial flooring, and other large concrete applications

Q&A

Q: What is the Bartell Global Ride-On Power Trowel BXR836 used for?
A: The Bartell Global Ride-On Power Trowel BXR836 is designed for large-scale concrete finishing, providing smooth and high-quality results on slabs, floors, and surfaces in commercial and industrial construction projects.

Q: What are the key features of the Bartell Global Ride-On Power Trowel BXR836?
A: The BXR836 features a Honda/Briggs engine, with the option for propane fuel, ensuring reliable power for efficient concrete troweling. Its ride-on design allows for comfort and productivity on large work areas, and it offers excellent maneuverability.

Q: Is the Bartell Global Ride-On Power Trowel BXR836 easy to operate?
A: Yes, the BXR836 is designed for ease of use, offering intuitive controls and a comfortable ride, allowing operators to cover large areas with minimal effort while achieving a smooth concrete finish.

Q: Does the Bartell Global Ride-On Power Trowel BXR836 have a fuel option?
A: Yes, the BXR836 offers both Honda/Briggs engine options and a propane fuel choice, providing flexibility in operation based on availability and preferences.

Q: Does the Bartell Global Ride-On Power Trowel BXR836 come with a warranty?
A: Yes, the Bartell Global Ride-On Power Trowel BXR836 is backed by a manufacturer’s warranty, ensuring reliable performance and durability on tough construction sites.

Maintenance Tips

• Post-Use Cleaning: After each use, clean the trowel thoroughly, especially the trowel blades and engine area, to remove concrete slurry and debris that could cause damage or operational issues.

• Engine Maintenance: Follow the manufacturer's schedule for oil changes and check the air filter regularly. Clean or replace the air filter as needed to ensure optimal engine performance. Inspect and replace the spark plug if necessary.

• Fuel System: Use fresh, high-quality fuel to prevent fuel degradation. Drain the fuel tank if storing the trowel for extended periods and check for any fuel leaks.

• Propane System: Ensure the propane tank and connections are secure and free from leaks. Check the regulator and hoses regularly for wear or damage. Replace propane hoses if cracked or damaged.

• Trowel Blade Inspection: Inspect the trowel blades for wear, cracks, or damage. Replace blades if they are excessively worn to maintain the best finishing quality.

• Hydraulic System Check: Monitor hydraulic fluid levels and check for leaks in the hydraulic system. Replace any damaged hydraulic components to maintain smooth operation.

• Drive System and Belts: Inspect the drive system and belts for signs of wear or misalignment. Replace worn or damaged belts to prevent operational failure.

• Tire and Handle Check: Inspect the tires for wear or deflation and ensure they are properly inflated. Check the handle and seat for security, and tighten any loose bolts.

• Lubrication: Lubricate moving parts such as the handle pivots and drive components to ensure smooth operation and reduce wear.

• Storage: Store the ride-on power trowel in a dry, clean location, away from moisture and extreme temperatures. Use a cover to protect it from dust and debris when not in use.
