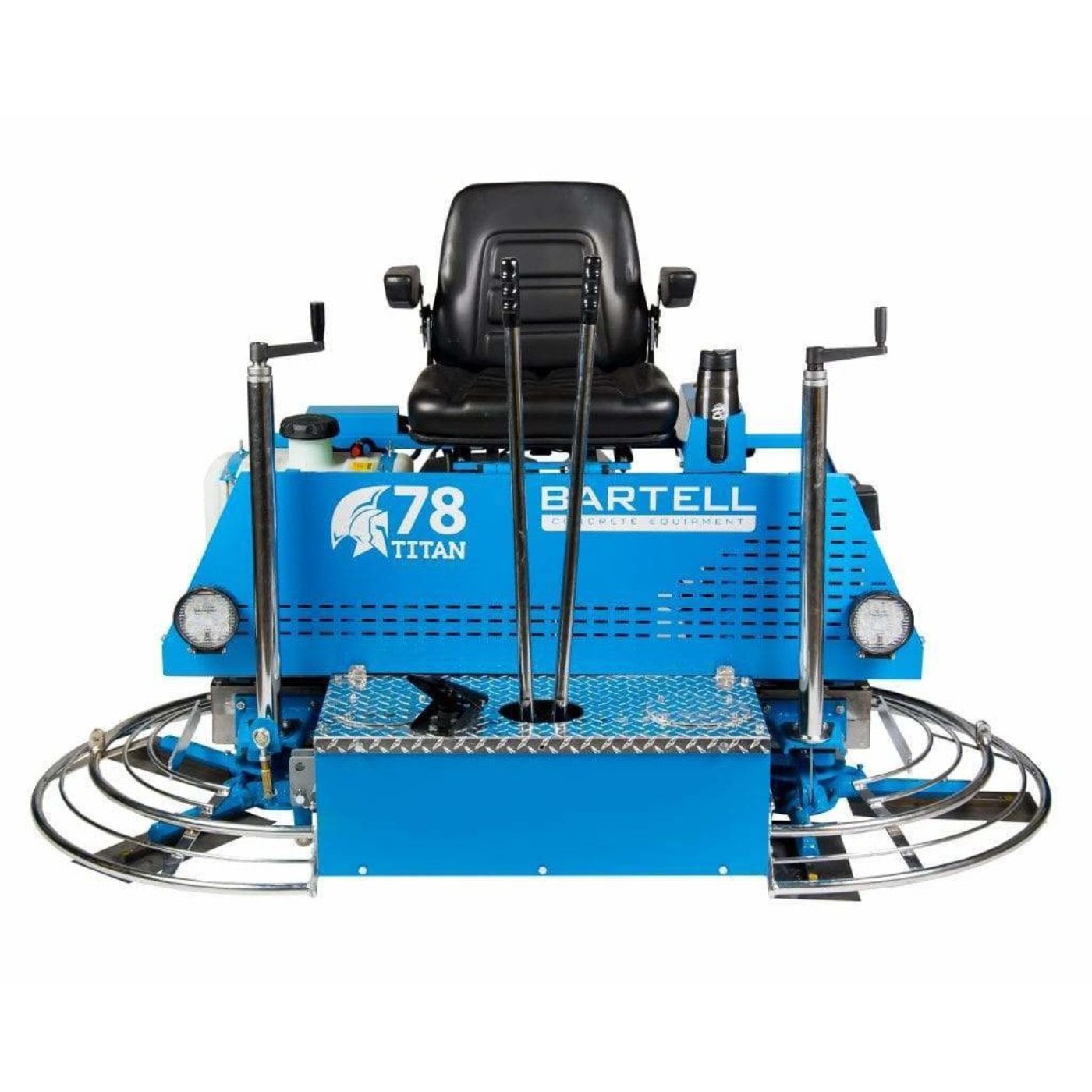

Bartell Global Titan 78 Ride On Power Trowel, Honda/Kohler Engine - TITAN78

Bartell Global: an excellent product offering, visionary leadership, and a culture rooted in our heritage of resilience, optimism, and the determination it took for a war-weary generation to build a prosperous legacy.

See Features Below

• 6″ lower to the ground

• 19” height from bottom of foot to seat

• LED Lights in front and rear

• 12v Outlet for USB charging

• Greater visibility to blade

• New accelerator pedal

• Low profile design (Puts operator closer to concrete)

• Heavy duty gearbox

• Multiple engine selection

• Weight plate add-on (Add up to 225lbs)

Specifications

Type: Panning & Finishing

Power Source: Kohler CH730 / Kohler 7CH40 / Kohler ECH749

Power Output: 23/25/26.5hp

Float Blade Size: 10” x 14” (25cm x 36cm)

Finish Trowel Size: 6“ x 14” (15cm x 36cm)

Combination Blade Size: 8” x 14” (20cm x 36cm)

Float Pan: 36” (91cm)

Operating Weight: 880lbs (399kg)

Length: 78” (198cm)

Width: 40.5” (103cm)

Height: 46″ (117cm)

Weight: 844lbs (383kg)

Manuals

Spec Sheet

What Our Experts Think

• Exceptional Power: The Bartell Global Titan 78 Ride-On Power Trowel features a powerful Honda/Kohler engine, ensuring efficient and smooth finishing on large concrete surfaces with minimal effort.
• Large Coverage Area: With a 78-inch working width, the Titan 78 is ideal for expansive commercial and industrial projects, covering more area in less time and increasing overall productivity.
• Enhanced Durability: Built with heavy-duty materials, this power trowel is designed for long-term performance, withstanding the demands of daily operation in tough construction environments.
• Smooth Finishing: The Titan 78's precise troweling action creates a smooth, professional-grade concrete finish, making it perfect for both indoor and outdoor surfaces.
• Ride-On Comfort: The ride-on design enhances operator comfort, reducing fatigue during extended use, while the ergonomic controls allow for easy maneuverability and precise handling.
• Versatile and Reliable: Whether you're finishing floors for warehouses, commercial spaces, or large concrete pours, the Titan 78 delivers consistent, high-quality results, helping contractors meet deadlines and client expectations.

Q&A

Q: What is the Bartell Global Titan 78 Ride-On Power Trowel used for?
A: The Bartell Global Titan 78 Ride-On Power Trowel is designed for high-efficiency finishing of large concrete slabs. It’s perfect for smooth, high-quality concrete surfaces in commercial and industrial applications.

Q: What are the key features of the Bartell Global Titan 78 Ride-On Power Trowel?
A: The Titan 78 features a robust Honda or Kohler engine, providing powerful performance for high-speed finishing. It’s equipped with a comfortable ride-on design for ease of use and extended operation, along with adjustable trowel blades for optimal surface finishing.

Q: How does the Bartell Global Titan 78 improve productivity?
A: The ride-on design, paired with a high-powered engine, allows operators to cover large concrete areas quickly and efficiently. Its adjustable blades ensure smooth, consistent finishes, reducing time and labor costs.

Q: Is the Bartell Global Titan 78 Ride-On Power Trowel easy to operate?
A: Yes, the Titan 78 is user-friendly, featuring intuitive controls and a comfortable seat for the operator. The ride-on design reduces fatigue during long hours of use.

Q: Does the Bartell Global Titan 78 Ride-On Power Trowel come with a warranty?
A: Yes, the Titan 78 is backed by a manufacturer’s warranty, ensuring reliability and durability for demanding concrete finishing projects

Maintenance Tips

• Engine Maintenance: Regularly check the Honda/Kohler engine for oil levels, and change the oil as recommended in the user manual. Inspect the air filter and clean or replace it if it’s dirty to ensure optimal engine performance.

• Blade Inspection: Periodically inspect the trowel blades for wear, cracks, or damage. Replace damaged blades to maintain smooth, even finishing on the concrete surface.

• Check Fuel System: Ensure the fuel system is free of leaks. Replace any damaged fuel lines, and clean the fuel filter as necessary to ensure efficient fuel flow.

• Grease Moving Parts: Grease all moving parts such as the trowel head bearings and gearbox to reduce friction and prevent premature wear. Follow the manufacturer’s lubrication schedule for best results.

• Tire Pressure Check: Ensure the tires are properly inflated. Check the tire pressure regularly to maintain smooth operation and avoid uneven wear.

• Hydraulic System Inspection: Check hydraulic fluid levels regularly and inspect hoses for leaks or damage. Replace any worn hydraulic hoses to prevent operational failure.

• Inspect Battery: If equipped with a battery, check its charge and condition regularly. Clean the terminals to prevent corrosion and ensure reliable electrical function.

• Check Bolts and Fasteners: Tighten any loose bolts and fasteners to prevent vibration-related damage during operation.

• Clean After Use: Clean the power trowel after each use to remove concrete slurry and debris from the trowel blades, engine, and other components. This helps prevent build-up that could affect performance.

• Safety Feature Checks: Test all safety features, including the emergency shut-off mechanism, to ensure proper operation in case of emergencies.

• Proper Storage: When not in use, store the ride-on power trowel in a clean, dry environment to protect it from the elements and prolong its lifespan
