DK2 10,000lb NH Hydraulic Winch

by DK2
SKU 10000NH
Save 7% Save 7%
Original price $1,299.99
Original price $1,299.99 - Original price $1,299.99
Original price $1,299.99
Current price $1,208.99
$1,208.99 - $1,208.99
Current price $1,208.99
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

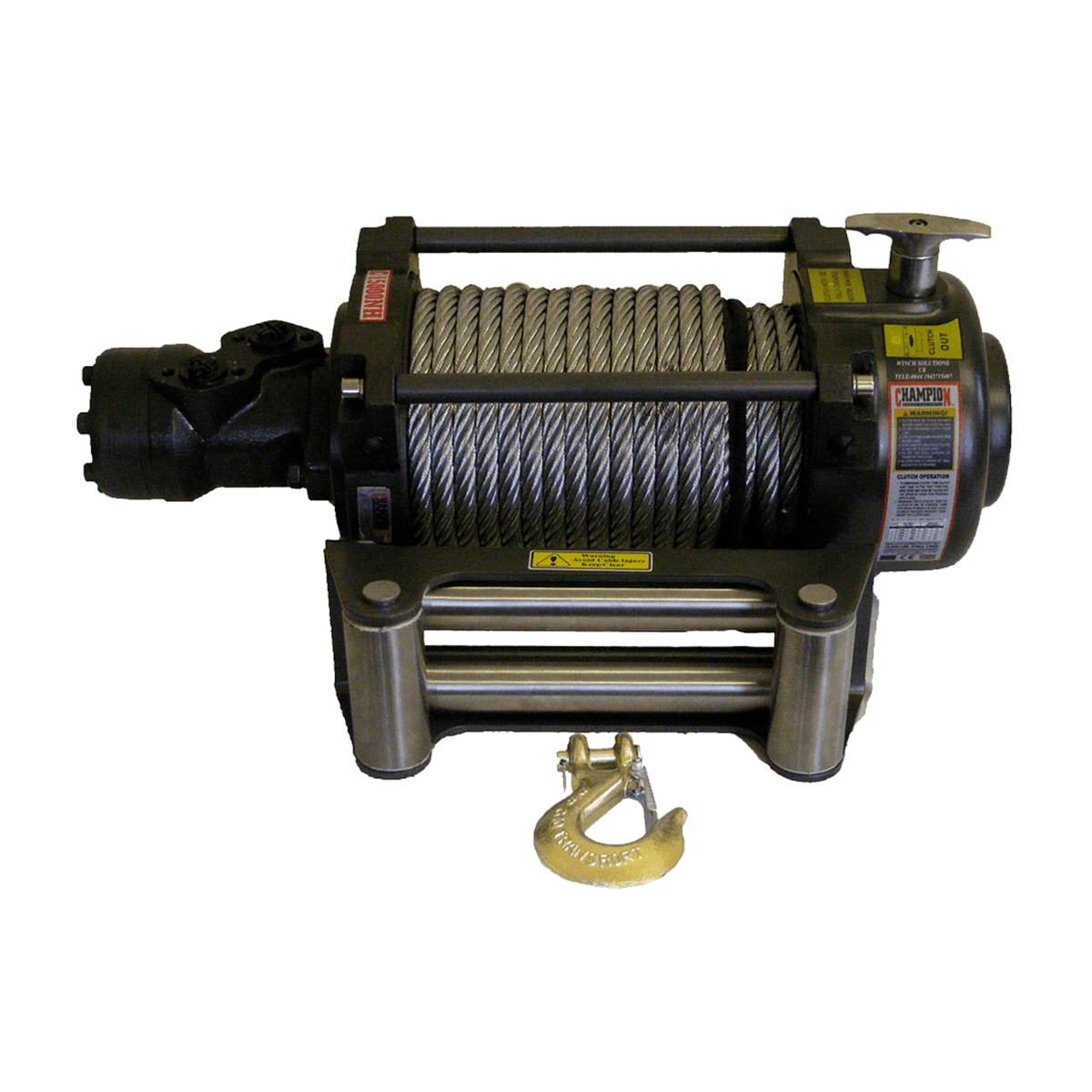

DK2 10,000lb NH Hydraulic Winch


COMPACT & TOUGH. WARRIOR HYDRAULIC WINCHES FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS. VALUE WITHOUT COMPROMISE.

Compact, tough. A hydraulic winch for industrial and commercial applications. The unique
patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures
maximum performance over the full load range. Complete with internal brake to ensure maximum control
and load holding and backed by Warrior’s un-rivalled Limited Lifetime Warranty. Stainless steel roller fairleads and fittings are standard.

Features

  • Patented heavy duty gearing

  • Integral, automatic failsafe brake

  • Spring engaged manual freespool

  • Stainless steel fairlead and fittings

  • Rugged and compact for long life

ITEM NUMBER 10000NH
RATED LINE PULL 10000 LBS (4536 KG)
MOTOR HYDRAULIC DIS 65 ML/R
GEARING 25.5:1
DRUM SIZE - DIAMETER x LENGTH 72 x 219mm (2.83 x 8.62')
CABLE - DIAMETER x LENGTH 10.2mm x 25.5m (0.4' x 84')
DIMENSIONS 519 x 206 x 246mm (20.43 x 8.1 x 9.7')
MOUNTING PATTERN 254 x 114.3mm (10 x 4.5')
WEIGHT 53 KG (117 LBS)
MAX FLOW L/MIN 45
MAX PRESSURE MPA 12.5
CLUTCH PULL & TURN
CERTIFICATION CE CERTIFIED
LAYER OF ROPE / CABLE LINE PULL: LBS (KGS) ROPE ON DRUM FT (M)
1 10000 (4536) 16.4 (5.0)
2 8012 (3634) 37.2 (11.3)
3 6683 (3031) 60.9 (18.6)
4 5732 (2600) 83.7 (25.5)
LINE PULL: LBS (KGS) LINE SPEED FT/MIN (M/MIN) FLOW L/MIN • PRESSURE MPA
0 2.3 (0.7) 5 • 2.0
3000 (1361) 4.6 (1.4) 10 • 4.5
6000 (2722) 8.9 (2.7) 20 • 6.8
9000 (4082) 15.1 (4.6) 35 • 9.0
10000 (4536) 17.4 (5.3) 40 • 12.5
