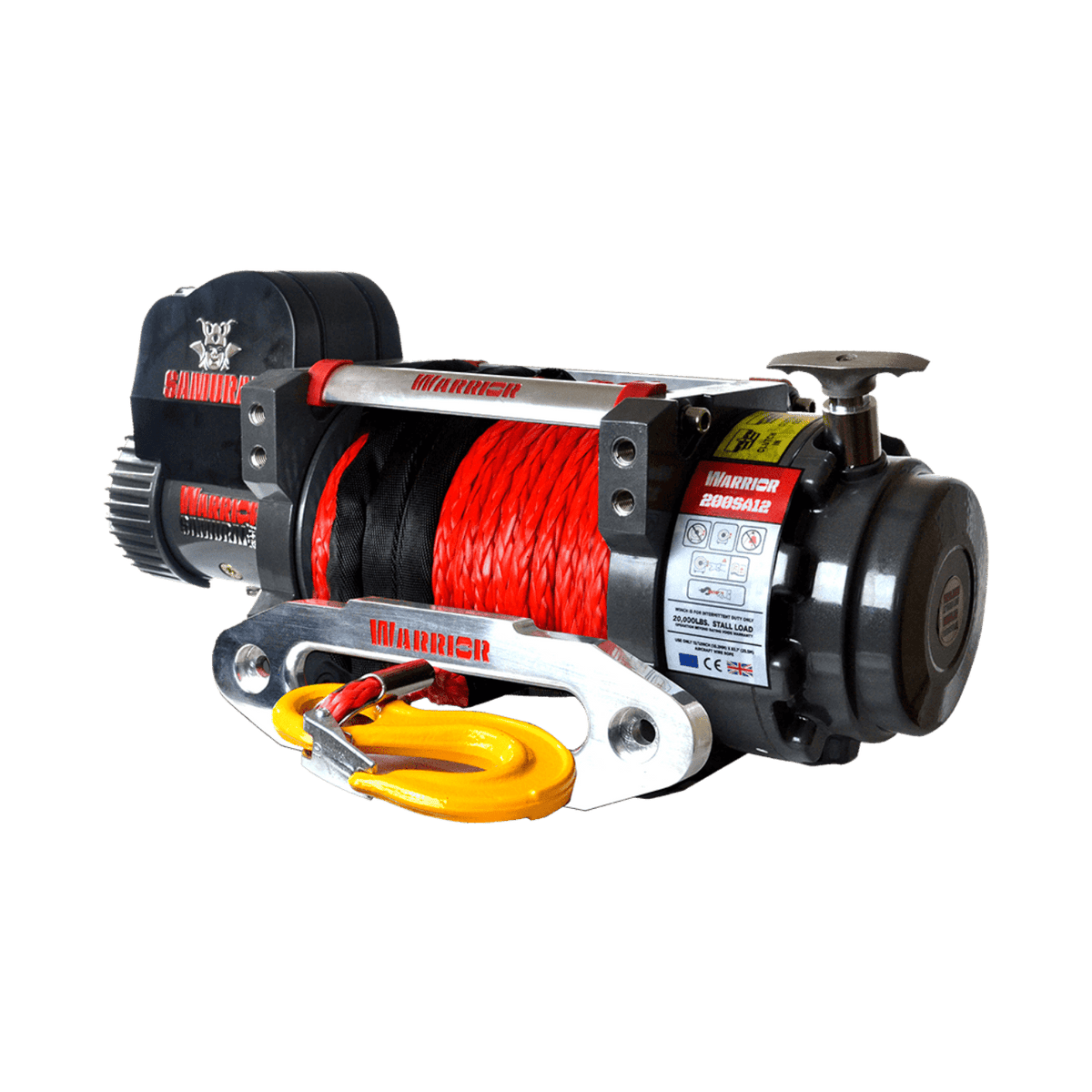

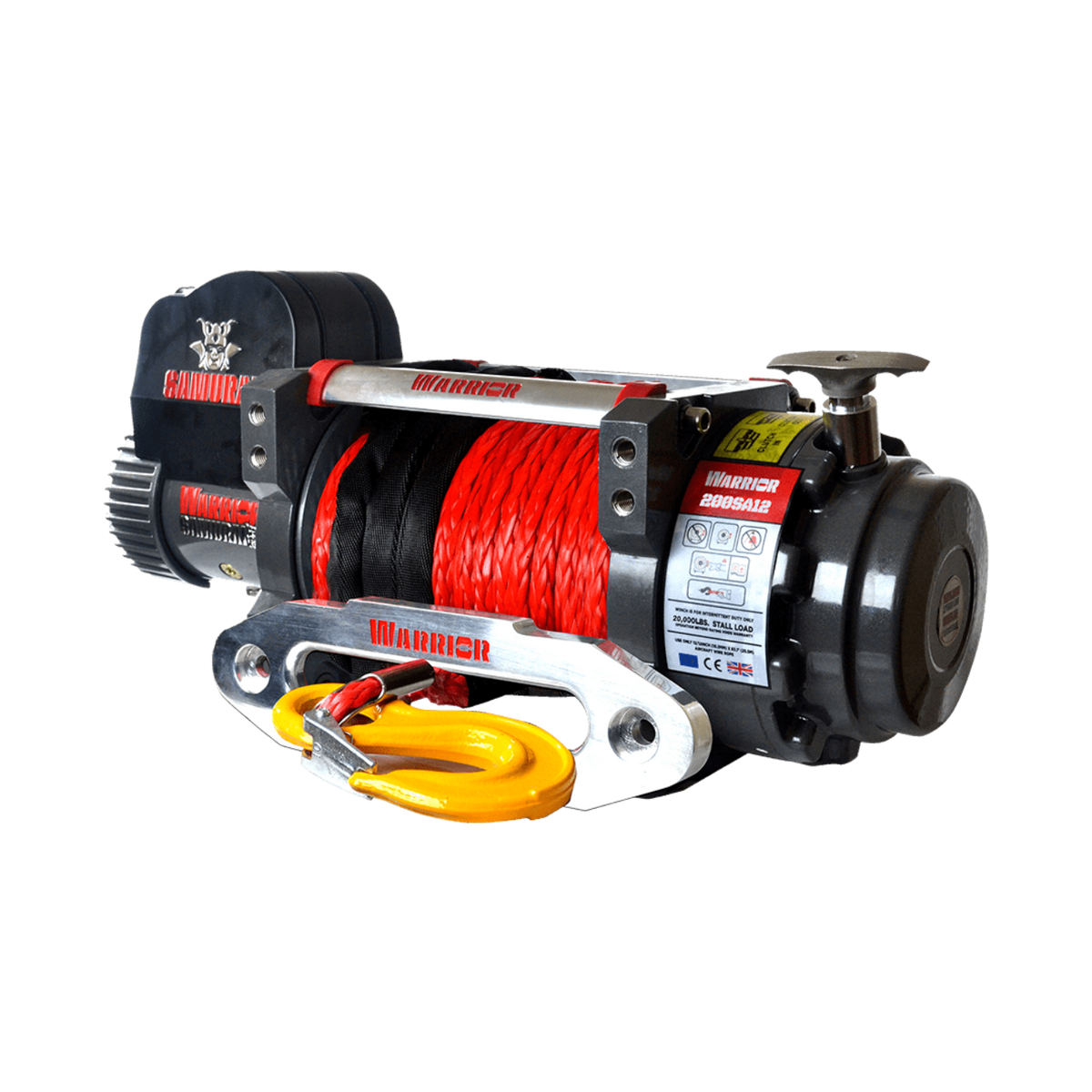

DK2 20,000LB Samurai Series Winch (Synthetic Rope)

by DK2
SKU S20000-SR
Save 6% Save 6%
Original price $2,329.99
Original price $2,329.99 - Original price $2,329.99
Original price $2,329.99
Current price $2,190.99
$2,190.99 - $2,190.99
Current price $2,190.99
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


DK2 20,000LB SAMURAI SERIES WINCH (SYNTHETIC ROPE)


SUPERB HIGH SPECIFICATION WINCHES IDEAL FOR RECOVERY AND 4X4 APPLICATIONS

Ideal for recovery and 4x4 applications when you need a Warrior on your side. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing.

Features

  • All brass (no corrosion) series wound motor

  • Double sealed motor

  • Sealed waterproof contactor

  • Steel contactor cover for added protection

  • Double sealed drum (gearbox/motor)

  • Sealed 3 stage planetary gears

  • Stainless steel 4 way fairleads

  • Integrated wireless remote (12V only)

PLEASE NOTE: THIS WINCH CAN ONLY BE FRONT MOUNTED USING THE APPROPRIATE IST200 MOUNTING PLATE.

ITEM NUMBER S20000-SR
RATED LINE PULL 20000 LBS (9072 KG)
MOTOR 12V: 7.5 HP / 5.4 KW • 24V: 7.9 HP / 6.0 KW
GEARING 430:1
BRAKING ACTION AUTO IN THE DRUM
DRUM SIZE - DIAMETER x LENGTH 89 x 219mm (3.5 x 8.78')
CABLE - DIAMETER x LENGTH 12mm x 25m (0.47' x 82')
DIMENSIONS 610 x 216 x 254mm (24.01 x 8.5 x 10')
MOUNTING PATTERN 254 x 114mm (10 x 4.49')
WEIGHT 67 KG (147.7 LBS)
CERTIFICATION CE CERTIFIED
LAYER OF ROPE / CABLE LINE PULL: LBS (KGS)
1 20000 (9072)
2 16160 (7330)
3 13557 (6149)
4 11677 (5297)
LINE PULL: LBS (KGS) LINE SPEED 12V • 24V FT/MIN (M/MIN) AMP DRAW 12V • 24V
0 19.7 (6.0) • 13.8 (4.4) 100 • 40
6000 (2728) 7.2 (2.2) • 6.9 (2.1) 220 • 100
10000 (4545) 5.6 (1.7) • 5.9 (1.8) 320 • 140
12500 (5682) 4.9 (1.5) • 5.2 (1.6) 350 • 180
14000 (6350) 4.6 (1.4) • 4.6 (1.4) 380 • 200
17500 (7938) 3.0 (0.9) • 3.9 (1.2) 450 • 250
20000 (9072) 3.6 (0.9) • 3.3 (1.0) 480 • 265

Manual Instruction

Technical Diagram

Brochure

Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; can be delayed for reasons beyond our control. You can always contact us to know the exact time once you placed an order with us. Have a look at our
