DK2 33,000LB JP Hydraulic Winch

by DK2
SKU 15TJP
Save 7% Save 7%
Original price $11,372.00
Original price $11,372.00 - Original price $11,372.00
Original price $11,372.00
Current price $10,575.99
$10,575.99 - $10,575.99
Current price $10,575.99
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.

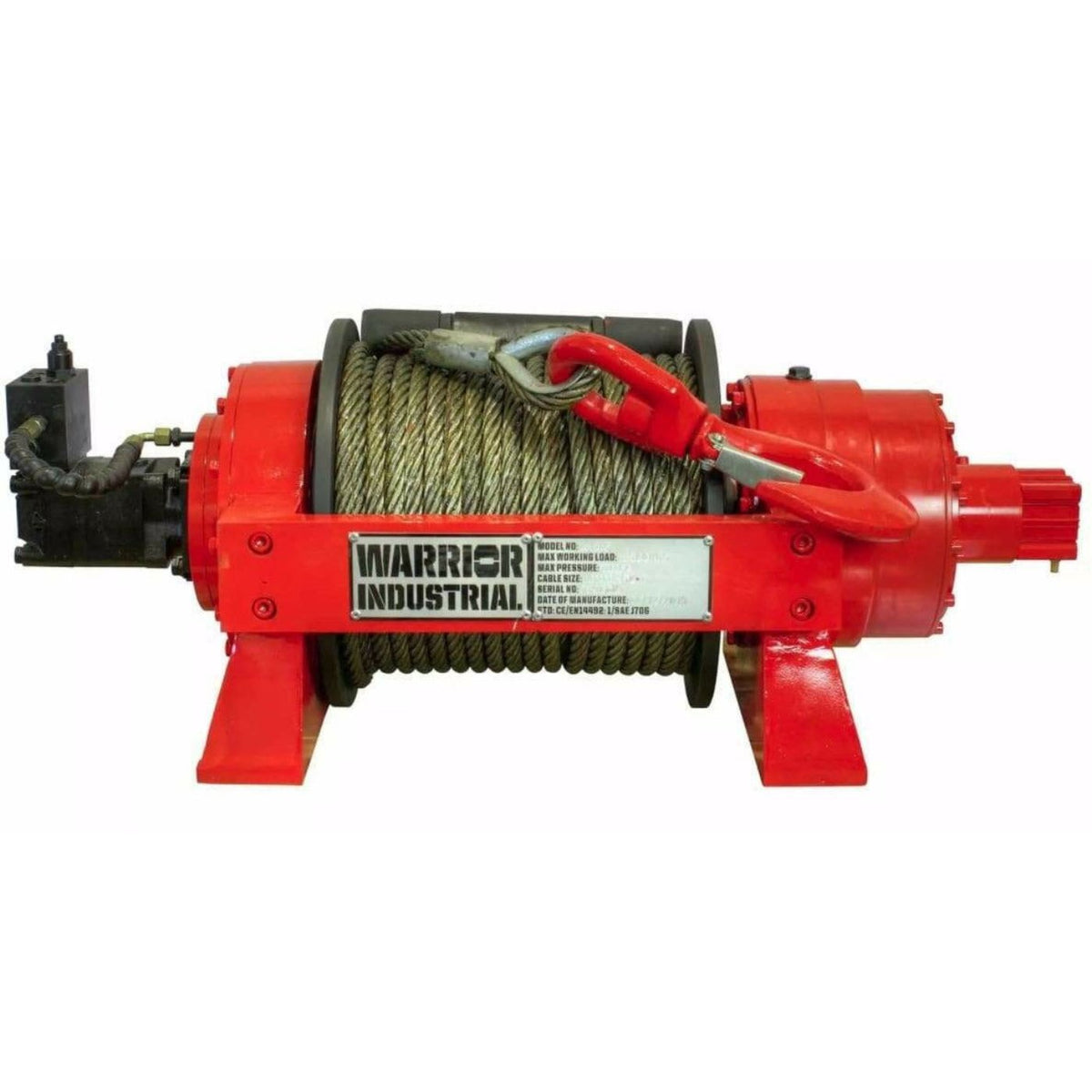

DK2 33,000LB JP HYDRAULIC WINCH


THE JP SERIES WINCHES HAVE BEEN DEVELOPED FOR THE PROFESSIONAL OPERATOR.

BUILT SPECIFICALLY FOR MILITARY USE & ABLE TO WITHSTAND EXTREME CLIMATES AND TEMPERATURES.

These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.

Features

  • Full float heavy duty planetary gearing

  • Multi disc friction brake

  • High torque industrial motor

  • Air and manual clutch operation

  • Heavy duty rope tensioner as standard

  • Minimum 10:1 rope/drum ratio

  • Balance valve as standard

ITEM NUMBER 15TJP
RATED LINE PULL 33069 LBS (15000 KG)
GEARING 36:1
BRAKING ACTION AUTO HYDRAULIC
DRUM SIZE - DIAMETER x LENGTH 210 x 340mm (8.26 x 13.39')
CABLE - DIAMETER x LENGTH 22mm x 50m (0.87' x 164')
DIMENSIONS 1077 x 640 x 420mm (42.4 x 25.1 x 16.5')
MOUNTING PATTERN 522mm x 180 / 280mm (20.5' x 7 / 11')
WEIGHT 320 KG (705 LBS)
CERTIFICATION CE CERTIFIED
MAX FLOW L/MIN 110 L/MIN
MAX PRESSURE MPA 160 BAR
