Features Of The SAMURAI SERIES HIGH SPEED WINCH


SUPERB HIGH SPECIFICATION WINCHES IDEAL FOR RECOVERY AND 4X4 APPLICATIONS

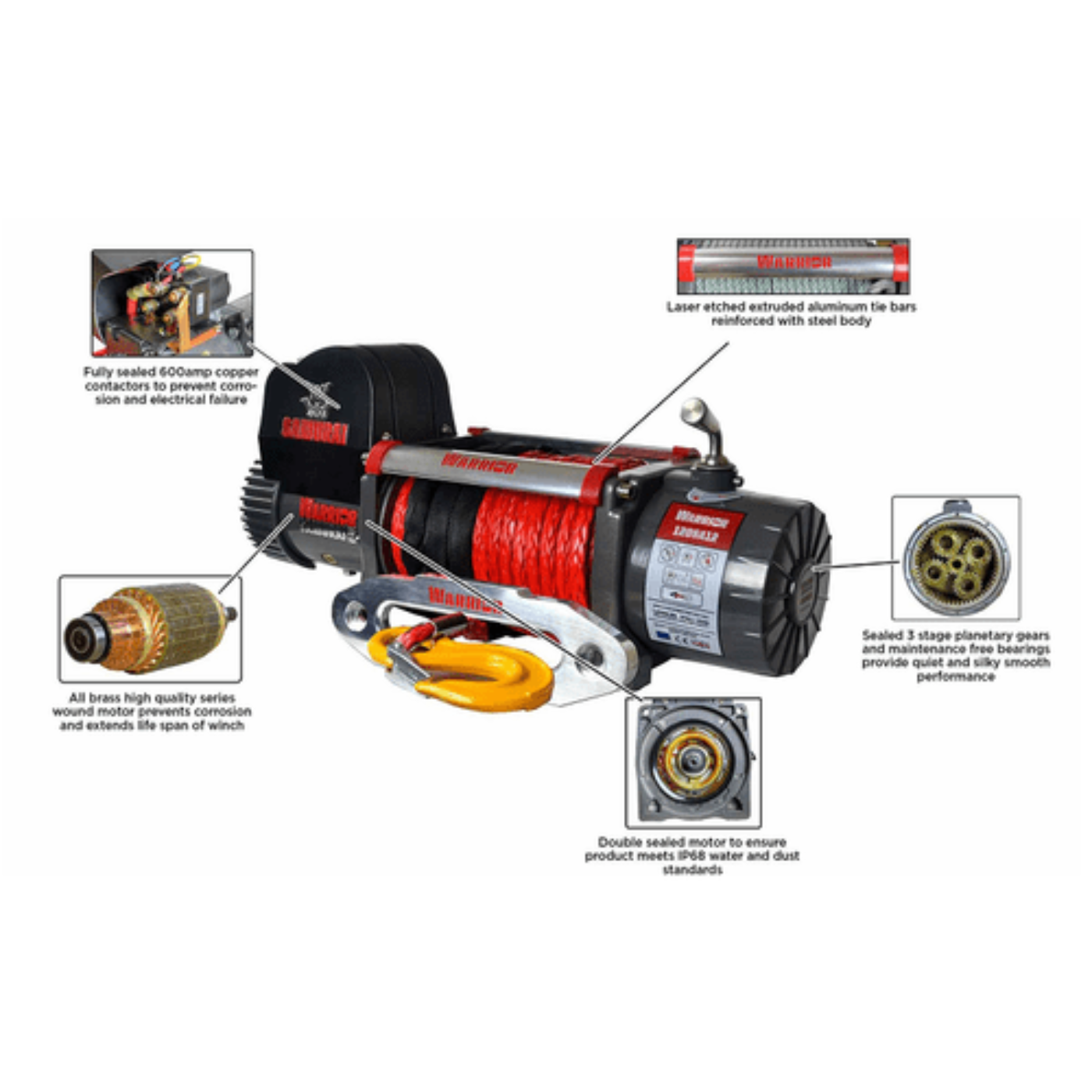

Ideal for recovery and 4x4 applications when you need a Warrior on your side. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing.

  • All brass (no corrosion) series wound motor

  • Double sealed motor

  • Sealed waterproof contactor

  • Steel contactor cover for added protection

  • Double sealed drum (gearbox/motor)

  • Sealed 3 stage planetary gears

  • Stainless steel 4 way fairleads

  • Integrated wireless remote (12V only)

ITEM NUMBER S9500HS
RATED LINE PULL 9500 LBS (4500 KG)
MOTOR 12V: 6.5 HP / 4.5 KW
GEARING 110:1
BRAKING ACTION AUTO IN THE DRUM
DRUM SIZE - DIAMETER x LENGTH 63 x 224mm (2.48 x 8.82')
CABLE - DIAMETER x LENGTH 9.5mm x 26m (0.37' x 85.3')
DIMENSIONS 577 x 160 x 215mm (22.72 x 6.3 x 8.46')
MOUNTING PATTERN 254 x 114mm (10 x 4.49')
WEIGHT 31.6 KG (69.7 LBS)
CERTIFICATION CE CERTIFIED
LAYER OF ROPE / CABLE LINE PULL: LBS (KGS)
1 9500 (4309)
2 7706 (3495)
3 6482 (2940)
4 5400 (2400)
LINE PULL: LBS (KGS) LINE SPEED 12V FT/MIN (M/MIN) AMP DRAW 12V • 24V
0 65 (19.8) 80 • 45
4000 (1818) 12.5 (3.8) 300 • 175
6000 (2722) 11.81 (3.6) 400 • 230
9500 (4309) 8.86 (1.9) 530 • 335
