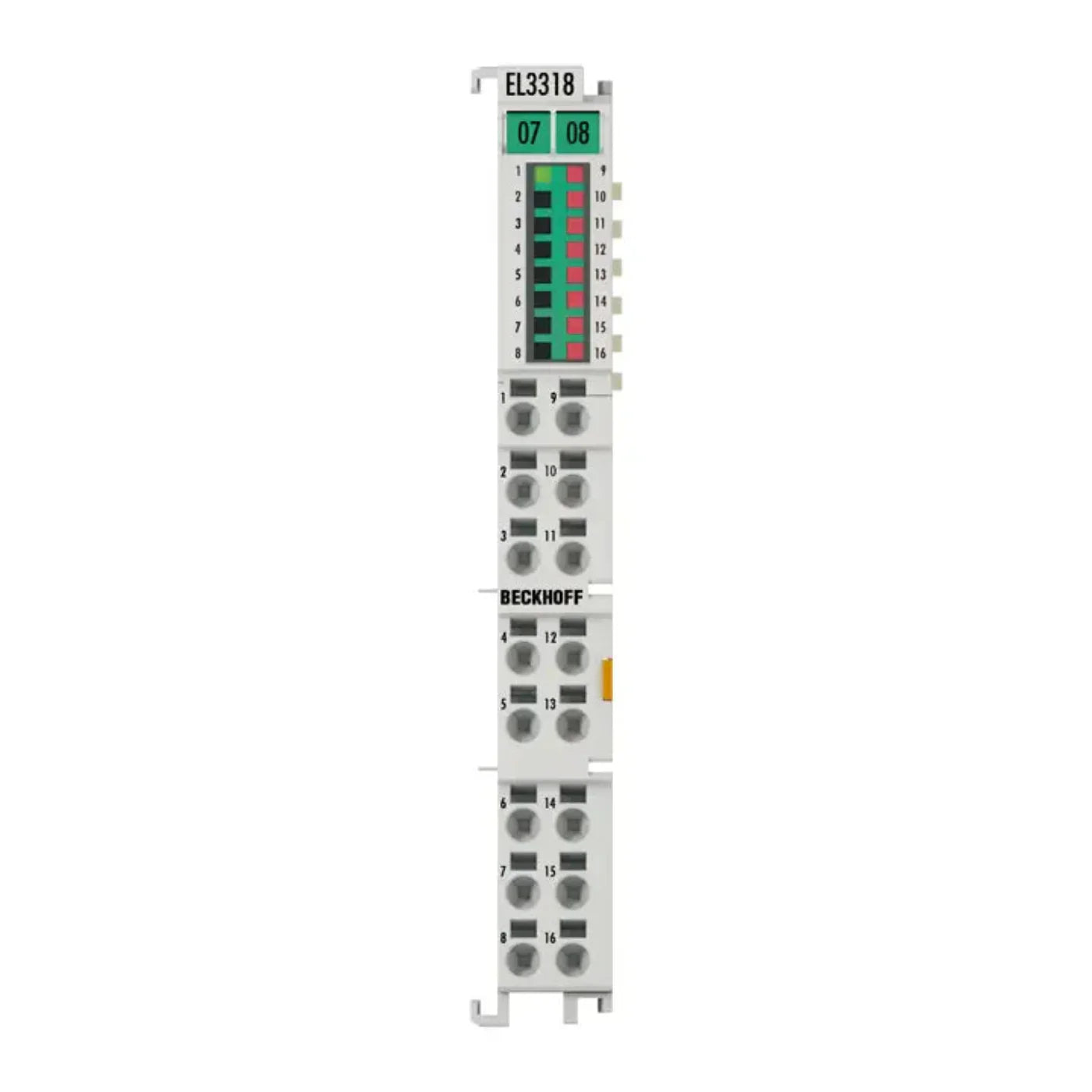

Beckhoff Terminal, 8-channel Analog Input - EL3318
The EL3318 is an EtherCAT terminal designed for analog input with 8 channels for temperature measurement using thermocouples, offering 16-bit resolution. It supports the direct connection of eight thermocouples and is suitable for space-saving use in control cabinets. The terminal operates thermocouple sensors using a 2-wire technique. A microprocessor handles linearization across the entire selectable temperature range.Ā
SpecificationsĀ
| Part Number |
EL3318 |
| Category |
PLCs/Machine Control |
| Subcategory |
PLC Programming Terminal |
| Number of inputs |
8 |
| Power supply |
via the E-bus |
| Distributed clocks |
ā |
| Input filter limit frequency |
typ. 1 kHz |
| Connection method |
2-wire |
| Conversion time |
approx. 2.5 s up to 20 ms, depending on configuration and filter setting, default: approx. 250 ms |
| Voltage measurement |
Ā±30/Ā±60/Ā±75 mV |
| Resolution |
16 bit, representation adjustable: 0.1/0.01Ā°C or 1/2/4 ĀµV per digit |
| Temperature measurement (thermocouple) |
type B, C, E, J, K, L, N, R, S, T, U (default setting: type K) |
| Measurement uncertainty (voltage measurement) |
at Ā±75 mV, 23Ā°C ambient temperature: < Ā±0.096% (relative to full scale value) |
| Electrical isolation |
500 V (E-bus/signal voltage) |
| Current consumption power contacts |
ā |
| Current consumption E-bus |
typ. 210 mA |
| Special features |
channel by channel wire break detection, internal and external cold junction, firmware filter adjustable |
| Operating/storage temperature |
-25ā¦+60Ā°C/-40ā¦+85Ā°C |
| Weight |
approx. 70 g |
| Relative humidity |
95%, no condensation |
| Vibration/shock resistance |
conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission |
conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating/installation pos. |
IP20/variable |
