Beckhoff Terminal - EL3356

Beckhoff Terminal - EL3356

Specifications

Information About EL3356

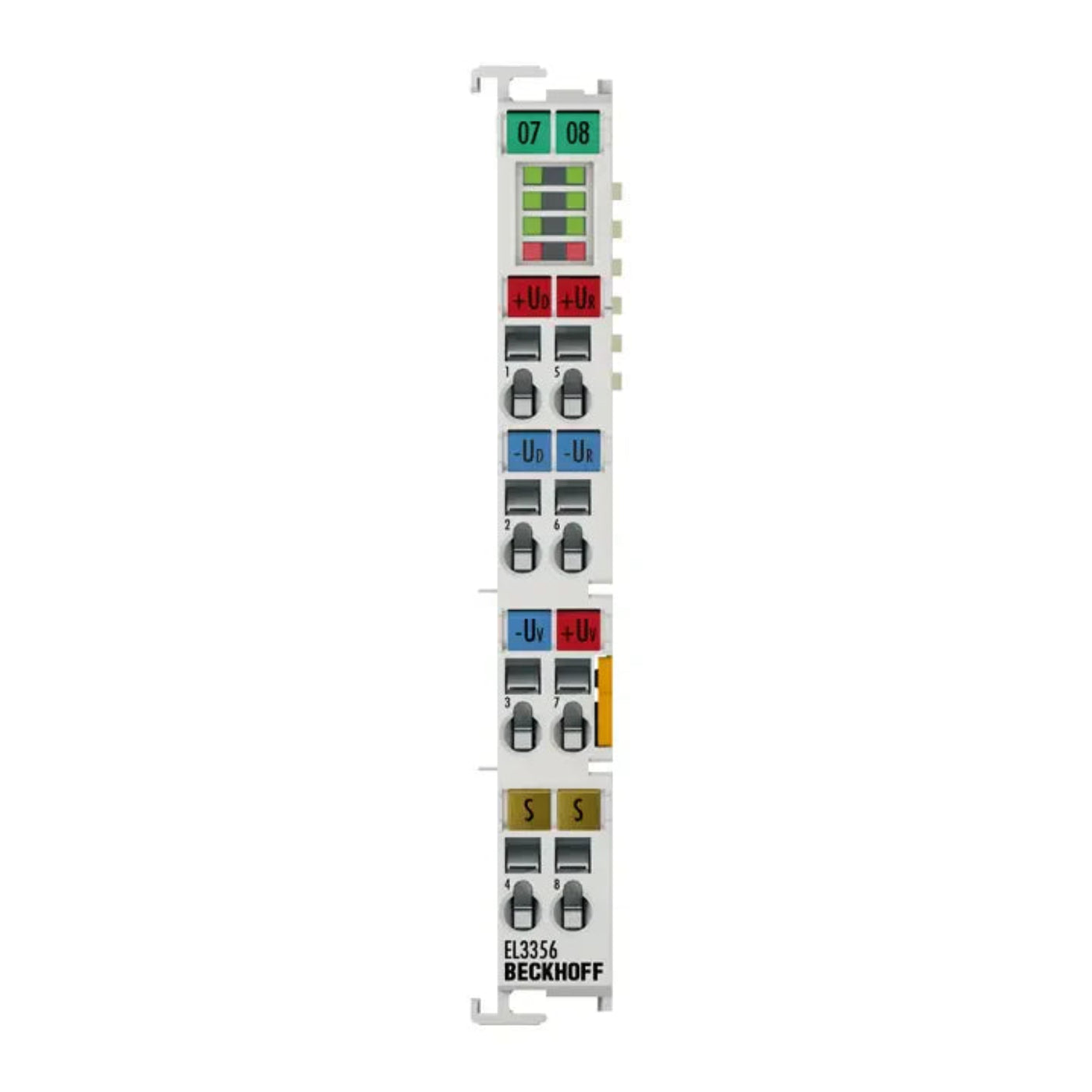

The EL3356 EtherCAT Terminal is a 1-channel analog input module designed for measuring bridge applications, specifically full bridge configurations, with a precision of 16 bits. It facilitates the direct connection of a resistor bridge or load cell using either 4- or 6-wire connection technology.

The terminal operates by determining the ratio between the bridge voltage (UD) and the supply voltage (UREF) simultaneously within the input circuit. Subsequently, the final load value is computed as a process value based on the configured settings within the terminal.

One of the notable features of the EL3356 is its automatic self-calibration capability, which can be deactivated if necessary. This ensures consistent and accurate measurements over time. Additionally, dynamic filters are incorporated into the terminal, enhancing its suitability for applications requiring high precision even during slow weighing processes.

With a measuring cycle time of 10 milliseconds, the EL3356 EtherCAT Terminal excels in applications where precise measurements are essential. Its ability to maintain accuracy during slow weighings makes it suitable for a variety of industrial scenarios where precise weight measurements are crucial for operations.

The terminal is designed to offer robust and reliable performance in demanding industrial environments. It provides engineers and technicians with a high degree of flexibility and accuracy in their measurement applications.

Key technical specifications of the EL3356 EtherCAT Terminal include its support for full bridge measuring bridge configurations, a resolution of 16 bits, and compatibility with both 4- and 6-wire connection technologies.

Furthermore, the terminal features automatic self-calibration functionality, which ensures consistent and accurate measurements over time. Dynamic filters enhance its precision during slow weighing processes, making it suitable for applications that demand high levels of accuracy.
