Eurodib USAResolute Ice Systems Ice Machines - ICB16080

Eurodib USAResolute Ice Systems Ice Machines -  ICB16080

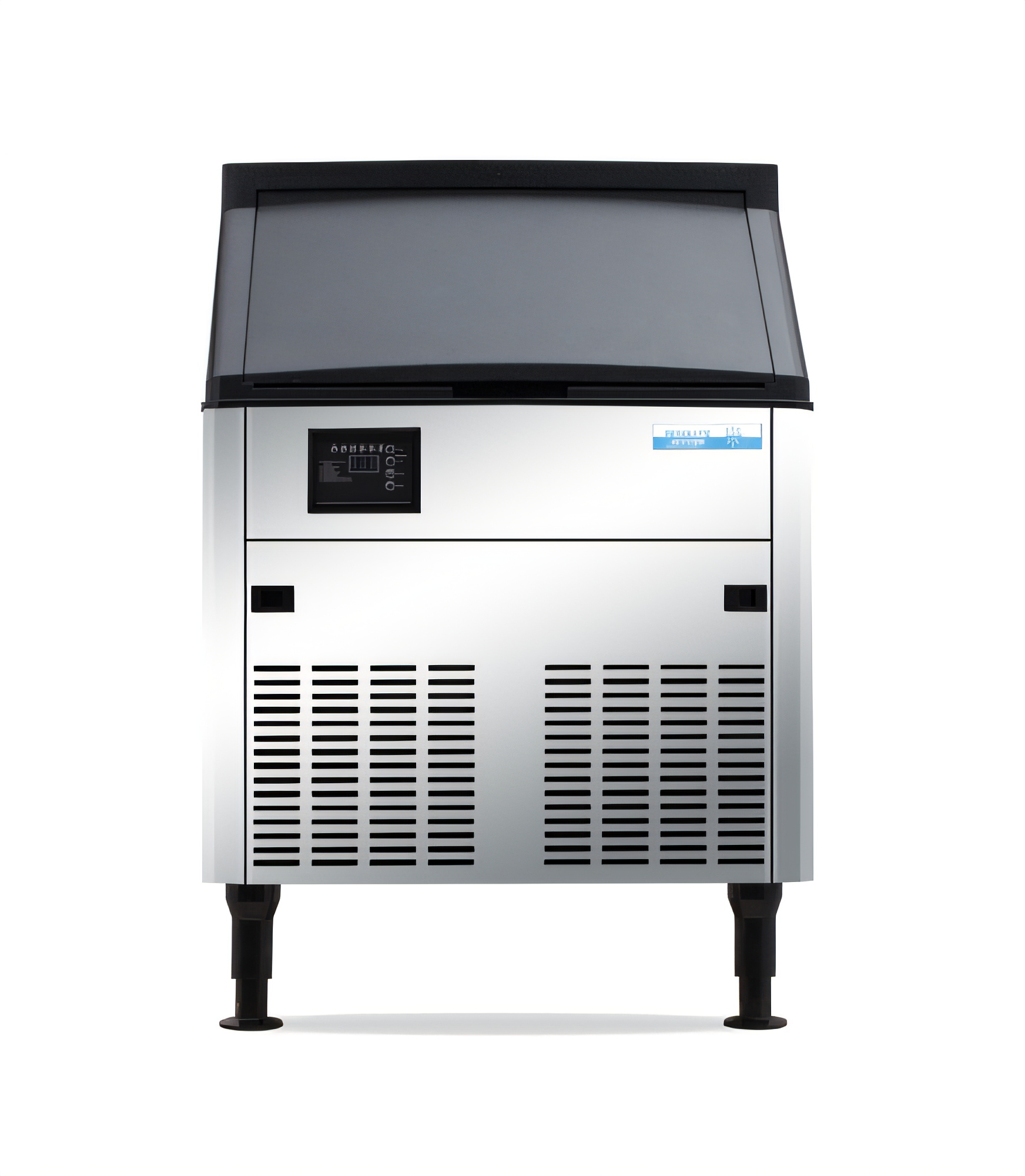

Resolute Ice Systems Ice Machine, cube style, 9g cube (22mm3), 160 lbs/24h production, 80 lbs bin capacity, air-cooled, automatic cleaning cycle, removable air filter, adjustable legs, gravity drain, stainless steel & ABS plastic, includes: inlet water filter, 115v/60/1-ph, 451 watts, 4 amps, 5-15P, cETLus, ETL Sanitation, NSF, Energy Star

Specifications

Documents

• Cutsheet

What Our Experts Think

• High Ice Production: Produces up to 160 lbs of ice per day, making it ideal for medium to large-volume establishments like restaurants and bars.

• Integrated Storage: Comes with an 80 lb capacity bin, eliminating the need for a separate storage unit.

• Compact & Space-Saving: With a width of 26 inches and height of 38.5 inches, it fits conveniently under most counters.

• Energy Efficient: Certified with Energy Star and NSF, ensuring low energy consumption and compliance with safety standards.

• Convenient Maintenance: Features an automatic cleaning cycle, removable air filter, and adjustable legs for easy upkeep.

• Durable Build: Constructed with stainless steel and ABS plastic, designed to withstand long-term commercial use.

• Power Specs: Runs on 115V, 451W, and 4A, compatible with standard outlets in most commercial kitchens.

• Bonus Features: Includes an inlet water filter to improve ice quality and extend the machine's life.

Q&A

Q: What is the ice production capacity?
A: It produces up to 160 lbs (73 kg) of ice per 24 hours.

Q: What is the storage bin capacity?
A: The machine includes an 80 lbs (36 kg) storage bin.

Q: What type of ice does it produce?
A: It produces full-size cube ice, perfect for beverages.

Q: What are the dimensions and weight of the unit?
A: The machine measures 26" W x 27.6" D x 35.4" H and weighs about 121 lbs (55 kg).

Q: What are the electrical requirements?
A: The unit operates on 115V, 60Hz, single-phase power and uses 451 watts while drawing 4 amps.

Q: What cooling system is used?
A: It uses an air-cooled system with environmentally friendly R290 refrigerant.

Q: Does the machine have any cleaning features?
A: Yes, it includes an automatic cleaning cycle and a removable air filter for easy maintenance.

Q: Is it suitable for commercial use?
A: Yes, the machine is ideal for commercial environments like bars, restaurants, and cafes.

Maintenance Tips

• Daily Cleaning: Disassemble and clean the removable parts like the ice bin and air filter with warm, soapy water. Rinse thoroughly and let them air dry.

• Automatic Cleaning: Use the machine's automatic cleaning cycle to keep the internal components hygienic and free of mineral buildup.

• Water Filter Replacement: Change the water filter every three months to prevent scale buildup and ensure clean, high-quality ice.

• Air Filter Care: Clean the air filter weekly to maintain proper airflow and cooling efficiency.

• Condenser Maintenance: Check and clean the condenser coils monthly to ensure proper heat exchange and to avoid overheating.

• Drain Check: Inspect the drain regularly to make sure it is free of blockages for proper water flow and drainage.

• Optimal Ambient Conditions: Ensure the machine operates in a temperature range of 46°F–95°F (8°C–35°C) for maximum performance.

• Annual Servicing: Schedule professional maintenance once a year to inspect and service the machine, ensuring its longevity and reliability.
