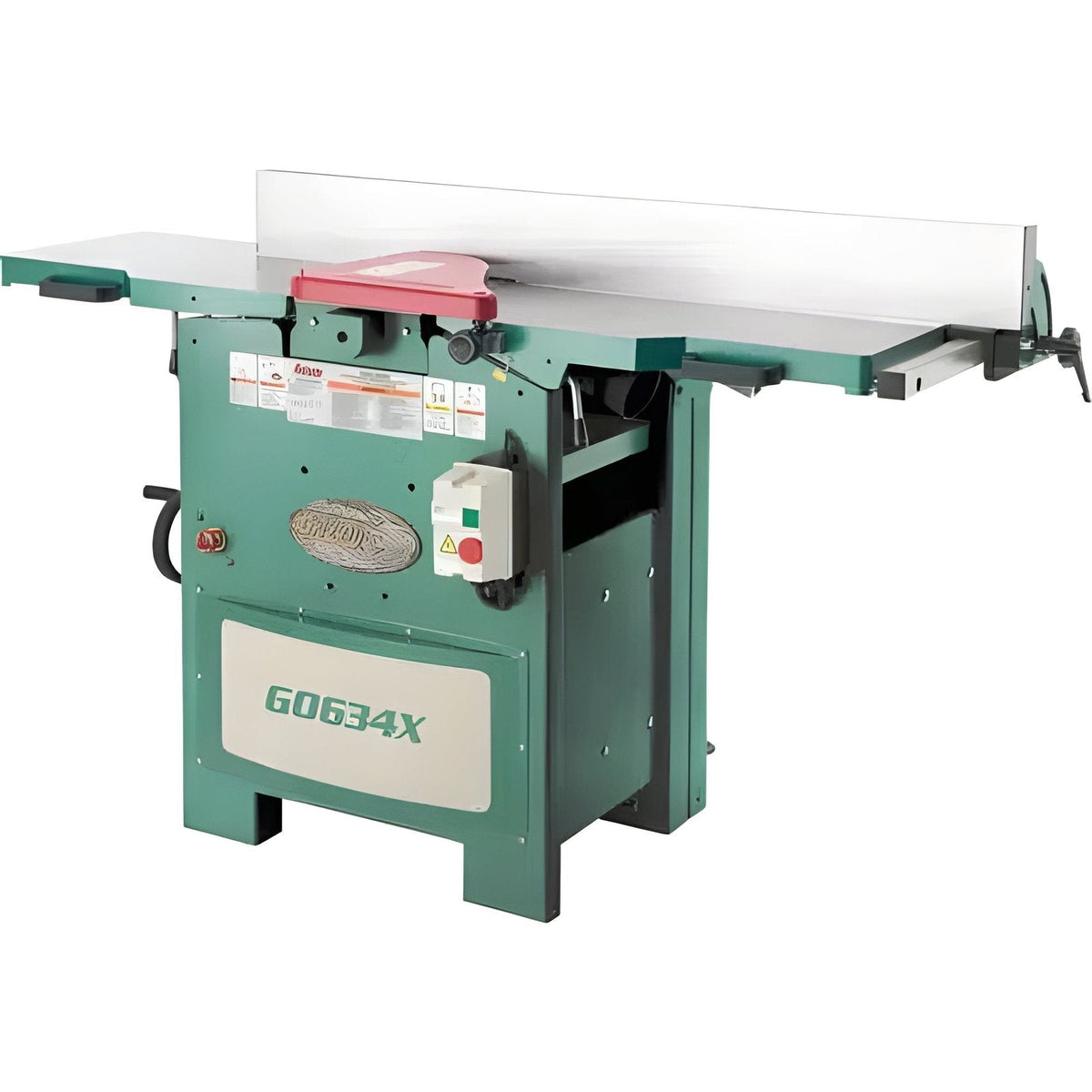

Grizzly Industrial 12" 5 HP Planer/Jointer with V-Helical Cutterhead

A powerful, convenient, and space-saving combination machine.

Most woodworking projects require lumber that is jointed and planed as a starting point. Save time, space, and money with a machine that does it all.

The G0634X 12' 5 HP Planer / Jointer combines a powerful 5 HP motor with a V-helical cutterhead for unmatched finish and long-lasting durability compared to a machine with straight knives.

No need to sharpen the blades every time they get dull or nicked. The 48 indexable carbide inserts can be rotated up to 3 times for a new sharp edge.

The quick-release fence can be positioned at any angle between 45° and 90° as shown by the tilt scale. The fence has been end-mounted to save space so nothing is protruding from the back of the machine.

Conversion from the jointer to the planer is easy. Just remove the quick-release fence and flip up the jointer tables. To use the jointer again, simply release and lower the tables, put the fence back on and you are ready to face or edge joint.

The planer features cast-iron infeed and outfeed tables, two feed rollers, anti-kickback fingers and a depth of cut scale on the front.

Like all Grizzly machines, the G0634X comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0634X manual was written by our U.S. based Tech Doc Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your machine.

The Grizzly Customer Service and Tech Support Teams are U.S. based. Parts may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

• Motor: 5 HP, 220V, single-phase, 25A
• Maximum cut width: 11-3/4'
• Maximum cut depth: 1/8'
• Maximum planer stock thickness: 8'
• Cutterhead diameter: 3-1/8'
• Cutterhead speed: 5034 RPM
• Cutterhead type: V-helical, 4-row, 48 inserts
• Cutterhead insert size: 15 x 15 x 2.5mm
• Planer feed rate: 22 FPM
• Bevel jointing: 0°-45°
• Jointer table size: 14' x 59-1/2'
• Fence: 5-3/4' x 51-1/2', end-mounted
• Fence stops: 45 and 90°
• Dust port size: 4' (x2)
• Overall size: 67-1/2' W x 24' D x 41-1/2' H
• Approx. shipping weight: 704 lbs.

• Superior finish and improved dust collection from the V-helical cutterhead
• End-mounted fence to save space allowing the machine to be put against a wall
• Flip-up tables and change lever simplify jointer/planer conversion
• Rubber-coated outfeed roller eliminates roller impressions on finished workpieces

The Grizzly Industrial 12" 5 HP Planer/Jointer with V-Helical Cutterhead is designed to provide exceptional performance in woodworking. Here's why it’s a must-have:

• Powerful 5 HP Motor: Ensures smooth, consistent cuts through a variety of hardwoods with minimal effort.
• V-Helical Cutterhead: Reduces noise and delivers a superior finish with fewer marks, while extending tool life.
• Dual Functionality: Combines both planer and jointer capabilities in one machine, saving space and increasing versatility.
• Precise Adjustments: Features easy-to-use depth adjustments and a precise fence system for accurate cuts.
• Durable Build: Solid construction with a heavy-duty design ensures long-term reliability in any professional workshop.

Q: What is the Grizzly Industrial 10" x 18" 2 HP Metal-Cutting Bandsaw designed for?
A: This bandsaw is engineered for precision cutting of metal, offering robust performance for small to medium-scale metalworking projects.

Q: What is the cutting capacity?
A: It has a cutting capacity of 10" x 18", accommodating various metal sizes and shapes.

Q: How powerful is the motor?
A: It features a 2 HP motor, providing reliable power for consistent and accurate cuts.

Q: What speed options does it offer?
A: The bandsaw comes with variable speed settings to optimize cutting performance for different materials.

Q: Are there any safety features?
A: Yes, it includes an automatic shut-off and adjustable blade guides for safe operation.

Q: What makes this bandsaw user-friendly?
A: It has a swivel vise for angled cuts, easy-to-use controls, and a compact design for space efficiency.

Q: Why choose the Grizzly 10" x 18" 2 HP Bandsaw?
A: It combines durability, precision, and versatility, making it an excellent choice for professional and hobbyist metalworkers.

• Cutterhead Cleaning: Regularly clean the V-helical cutterhead to remove resin buildup and ensure smooth cutting.
• Blade Inspection: Check the blades for wear or damage. Replace them as needed to maintain cutting performance.
• Dust Collection: Ensure the dust collection system is clean and functioning to reduce debris buildup.
• Feed Rollers: Inspect and clean feed rollers to prevent slippage or uneven feeding of material.
• Lubrication: Lubricate the bed and moving parts regularly to prevent rust and ensure smooth operation.
• Alignment Check: Periodically check the alignment of the jointer and planer beds to maintain accuracy.
