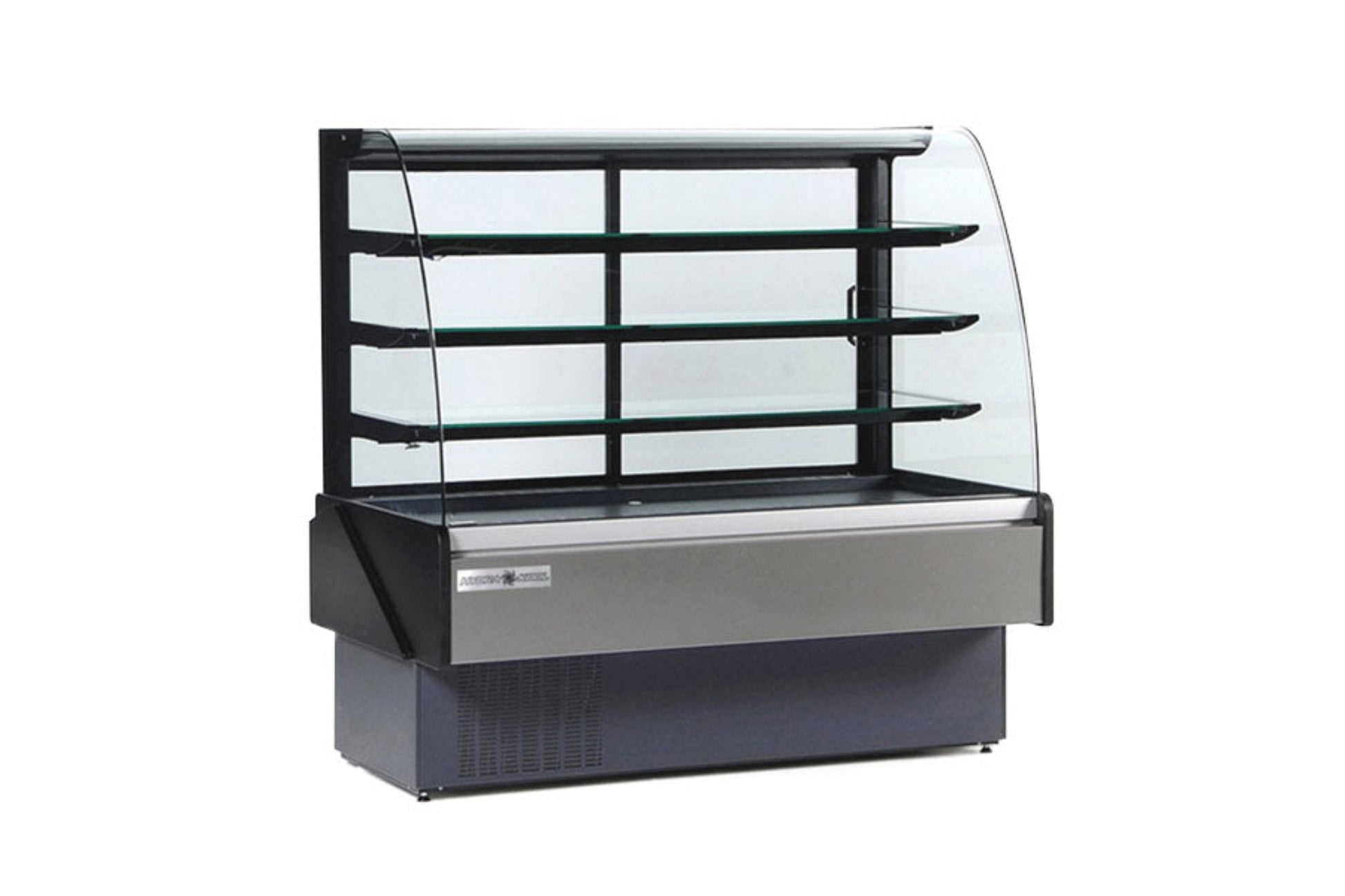

Hydra-Kool - Commercial - 77" Full Service Refrigerated Bakery Display Case, Self-Contained - KBD-CG-80-S
This KBDCG80S curved glass bakery/deli case with self contained refrigeration by Hydra-Kool with tilt out curved tempered front glass. This case features stainless steel exterior and interior as well as LED lighting in canopy and under all shelves.
Features
Features
- Case holds 36°F to 40°F
- Forced air refrigeration
- Tempered tilt-out curved front glass
- Tempered side glass and rear sliding doors
- LED lighting in canopy and under all shelves
- Cases can be multiplexed
- Silver colored PVC coated steel front panel
- CFC free injected foam insulation
- PVC coated steel gray interior
- Black steel kick plate
- Foamed polystyrene black end panels
- Removable rear tempered glass sliding door
- Anti-condensate system for front glass
- Removable condensate evaporating pan for easy cleaning on self
- contained units
- Height adjustable, tempered glass shelves can be tilted
- Temperature and defrost regulated by a digital controller
- Digital temperature display
- Cord and plug on self-contained and dry units
- Levelling feet
- Stainless steel exterior and / or interior
- Other colors available
- Additional shelves
- Joining kit
- Partition or product dividers
- Scale stand with 120 V receptacle
- Condensate evaporating pan for remote cases
- Casters-add 4-3/8” to height
- Stainless steel legs are adjustable from 5-1/8” to 7-5/8”
Specifications
Specifications
| Brand |
Hydra-Kool |
| Model / SKU |
KBD-80-S / KBDCG80S |
| Stock ID |
736221 |
| UPC |
6997390002636 |
| Product Type |
Deli |
| Type |
Deli |
| Sections |
1 |
| Color |
Black |
| Doors |
2 |
| Door Style |
Sliding |
| Glass Style |
Curved |
| Shelves |
3 |
| Compressor Location |
Bottom |
| Capacity |
26.56 cu. ft. |
| Installation Type |
Freestanding |
| Temperature Range |
36°F – 40°F |
| Horsepower |
1/2 HP |
| Amps |
20 Amps |
| Voltage |
115 Volts |
| Hertz |
60 Hz |
| Phase |
1 |
| LED Lighting |
Yes |
| Revolving Shelves |
No |
| Convertible Baffle |
No |
| CFC Free |
Yes |
| Pass-Through |
No |
| Heavy Duty |
No |
| ETL |
Yes |
| AHRI Certified |
No |
| NSF Certified |
No |
| CE Certified |
No |
| UL Certified |
No |
| Energy Star |
No |
| ADA Compliant |
No |
Dimensions & Weight
Dimensions & Weight
-
Width: 77.5"
-
Depth: 34.171875"
-
Height: 53.734375"
Downloads & Manual
Downloads & Manual
What our Experts Think
-
Spacious Self-Service Display: The Hydra-Kool KFM-OF-100-S offers a 101" width and 43.3" depth, providing generous presentation space for deli and packaged products.
-
Consistent Freshness: Maintains 33–40°F with self-contained refrigeration and digital temperature control for reliable product quality.
-
Durable & Service-Friendly: Slide-out condensing unit, removable condensate pan, level-adjustable feet, PVC-coated steel panels, and stainless-steel rear workspace ensure long-term commercial use.
-
Optimized Merchandising: Open-front design allows easy customer access and clear product visibility for high-traffic deli sections.
-
Flexible Installation: Self-contained system simplifies setup, requiring no remote condenser, making it adaptable to various retail layouts.
Q&A
Q: What is the Hydra-Kool KFM-OF-100-S?
A: A 101" wide self-service refrigerated deli display case with self-contained refrigeration, designed for retail delis, packaged meats, and chilled product display in commercial settings.
Q: What are the key display and construction features?
A:
-
Stainless steel interior with tempered glass front and sides for product visibility and durability.
-
Silver PVC-coated steel exterior with black end panels; adjustable leveling feet.
-
Digital temperature and defrost controller for precise refrigeration.
-
Multiplexable design allows joining multiple units for longer display runs.
Q: What are the dimensions and specifications?
A: Width ~101.2″, Depth ~43.3″, Height ~33.5″; self-contained refrigeration powered by a ¾ HP compressor. Certifications include ETL-Sanitation and cETLus.
Q: Where is this model ideal to use?
A: Perfect for supermarkets, delis, grocery chains, and food service operations requiring a high-capacity, self-service refrigerated display for chilled meats, deli packages, and similar products.
Maintenance Tips
-
Clean interior and exterior surfaces daily with mild detergent to maintain hygiene and product presentation.
-
Wipe glass panels regularly using a non-abrasive cleaner for clear visibility.
-
Vacuum condenser coils monthly to ensure efficient cooling and prevent dust buildup.
-
Inspect door gaskets and seals for wear or gaps to maintain consistent temperature.
-
Empty and sanitize the drain pan weekly to prevent clogs and odors.
-
Monitor temperature settings daily to keep deli products fresh and safe.
-
Schedule annual professional maintenance for optimal refrigeration performance.
