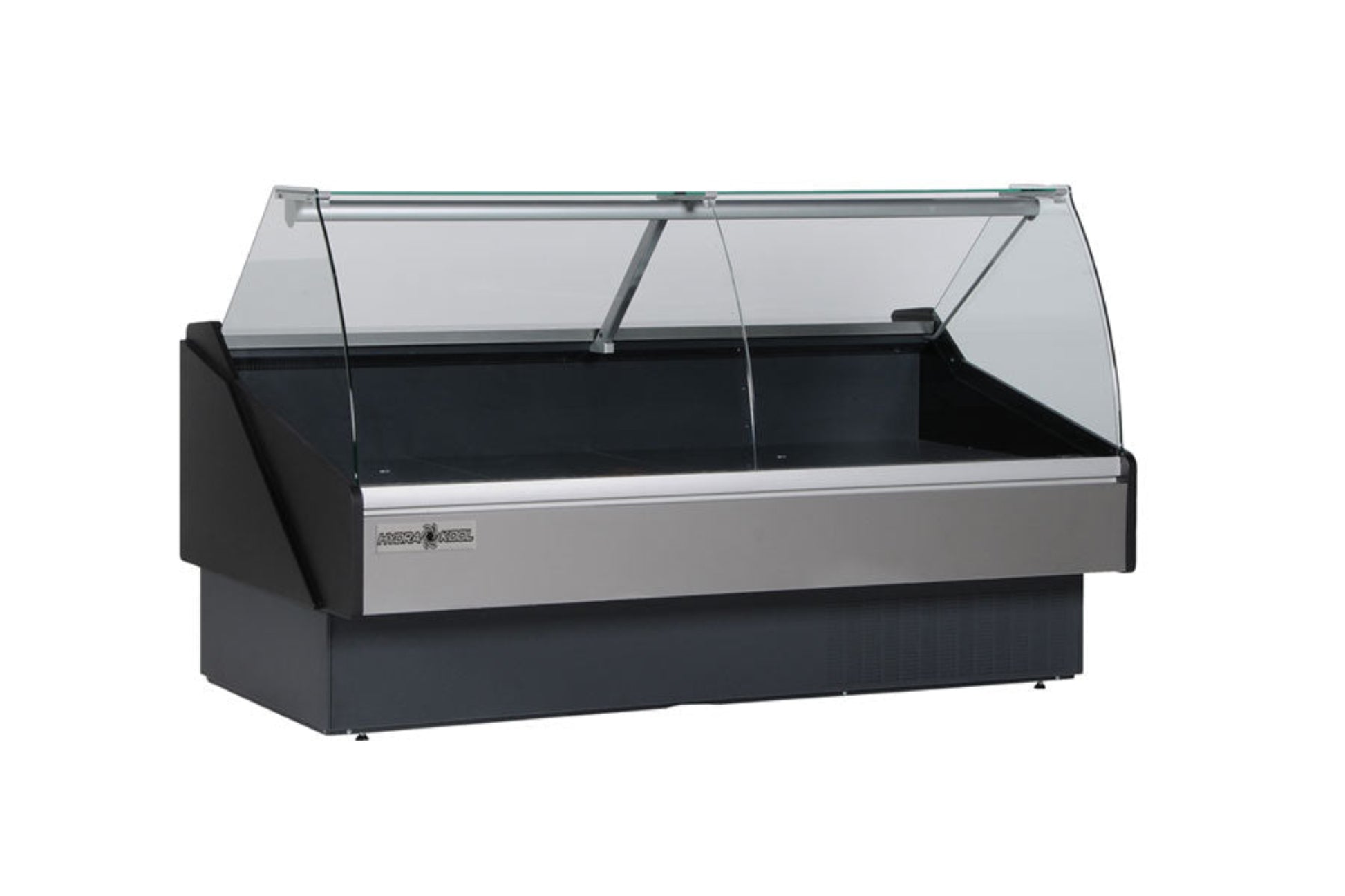

Hydra-Kool - Commercial - 101" Full Service Fresh Meat Deli Case, Self-Contained - KFM-CG-100-S
This KFMCG100S curved glass deli case with self contained refrigeration by Hydra-Kool is designed for fresh meat, featuring tilt out curved tempered front glass and sliding doors.
Features
Features
- CFC free injected foam insulation
- Stainless steel interior
- Stainless steel rear work bench
- Silver colored PVC coated steel front panel
- Black steel kick plate
- Foamed polystyrene black end panels
- Tempered tilt-foward front glass
- Removable rear tempered glass sliding doors
- LED lighting in canopy
- Temperature and defrost regulated by a digital controller
- Removable condensate evaporating pan for easy cleaning on self contained units
- Slide out condensing unit on self-contained units
- Digital thermometer
- Levelling feet
- Stainless steel exterior
- Lift up front glass
- Other colors available
- Joining Kit
- Partition
- Condensate evaporating pan for remote cases
- White epoxy bi-level wire racks; 2 or 3 level step sham
- Scale stand with receptacle
- Cutting board
- Knife Supprt
- Casters add 4-3/8” to height
- Stainless steel legs are adjustable from 5-1/8” to 7-5/8”
Specifications
Specifications
| Brand |
Hydra-Kool |
| Model / Product Number |
KFM-CG-100-S |
| SKU |
KFMCG100S |
| Stock ID |
735185 |
| Warranty Info |
Brand New |
| Type |
Deli |
| Sections |
1 |
| Color |
Black |
| Door Style |
Sliding |
| Glass Style |
Curved |
| Compressor Location |
Bottom |
| Capacity |
32.54 cu. ft. |
| LED Lighting |
Yes |
| Revolving Shelves |
No |
| Convertible Baffle |
No |
| CFC Free |
Yes |
| Pass-Through |
No |
| Heavy Duty |
No |
| Horsepower |
3/4 HP |
| Installation Type |
Freestanding |
| Temperature Range |
32 – 40 °F |
| Amps |
15 Amps |
| Hertz |
60 Hz |
| Phase |
1 |
| Voltage |
115 Volts |
| Exterior Width |
100" |
| Warranty Terms |
1 year parts & labor; 4 years compressor (part only) |
| ETL |
Yes |
| Weight |
974 lbs |
| AHRI Certified |
No |
| NSF Certified |
No |
| CE |
No |
| UL |
No |
| Energy Star |
No |
| ADA |
No |
Dimensions & Weight
Dimensions & Weight
-
Width: 101.2"
-
Depth: 43.3125"
-
Height: 49.40625"
Downloads & Manual
Downloads & Manual
What our Experts Think
-
Clean interior stainless-steel surfaces, curved front glass, and sliding rear doors daily with a mild, food-safe detergent; rinse and dry thoroughly.
-
Sanitize rear workbench and display shelves; ensure sliding glass doors move freely and tracks are debris-free.
-
Monthly: Remove and clean the condensate evaporating pan; inspect the self-contained condensing unit and clean condenser coils to maintain cooling efficiency.
-
Check door gaskets and glass seals for wear; ensure proper sealing to prevent warm air infiltration.
-
Level the unit using adjustable feet; uneven placement can affect drainage, door operation, and airflow.
-
Monitor the digital temperature controller and defrost cycle to ensure the case stays within 32–40 °F.
-
Avoid overloading the display; leave space between products for proper airflow and consistent cooling.
-
Quarterly: Power off, remove trays and racks, deep clean interior surfaces, and check fan motors, electrical connections, and defrost components.
Q&A
Q: What is the Hydra-Kool KFM-CG-100-S?
A: A 101" commercial full-service deli case for fresh meat, self-contained, designed for retail and foodservice environments.
Q: What are its main features?
A: Self-contained refrigeration, energy-efficient LED lighting, full-service sliding doors, and durable stainless-steel construction.
Q: What type of business is it ideal for?
A: Butcher shops, delis, grocery stores, and restaurants displaying fresh meat products.
Q: How does it benefit businesses?
A: Maintains optimal meat freshness, enhances product visibility, and encourages customer purchases.
Q: What makes it commercial-grade?
A: Heavy-duty design, consistent cooling, and large-capacity display for high-volume operations.
Maintenance Tips
-
Premium Meat Display – Expansive 101" case highlights fresh meats for maximum visual appeal.
-
Consistent Temperature Control – Self-contained system ensures optimal freshness and food safety.
-
Spacious & Organized – Ample room for multiple meat cuts with easy staff access.
-
Durable Commercial Build – Designed for daily use in high-traffic deli environments.
-
Easy Maintenance – Removable trays and accessible components simplify cleaning.
-
Energy-Efficient Operation – Advanced cooling reduces power consumption while preserving quality
