Hydra-Kool - Commercial - 41" Vertical Open Merchandiser, Self-Contained - KGH-OF-40-S

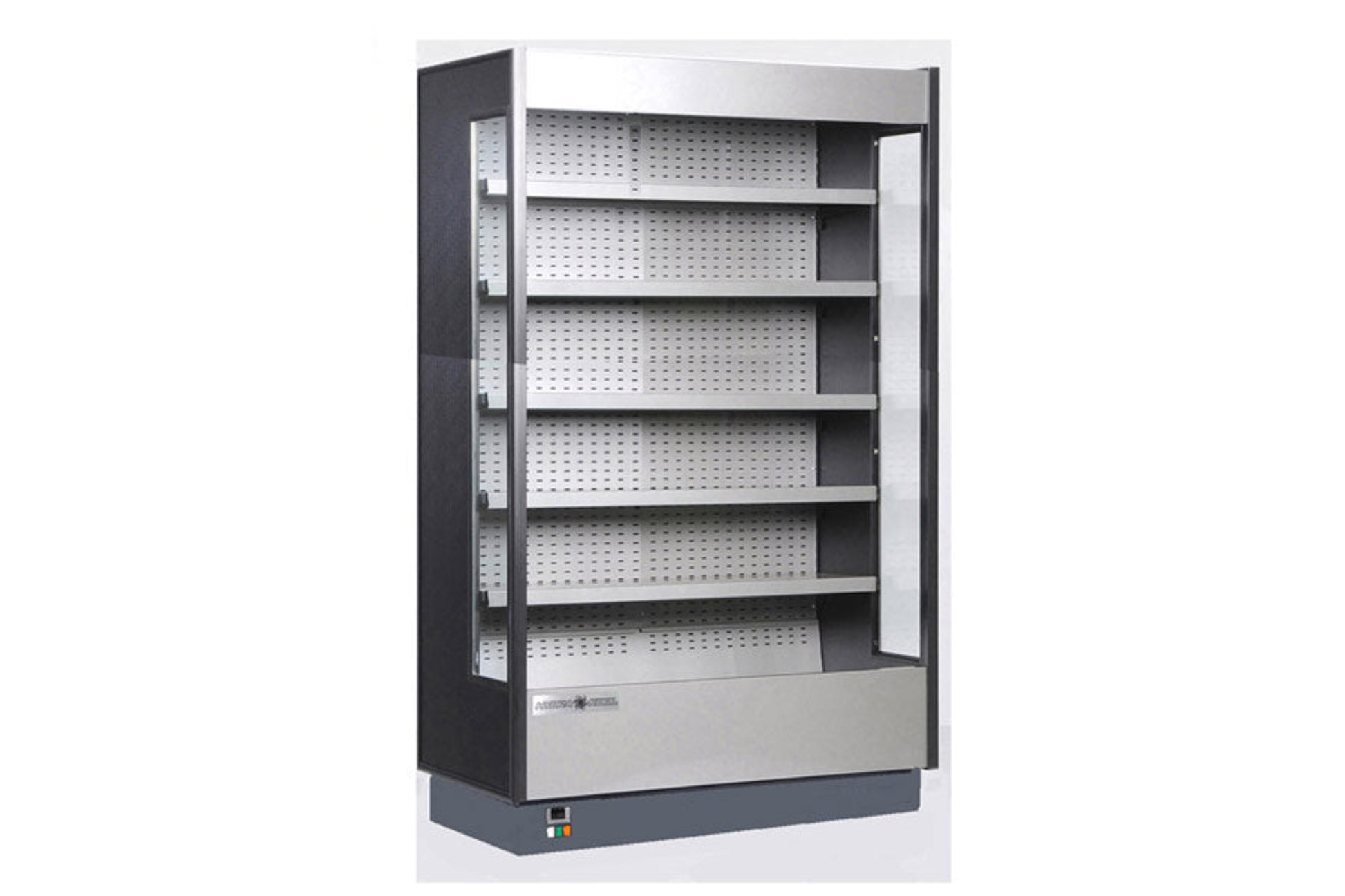

Display products for sale with the Grab-N-Go High Profile Case by Hydra Kool. The unit features height adjustable shelves can be tilted, CFC free injected foam insulation and temperature and defrost regulated by a digital controller.
Features
Features
- Holds 36°F TO 40°F
- Forced air refrigeration
- Open front
- Front loading
- LED lighting in canopy and under shelves
- Pull down night curtain
- Cases can be multiplexed
- Tempered side glass
- Pull down night curtain
- CFC free injected foam insulation
- Silver colored PVC coated steel front panel
- PVC coated steel gray interior
- Black steel kick plate
- Foamed polystyrene black end panels
- Height adjustable shelves can be tilted
- Products stop on all shelves
- Temperature and defrost regulated by a digital controller
- Removable condensate evaporating pan for easy cleaning on
- self contained units
- Slide out condensing unit on self-contained units
- Digital thermometer
- Levelling feet
- Stainless steel interior and / or exterior
- Other colors available
- Solid or full view end panels
- Additional shelves
- Joining Kit
- Partition and or / product dividers
- Price tag molding
- Condensate evaporating pan for remote cases
- Casters add 4-3/8” to height
- Stainless steel legs are adjustable from 5-1/8” to 7-5/8”
Specifications
Specifications
| Brand |
Hydra‑Kool |
| Model / SKU |
KGH‑OF‑40‑S / KGHOF40S |
| UPC |
6997390002957 |
| Stock ID |
1151222 |
| Product Number |
KGH‑OF‑40‑S |
| Warranty Info |
Brand New |
| Type |
Open Air Merchandiser / Grab‑&‑Go Display |
| Color |
Black |
| Compressor Location |
Bottom |
| Capacity |
23.3 cu. ft. |
| LED Lighting |
Yes |
| Revolving Shelves |
No |
| Convertible Baffle |
No |
| CFC Free |
Yes |
| Pass‑Through |
No |
| Heavy Duty |
No |
| Horsepower |
1 HP |
| Installation Type |
Freestanding |
| Temperature Range |
36 °F – 40 °F |
| Amps |
30 Amps |
| Hertz |
60 Hz |
| Phase |
1 |
| Voltage |
115 Volts |
| Exterior Width |
40″ (approx 41″ according to some specs) |
| Weight |
632 lbs |
| ETL Listed |
Yes |
| AHRI Certified |
No |
| NSF Certified |
No |
| CE Certified |
No |
| UL Certified |
No |
| Energy Star |
No |
| ADA Compliant |
No |
Â
Dimensions & Weight
Dimensions & Weight
-
Width: 41"
-
Depth: 31.5"
-
Height: 76.96875"
Downloads & Manual
Downloads & Manual
What our Experts Think
-
Compact Footprint: Measures approximately 40″ wide × 43″ deep × 47″ high, ideal for smaller counters while still providing ample display space.
-
Curved-Glass Front: Tilt-forward curved tempered glass with tempered side panels maximizes product visibility and presentation for fresh seafood.
-
Service-Friendly Design: Rear sliding tempered-glass doors, rear work shelf, and top sill make restocking and service efficient.
-
Seafood-Specific Temperature Control: Maintains 33 °F to 40 °F with a self-contained 3/8 HP compressor and forced-air circulation, keeping products fresh and safe.
-
Durable Commercial Construction: Stainless steel interior, PVC-coated steel exterior, non-removable ice pans, and CFC-free insulation ensure long-lasting performance.
-
Installation Considerations: Requires a stable, level floor, adequate back clearance for ventilation, proper electrical supply (115 V, 1-phase), and space for service access. Avoid high-traffic aisle placement to prevent damage.
Q&A
Q: What is the Hydra-Kool KFM-SC-40-S?
A: A commercial-grade refrigerated deli display case designed specifically for fresh seafood, with a 40-inch width and a self-contained refrigeration system.
Q: What are the key dimensions and weight?
A: Width: ~40.38″, Depth: ~43.38″, Height: ~47.25″. Weight: ~333 lbs.
Q: What display and glass design does it have?
A: Tilt-forward curved front tempered glass, tempered glass sides, and rear sliding tempered glass doors for operator access.
Q: What refrigeration features does it offer?
A: Self-contained refrigeration with bottom-mounted 3/8 HP compressor, forced-air cooling, using R-404A refrigerant. Maintains product temperatures between 32–40 °F.
Q: What are the construction and finish details?
A: Interior is stainless steel. Exterior front panel is PVC-coated steel (silver standard) with black polystyrene end panels. Adjustable leveling feet. Includes heavy-duty ice pans for product display and LED interior lighting.
Q: Is it certified for safety and sanitation?
A: Yes, ETL Listed for electrical safety and ETL-Sanitation certified for food-service use.
Q: What are typical applications?
A: Ideal for seafood counters, grocery delis, fish markets, or full-service displays where fresh product is presented and served to customers.
Q: Can multiple units be combined?
A: Yes, the unit is designed to be multiplexed for side-by-side installation, creating longer continuous display cases.
Maintenance Tips
-
Clean interior and exterior surfaces daily with mild detergent to maintain hygiene and product presentation.
-
Wipe glass panels regularly using a non-abrasive cleaner for clear visibility.
-
Vacuum condenser coils monthly to ensure efficient cooling and prevent dust buildup.
-
Inspect door gaskets and seals for wear or gaps to maintain consistent temperature.
-
Empty and sanitize the drain pan weekly to prevent clogs and odors.
-
Monitor internal temperature daily to keep seafood fresh and safe.
-
Schedule annual professional servicing for optimal refrigeration performance.
