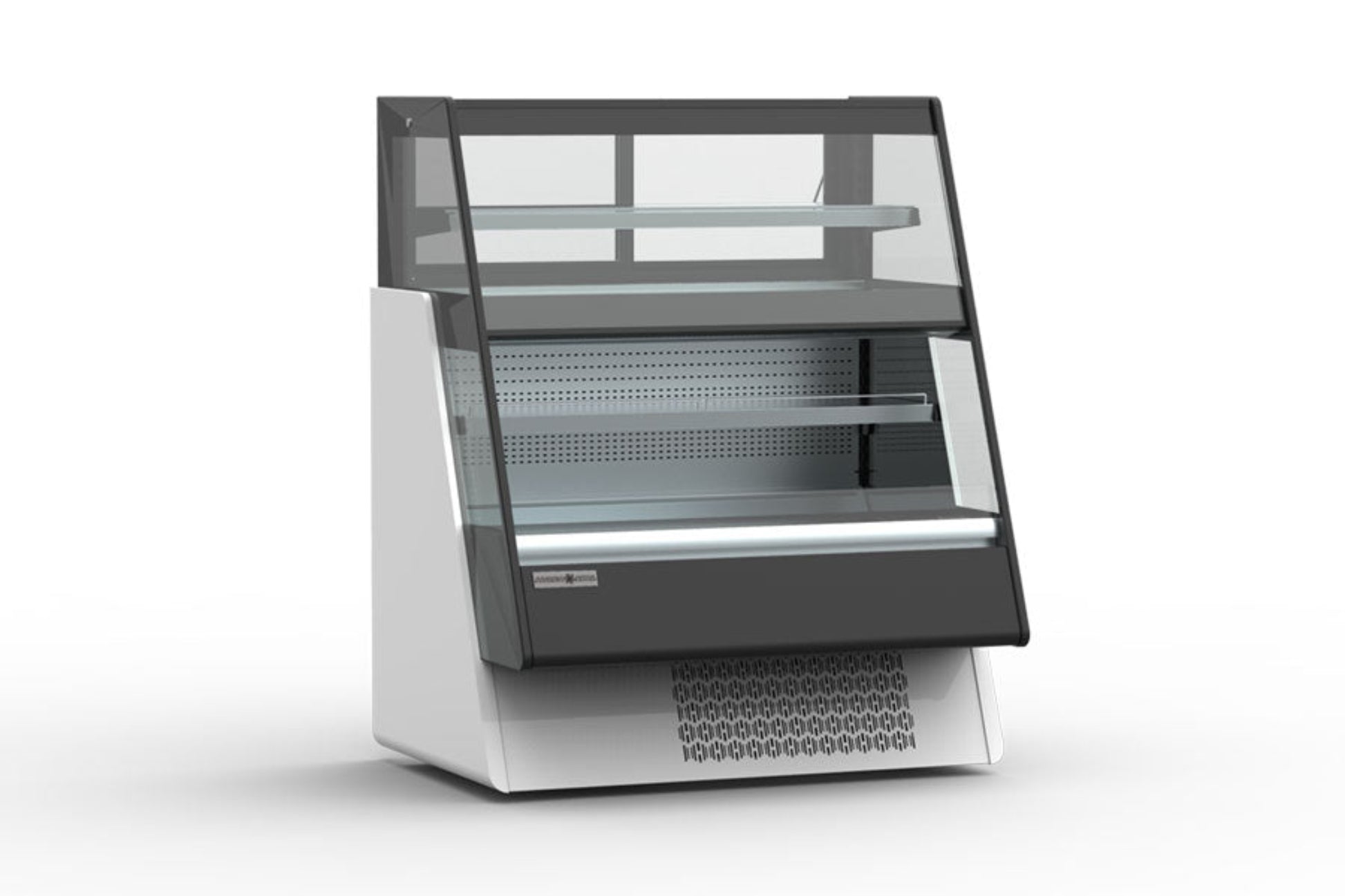

Hydra-Kool - Commercial - Over Under Display Case - KGL-OU-36-S
This Combination Type Case by Hydra-Kool can operate as both refrigerated or dry. The unit features LED lighting, CFC free injected foam insulation and height adjustable shelves that can be tilted.
Features
Features
- Case holds 36°F to 40°F
- Upper section can be operated as refrigerated or dry
- Multiple uses
- Forced air refrigeration
- Open front lower section
- Front loading lower section
- Tempered glass rear sliding doors in upper section
- CFC free injected foam insulation
- Silver colored PVC coated steel front panel
- PVC coated steel gray interior
- Wood laminate covered end panels
- LED lighting in canopy and under all shelves
- Height adjustable shelves can be tilted
- Temperature and defrost regulated by a digital controller
- Removable condensate evaporating pan for easy cleaning
- Slide out condensing unit on self-contained units
- Stainless steel front panel
- Stainless steel base and / or interior
- Mirror rear sided doors (upper section)
- Mirrored side glass
- Front panel bumper protector
- PVC coated gray steel folding rear shelf
- Stainless steel folding rear shelf
- Acrylic product partitions
- Shelf price tag moldings
- Casters add 4-3/8” to height
- Stainless steel legs are adjustable from 5-1/8” to 7-5/8”
Specifications
Specifications
| Brand |
Hydra-Kool |
| Model / SKU |
KGL-OU-36-S / KGLOU36S |
| Stock ID |
1151341 |
| UPC |
6997390010297 |
| Product Type |
Open Air |
| Type |
Open Air |
| Sections |
2 |
| Color |
Silver |
| Doors |
2 |
| Door Style |
Sliding |
| Glass Style |
Angled |
| Shelves |
2 |
| Compressor Location |
Bottom |
| Capacity |
7.73 cu. ft. |
| Installation Type |
Freestanding |
| Temperature Range |
36°F – 40°F |
| Horsepower |
1/2 HP |
| Amps |
20 Amps |
| Voltage |
115 Volts |
| Hertz |
60 Hz |
| Phase |
1 |
| Exterior Width |
36" |
| LED Lighting |
Yes |
| Revolving Shelves |
No |
| Convertible Baffle |
No |
| CFC Free |
Yes |
| Pass-Through |
No |
| Heavy Duty |
No |
| Weight |
617 lbs |
Dimensions & Weight
Dimensions & Weight
-
Width: 35.86"
-
Depth: 37.515625"
-
Height: 59.25"
What our Experts Think
-
Spacious Self-Service Display: The Hydra-Kool KFM-OF-100-S offers a 101" width and 43.3" depth, providing generous presentation space for deli and packaged products.
-
Consistent Freshness: Maintains 33–40°F with self-contained refrigeration and digital temperature control for reliable product quality.
-
Durable & Service-Friendly: Slide-out condensing unit, removable condensate pan, level-adjustable feet, PVC-coated steel panels, and stainless-steel rear workspace ensure long-term commercial use.
-
Optimized Merchandising: Open-front design allows easy customer access and clear product visibility for high-traffic deli sections.
-
Flexible Installation: Self-contained system simplifies setup, requiring no remote condenser, making it adaptable to various retail layouts.
Q&A
Q: What is the Hydra-Kool KFM-OF-100-S?
A: A 101" wide self-service refrigerated deli display case with self-contained refrigeration, designed for retail delis, packaged meats, and chilled product display in commercial settings.
Q: What are the key display and construction features?
A:
-
Stainless steel interior with tempered glass front and sides for product visibility and durability.
-
Silver PVC-coated steel exterior with black end panels; adjustable leveling feet.
-
Digital temperature and defrost controller for precise refrigeration.
-
Multiplexable design allows joining multiple units for longer display runs.
Q: What are the dimensions and specifications?
A: Width ~101.2″, Depth ~43.3″, Height ~33.5″; self-contained refrigeration powered by a ¾ HP compressor. Certifications include ETL-Sanitation and cETLus.
Q: Where is this model ideal to use?
A: Perfect for supermarkets, delis, grocery chains, and food service operations requiring a high-capacity, self-service refrigerated display for chilled meats, deli packages, and similar products.
Maintenance Tips
-
Clean interior and exterior surfaces daily with mild detergent to maintain hygiene and product presentation.
-
Wipe glass panels regularly using a non-abrasive cleaner for clear visibility.
-
Vacuum condenser coils monthly to ensure efficient cooling and prevent dust buildup.
-
Inspect door gaskets and seals for wear or gaps to maintain consistent temperature.
-
Empty and sanitize the drain pan weekly to prevent clogs and odors.
-
Monitor temperature settings daily to keep deli products fresh and safe.
-
Schedule annual professional maintenance for optimal refrigeration performance.
