Launch Tech USA EV Battery Pack Cell Equalizer - LNCH-ELB300

Launch Tech USA EV Battery Pack Cell Equalizer - LNCH-ELB300

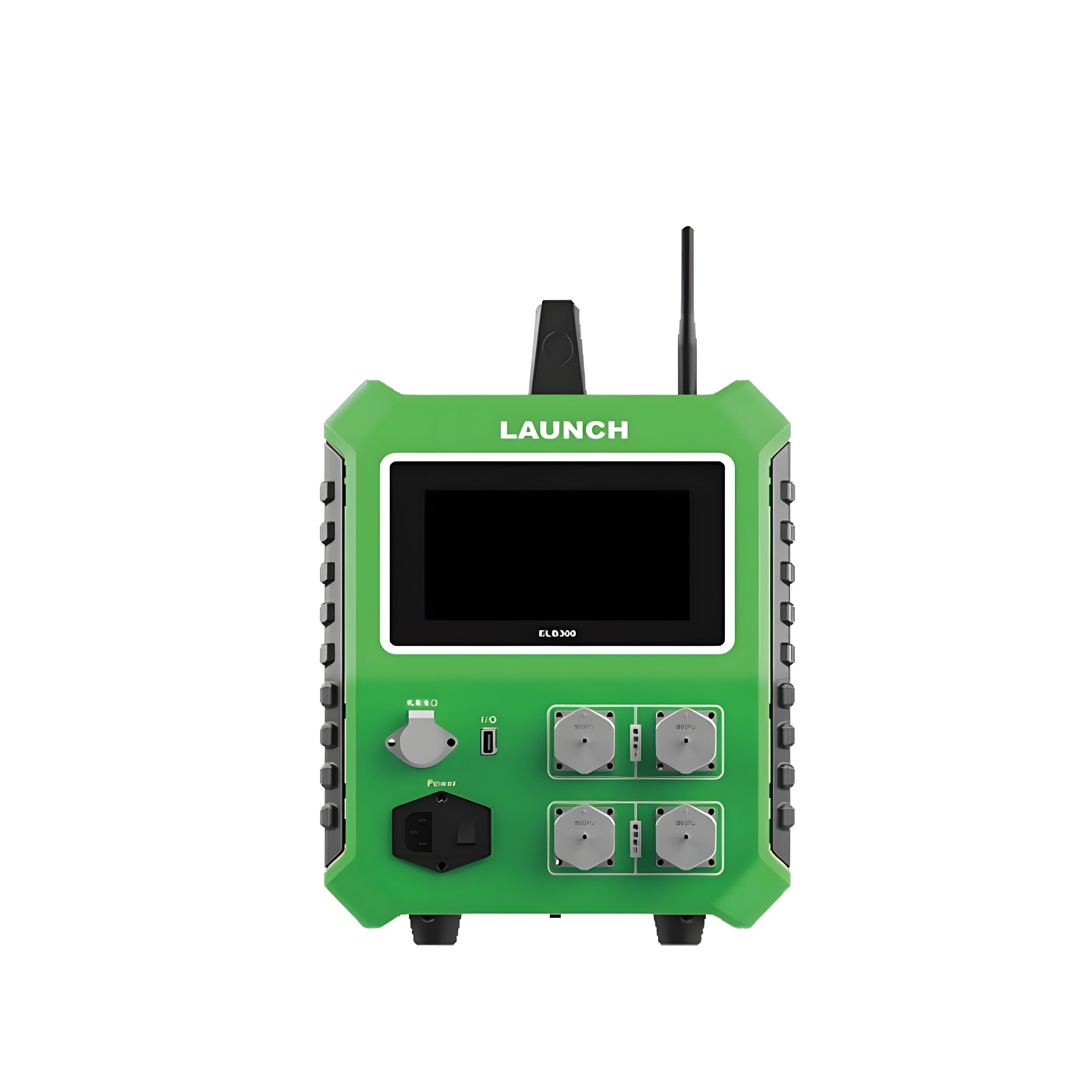

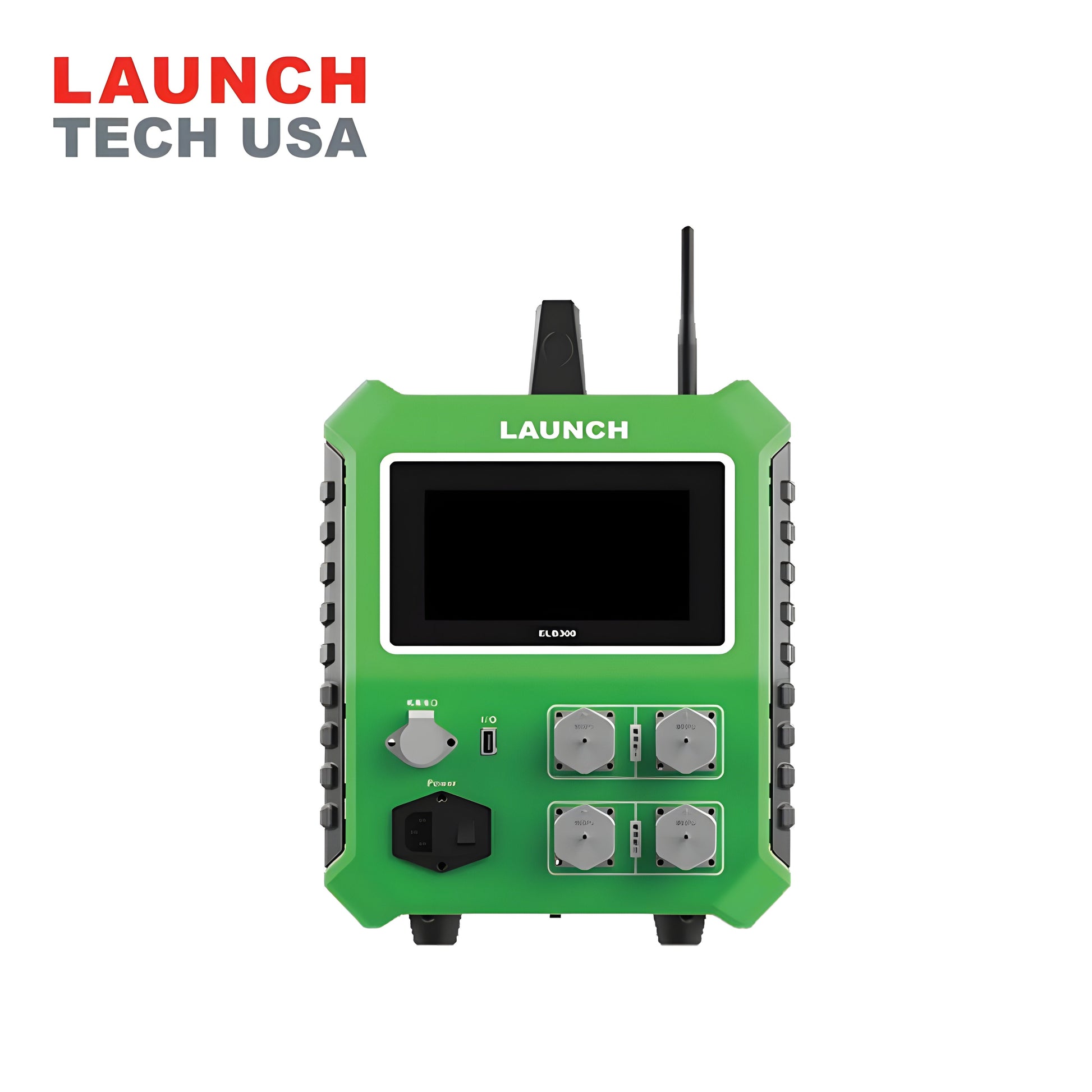

The Launch ELB300 Battery Pack Cell Equalizer is battery maintenance equipment diagnostic tool for EV Batteries and technology. The ELB300 diagnoses numerous issues such as inconsistent cell voltage, and individual battery cell capacity variances. The ELB300 issuer friendly and can be us for maintenance, battery production, research and development of new EV/Battery enterprises.

Features

• The ability to test and address lithium battery pack with varying voltage levels.
• Lithium Batteries can be activated in the Balanced Maintenance Mode.
• By Testing, Voltage and temperature information allows for protection against overcharging and discharging the lithium batteries.
• The intelligent balancing function enables the individual batteries to be charged uniformly.
• Ability to balance the maintenance parameters customization.
• Ability to set abnormal operating parameters such as voltage, current, and temperature to ensure the safety of the batteries and equipment.
• Supports the functions such as overvoltage, undervoltage, overcurrent, output short circuit, anti-reverse protection, and overheating protection.
• Adopting wave width modulation technology with higher efficiency, higher power factor, lower noise, and lower electromagnetic interference.
• 7-lnch touch screen with a portable design that is user friendly and accessible.
• Built-in memory, supports the automatic storage of operational records.

Specifications

• Display: 7" capacitive LCD touch screen, 800*480
• Power Input: Single phase AC 90-264V, 40-60Hz
• Charging and Discharging Voltage Range: DC 1.8~4.2V
• Voltage Measurement Accuracy: ±0.1%FS±2mV (maximum range 5V)
• Charging and Discharging Current Range: 0.1-5A (Max)
• Current Measurement Accuracy: ±1%FS±0. 05A (maximum range 5A)
• Battery Temperature Detection Accuracy: ±2°℃ (-25-+85°C) Charge and discharge temperature range can be set
• The Number of Channels: 2*12
• Charging and Discharging Power: 600W Max
• Battery Interface: 16 Pin, 24Pin
• PC Data Communication: TCP/IP, USB-Device
• Wireless Communication: Wi-Fi and BT (Wi-Fi external antenna)
• Radiation Method: Forced air cooling
• Working temperature range: -5-40°C; Storage temperature: -20-70°C
• Humidity: Relative humidity 0-90% (40±2°C)
• Elevation: Rated altitude 2000m

What Our Experts Think

• Optimized Battery Performance: Balances voltage across battery cells, preventing overcharging and undercharging.
• Real-Time Monitoring: Tracks cell voltage, current flow, and temperature with high-precision sensors.
• Smart Equalization: Supports active and passive balancing strategies to enhance battery life and efficiency.
• Wide Compatibility: Works with various EV battery types, including lithium-ion and nickel-metal hydride.
• User-Friendly Interface: Intuitive digital display for easy setup and real-time diagnostics.
• Built-in Safety: Equipped with overvoltage, overcurrent, and overheating protection.

Q&A

Q: What is the Launch Tech USA EV Battery Pack Cell Equalizer (LNCH-ELB300)?
A: It’s a high-precision tool designed to balance voltage across EV battery cells, enhancing performance and extending battery lifespan.

Q: What are the key features of the LNCH-ELB300?
A: It offers real-time cell monitoring, automatic equalization, multi-mode balancing strategies, and compatibility with various EV battery packs.

Q: Why is cell equalization important for EV batteries?
A: It prevents overcharging or undercharging of individual cells, ensuring consistent output, improved efficiency, and longer battery life.

Q: Is the LNCH-ELB300 compatible with all EV battery packs?
A: Yes, it's suitable for a wide range of battery types and configurations used in electric vehicles.

Q: Where can I buy the LNCH-ELB300?
A: Available through authorized Launch Tech USA dealers and online marketplaces.

Maintenance Tips

• Firmware Updates: Keep the software updated for precise cell balancing and optimal performance.
• Connection Check: Inspect all cables and connectors for wear or loose connections to avoid data errors.
• Temperature Control: Ensure proper ventilation during use to prevent overheating.
• Calibration: Regularly calibrate voltage levels to maintain accurate cell equalization.
• Safe Storage: Store in a clean, dry place to protect internal components from dust and moisture.
