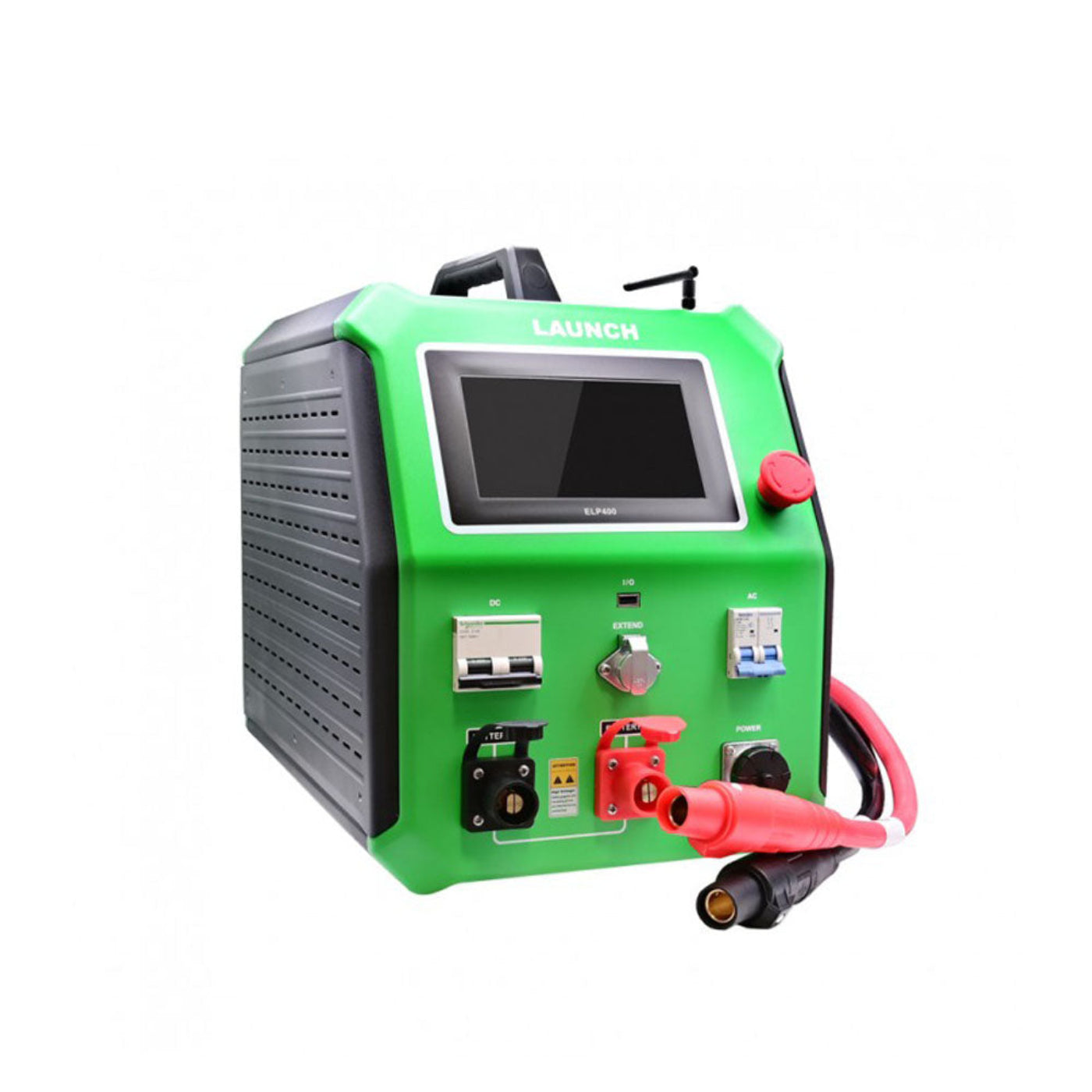

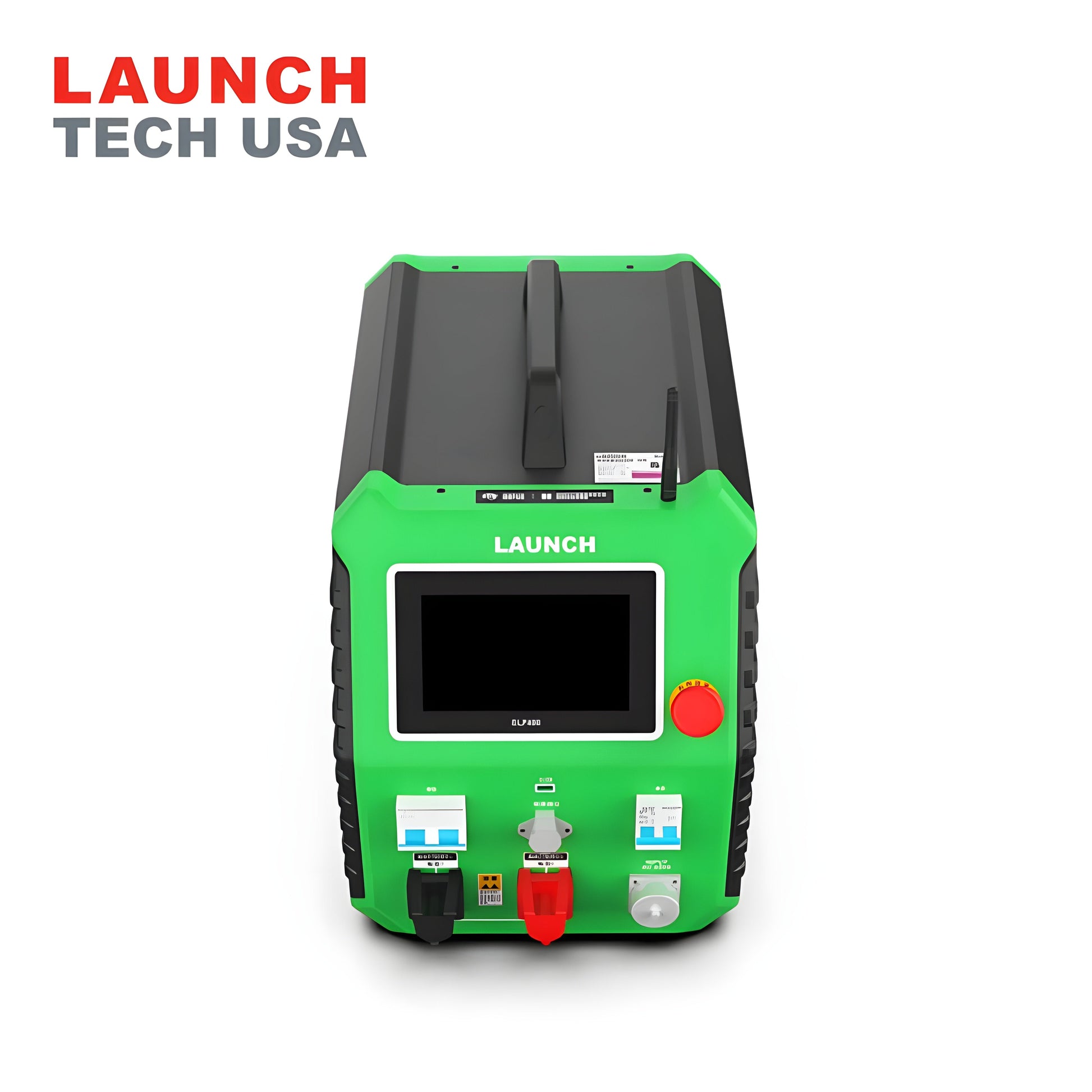

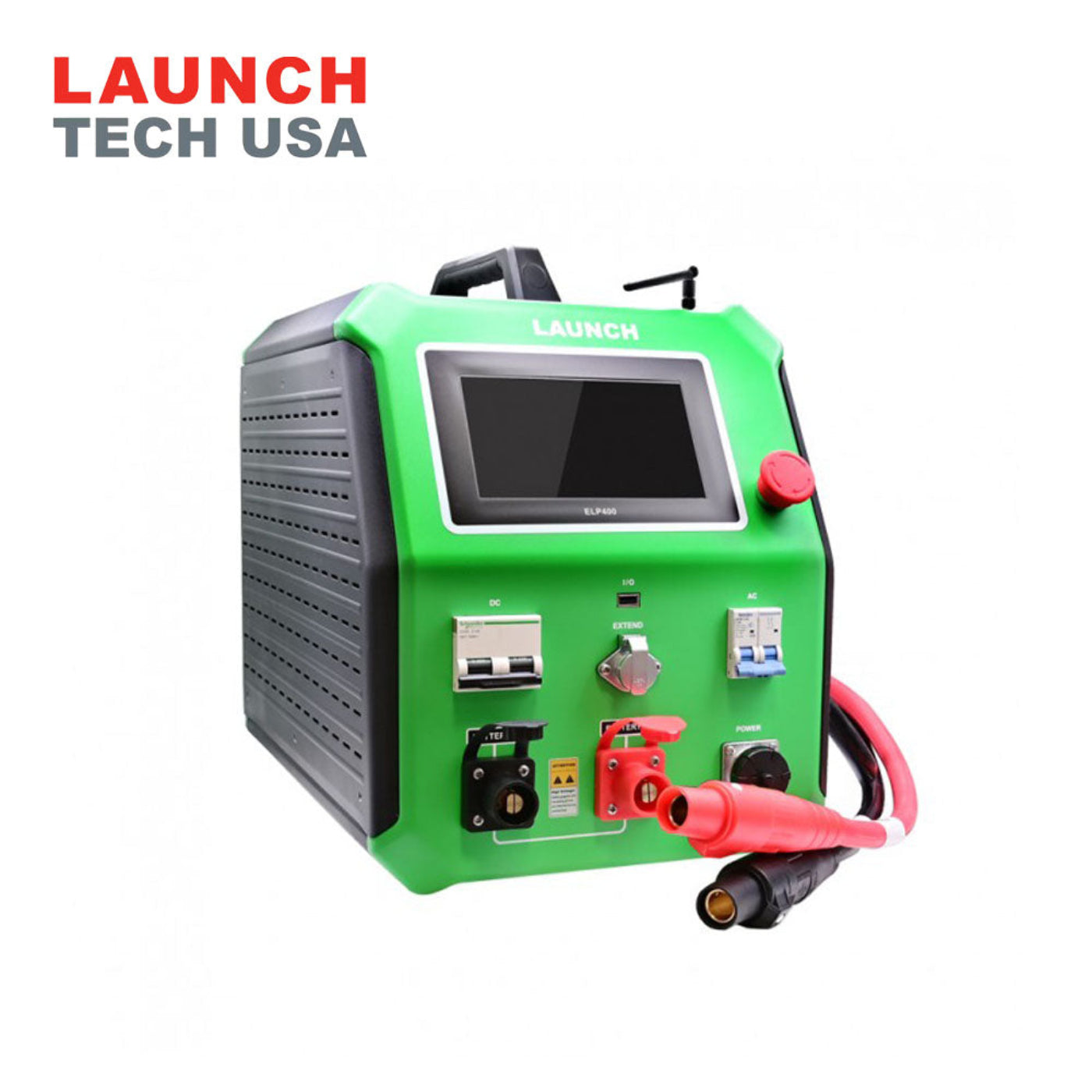

Launch Tech USA EV Battery Pack Module Charging and Discharging Device - LNCH-ELP400

Launch Tech USA EV Battery Pack Module Charging and Discharging Device - LNCH-ELP400

The Launch ELB300 Battery Pack Cell Equalizer is battery maintenance equipment diagnostic tool for EV Batteries and technology. The ELB300 diagnoses numerous issues such as inconsistent cell voltage, and individual battery cell capacity variances. The ELB300 issuer friendly and can be us for maintenance, battery production, research and development of new EV/Battery enterprises.

Features

• The 7-inch LCD touch screen and the intuitive menu simplified the operation
• Portable, easy to carry and transport
• Applied to all common lithium battery packs testing with various voltage levels.
• Equalizing maintenance test mode can activate the lithium battery performance completely.
• Support intelligent equalizing function, and equalizing maintenance parameter customization.
• Adopt wave width modulation technology,high efficiency, high power factor, low noise, low electromagnetic interference.
• Support the safety pretection functions such as overvoltage, undervoltage, overcurrent, output short curcuit, anti-reverse pretection and overheating protection.
• Multiple discharge auto-stop conditions make testing mode more intelligent and flexible, and avoid over-charge and over-discharge.
• Customized setting the total charging time, constant voltage time, charging capacity, and charging current.

Specifications

• Power Input: AC 90~265V
• Data Communication: CAN RS485
• Data Dump: U disk
• Data Storage: 16G
• Modual Data Acquisition Communication: Harness sampling
• Group Voltage Accuracy: ≤±0.5%FS+0.3V, resolution: 0.001V
• Cell Voltage Accuracy:≤±0.1%FS+5Mv, resolution: 0.001V
• Current Measurement Accuracy:≤±0.1%FS+0.2A,Resolution: 0.001V
• Charging / Dischargingt Voltage Range:≤±0.1%FS+0.2A
• Charging Current Range: 0~100A, maximum power 4.4kw
• Discharging Current Range: 0~100A,maximum power 7.2kw
• Charging Control: Constant surrent charging + constant voltage charging
• Discharging Mode: Constant current discharging
• Charging and Discharging Data Acquisition: In-camera active measurement + external can communication data acquisition

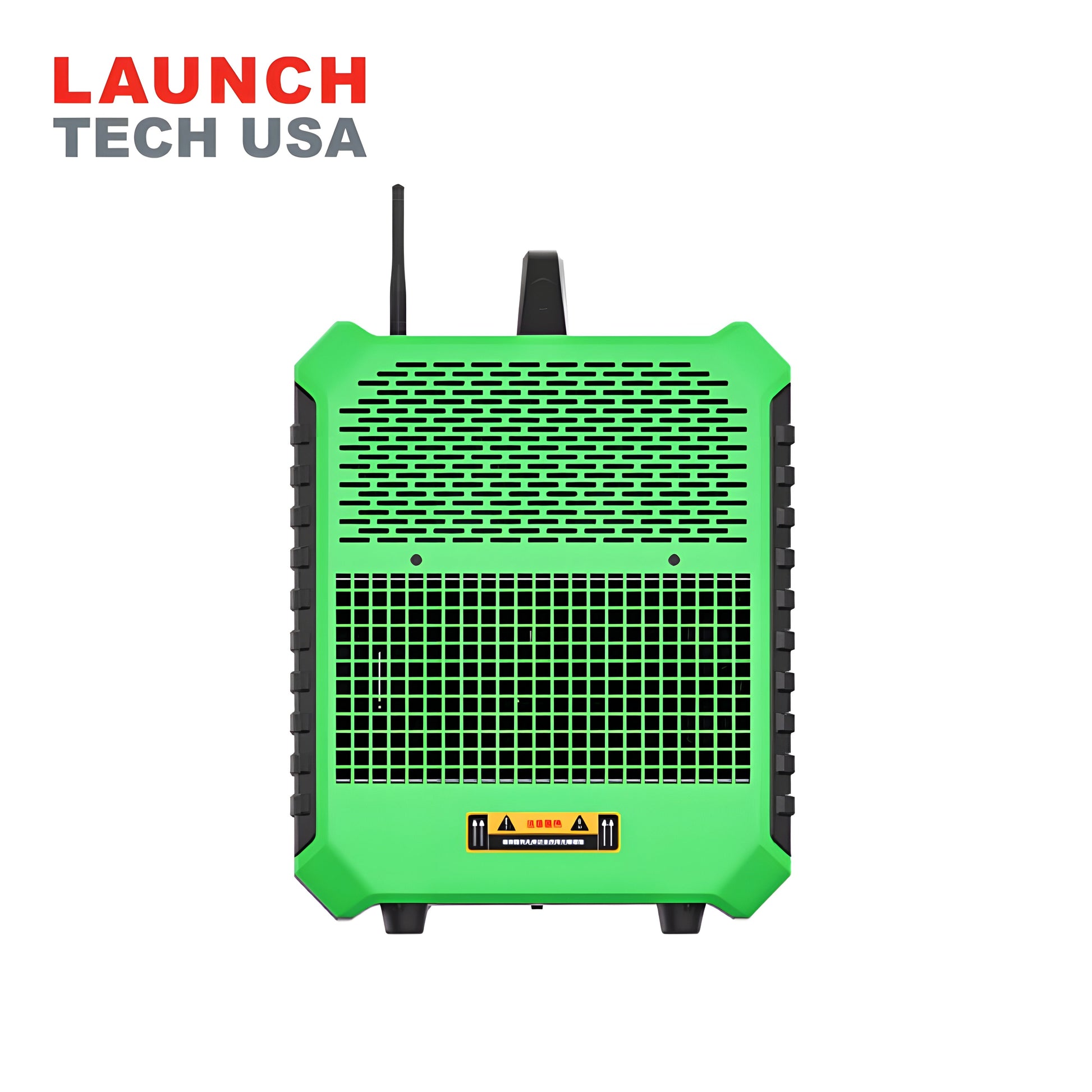

• Radiation Method: Forced air cooling
• Temperature: Working temperature range: 5~40°C; Storage temperature: -20~70°C
• Humidity: Relative humidity 0~90% (40±2°C)
• Elevation: Rated altitude 2000m

What Our Experts Think

• Advanced EV Battery Testing: Precisely charges and discharges EV battery modules to evaluate performance and capacity.
• Real-Time Monitoring: Tracks voltage, current, and temperature changes with high-accuracy sensors.
• Intelligent Control: Supports customizable charging/discharging cycles, ensuring safe and efficient energy flow.
• Comprehensive Compatibility: Works with various EV battery types — lithium-ion, nickel-metal hydride, and more.
• User-Friendly Interface: Digital touchscreen for seamless operation and instant data visualization.
• Safety First: Built-in protections against overcharging, overheating, and short circuits.

Q&A

Q: What is the Launch Tech USA EV Battery Pack Module Charging and Discharging Device (LNCH-ELP400)?
A: It’s a professional tool for charging, discharging, and testing EV battery modules, ensuring optimal performance and capacity.

Q: What are the key features of the LNCH-ELP400?
A: It supports precise voltage and current control, real-time data monitoring, multi-mode charging/discharging, and compatibility with various EV battery modules.

Q: Why is charging and discharging testing important for EV batteries?
A: It helps assess battery health, identify capacity loss, and optimize charging strategies, ensuring reliability and longevity.

Q: Is the LNCH-ELP400 compatible with all EV battery modules?
A: Yes, it’s adaptable to multiple battery types and configurations used in electric vehicles.

Q: Where can I purchase the LNCH-ELP400?
A: Available through authorized Launch Tech USA dealers and online platforms.

Maintenance Tips

• Firmware Updates: Regularly update software to ensure accurate charging, discharging, and diagnostics.
• Cable Inspection: Check all connectors and cables for wear or damage to maintain safe and stable connections.
• Temperature Monitoring: Ensure proper ventilation during use to prevent overheating — avoid extreme environments.
• Calibration: Periodically calibrate voltage and current settings for precise module testing.
• Secure Storage: Store in a dry, dust-free area to protect sensitive electronics and extend device lifespan.
