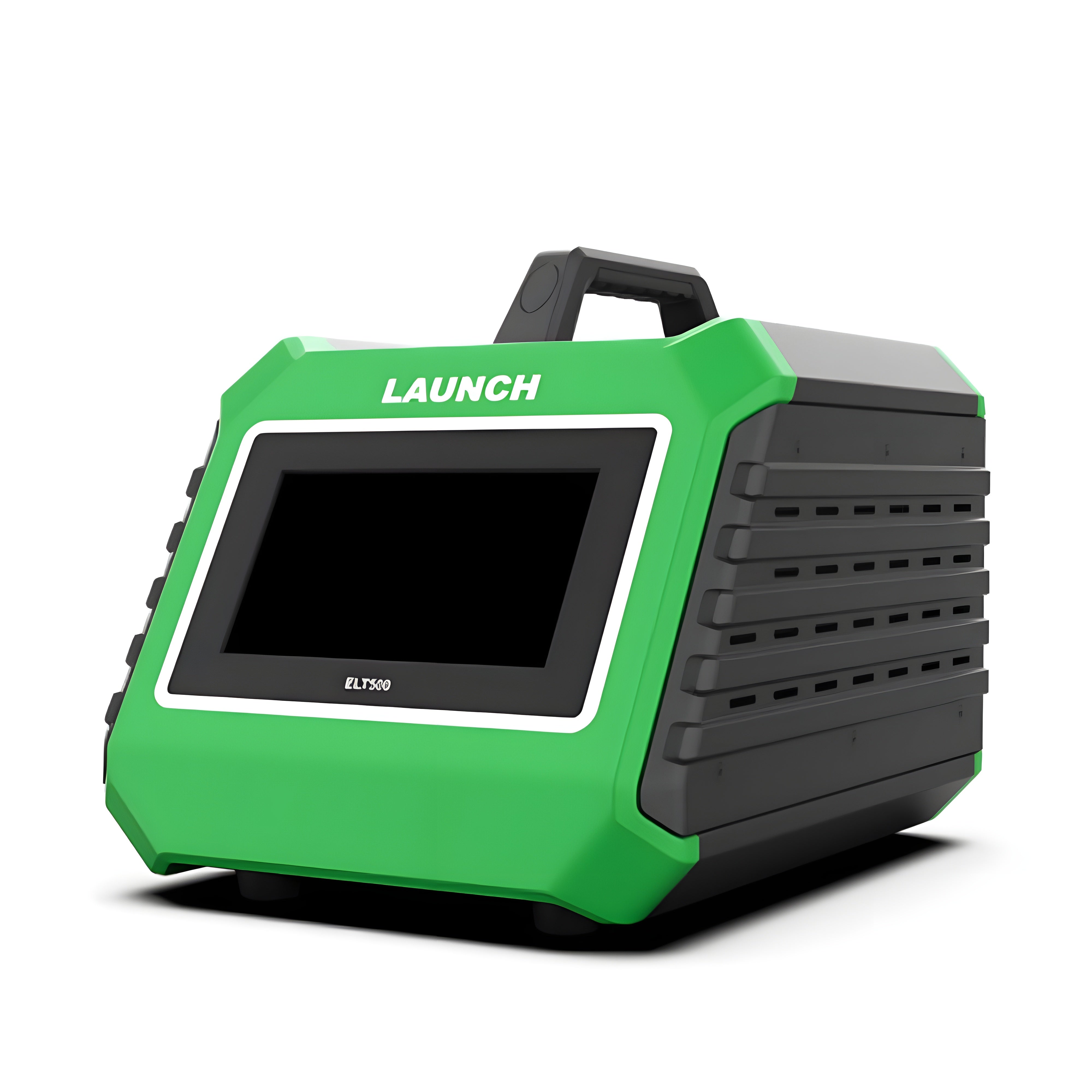

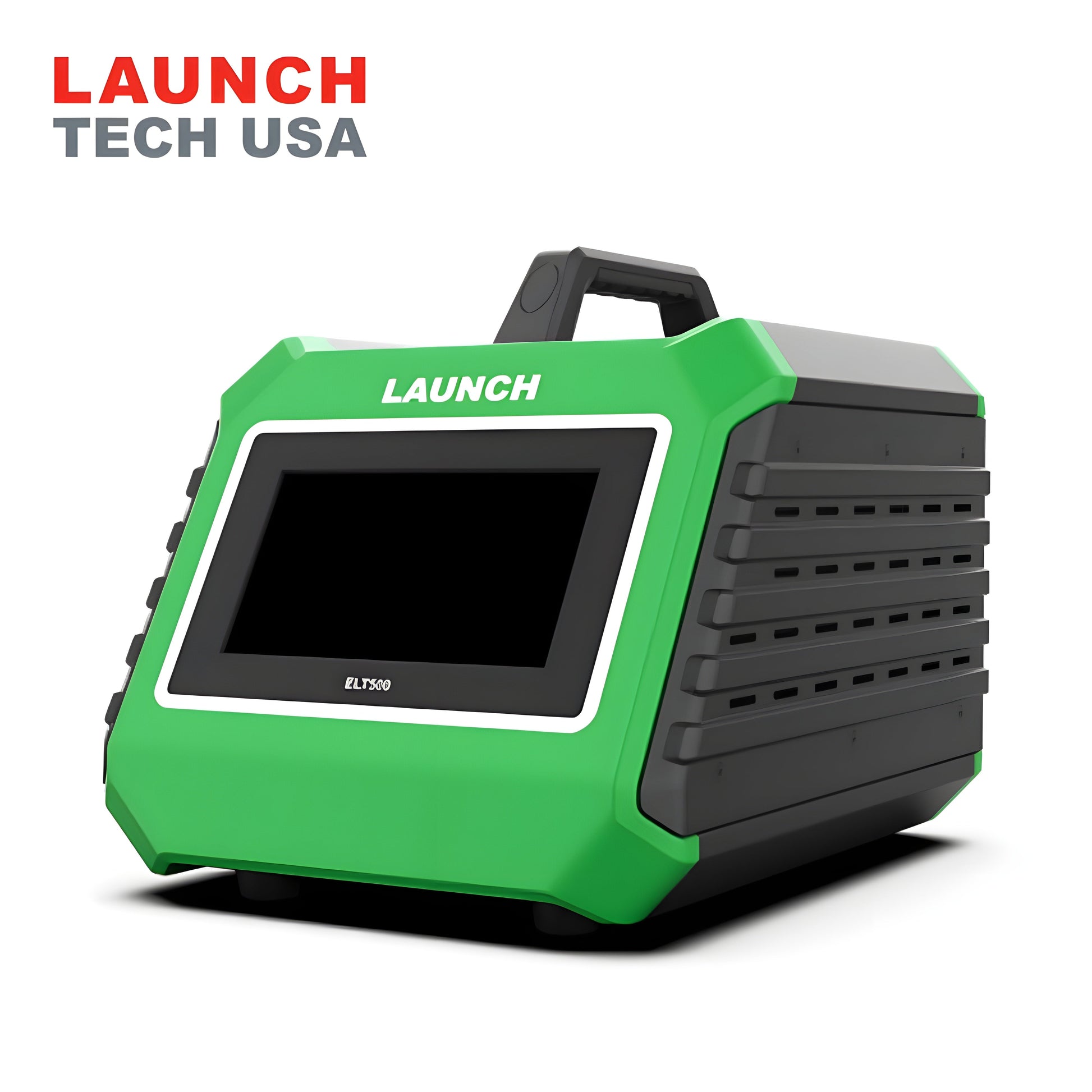

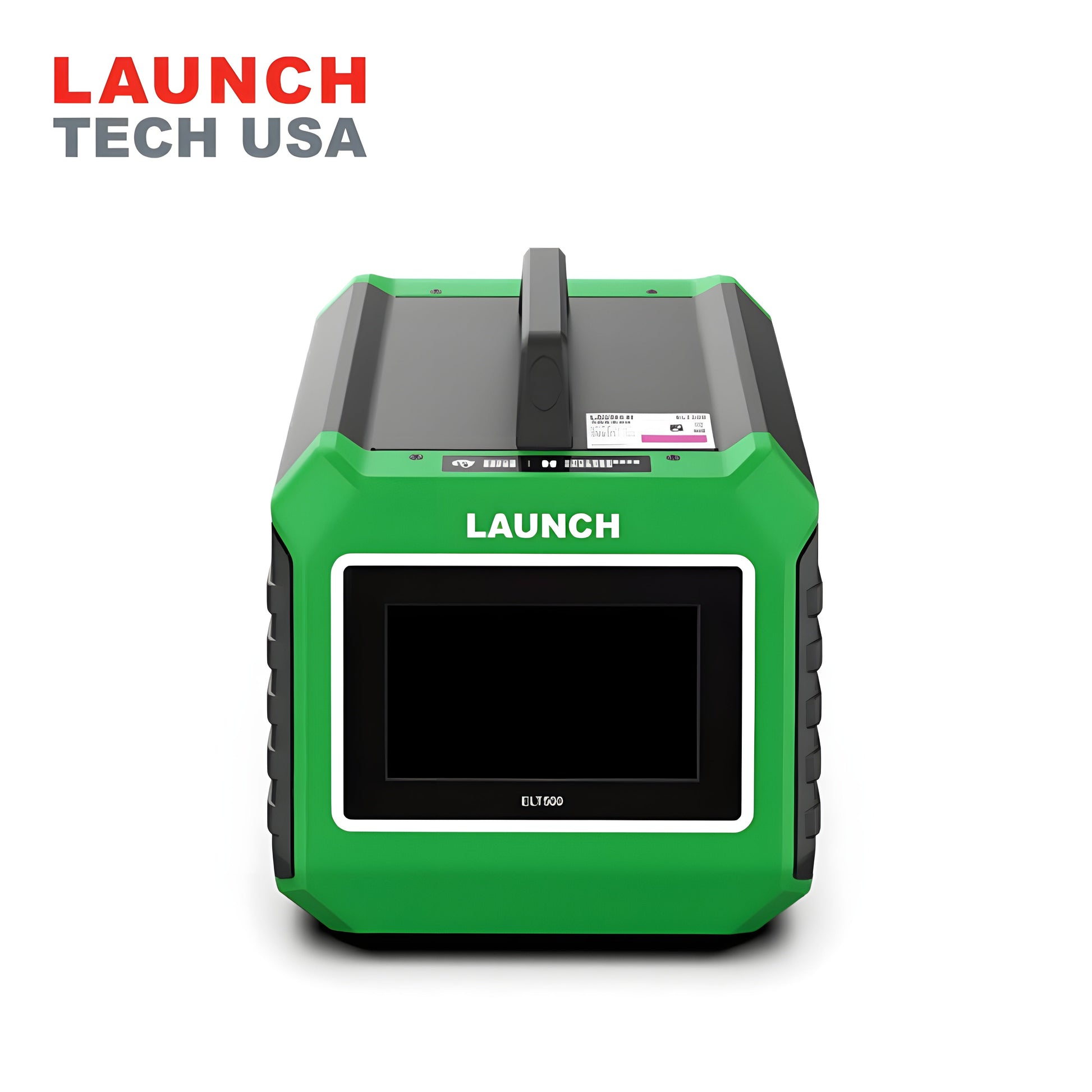

The ELT500EV Battery Pack Airtightness Tester is a compression testing equipment that is used to test the air compression rate and to maintain pressure in the inner cavity/surface of the battery/product . This is important to maintain the sealing effect of the battery pack to ensure it is operating within the parameters that will suffice for the efficiency of the electric vehicle. Additionally, the ELT500EV is also applicable for motor controllers, voltage distribution boxes, compressors and other parts.

Features

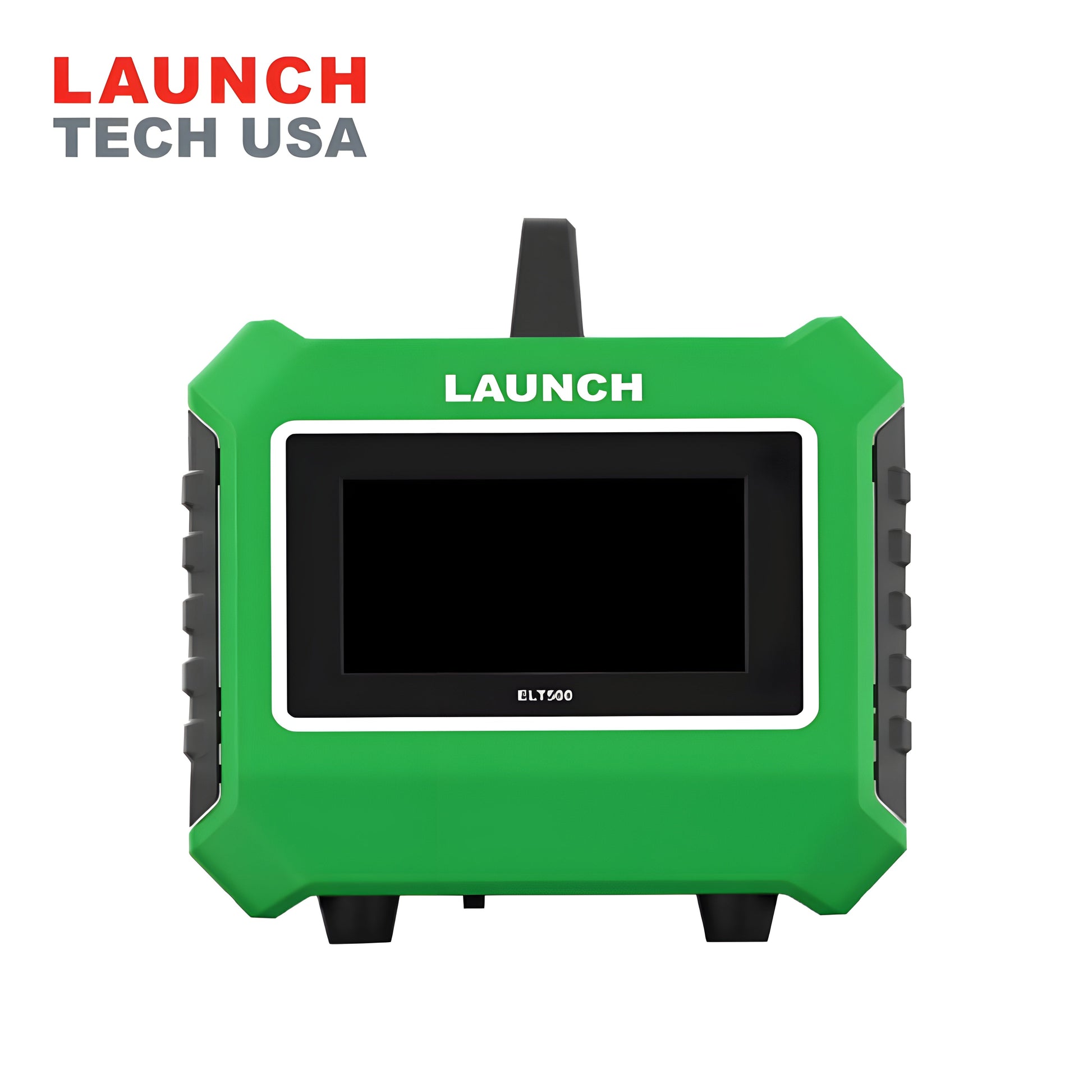

• The 7-inch LCD touch screen and the intuitive menu allows for a seamless usability experience.
• High-sensitivity pressure sensing, greatly improving test accuracy and stability.
• During the testing process the progress of each stage is displayed.
• Real-time display of pressure dial and display of process pressure curve.
• Preset test parameters for standard parts allow for usability and convenience.
• Work piece number volume, pressure, time of each stage, and leakage limit are preset table parameters.
• When an abnormal test is encountered the sound alarm is set.

Specifications

• Power: 20W (Max)
• Test Pressure Range: 0~30Kpa
• Sensor Resolution: 1Pa
• Test Accuracy: ±5Pa

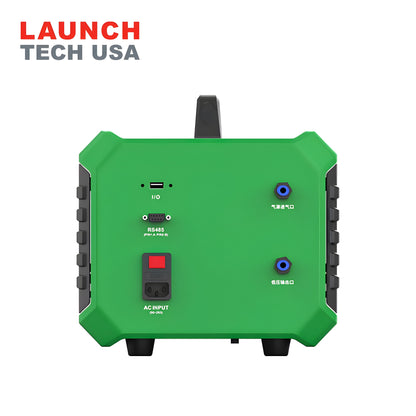

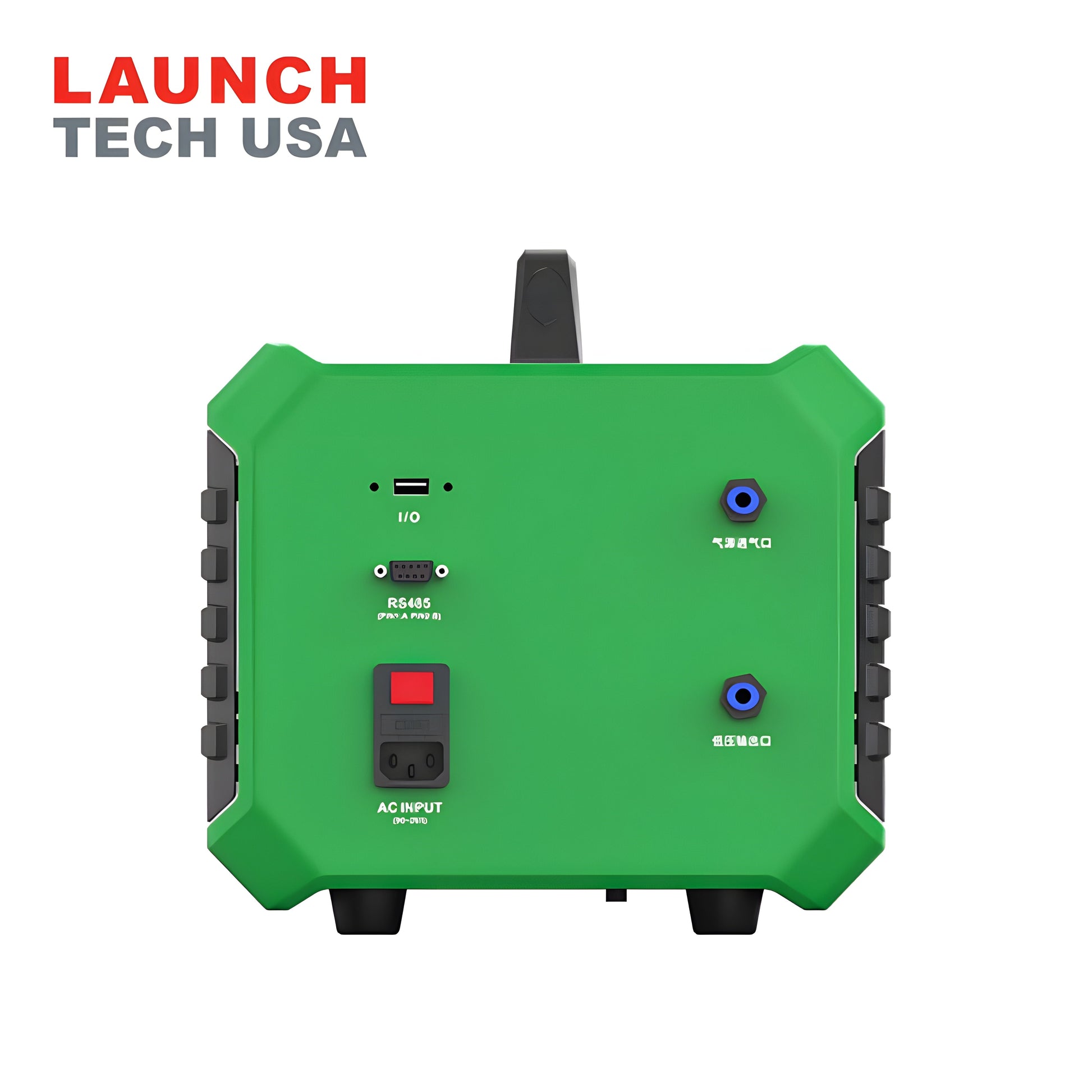

• Communication Interface: RS485/USB
• Data Storage Method: Internal storage, or data upload to USB drive
• Power Supply: AC 90~265V
• Air Source Requirements: 0.1~1.0 Mpa dry compressed air
• Working Temperature/Humidity: -10~55°C/10%~90%@25°C
• Dimensions/Weight: 280*276*360(mm)/4.5kg

What Our Experts Think

• EV-Specific Testing: Designed to detect leaks and ensure the airtightness of electric vehicle battery packs.
• High-Precision Sensors: Accurately measures pressure changes to identify even the smallest air or gas leaks.
• Advanced Compression Testing: Simulates real-world conditions, validating the integrity of battery enclosures.
• User-Friendly Interface: Digital display for real-time data visualization and quick diagnostics.
• Portable & Durable: Compact design with rugged construction — ideal for workshops and on-site testing.
• Continuous Updates: Regular software upgrades to stay aligned with evolving EV technology.

Q&A

Q: What is the Launch Tech USA EV Battery Pack Airtightness Tester (LNCH-ELT500)?
A: It’s a precision tool designed to test the airtightness and compression of EV battery packs, ensuring safety and performance.

Q: What are the key features of the LNCH-ELT500?
A: It offers high-accuracy leak detection, real-time data display, user-friendly controls, and compatibility with various EV battery models.

Q: Why is airtightness testing important for EV batteries?
A: It prevents moisture and contaminants from entering the battery pack, protecting against corrosion and ensuring longevity.

Q: Is the LNCH-ELT500 suitable for all EV battery packs?
A: Yes, it's designed for a wide range of battery sizes and configurations, meeting industry standards.

Q: Where can I buy the LNCH-ELT500?
A: Available through authorized Launch Tech USA dealers and online marketplaces.

Would you like me to fine-tune the tone or add more technical details? Let me know!

Maintenance Tips

• Firmware Updates: Regularly update to maintain testing accuracy and support new diagnostic features.
• Seal Inspection: Check hoses, seals, and connectors for wear or leaks to ensure precise airtightness testing.
• Pressure Calibration: Periodically calibrate sensors to maintain accurate compression readings.
• Device Cleaning: Wipe with a soft, dry cloth; keep ports and vents free of dust and debris.
• Safe Storage: Store in a cool, dry place to protect sensitive components from moisture and damage.
