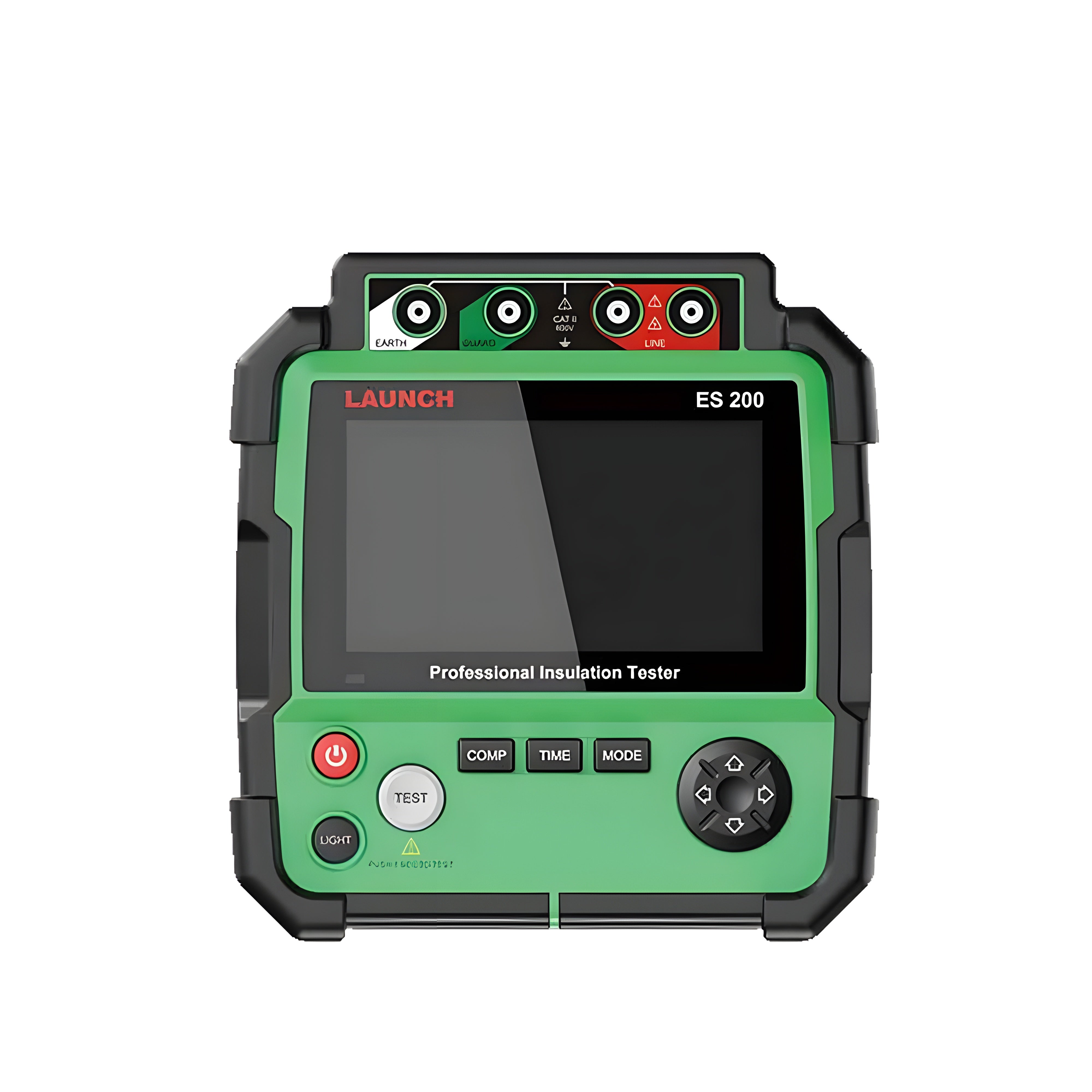

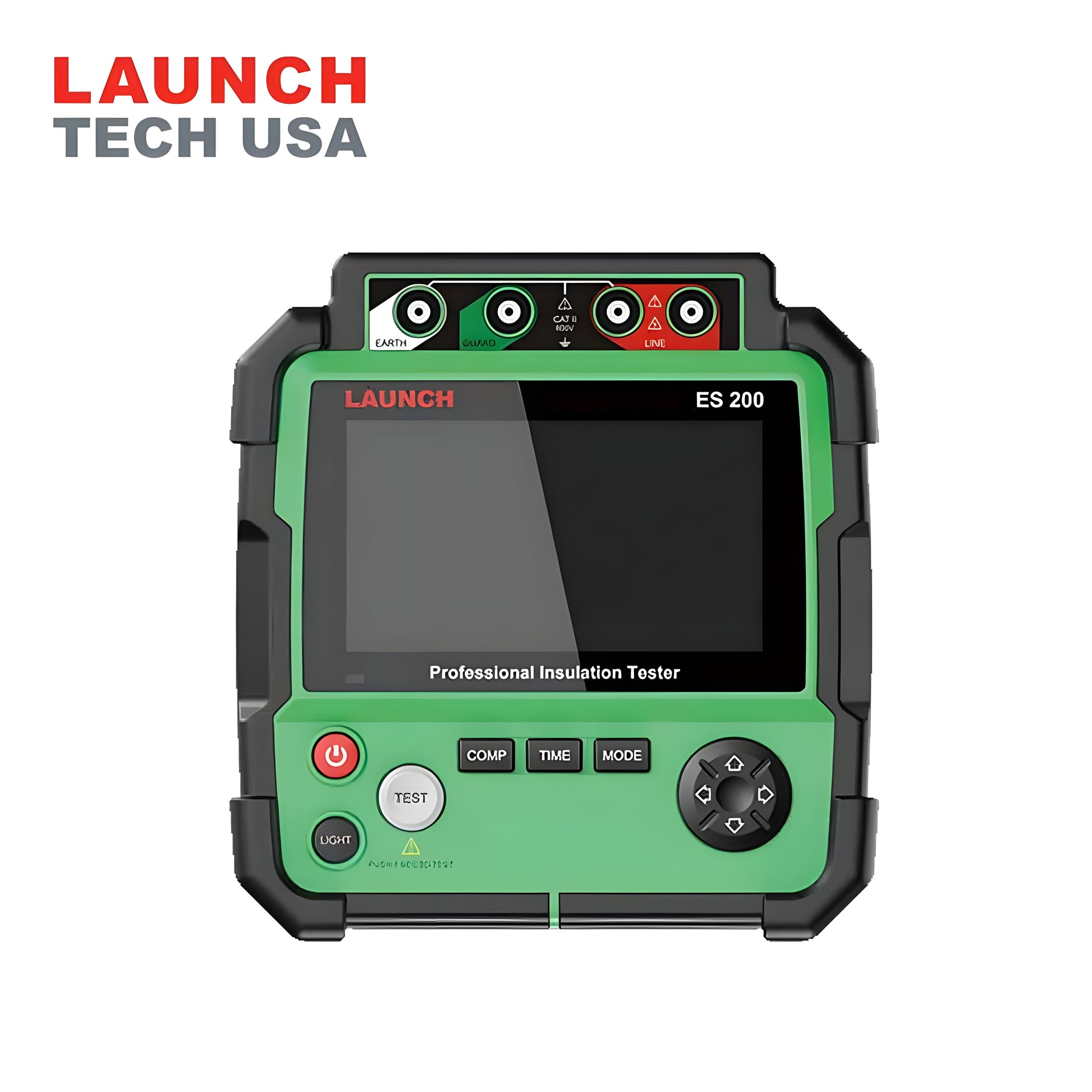

Launch Tech USA EV Insulation Resistance Tester - LNCH-ES200

Launch Tech USA EV Insulation Resistance Tester - LNCH-ES200

Insulation testing allows for detecting the resistance of high voltages in the electrical components of Electric Vehicles. By performing the insulation test, this ensures that electrical components of the EV are in optimal condition within the specified parameters enabling a safe driving experience and operation of the EV. Insulation Resistance testing is when the DC high voltage is transformed from the E pole to the L pole, in which current is generated between the E pole and L pole. The insulation resistance is then displayed on the screen through IN conversion and calculation. The insulation resistance refers to the leakage current of the insulation material between the live part and the exposed non-live metal part (shell).In comparison to different products, the varying values of DC high voltages will be applied, such as 500V,1000V,2500V etc. and a minimum safe insulation resistance value will be set. If the measured resistance value is lower than the safe resistance value, there may be a risk of electric shock.

Features

• ES200 is capable of measuring insulation resistance, and also innovatively increases the voltage measurement function.
• Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.
• Three measurement modes: timing measurement, comparison measurement, continuous measurement, and omnidirectional measurement.

Specifications

• Battery: 3150mAh
• Display: 5”
• Working Temperature: 0~50°C / 122.00 ℉
• Dimensions: 180*174*65.5 (mm)
• Weight: 1.7kg

What Our Experts Think

• EV-Specific Testing: Designed for electric vehicles, ensuring accurate insulation resistance measurements.
• High Voltage Accuracy: Tests up to 1000V, detecting insulation faults in EV power systems.
• Real-Time Diagnostics: Provides fast, clear results to identify potential hazards and prevent electrical failures.
• User-Friendly Interface: Intuitive design with digital display for easy operation.
• Portable & Durable: Compact yet rugged, ideal for workshop and on-the-go diagnostics.
• Regular Software Updates: Stay current with evolving EV technology and standards.

Q&A

Q: What is the Launch Tech USA EV Insulation Resistance Tester?
A: The Launch ES200 (LNCH-ES200) is a professional-grade insulation resistance tester designed for electric and hybrid vehicles. It accurately measures insulation resistance in high-voltage systems, ensuring safety and performance.

Q: What vehicles are compatible with the ES200?
A: The ES200 is compatible with a wide range of electric (EV) and hybrid vehicles, making it an essential tool for modern auto repair shops and EV specialists.

Q: What are the key features of the ES200?
A: Key features include high-precision insulation resistance testing, multi-level voltage output (up to 1000V), automatic fault detection, and user-friendly digital display for quick diagnostics.

Q: Is the ES200 easy to use for professionals?
A: Yes! It features a compact design, simple interface, and clear data display, allowing auto technicians to safely and efficiently test EV systems.

Q: Does the ES200 come with software updates?
A: Yes, the ES200 supports regular firmware updates, ensuring compatibility with new EV models and evolving high-voltage technologies.

Maintenance Tips

• Firmware Updates: Regularly update the software to maintain testing accuracy and compatibility.
• Battery Care: Use the recommended charger and avoid extreme temperatures to preserve battery health.
• Probe Inspection: Check test leads and probes for damage or wear to ensure precise readings.
• Clean Equipment: Wipe the device with a soft, dry cloth — avoid water or harsh chemicals.
• Safe Storage: Store in a dry, dust-free case to protect internal components and extend lifespan.
