Launch Tech USA Torque 5 Advanced Intelligent Vehicle Diagnostic Device - LNCH-X431-TORQUE-5

Launch Tech USA Torque 5 Advanced Intelligent Vehicle Diagnostic Device - LNCH-X431-TORQUE-5

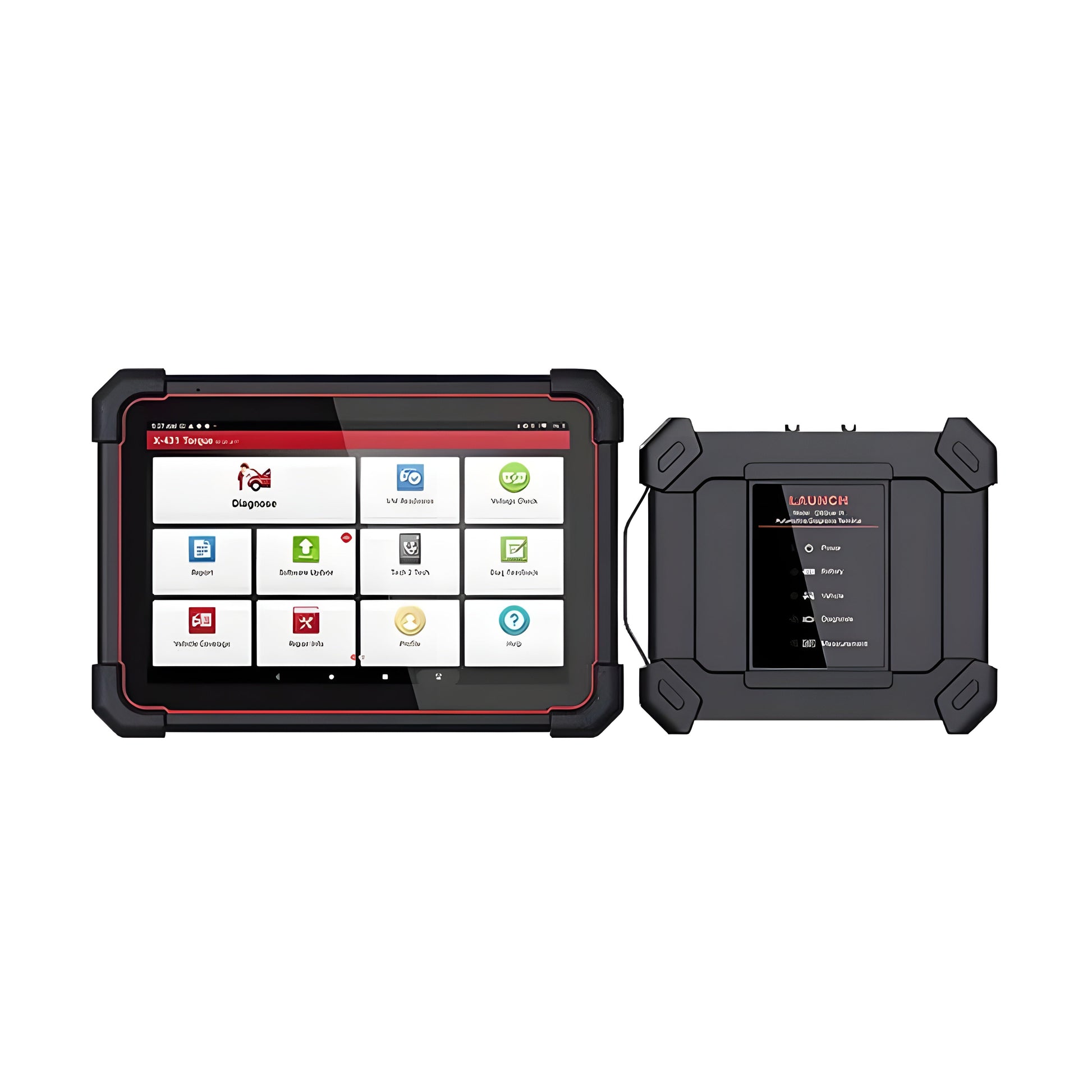

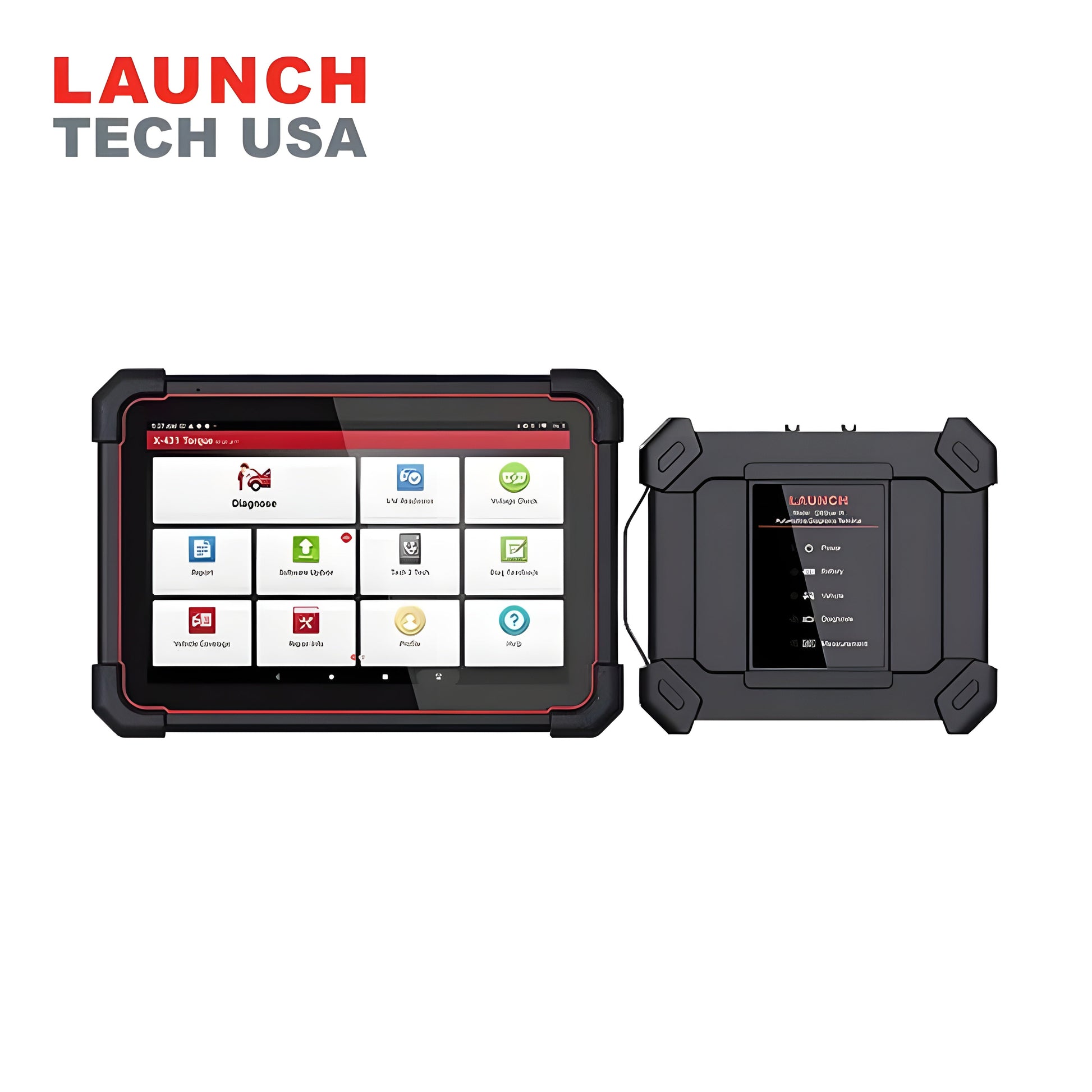

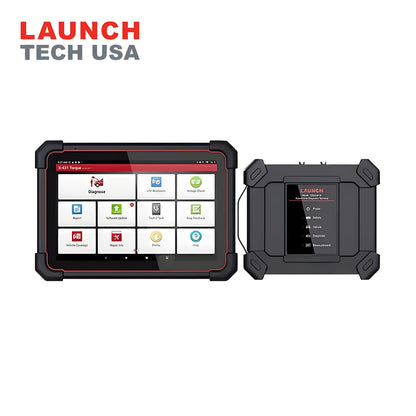

X-431 Torque 5 is an advanced intelligent vehicle diagnostic device developed based on Android 10.0 system. It adopts 2.0GHz 4-core high-efficiency processor, 10.1-inch color display, 4GB ram + 128GB ROM large storage, and is equipped with high endurance battery to run faster, more stable and longer.

X-431 Torque 5 supports full-system fault diagnosis, with functions such as Read DTCs, Clear DTCs, Read Data stream, Special function, Actuation test, Coding, Matching and more. It supports CANFD/DOIP diagnostic protocol.

Features

• Full system & full function diagnosis
• Auto Detect VINs in minutes
• Bi-Directional Control/ Remote Diagnostic Function
• Dual band 5G & 2.4 G wireless connection with ultra-fast speeds
• Advanced vehicle protocols including Doip (external diagnostic cable) CAN FD etc.
• Code Assist Database by identifix
• Support X431 Fix repair information, driven by motor
• SGW Security gateway approved by FCA
• Supports 2-channel oscilloscope and multimeter functions
• More available software can be purchased via in-app Mall
• One-click upgrade for car models software
• Support USB Type C, USB Type A interface, etc
• OE Level U.S vehicle coverage as well as Asian, European coverage from 1996 and newer

Product Specifications

• Android 10.0
• 10.1 inch touch screen 1280*800
• Rear 8 MP, Front 5 MP
• Battery: 47880mWh (7.6V, 6300mAh)
• CPU 2.0 GHz Quad-core
• Memory and Storage:4GB+128GB
• StorageTemperature: -20℃--70℃-
• Working Temperature: 0℃--50℃
• Connectivity：WiFI/Bluetooth
• Size: 274*190*40.5 (mm)/ 10.79*7.48*1.59 (inch)
• Weight 1.45 kg

Contents:

• Front camera host 4 + 128
• HD15F to OBDII 16 male integrated test connector
• HDB15F to HDB15F test main line (with DC)
• X431 DBSCAR IX diagnostic connector
• HT30 test line
• Needle Set (Colored 4mm Female+20 needle+2 screw head)
• Crocodile clip，black
• Crocodile clip，red
• Multimeter probe black
• Multimeter probe red
• Power adapter
• Universal PIN envelope
• Multilingual Quick Start
• Type A to type C USB data cable

Manual

• Quick Start Guide
• X431 Scan Tool Comparision Chart

What Our Experts Think

• Comprehensive Diagnostics: Full system coverage for 10,000+ vehicle models, supporting OBDI and OBDII protocols.
• AI-Powered Intelligence: Advanced AI-driven diagnostics for faster, more accurate fault detection.
• Wireless Convenience: Bluetooth and Wi-Fi enabled for seamless remote diagnostics and cloud-based updates.
• Pro-Level Functions: ECU coding, bi-directional control, key programming, and battery testing — built for professionals.
• Smart Interface: High-resolution touchscreen with intuitive app integration for smooth navigation.
• Constant Updates: Regular software updates to stay ahead of the latest automotive technology.

Q&A

Q: What is the Launch Tech USA Torque 5 Diagnostic Device?
A: The Launch X-431 Torque 5 (LNCH-X431-TORQUE-5) is an advanced intelligent vehicle diagnostic tool offering full-system diagnostics, bi-directional control, ECU programming, and AI-powered troubleshooting for modern vehicles.

Q: What vehicles are compatible with the Torque 5?
A: It supports OBDII/EOBD-compliant vehicles, with coverage for over 150 U.S., Asian, and European car brands, ensuring broad compatibility.

Q: What are the key features of the Torque 5?
A: Key features include AI-driven diagnostics, remote programming, ADAS calibration, real-time data streaming, wireless connectivity, and cloud-based repair solutions.

Q: Is the Torque 5 easy to use for professionals?
A: Yes! With a high-resolution touchscreen, intuitive interface, and fast wireless connections, the Torque 5 streamlines diagnostics for auto repair shops and mobile mechanics.

Q: Does the Torque 5 include software updates?
A: Yes, it comes with 2 years of free software updates, ensuring continuous access to the latest vehicle data and advanced diagnostic tools.

Maintenance Tips

• Firmware Updates: Regularly update via the official Launch app to ensure accurate diagnostics and new features.
• Battery Care: Use the provided charger, avoid overcharging, and store at moderate temperatures.
• Screen Protection: Apply a screen protector to prevent scratches and maintain touch sensitivity.
• Cable & Port Check: Clean OBD-II connectors frequently to ensure stable data transmission.
• Safe Storage: Keep the device in a dust-free, shockproof case when not in use.
