Launch Tech USA Professional Mobile 3D Wheel Aligner - LNCH-X-881PRO

Launch Tech USA Professional Mobile 3D Wheel Aligner - LNCH-X-881PRO

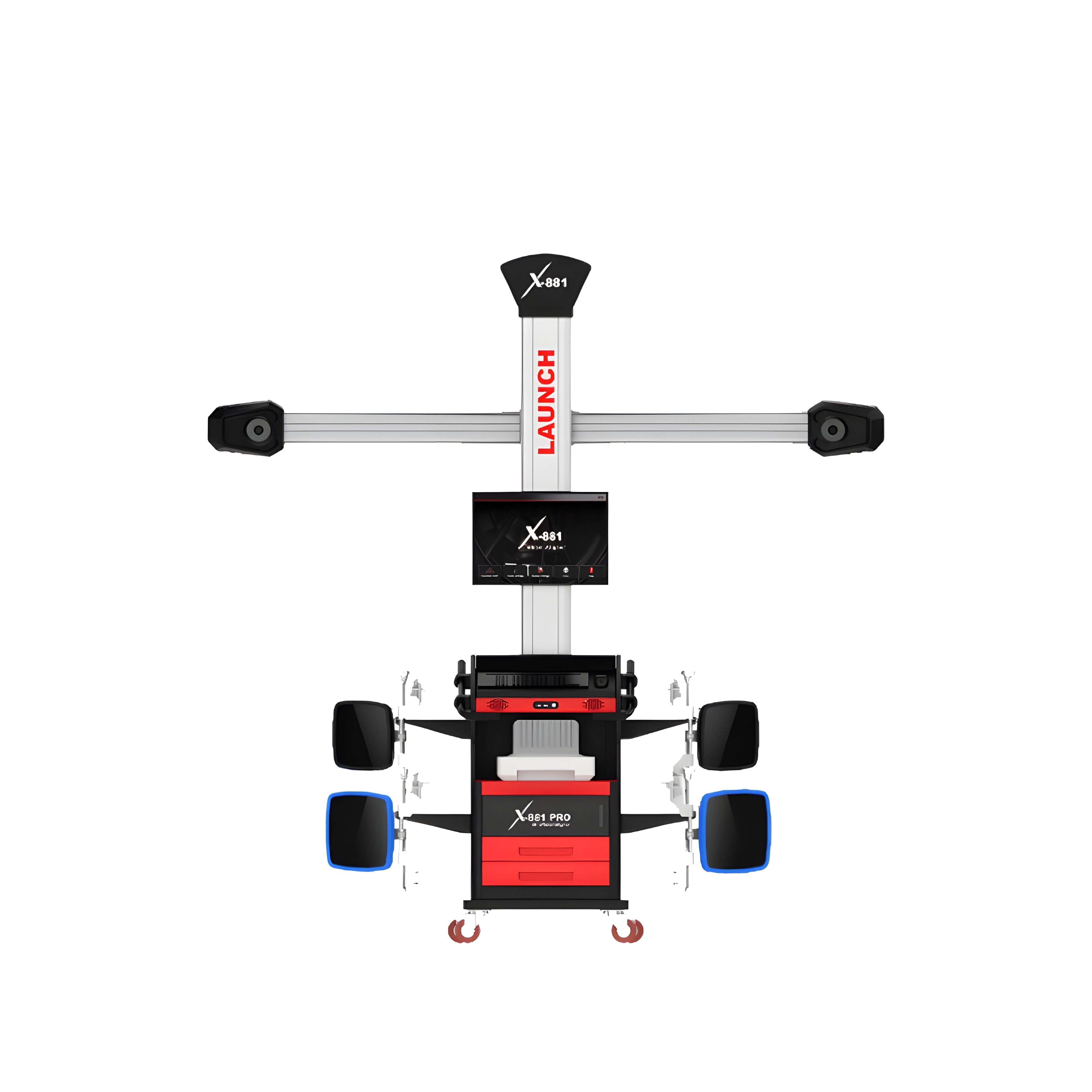

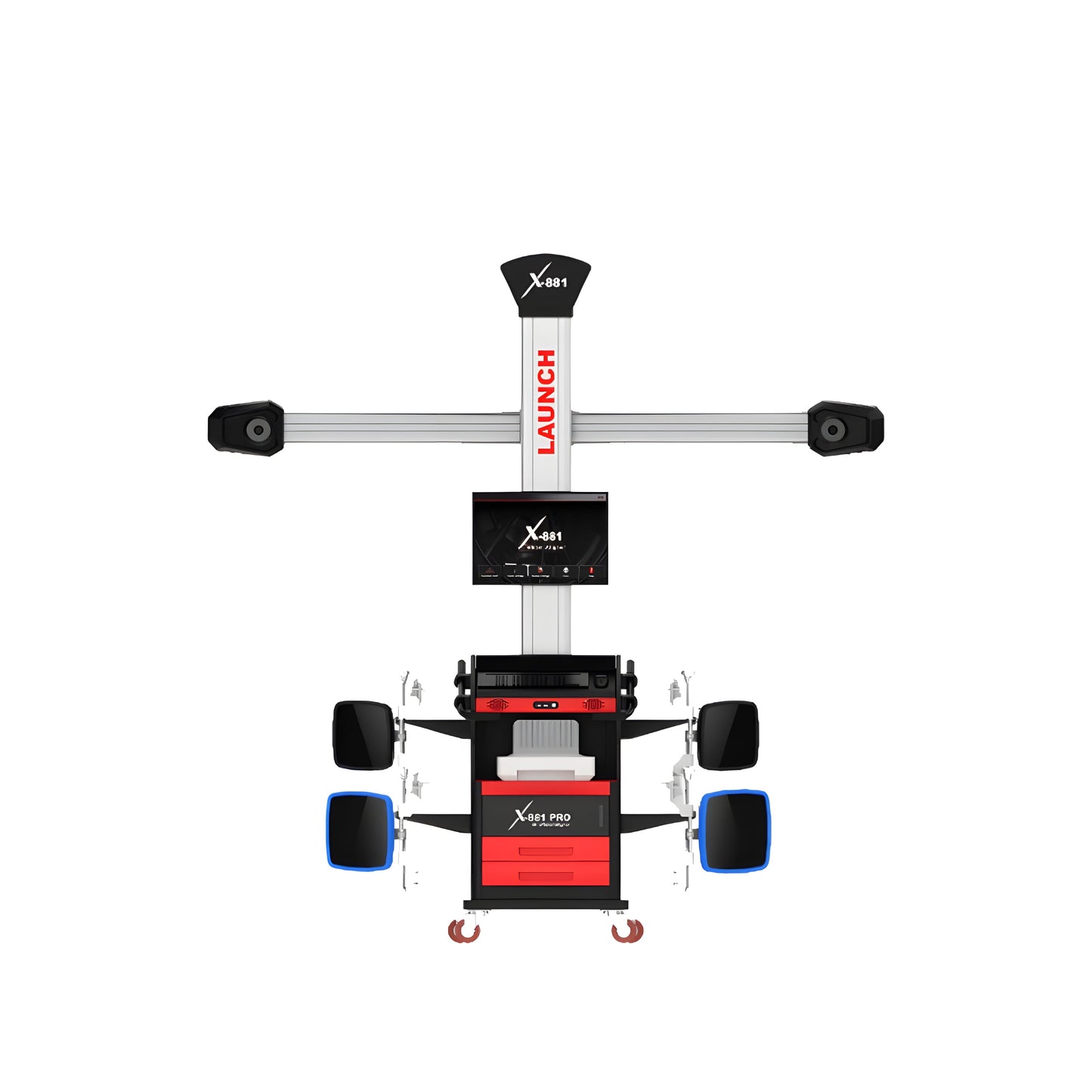

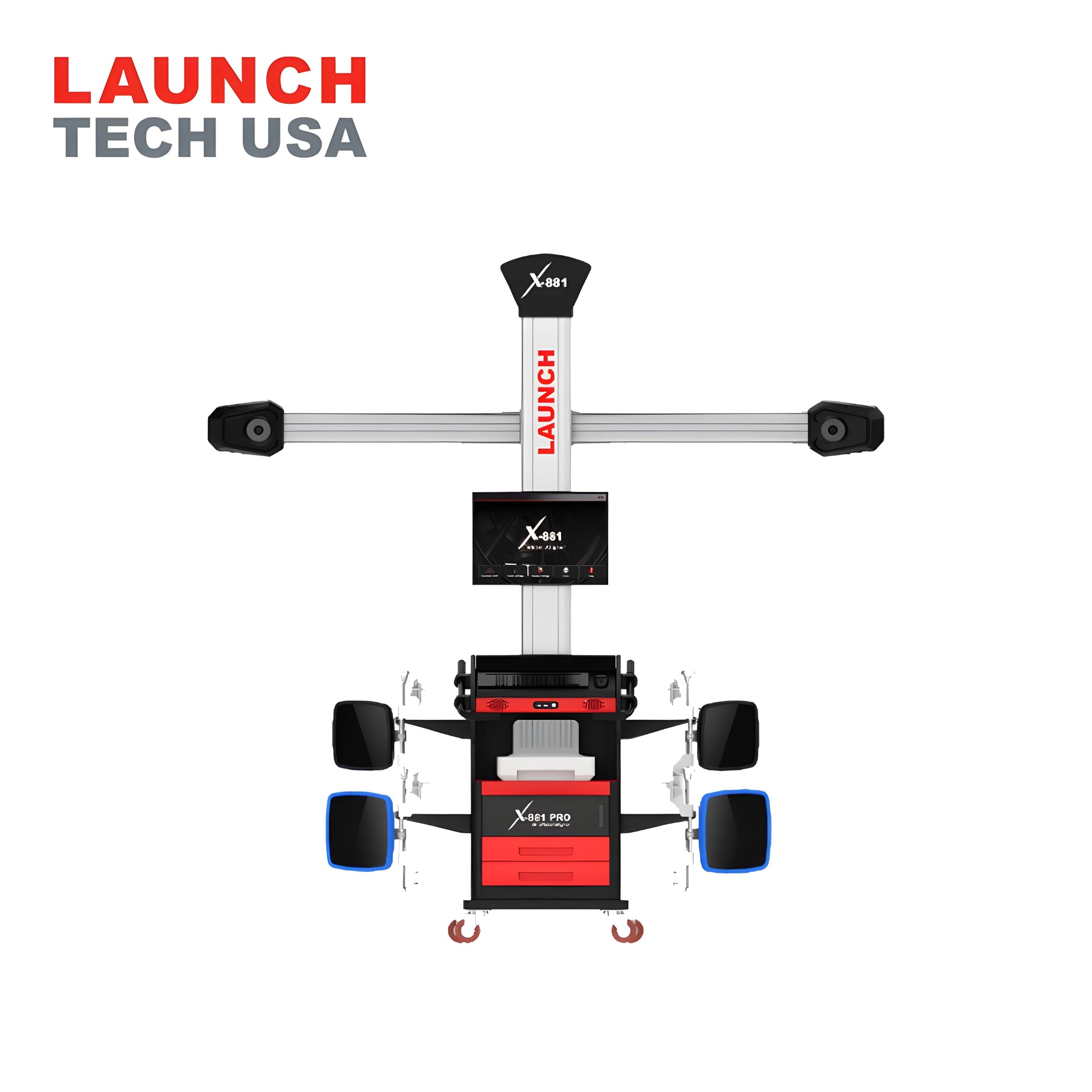

LAUNCH X-881 Pro is a professional mobile 3D wheel aligner that is based on a user-friendly interface communicating with two smart imaging cameras.

LAUNCH X-881 Pro is equipped with Dynamic Constitute Coordinate (DCC) which is a new revolutionary technology in the wheel alignment industry allowing the LAUNCH X-881 PRO to work on uneven surfaces with variance of 30 degrees. This DCC technology makes the LAUNCH X-881 Pro a mobile wheel aligner. It allows the mechanic to move the aligner and generate alignment reports on different bays, which increases shops’ productivity.

The revolutionary software of LAUNCH X-881 Pro is compatible with 2post lifts and all other lift types. A lucrative function that enables shops to perform easy alignment jobs on 2 post lifts that increases the shop’s revenue without having to invest in a space demanding, budget restraining 4 post or scissor lift. The smart dynamic of this revolutionary software reads and records the initial measurements of loaded suspension of the vehicle on ground. When performing adjustments to the vehicle jacked on the 2-post lift, the adjustments are made to the initial measurements that were recorded when the suspension was loaded on ground and NOT to the hanging suspension in the air.

LAUNCH X-881 Pro is equipped with a VIN decoder that saves time and error selecting the vehicle’s VIN number while matching OE specifications provided by OE built in database. LAUNCH X-881 Pro also performs ADAS Pre-calibration wheel alignment jobs according to OE specs.

Freely generates three different types of reports that can be saved, printed or emailed at your convenience.

Features

• Automatic VIN decoader
• Wireless VIN scanner included
• OEM solution for automotive repair information
• Remote tech support; WIFI enabled
• 5Gbps transmission bandwidth
• USB 3.0 interface
• Includes 2 Years software updates
• 5MP camera for extended size vehicles
• Adjustable monitor height on beam
• HP Printer included
• Seamless operational software
• Mobile aligner
• Dust cover included
• Hand-held extra screen (optional)

Specifications

• Power: AC 110/220V 50/60Hz
• SKI/Kingdom: ±5° Accuracy: ±0.03°
• HD Capacity: 60G
• Wheel Base: 4000mm Accuracy:
• Operating System: 64-bit Windows 10
• Caster: ±20° Accuracy: ±0.03°
• Monitor: 32" Color Monitor
• Processor: Intel Series
• Retraction Angle: ±5° Accuracy: ±0.03°
• Rim Diameter: 10-24 Inch
• Memory: 2G
• Thrust Angle: ±10° Accuracy: ±0.01°
• Wheel Track: 2000mm Accuracy: ± 2mm

What Our Experts Think

The Launch Tech USA Professional Mobile 3D Wheel Aligner (LNCH-X-881PRO) is a top-tier solution for precise and portable wheel alignment. Here’s why it’s a workshop essential:

• Cutting-Edge 3D Technology: Delivers fast, accurate measurements with real-time data.
• Mobile & Compact Design: Easily movable — perfect for flexible shop layouts.
• User-Friendly Interface: Intuitive touchscreen controls for seamless operation.
• Extensive Vehicle Coverage: Supports a wide range of cars, SUVs, and light trucks.
• Enhanced Efficiency: Reduces alignment time while ensuring pinpoint accuracy.

Q&A

Q: What is the Launch Tech USA Professional Mobile 3D Wheel Aligner (LNCH-X-881PRO)?
A: It’s a high-precision mobile wheel alignment system that uses advanced 3D imaging technology to deliver fast, accurate alignment for a wide range of vehicles.

Q: What are the key features of the LNCH-X-881PRO?
A: Offers real-time 3D measurement, wireless operation, a user-friendly interface, and full mobility for on-site or workshop use.

Q: Why is 3D wheel alignment important?
A: It ensures proper wheel angles, reduces tire wear, improves handling, and enhances fuel efficiency — crucial for vehicle performance and safety.

Q: Is the LNCH-X-881PRO suitable for all vehicles?
A: Yes, it’s compatible with most passenger vehicles, SUVs, and light trucks.

Q: Where can I buy the LNCH-X-881PRO?
A: Available through authorized Launch Tech USA dealers and online platforms.

Maintenance Tips

• Software Updates: Regularly update firmware to ensure precise alignment data and compatibility with new vehicle models.
• Camera Calibration: Periodically calibrate cameras and sensors for accurate 3D measurements.
• Hardware Check: Inspect targets, clamps, and brackets for damage—replace any worn parts immediately.
• Clean Optics: Gently clean camera lenses with a microfiber cloth to prevent data errors from smudges or dust.
• Safe Storage: Store equipment in a dry, stable environment to protect sensitive components.
