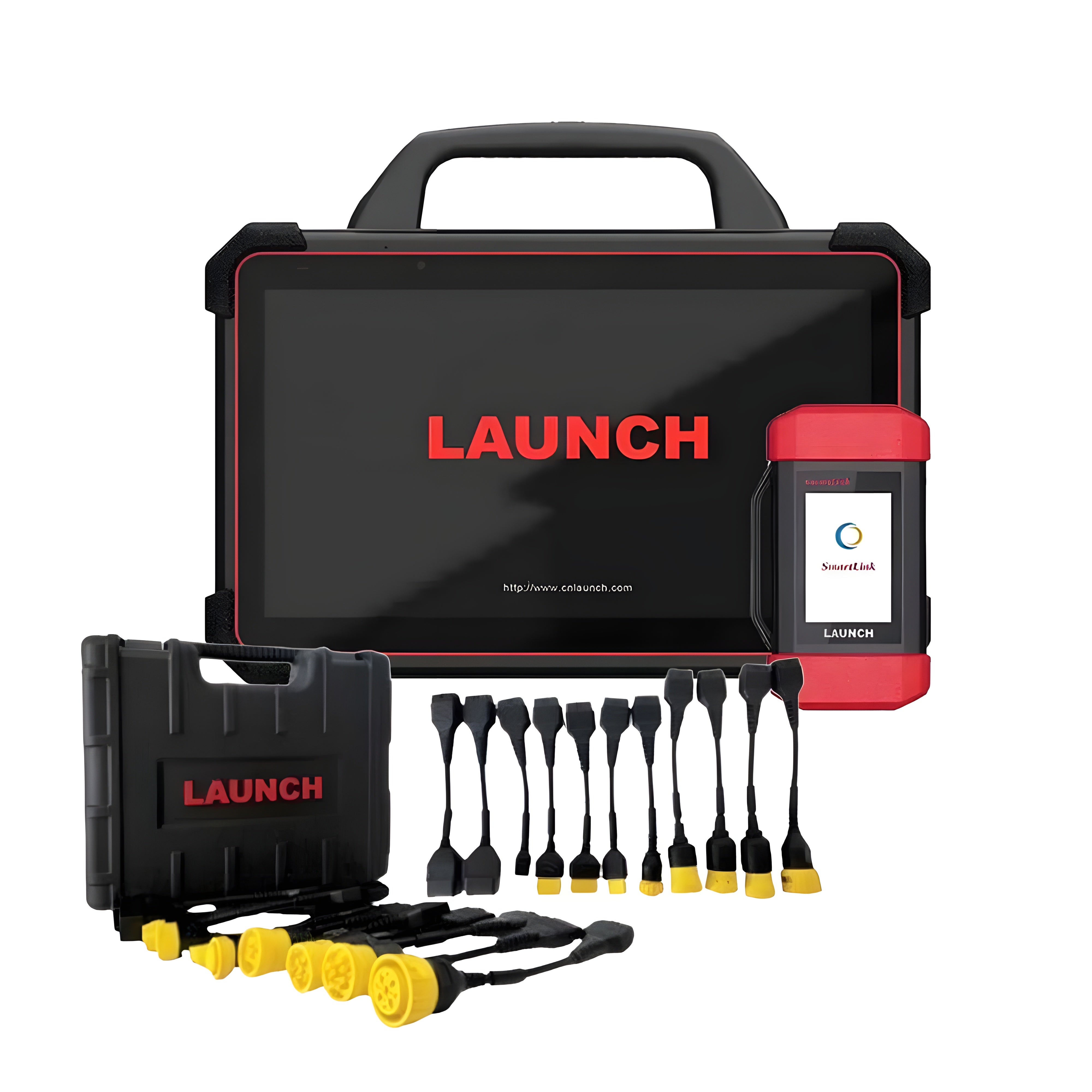

Launch Tech USA Professional Diagnostic Scan Tool and X-431 HD Add-On Module - LNCH-THROTTLE-HD-III

Launch Tech USA Professional Diagnostic Scan Tool and X-431 HD Add-On Module - LNCH-THROTTLE-HD-III

Launch X-431 Throttle III is a Wi-Fi enabled and super advanced scan tool with upgraded all-in-one Smartlink VCI. One is enough for most of repair shops who has business in relation with ADAS calibration, Commercial and Medium Duty Truck diagnosis, Remote diagnostic, OE-level vehicle diagnosis, IMMO functions and more.

Features

• OE-level U.S. vehicle coverage as well as Asian, European coverage from 1996 and newer
• Smartlink allows for rapid diagnostics of light, medium and heavy-duty vehicles
• QC quick charge technology (Battery Charges Fully in 2.5 to 3 hours)
• Optional ADAS calibration application to calibrate LDW, RCW, AVM, NV, BSD and ACC system accurately.
• Guided VW and AUDI functions
• OE-Level bi-directional functionality
• Support communication protocols CAN/CAFD/DoIP and automotive communication standards J/D-PDU/RP1210
• TECH 2 TECH remote diagnosis and technician collaboration
• Vehicle health report feature gives comprehensive status on all onboard systems of vehicle
• Auto Detect VIN to access to vehicle info within seconds
• OE vehicle approved Security Gateway access by FCA certified (NEW)
• Code Assist by Identifix, access most common fixed and repair solutions with corresponding DTC (NEW)
• Monitors vehicle's voltage by real-time displaying the data during diagnosing (NEW)
• Topology module mapping overview virtually the all-systems communication status (NEW)
• "NEW" Pin detection function to detect pin volt, data rate and protocols.

X-431 Throttle III Specifications

• Operation System: Android 9.0
• CPU: 2.0GHz Octa-core
• Display: 13.3-inch touch screen
• Memory: 8GB
• Storage: 256GB
• Camera: Front 8 MP, Rear 13 MP
• Working Temperature: 32℉-122℉
• Dimension: 12.9"*8.7"*1.75"

SmartLink Specifications:

• 3.5-inch touch screen
• Memory 8GB
• Working Temperature 32℉-122℉
• Dimensions: 8.03"*4.33"*1.77"

Packing List:

• X-431 Throttle III Tablet
• 02-2 4-Channel Scope Box
• Smartlink C Device
• Power Adapter
• Type A to Type B Data Cable
• Type A to Type C USB Cable
• HDMI Cable
• OBD I Adapter Cable
• Cigarette Lighter Cable
• Battery Clamps Cable
• Private and Confidential Paper
• X431 FIX Auto Software (MotorRepair Information) Oneyear

Manual

• Quick Start Guide
• X431 Scan Tool Comparision Chart

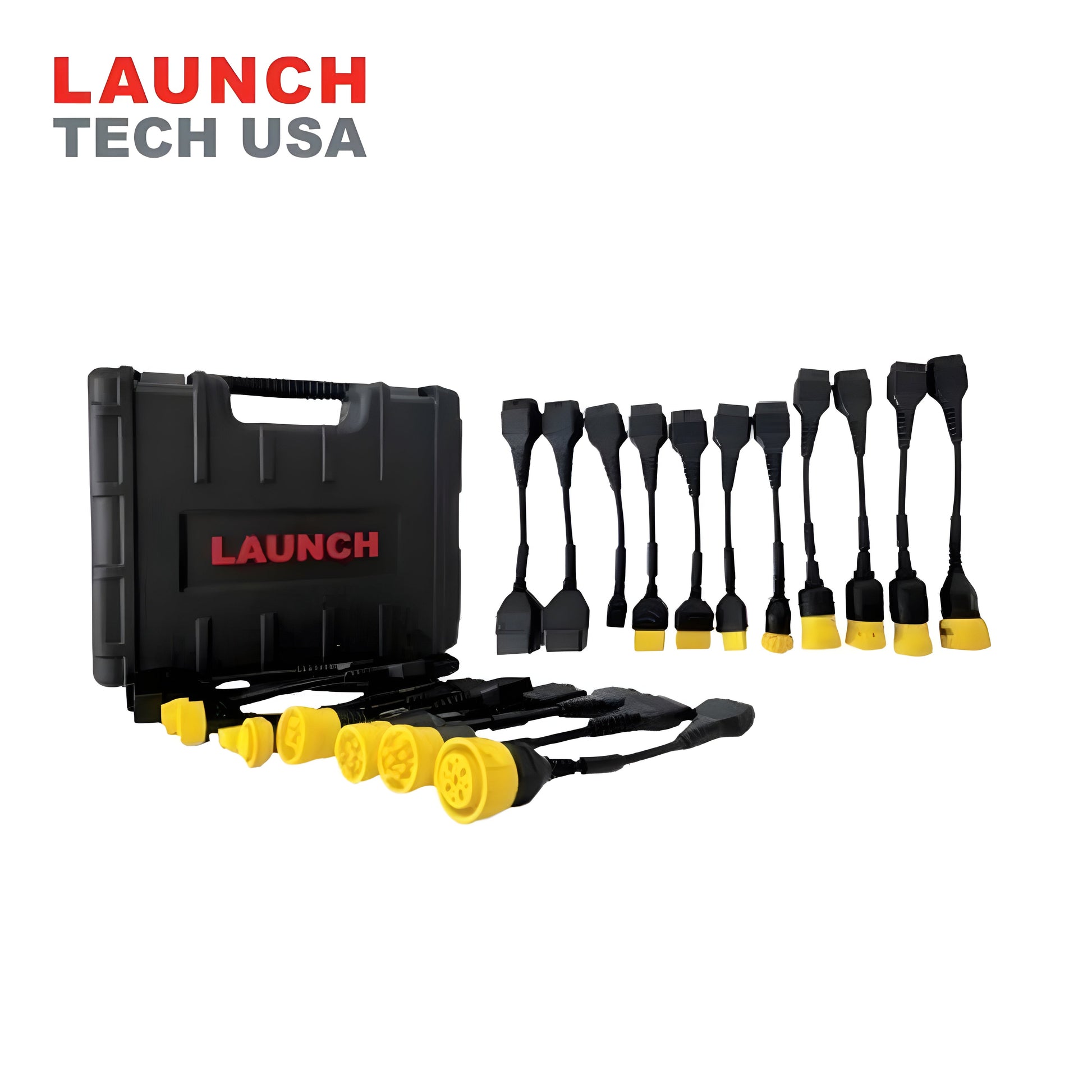

Launch - AX-431 HD Add-On Module

Vehicle Coverage

• Cummins
• Fuso
• Hino
• Isuzu
• Mack
• Volvo
• Detroil
• Paccar
• Maxxforce
• Caterpillar
• Allison
• Autocar
• Eaton
• Haldex
• John Deere
• Kenworth
• Peterbilt
• Sterling
• Wabco
• Scania
• UD

Compatible With:

• X-431 Throttle III
• X-431 Torque Link
• X-431 Torque 5

What Our Experts Think

• Comprehensive Diagnostics: Advanced scan tool for in-depth vehicle system analysis.
• Heavy-Duty Compatibility: X-431 HD add-on module supports commercial trucks and diesel engines.
• Wide Vehicle Coverage: Works with a broad range of makes and models, including OBDI & OBDII.
• User-Friendly Interface: Large touchscreen with intuitive navigation for seamless operation.
• Wireless Connectivity: Bluetooth and Wi-Fi enable fast, hassle-free diagnostics.
• Full-System Scanning: Reads and clears codes, runs active tests, and provides live data streaming.
• Software Updates: Regular updates ensure compatibility with the latest vehicle technologies.

Q&A

Q: What is the Launch Tech USA Professional Diagnostic Scan Tool and X-431 HD Add-On Module?
A: It’s a high-performance diagnostic tool designed for professional mechanics, offering comprehensive vehicle diagnostics and advanced troubleshooting for heavy-duty and commercial vehicles.

Q: What vehicles are compatible?
A: Supports a wide range of OBDII, heavy-duty (HD), and commercial vehicles, including trucks and fleets.

Q: What features does it include?
A: Bi-directional control, ECU coding, full-system diagnostics, DPF regen, and real-time data streaming for accurate troubleshooting.

Q: Is it easy to use?
A: Yes! Features a user-friendly touchscreen, wireless connectivity, and intuitive navigation for efficient diagnostics.

Q: Does it come with updates?
A: Yes, includes software updates to ensure compatibility with new vehicle models and enhanced diagnostic functions.

Q: Why choose this over other scan tools?
A: Provides professional-grade accuracy, wide compatibility, advanced features, and reliable performance trusted by technicians.

Maintenance Tips

• Software Updates: Regularly update firmware and software to ensure compatibility with the latest vehicle models.
• Cable & Connector Care: Inspect cables and connectors for wear or damage; store them properly to prevent bending or breakage.
• Battery Maintenance: Charge the device as recommended and avoid overcharging to extend battery life.
• Screen & Casing Cleaning: Wipe the touchscreen and outer casing with a soft, dry cloth to prevent dust buildup.
• Storage Precautions: Keep the tool in a cool, dry place when not in use to protect against extreme temperatures and moisture.
• Periodic Calibration: Perform calibration checks as needed to maintain accuracy in diagnostics.
