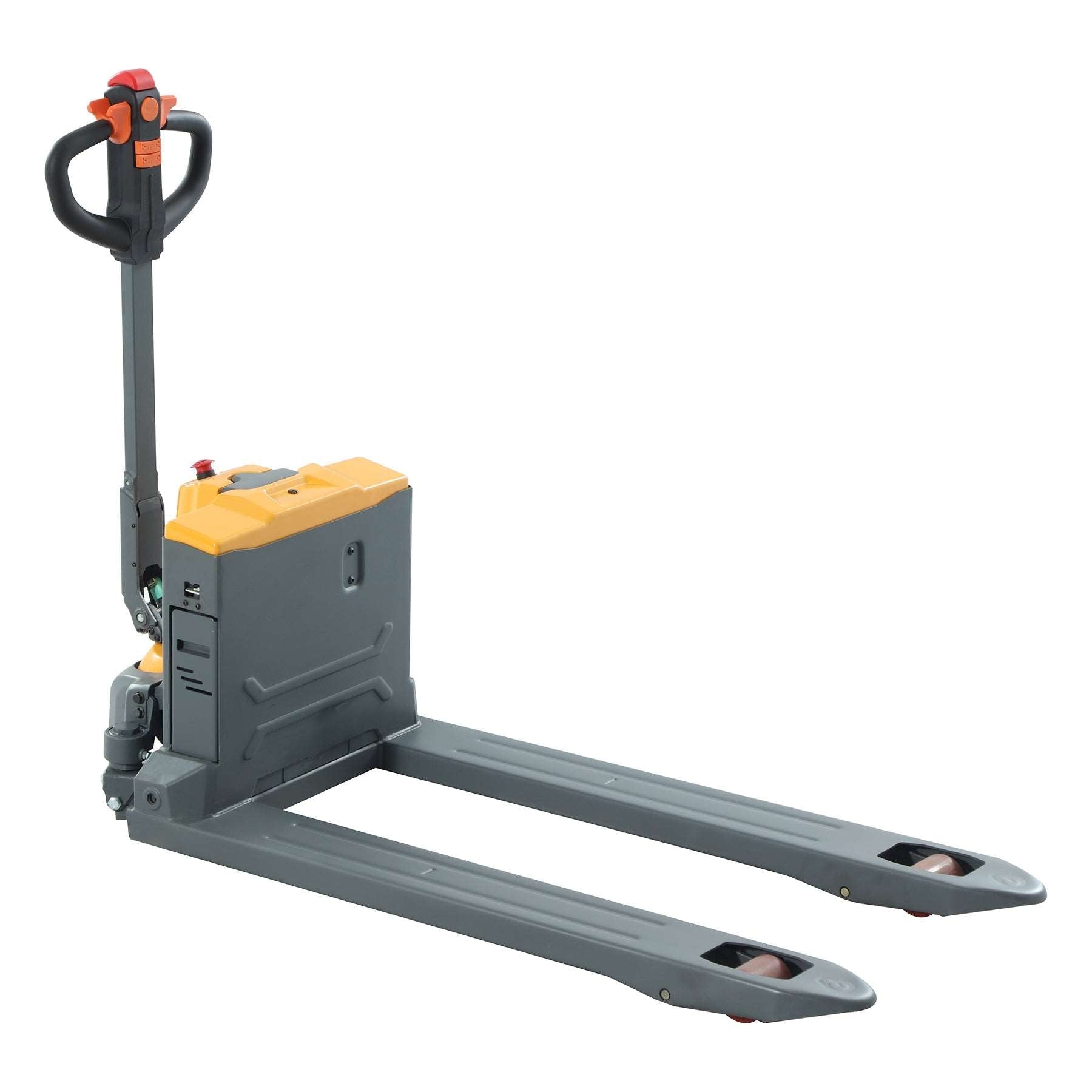

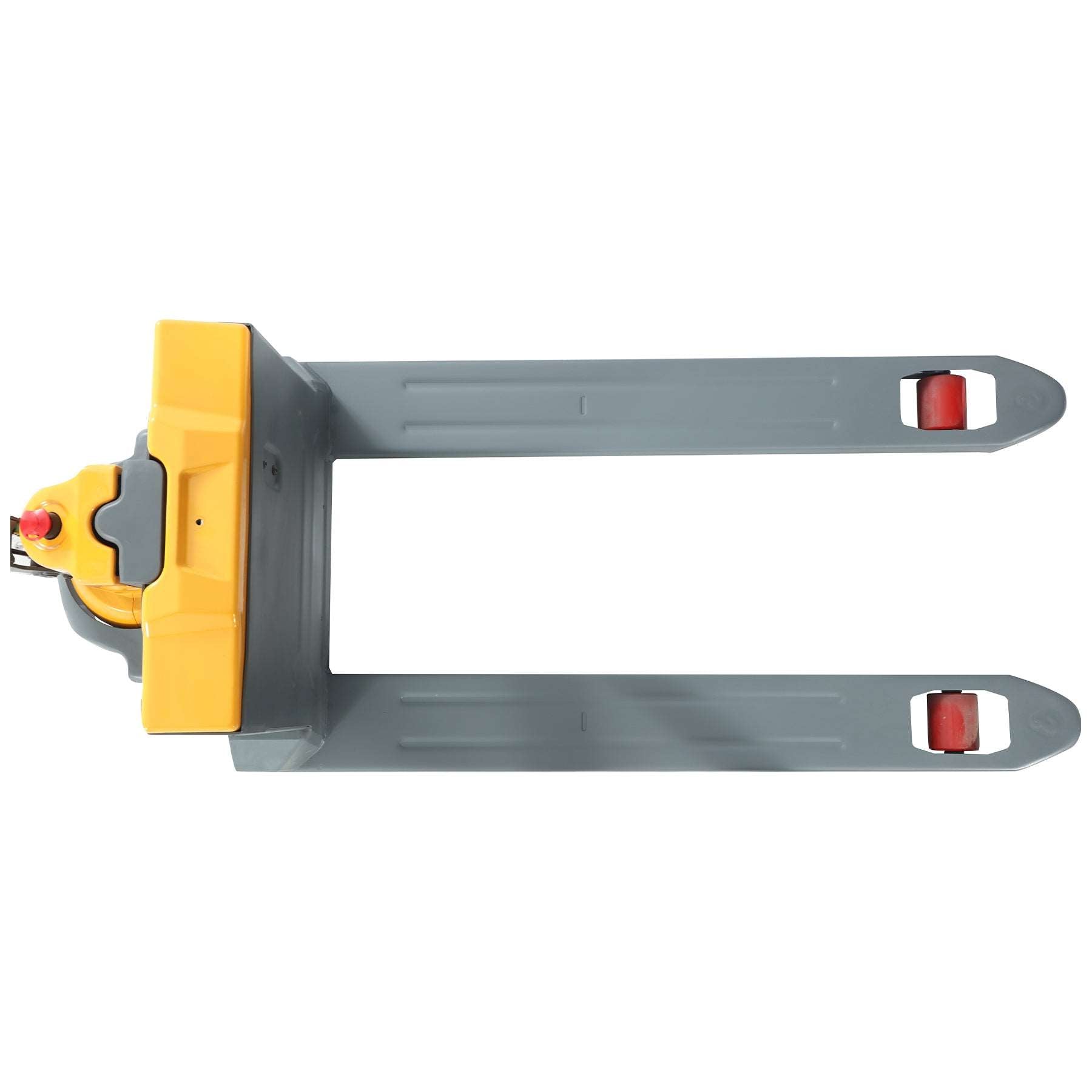

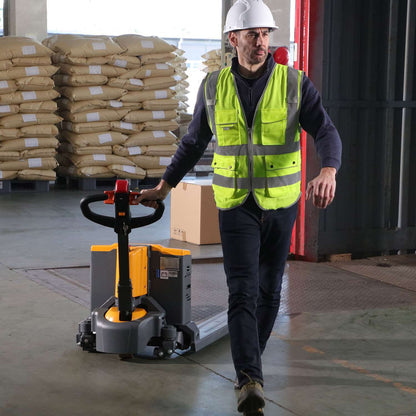

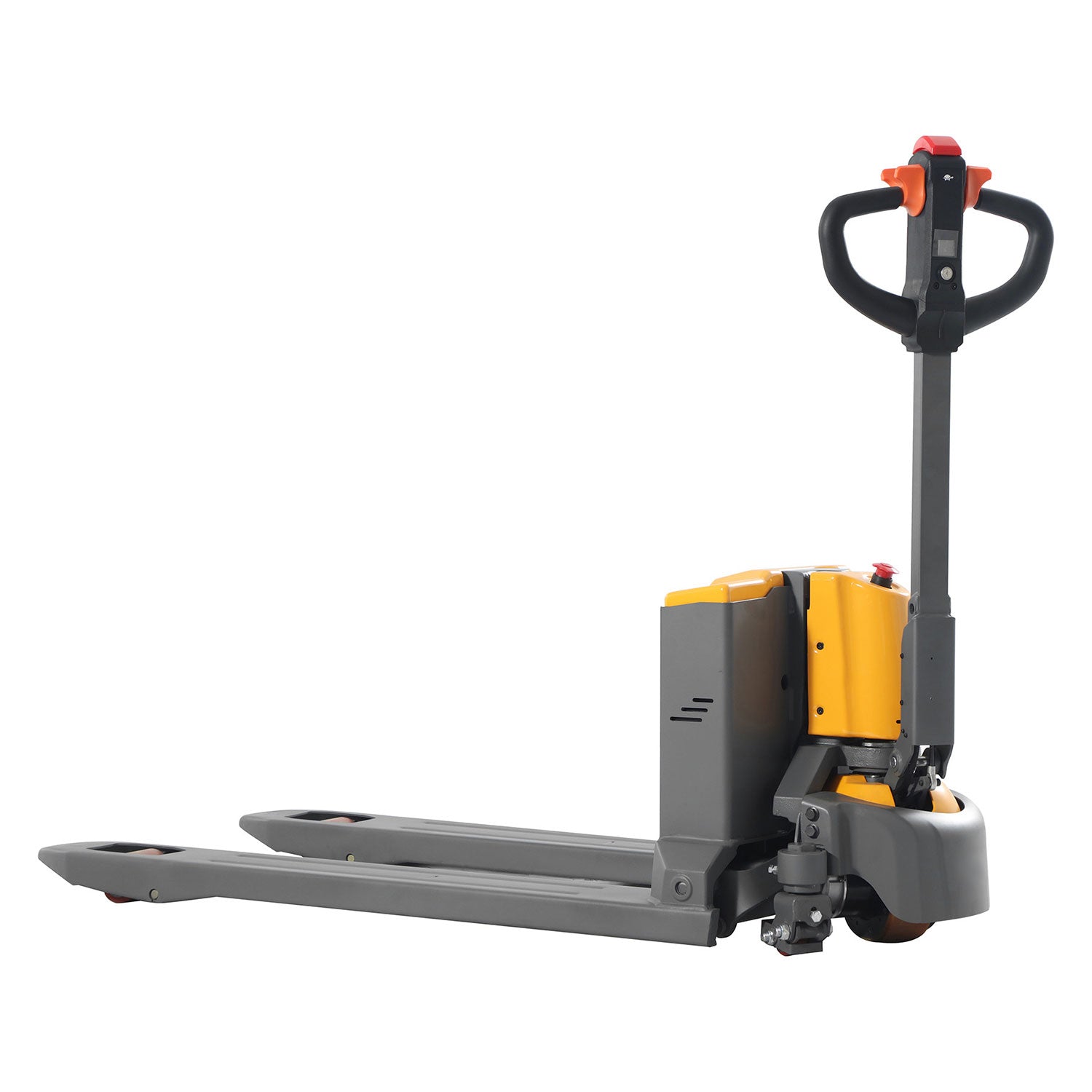

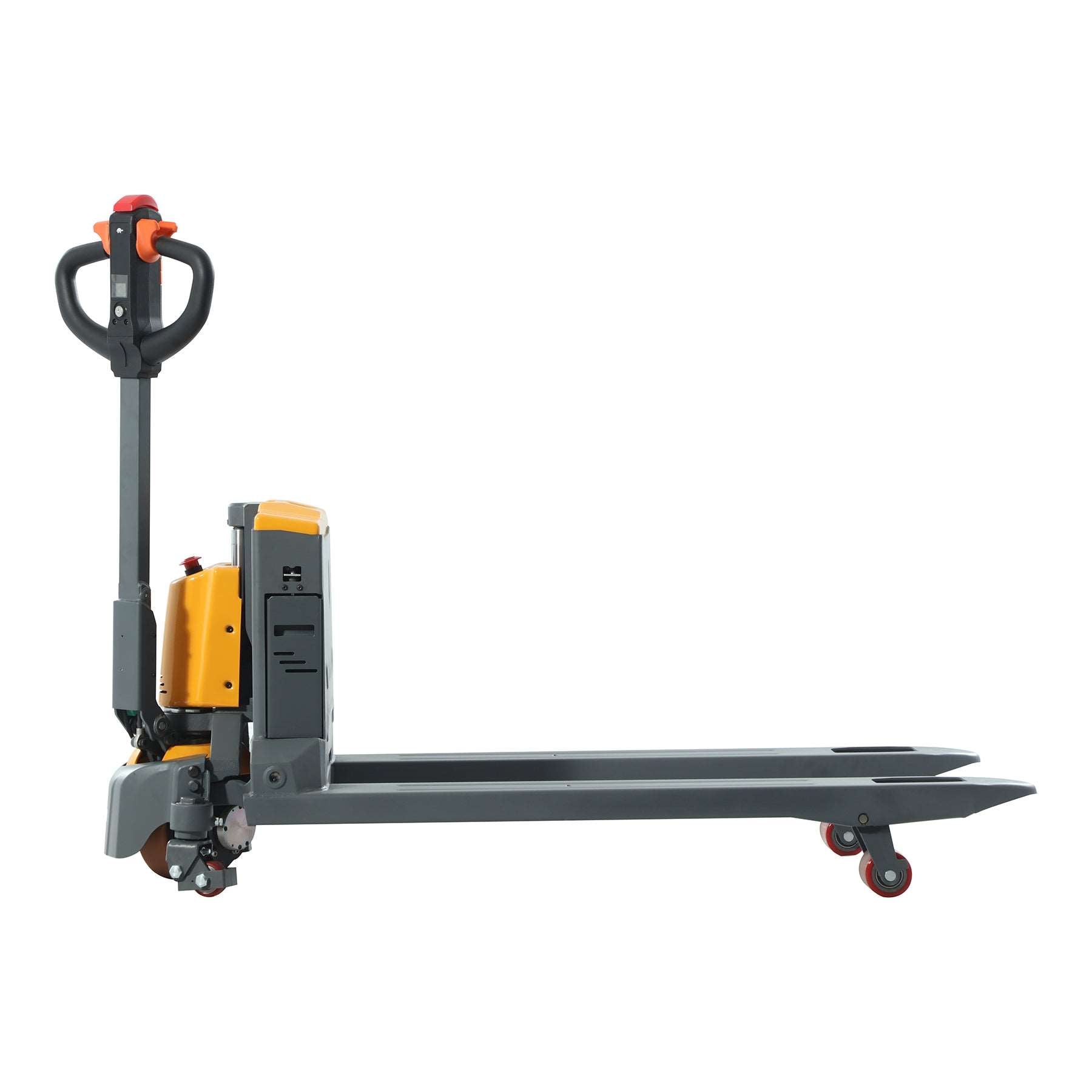

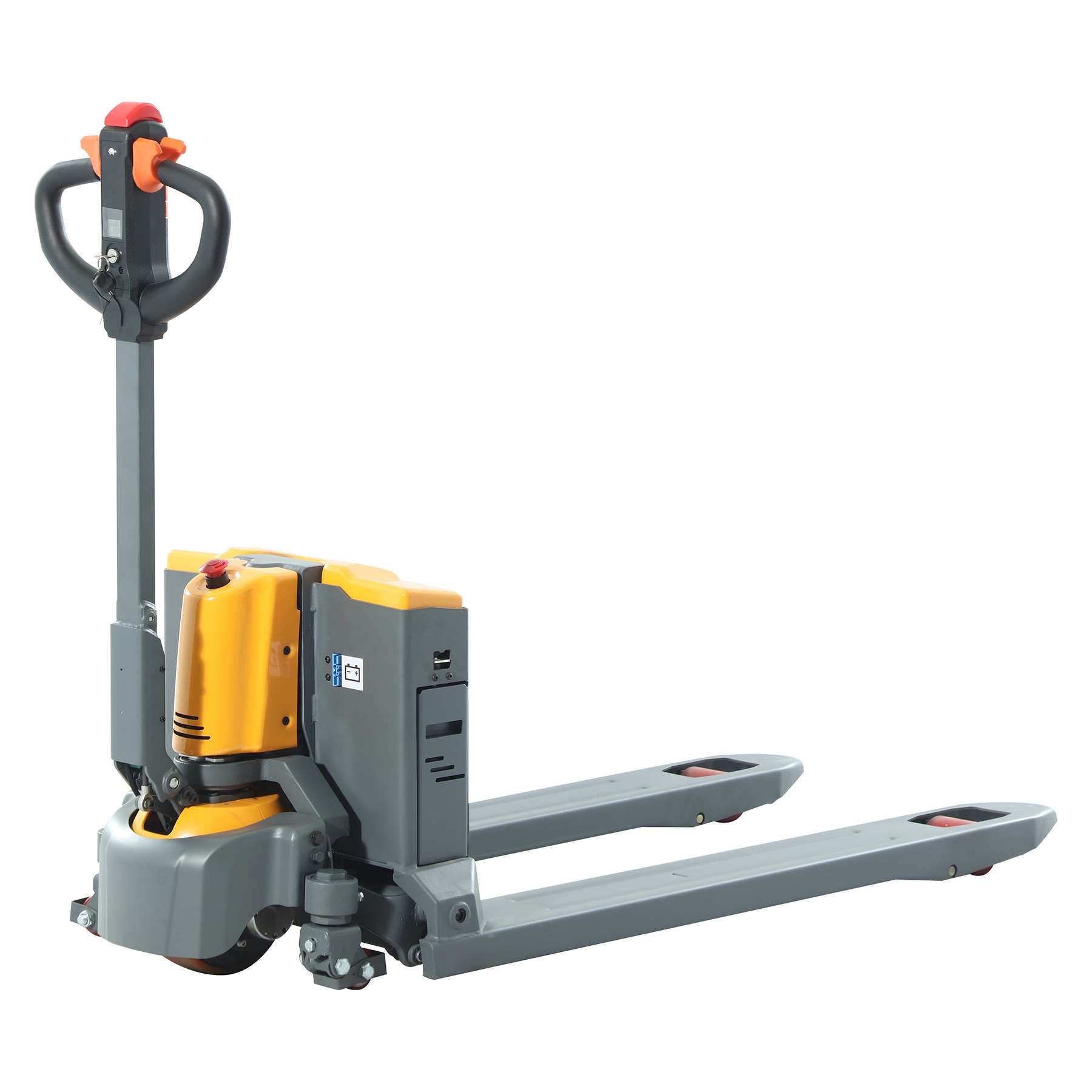

Apollolift Li-ion Powered Pallet Truck| 3300 lb| 48"x 27" Forks - A-103701

Apollolift Li-ion Powered Pallet Truck| 3300 lb| 48"x 27" Forks - A-103701

• Side-mounted battery design allows for a 10-second swap.;

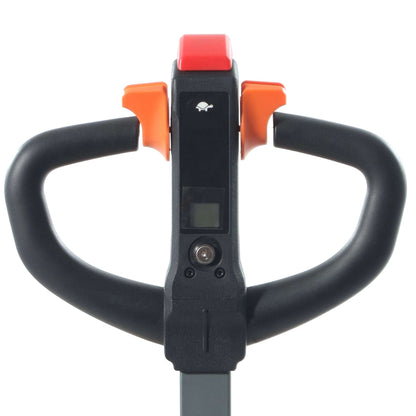

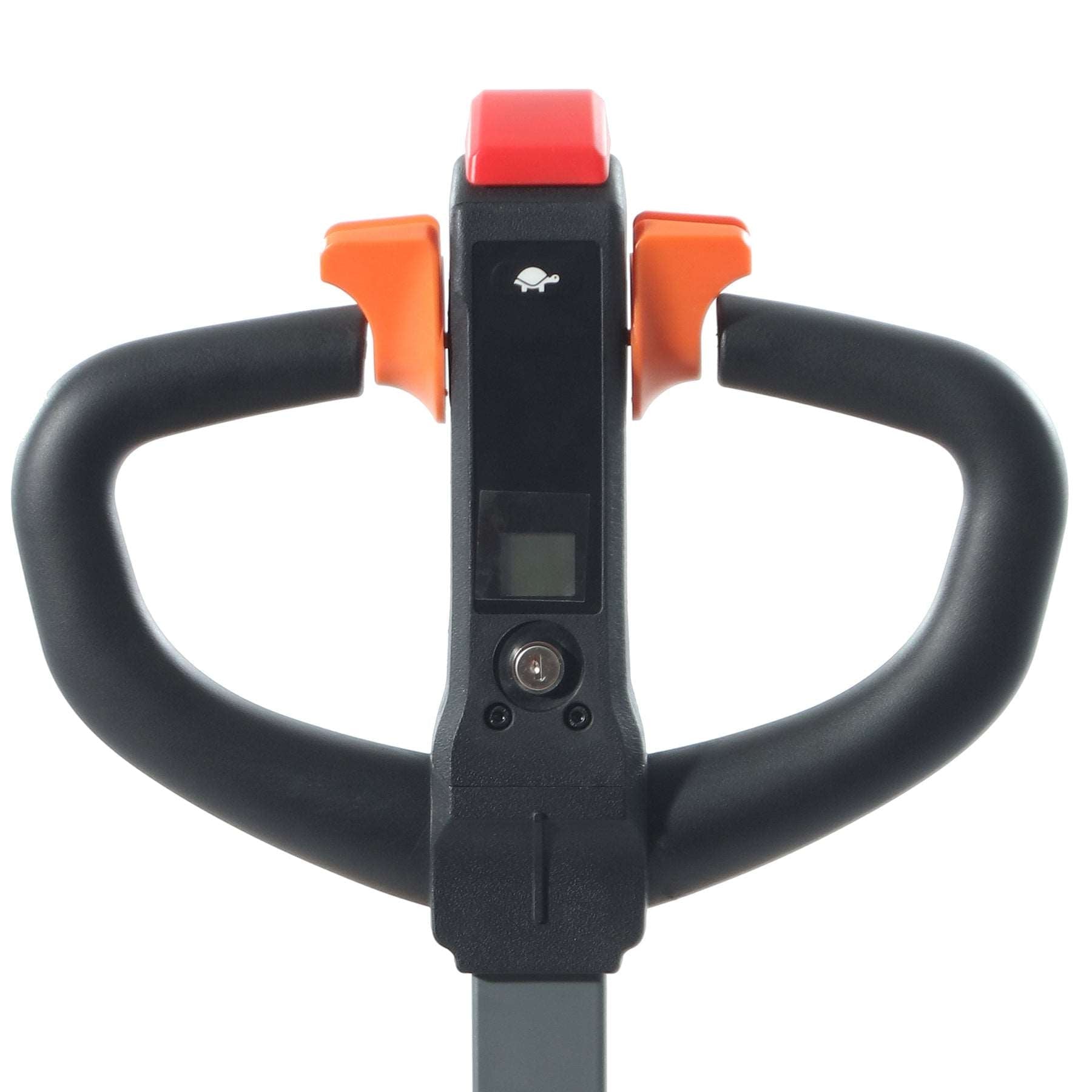

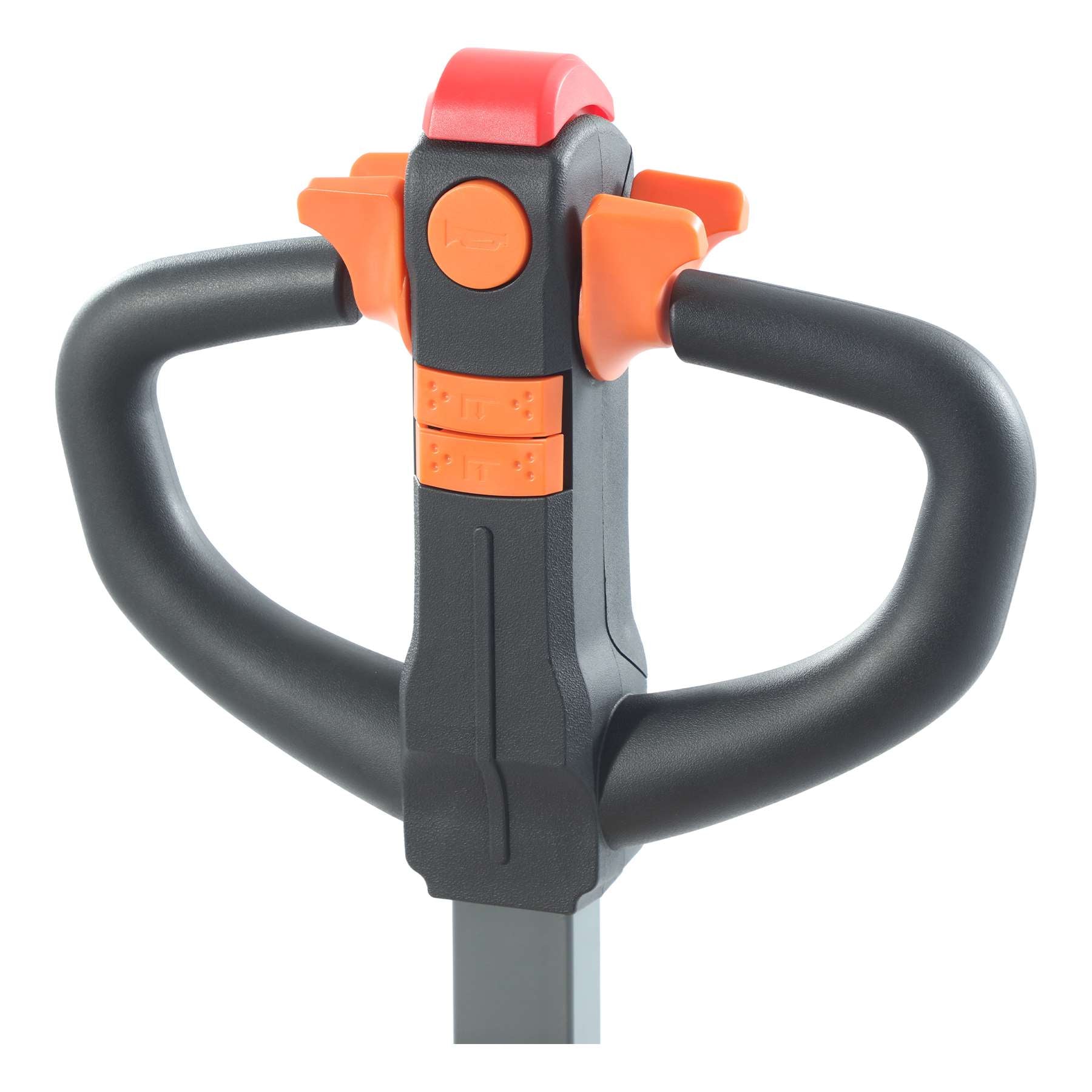

• Push-button lift control and forward/reverse thumb wheels on handle.
• 3 hours service per charge. 3 hours charge time. Battery life may depend on the usage and environment.
• 24 hours continous use with 1 extra battery.
• Gradeability(laden/unladen): 5%/20% .
• Equipped with a display screen to clearly show battery status.

Specifications

• Not explosion proof.
• This truck is designed to be used on flat ground.Avoid uneven grounds with potholes,and large ramp.
• Temperature range of working environment 50˚F~104˚F.

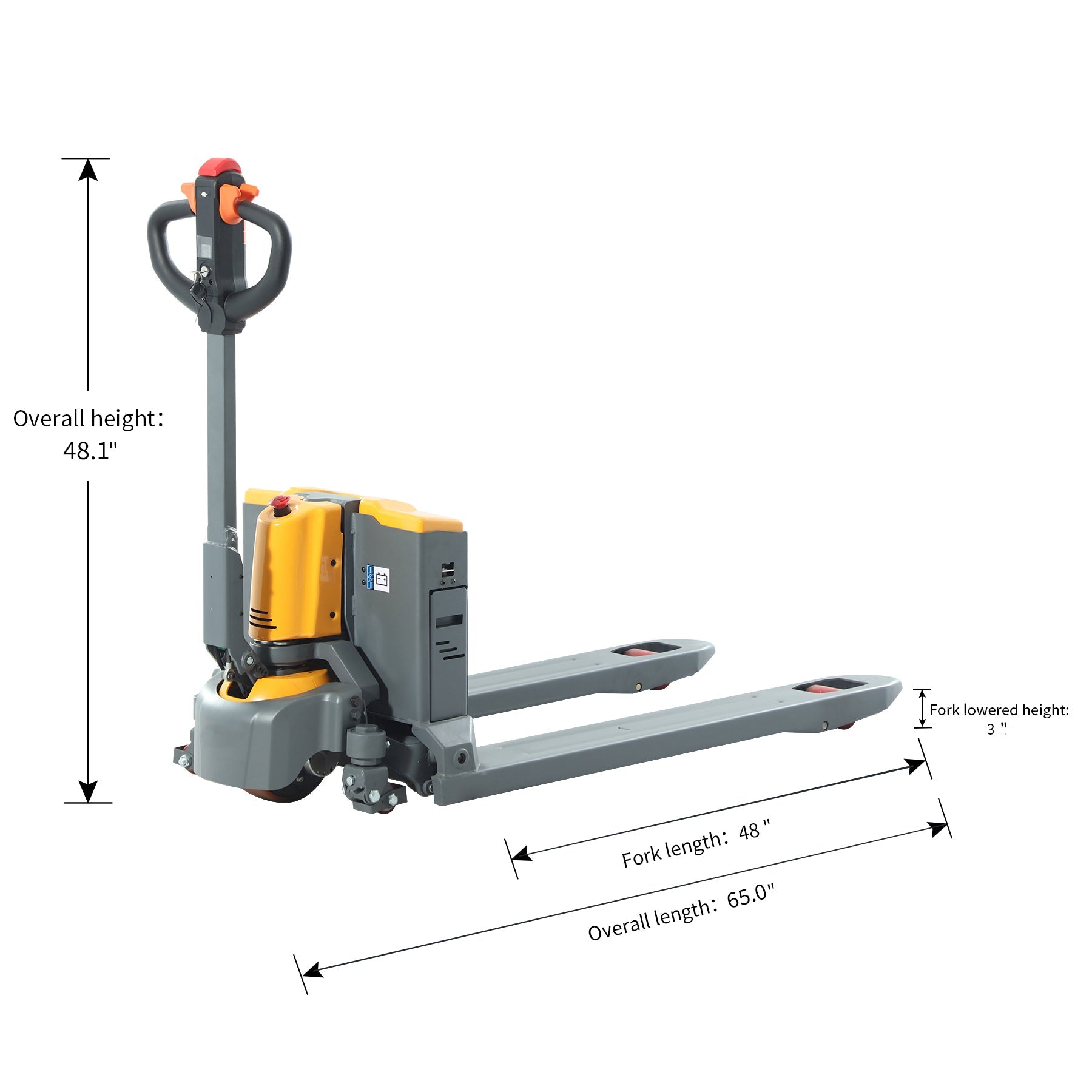

Dimensions

• Overall: 63.6" x 27"x44.7" (L xWx H)
• Lowered height: 3.1"
• Raised height: 4.3"

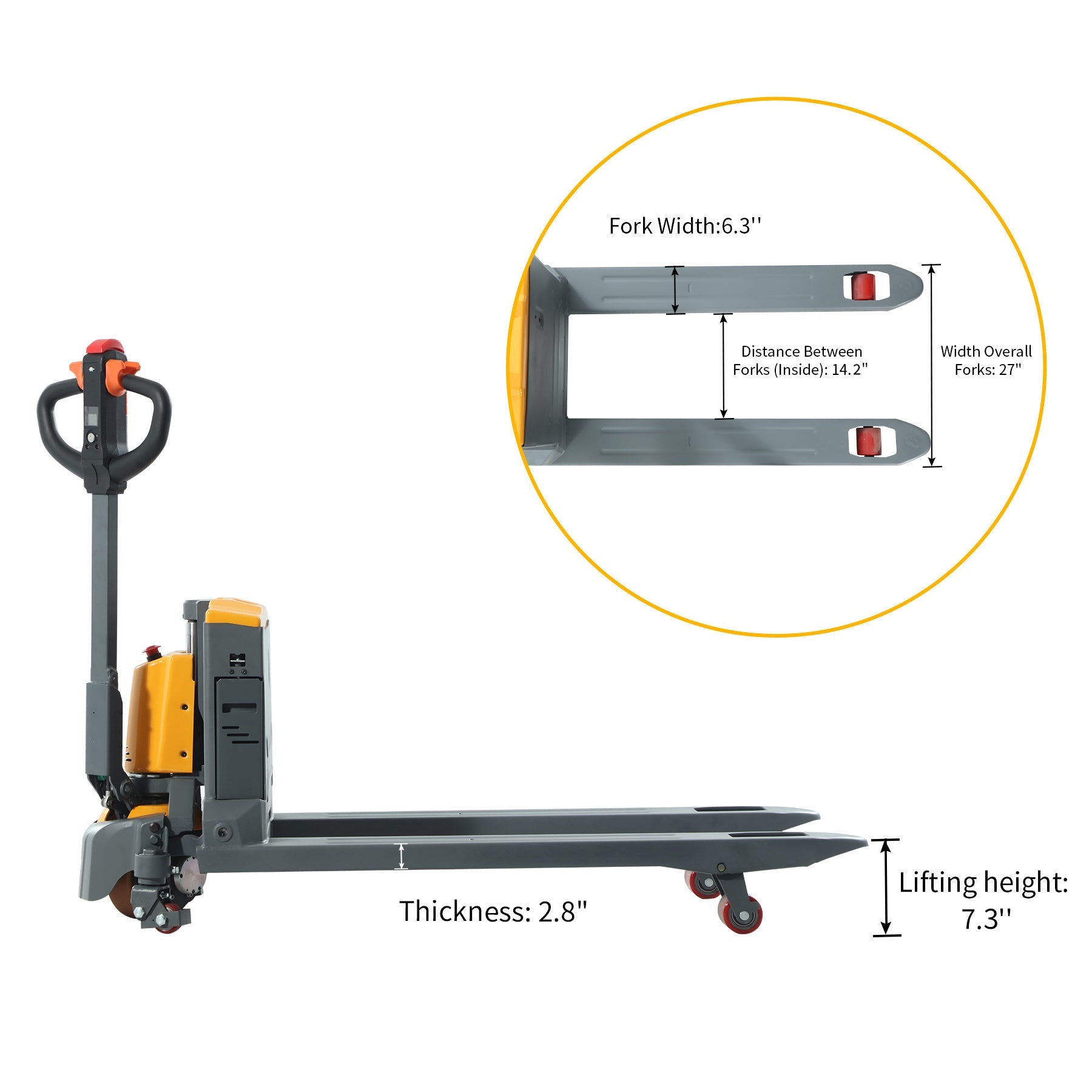

FORKS

• Actual: 48*27"
• Width: 6.3"
• Thickness: 2.8"
• Distance Between Forks (Inside): 14.17"

SPEED

• Empty: 2.8mph
• Loaded: 2.67 mph

BATTERY

• Capacity: 24V/20Ah


CHARGING

• Charger plugs into standard 110V-120V outlets.
• Fully charge battery before use to avoid damaging cells.
• Charge the truck once a month even it's without use.
• LED light on charger shows battery charge status.
• Green: Fully Charged
• Red Flash: Charging

What our Experts Think

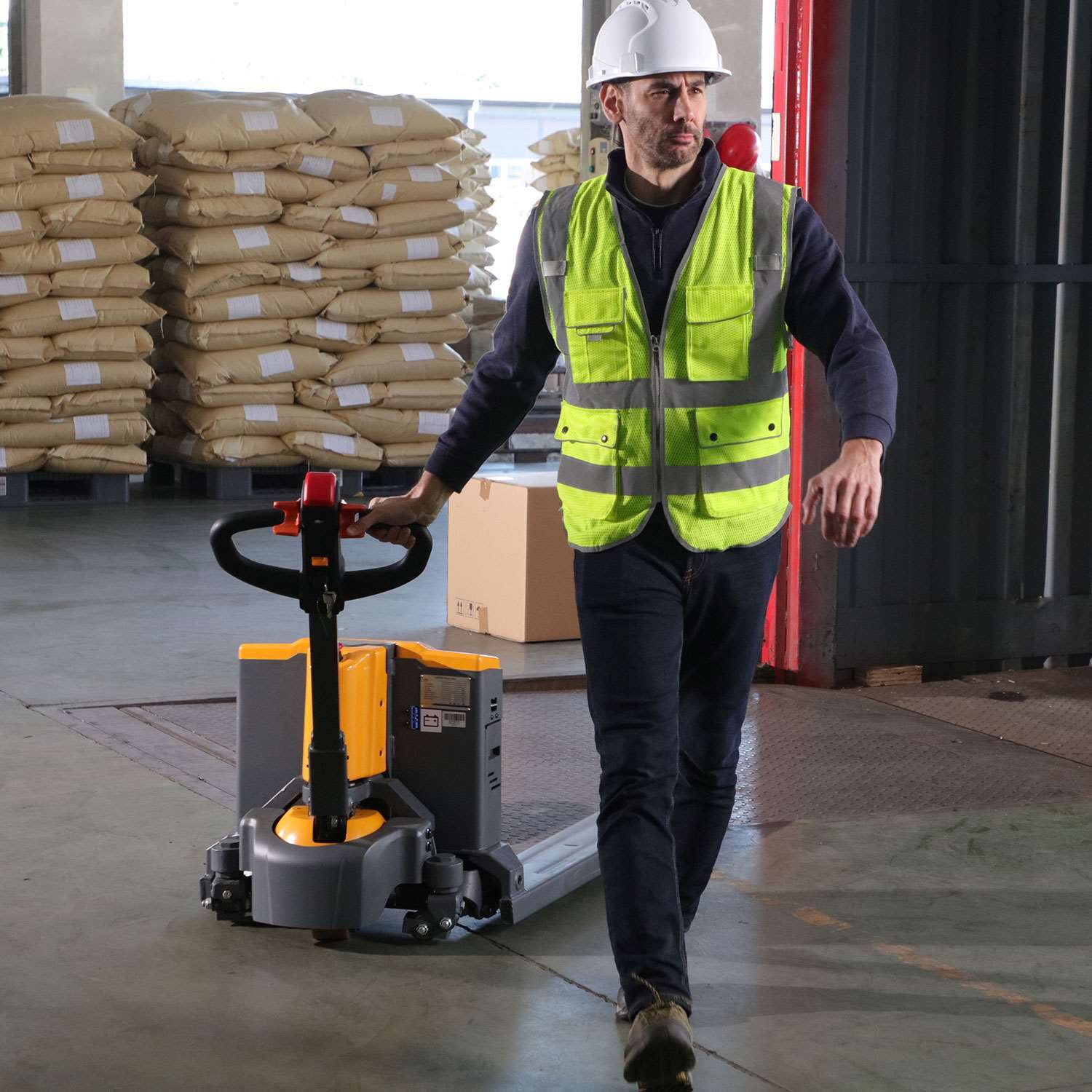

• Warehouse-ready electric pallet mover: Built with a 3,300 lb load capacity, the A-103701 is ideal for fast pallet transport in warehouses, retail distribution, and loading dock operations.
• Lithium battery efficiency: Equipped with a 24V / 20Ah Li-ion battery, offering faster charging, lower maintenance, and more consistent performance than traditional lead-acid pallet jacks.
• Excellent maneuverability in tight spaces: A compact design with a 57.1" turning radius allows smooth operation inside trailers, containers, and narrow warehouse aisles.
• Quick-swap battery system: Features a 10-second battery replacement design, helping reduce downtime during multi-shift warehouse operations.
• Operator-focused safety features: Includes turtle mode, emergency reverse switch, overload protection, and electromagnetic braking for controlled handling in confined environments.
• Efficient daily runtime: Supports approximately 3 hours of operation with 3-hour recharge cycles, making it practical for medium-duty logistics workflows.
• Best suited for: Warehouses and distribution centers needing a compact, low-maintenance lithium-powered pallet truck for repetitive indoor transport tasks.


Q&A

Q1: What is the Apollolift A-103701 used for?
A: It is a lithium-ion powered electric pallet truck designed for transporting palletized loads in warehouses, retail stockrooms, trailers, and logistics facilities.

Q2: What is its load capacity?
A: It supports up to 3,300 lbs, making it ideal for medium-duty industrial material handling.

Q3: What are the fork dimensions?
A: It features 48" x 27" forks, compatible with standard warehouse pallets.

Q4: What type of battery does it use?
A: It uses a 24V/20Ah lithium-ion battery with fast charging and quick-swap capability for reduced downtime.

Q5: How long does it run and charge?
A: Typical runtime is about 3 hours, with approximately 3 hours charging time.

Q6: Is it suitable for tight warehouse spaces?
A: Yes. Its compact design and 57.1" turning radius make it ideal for narrow aisles, truck trailers, and container loading.

Q7: What safety features does it include?
A: It includes turtle speed mode, overload lifting protection, emergency reverse switch, drive wheel protection, and emergency power cutoff.

Q8: What are the main benefits?
A: Fast battery swap, low maintenance lithium power, compact maneuverability, and efficient electric drive for warehouse productivity.


Maintenance Tips

• Charge after every shift: Avoid deep discharge below ~20% to maximize lithium battery lifespan.
• Use only the approved 24V lithium charger: Protects the battery management system (BMS) and prevents overcharging.
• Monthly charging during storage: Recharge at least once every 30 days when idle to maintain battery health.
• Keep battery cool & dry: Excess heat shortens lithium battery cycle life and reduces runtime.
• Inspect forks daily: Check for bending, cracks, or uneven wear under 3300 lb loads.
• Clean wheels & drive system: Remove pallet wrap, dust, and debris to maintain traction and smooth steering.
• Check emergency controls regularly: Test belly switch, brake system, and emergency cutoff before operation.
• Inspect electrical connectors: Ensure plugs and terminals are tight, dry, and corrosion-free.
• Operate on hard, flat floors only: This model is designed specifically for smooth warehouse surfaces.
• Avoid overloading: Exceeding rated capacity increases motor heat, battery drain, and hydraulic stress.
