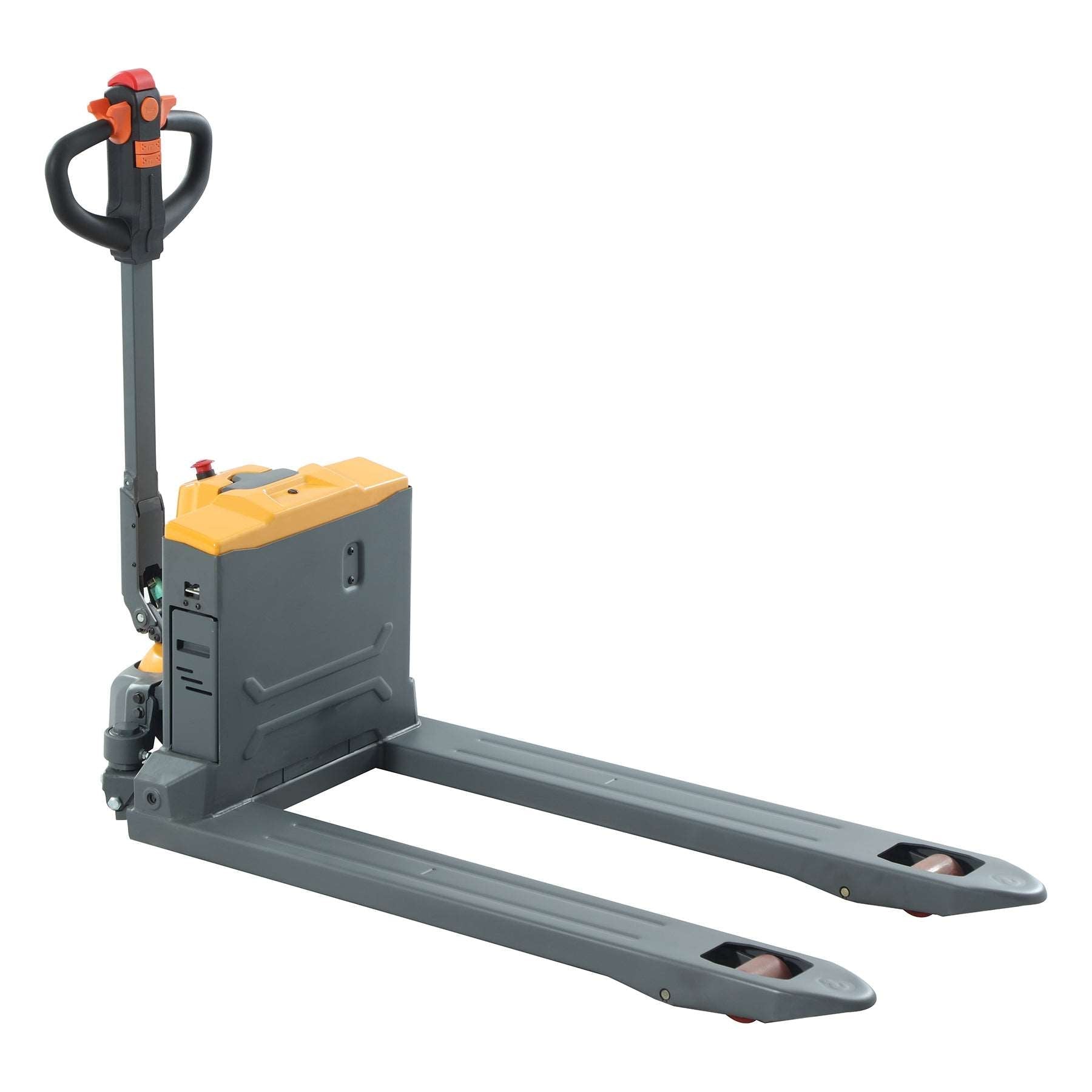

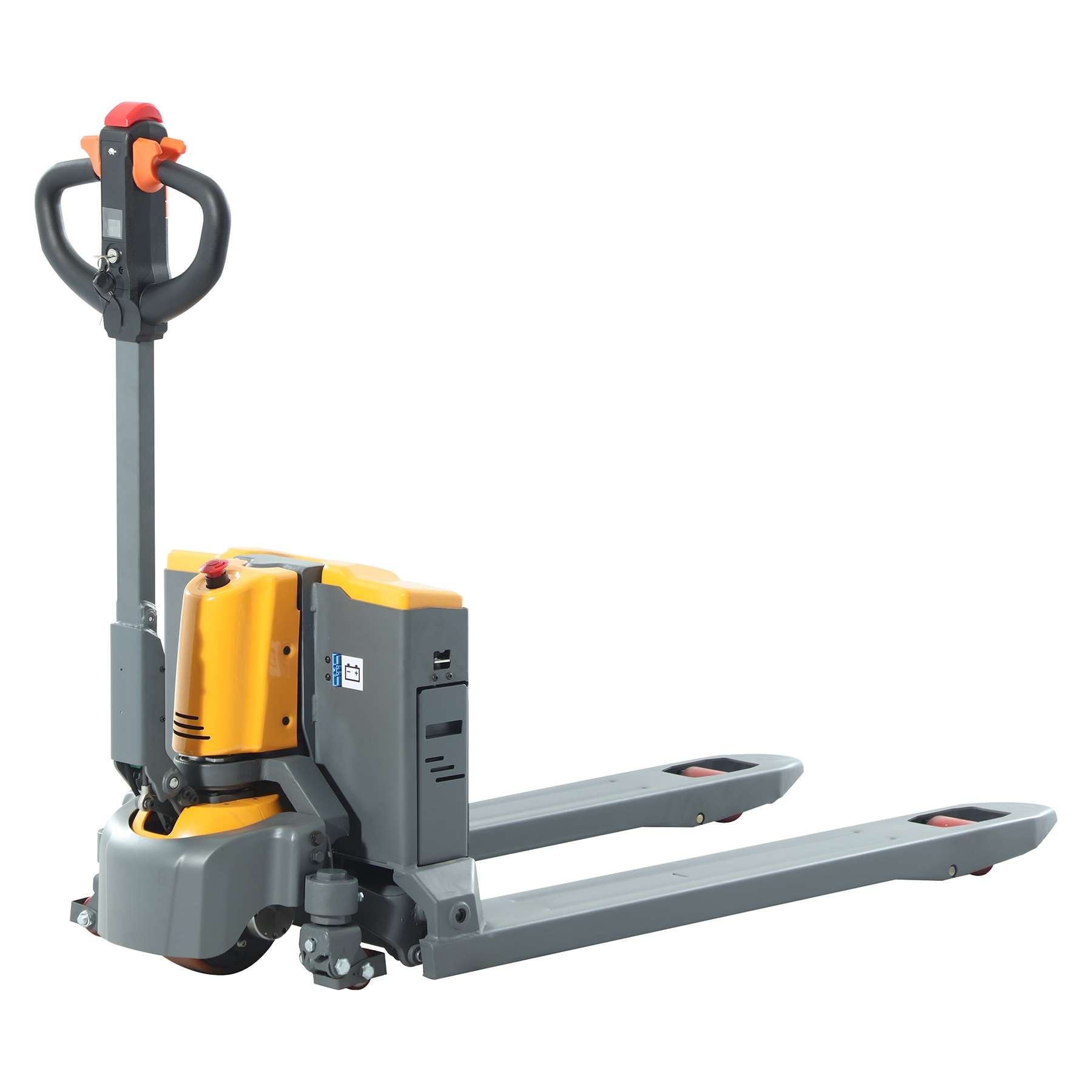

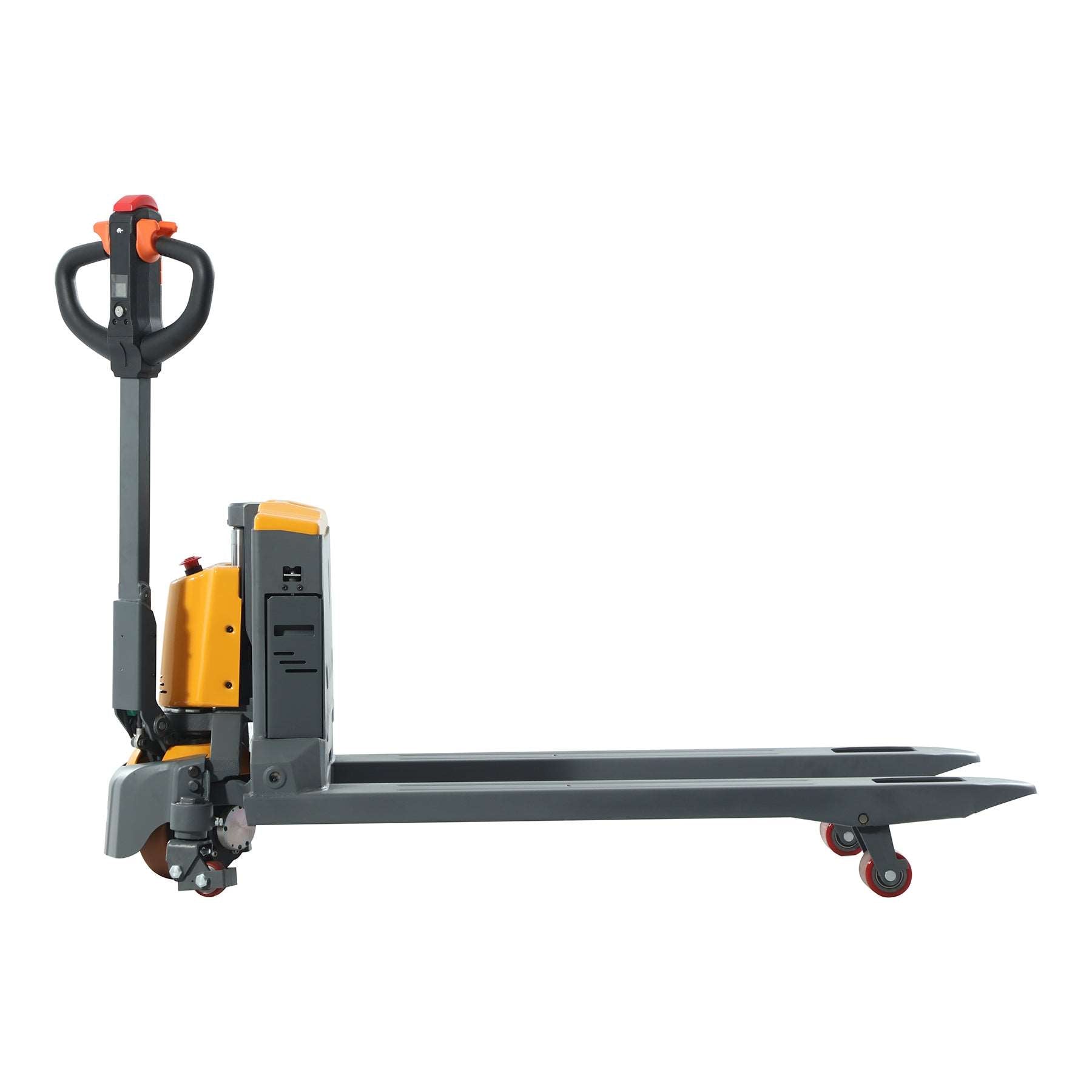

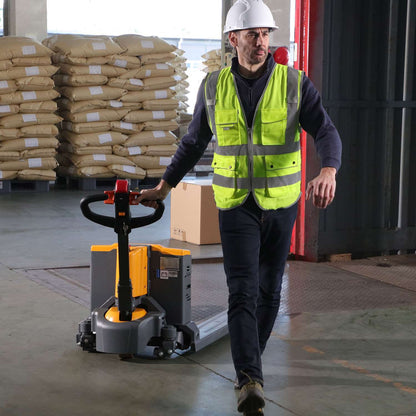

Apollolift Li-ion Powered Pallet Truck| 3300 lb| 48"x 27" Forks - A-103701

Apollolift Li-ion Powered Pallet Truck| 3300 lb| 48"x 27" Forks  - A-103701

• Side-mounted battery design allows for a 10-second swap.;

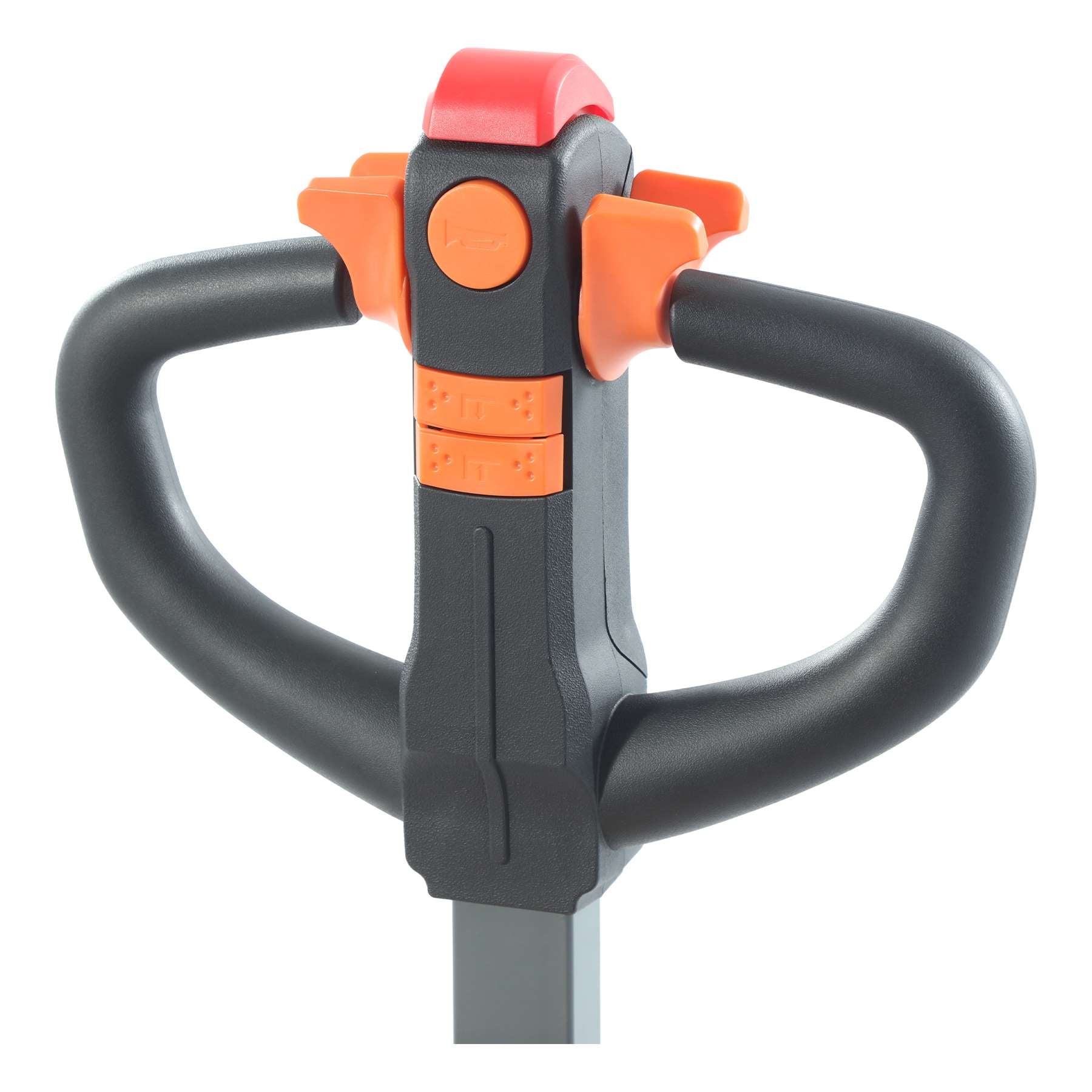

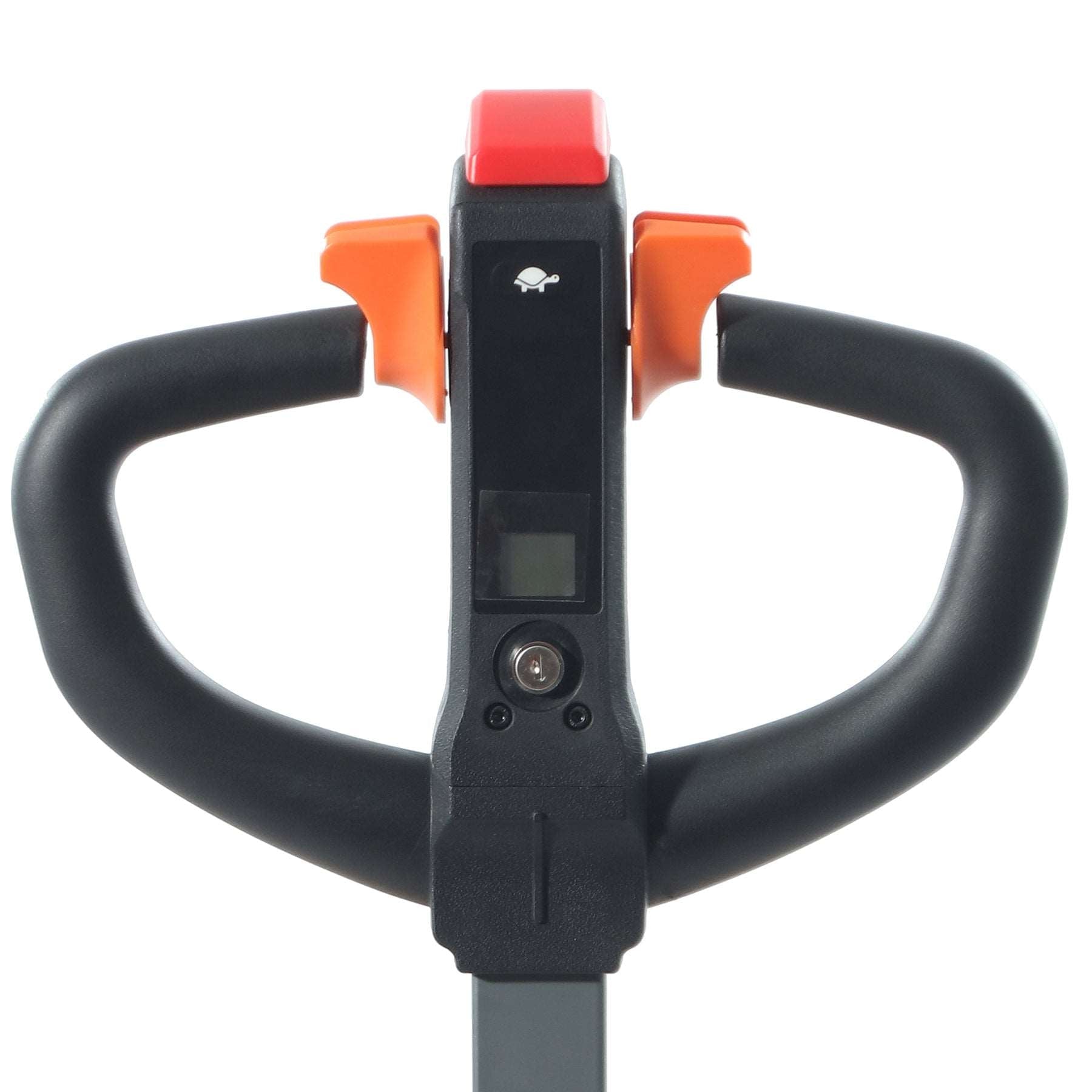

• Push-button lift control and forward/reverse thumb wheels on handle.
• 3 hours service per charge. 3 hours charge time. Battery life may depend on the usage and environment.
• 24 hours continous use with 1 extra battery.
• Gradeability(laden/unladen): 5%/20% .

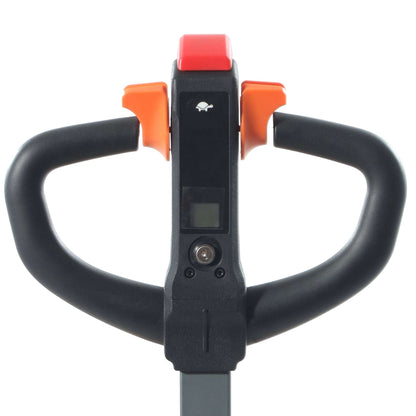

• Equipped with a display screen to clearly show battery status.

Specifications

• Not explosion proof.
• This truck is designed to be used on flat ground.Avoid uneven grounds with potholes,and large ramp.
• Temperature range of working environment 50˚F~104˚F.

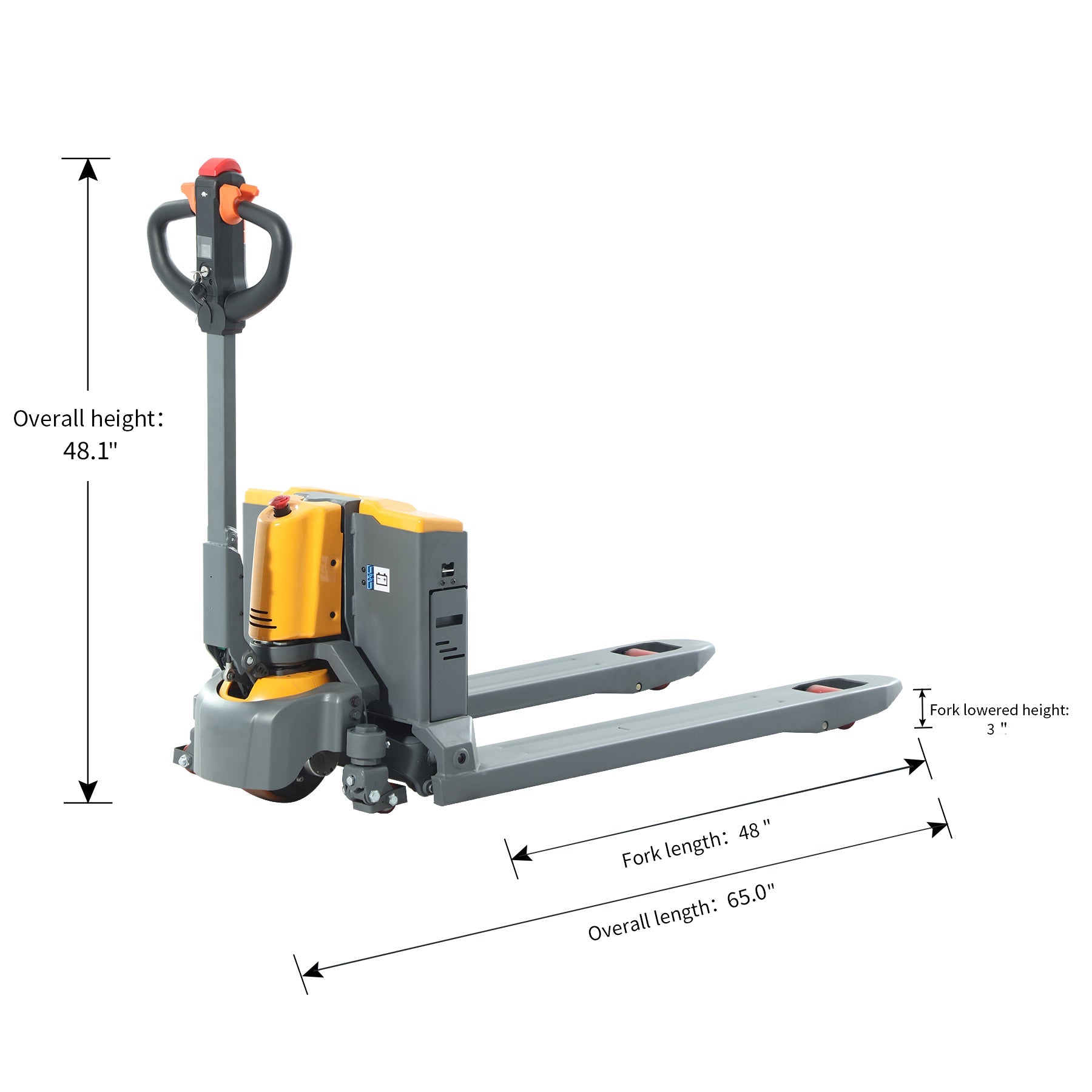

Dimensions

• Overall: 63.6" x 27"x44.7" (L xWx H)
• Lowered height: 3.1"
• Raised height: 4.3"

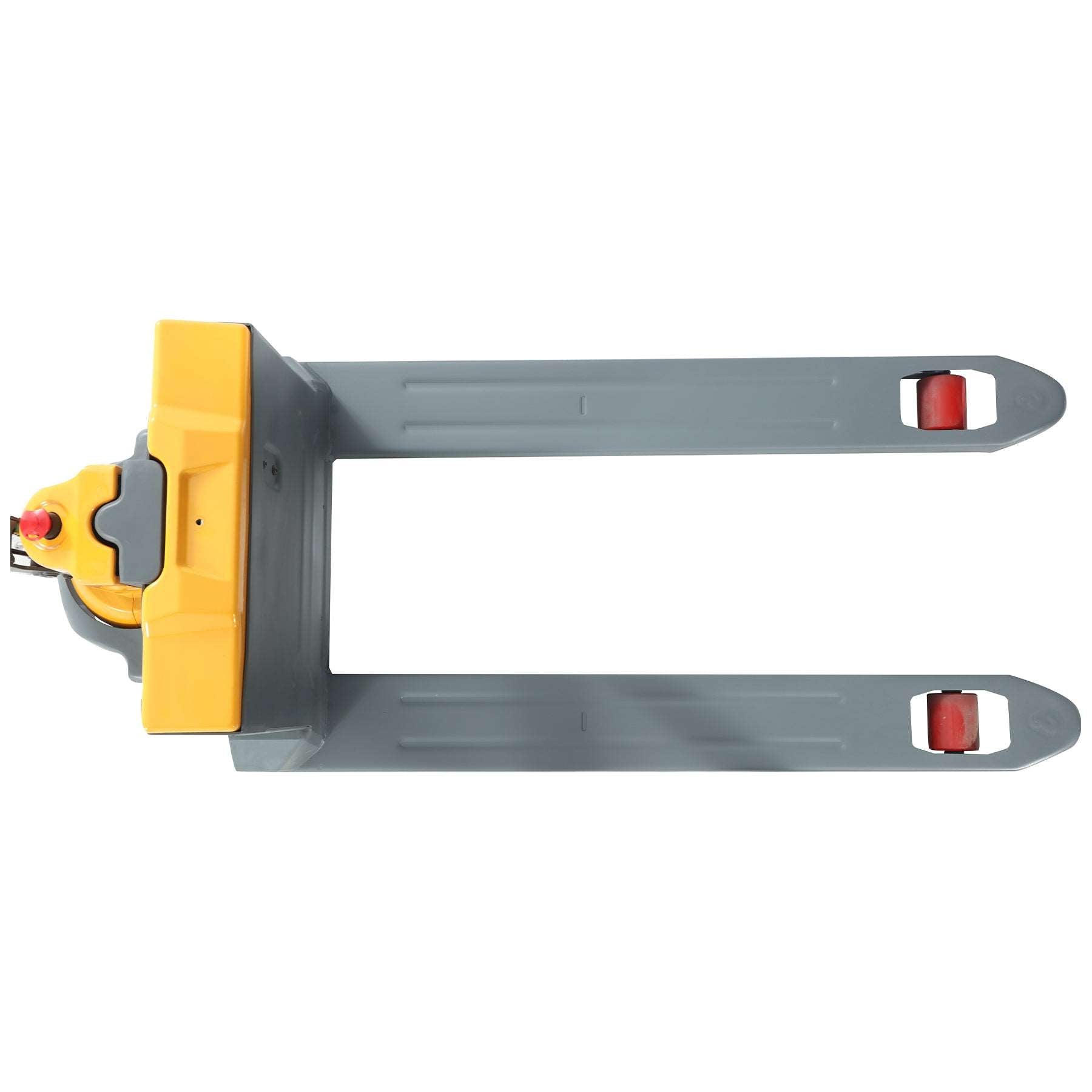

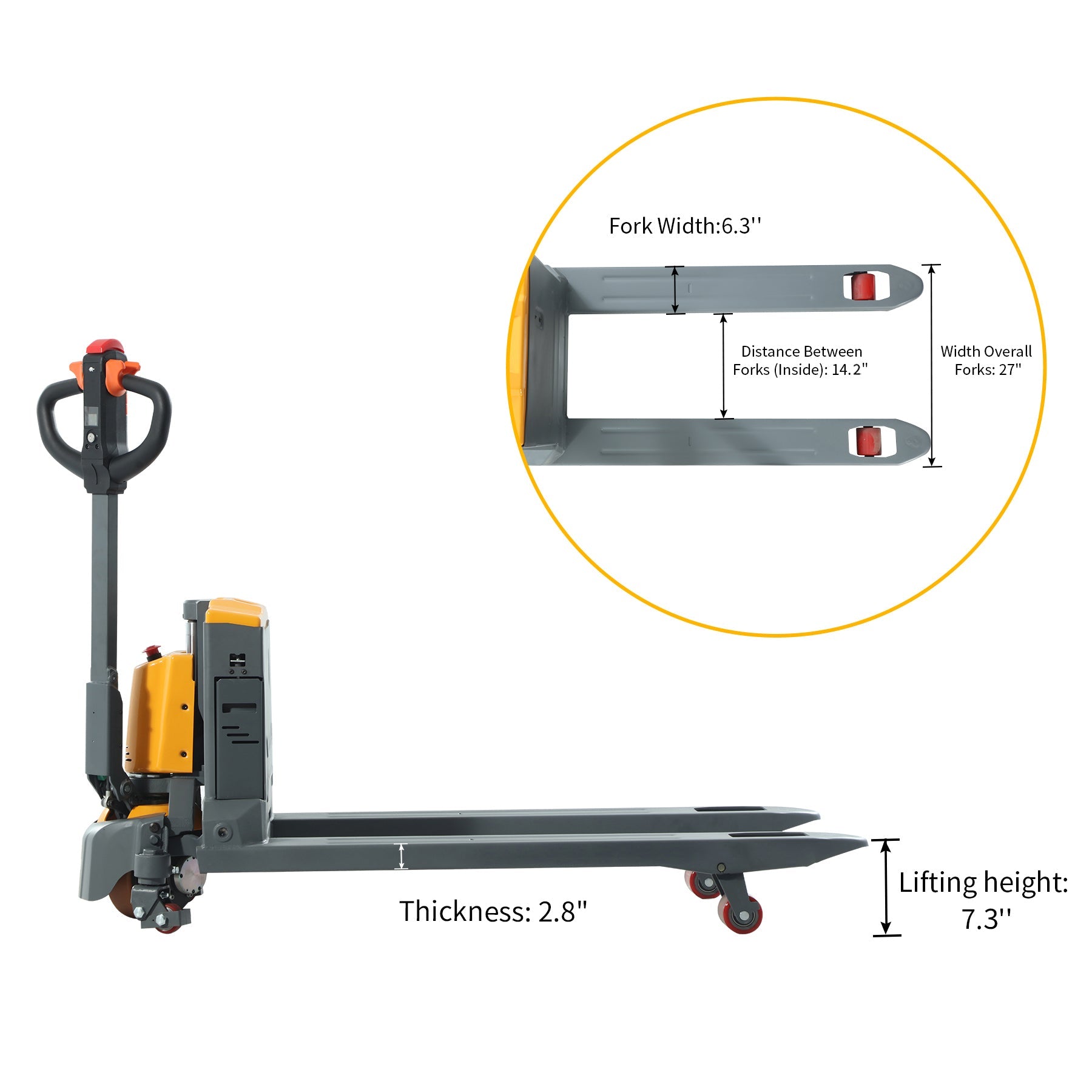

FORKS

• Actual: 48*27"
• Width: 6.3"
• Thickness: 2.8"
• Distance Between Forks (Inside): 14.17"

SPEED

• Empty: 2.8mph
• Loaded: 2.67 mph

BATTERY

• Capacity: 24V/20Ah


CHARGING

• Charger plugs into standard 110V-120V outlets.
• Fully charge battery before use to avoid damaging cells.
• Charge the truck once a month even it's without use.
• LED light on charger shows battery charge status.
• Green: Fully Charged
• Red Flash: Charging

What our Experts Think

• Reliable lifting capacity: Handles up to 3,300 lbs, making it ideal for standard pallet transport in warehouses, stockrooms, and logistics facilities.
• Lithium-ion efficiency advantage: Equipped with a 24V / 20Ah lithium battery, offering faster charging, lower maintenance, and quick battery swaps for reduced downtime.
• Compact maneuverability: Tight turning radius of approximately 55.7 inches allows smooth operation in narrow aisles, trailers, and container spaces.
• Fast workflow performance: Travel speeds up to 2.8 mph help improve productivity during repetitive warehouse transport tasks.
• Advanced safety systems: Includes turtle mode, emergency reverse switch, overload protection, and electric braking for safer operation in busy environments.
• Quick-swap battery system: Experts highlight the 10-second battery replacement capability, helping maintain continuous operation during long shifts.
• Warehouse-focused design: Built specifically for hard, flat indoor floors, making it best suited for structured warehouse and dock environments.
• Best use case: Recommended for medium-duty warehouse logistics, retail distribution, loading docks, and high-frequency pallet movement without forklift-scale costs.


Q&A

Q: What is the Apollolift Li-ion Powered Pallet Truck A-103701 used for?

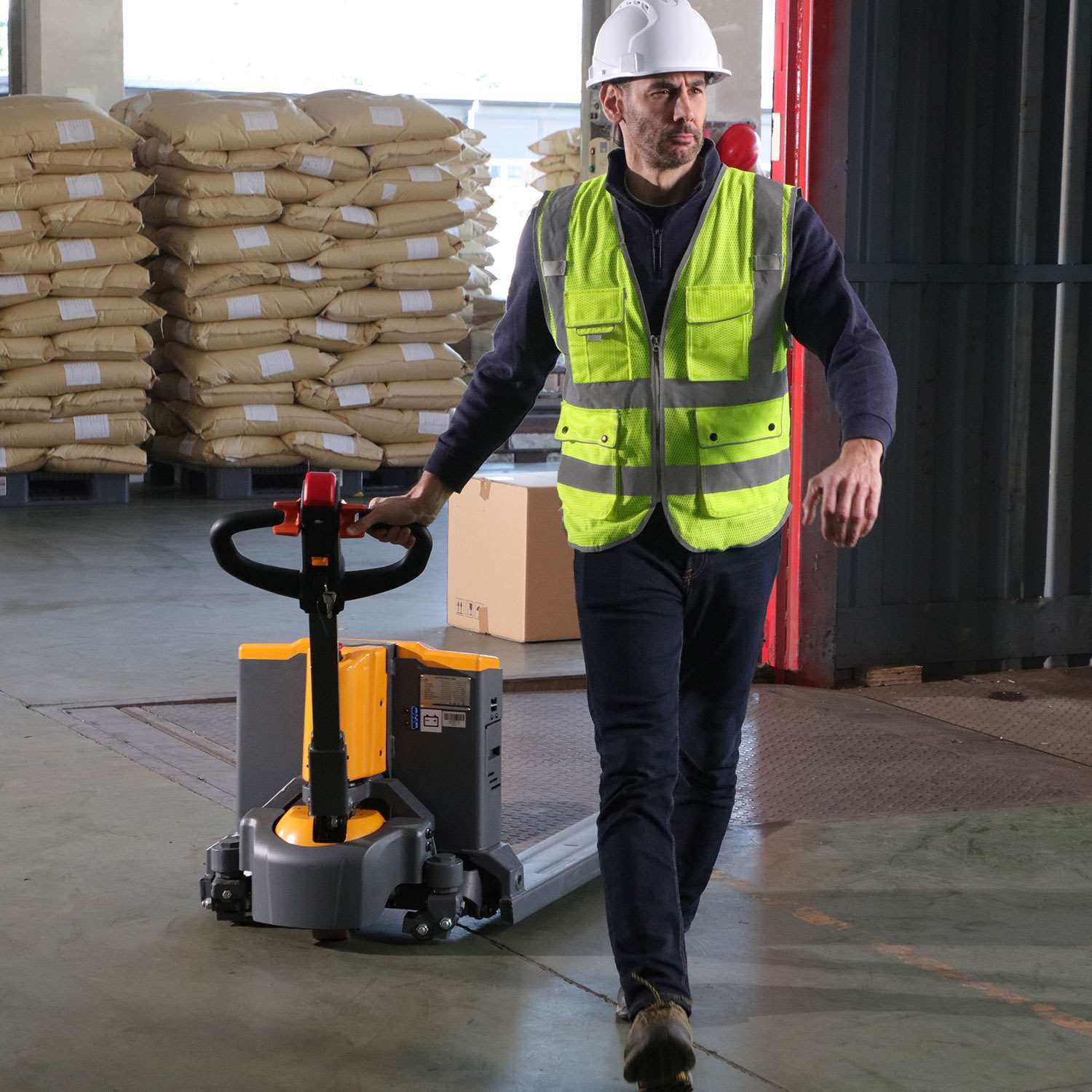

A: It is designed for efficient electric transport of palletized loads in warehouses, logistics centers, retail stockrooms, and truck loading environments.

Q: What is its load capacity?
A: It has a rated capacity of 3,300 lbs (1,500 kg) for medium-duty warehouse material handling.

Q: What type of battery does it use?
A: It uses a 24V / 20Ah lithium-ion battery, offering fast charging, quick battery swaps, and low-maintenance operation.

Q: What are the fork dimensions?
A: It comes with 48" × 27" forks, compatible with standard warehouse pallets.

Q: Is it suitable for tight warehouse spaces?
A: Yes, it features a compact design with a turning radius around 55.7"–57.1", making it ideal for narrow aisles, trailers, and containers.

Q: What safety features does it include?
A: It includes emergency reverse protection, overload lifting protection, turtle mode, emergency power cutoff, and drive wheel guards for safer operation.

Q: How long does the battery last?
A: The lithium battery provides about 3 hours of continuous operation with approximately 3 hours charging time.


Maintenance Tips

• Li-ion battery care: Charge after use, avoid deep discharge, and recharge at least once monthly during storage to maintain battery health.
• Daily inspection: Check forks, drive wheel, load rollers, and chassis for cracks, wear, or loose hardware before operation.
• Electrical system: Inspect wiring, connectors, control handle, and emergency stop for damage or corrosion.
• Hydraulic performance: Ensure smooth lifting/lowering and inspect for hydraulic leaks or pressure loss.
• Drive wheel maintenance: Keep wheels clean and free from debris to improve traction and reduce motor strain.
• Battery charging safety: Use only the approved 24V charger and avoid charging in wet or high-heat environments.
• Load safety: Never exceed the 3300 lb rated capacity and always center loads evenly on forks.
• Cleaning routine: Wipe down after use and keep moisture away from electrical components and charging ports.
• Storage: Store indoors on a dry, level surface and power off when not in use.
• Preventive servicing: Regularly inspect brakes, motor response, and control functions for early wear detection.
