Micro Matic USA Pro-Line Back Bar Coolers - MMPP4302-PKG

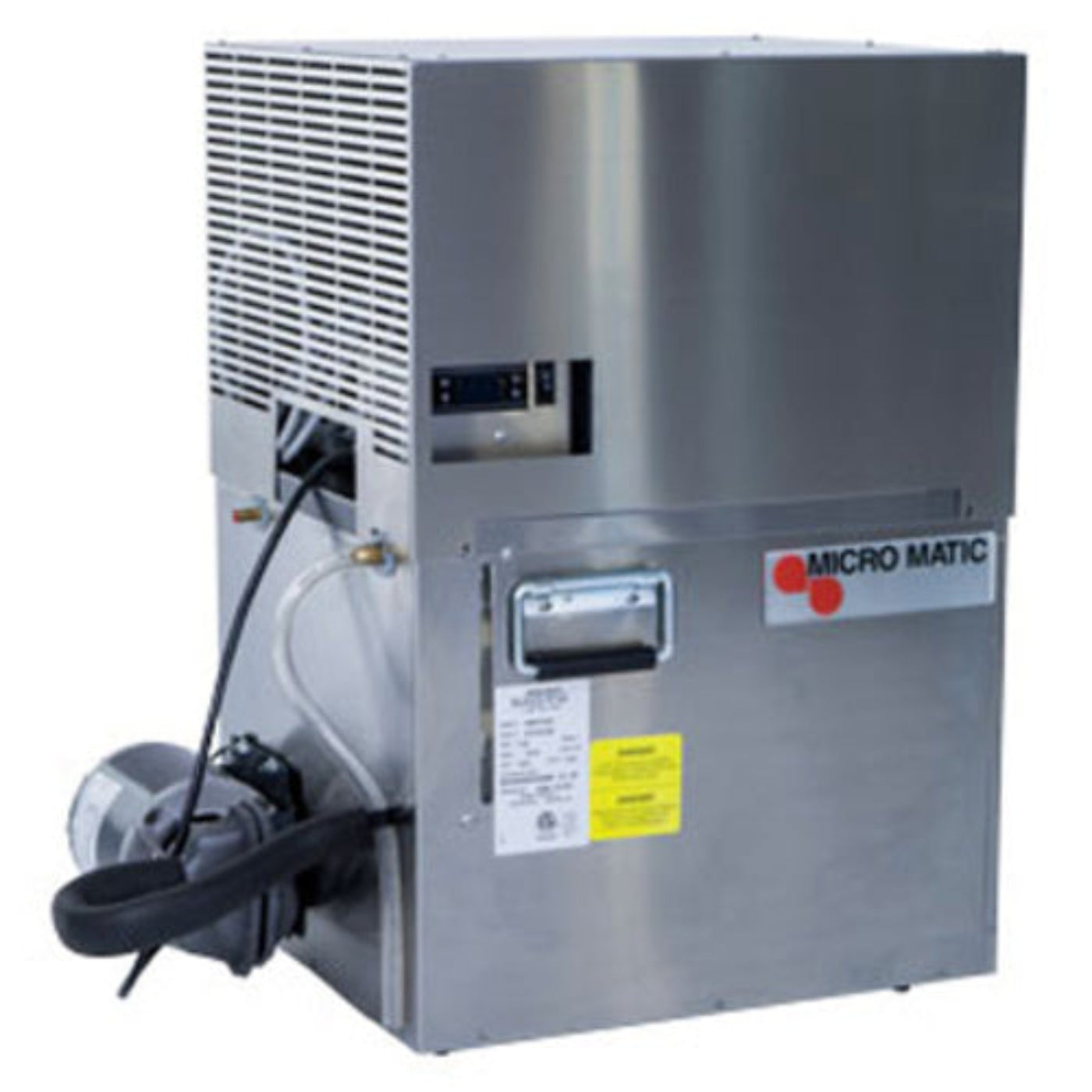

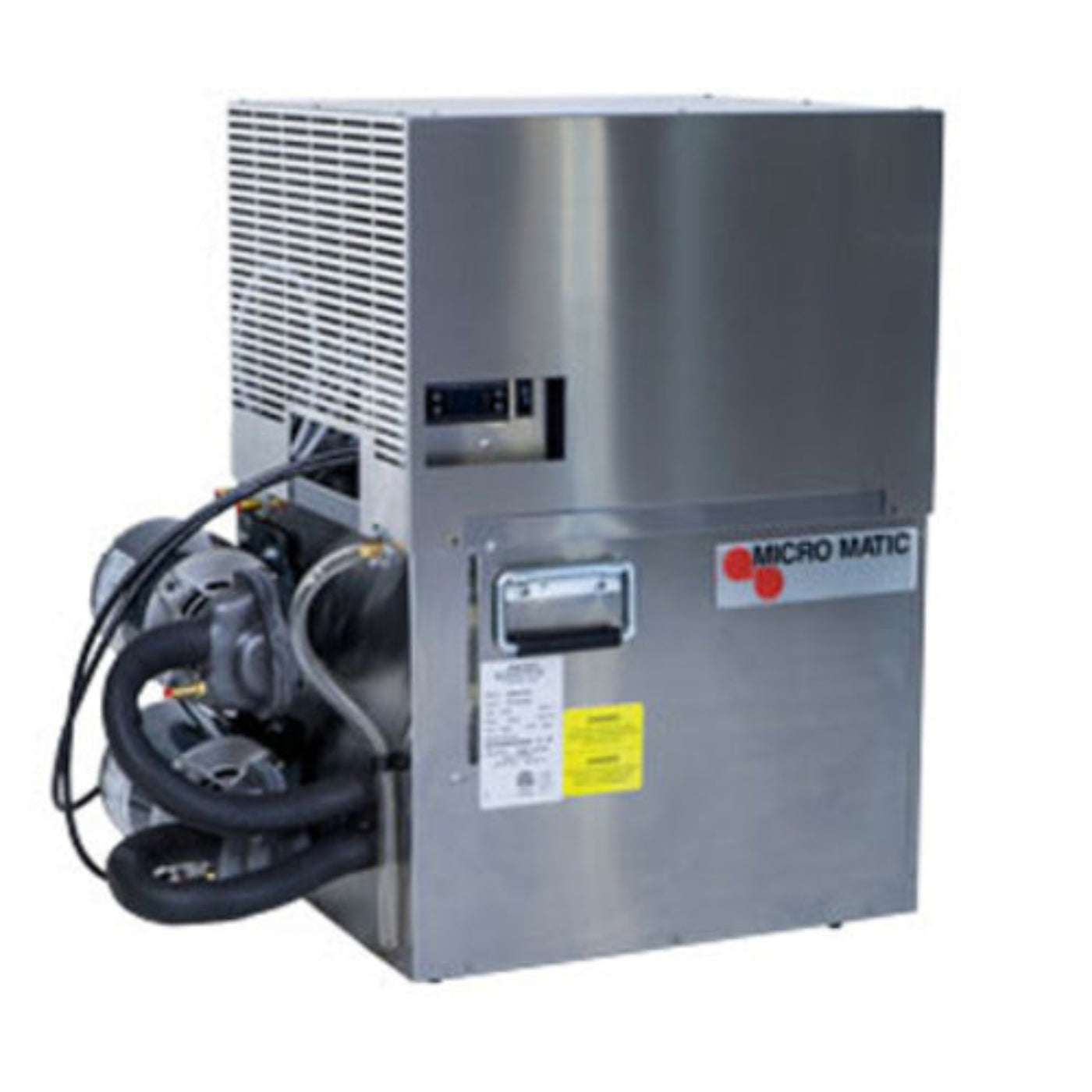

Pro-Line™ Draft Beer System Power Pack, air-cooled, 30"W x 18"D x 29-3/4"H, (2) 80 gph vane circulating pumps with 1/3 HP motor each, 11.5 gallon capacity glycol bath with exterior sight glass, digital thermostat, insulated cabinet with cover, R134a, 3,600 BTU, 1/2 HP compressor, 115v/60/1-ph, 21.0 amps, NEMA L5-30P, cETLus
Specifications
| Manufacturer |
Micro Matic USA |
| Brand Name |
Pro-Line |
| Height |
29.75 in |
| Width |
30.0 in |
| Depth |
18.0 in |
| Horsepower (HP) |
1/2 |
| Pumps |
2 |
| Pump Capacity |
(2) 80 GPH vane circulating pumps with 1/3 HP motor each |
| Cooling Type |
Air cooled |
| Glycol Bath Capacity |
11.5 gallons |
| Bath Features |
Exterior sight glass |
| Thermostat |
Digital |
| Cabinet |
Insulated with cover |
| Refrigerant |
R134a |
| BTU Rating |
3,600 BTU |
| Compressor |
1/2 HP |
| Electrical Requirements |
115V/60/1-Phase, 21.0 amps, NEMA L5-30P |
Drawings
Qf_micromatic_mmpp430x-pkg-3_cat.zip
Documents
Cutsheet
Video
What Our Experts Think
-
Dual Pump System: Equipped with two 80 GPH vane circulating pumps, each powered by a 1/3 HP motor, ensuring consistent glycol flow for optimal cooling efficiency.
-
High Cooling Capacity: Features a 3,600 BTU, 1/2 HP air-cooled compressor, providing reliable performance for long-draw draft beer systems.
-
Ample Glycol Reservoir: Includes an 11.5-gallon glycol bath with an exterior sight glass, allowing for easy monitoring and maintenance.
-
Precise Temperature Control: Digital thermostat enables accurate temperature adjustments, maintaining optimal serving conditions for beverages.
-
Durable Construction: Housed in an insulated cabinet with a cover, designed to reduce noise and enhance thermal efficiency.
-
Compact Design: With dimensions of 30"W x 18"D x 29-3/4"H and a weight of 157 lbs, it fits well in various commercial settings without occupying excessive space.
-
Energy Efficient: Operates at 115V, 60Hz, single-phase with a 21.0-amp draw, ensuring energy efficiency and compliance with safety standards.
Q&A
Q1: What is the Micro Matic MMPP4302-PKG?
A1: The MMPP4302-PKG is an air-cooled glycol power pack for long-draw draft beer systems, featuring a 3,600 BTU, 1/2 HP compressor with dual 80 GPH circulating pumps.
Q4: What electrical requirements does it have?
A4: It operates on 115V, 60Hz, single-phase power, drawing 21.0 amps, and uses a NEMA L5-30P plug.
Q5: How far can it pump glycol?
A5: It supports trunk line runs up to about 250 feet, depending on the system setup.
Q6: Is this suitable for commercial use?
A6: Yes, it is designed for commercial use and meets safety standards with cETLus listing.
Maintenance Tips
-
Monthly Glycol Level Check: Ensure the glycol reservoir is filled to the designated level using a 2.5:1 water-to-glycol mix.
-
Biannual Condenser Cleaning: Every 60 days, clean condenser fins to maintain efficient cooling.
-
Annual Glycol Replacement: Replace the glycol solution every 18 months, or annually in high-humidity areas, to prevent ice buildup.
-
Maintain Proper Ventilation: Ensure at least 18 inches of clearance above and in front of the unit for optimal airflow.
-
Regular Insulation Inspection: Check trunk line insulation periodically to ensure effectiveness.
