Micro Matic USA Pro-Line Back Bar Coolers - MMPP4302-PKG-WC

Micro Matic USA  Pro-Line Back Bar Coolers - MMPP4302-PKG-WC

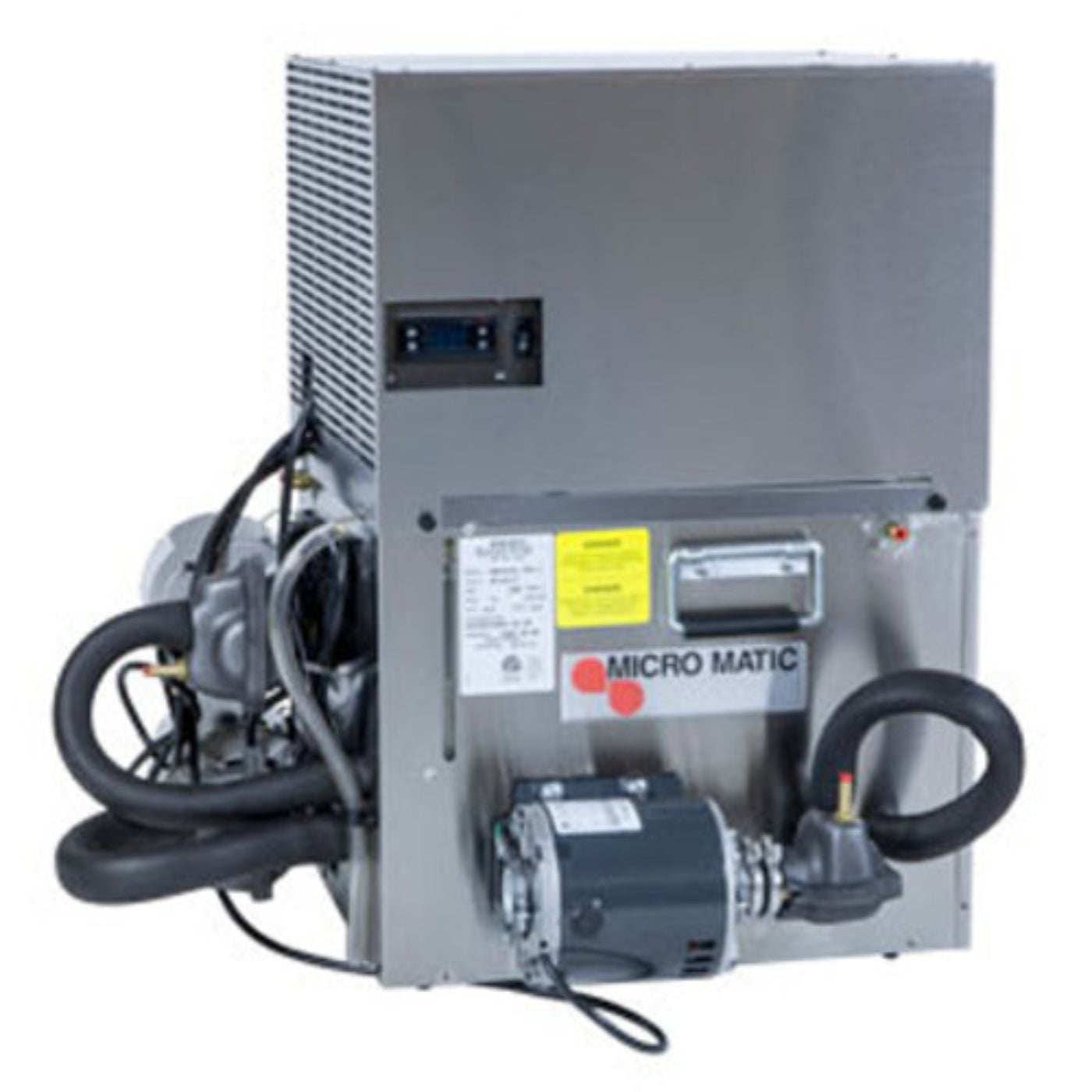

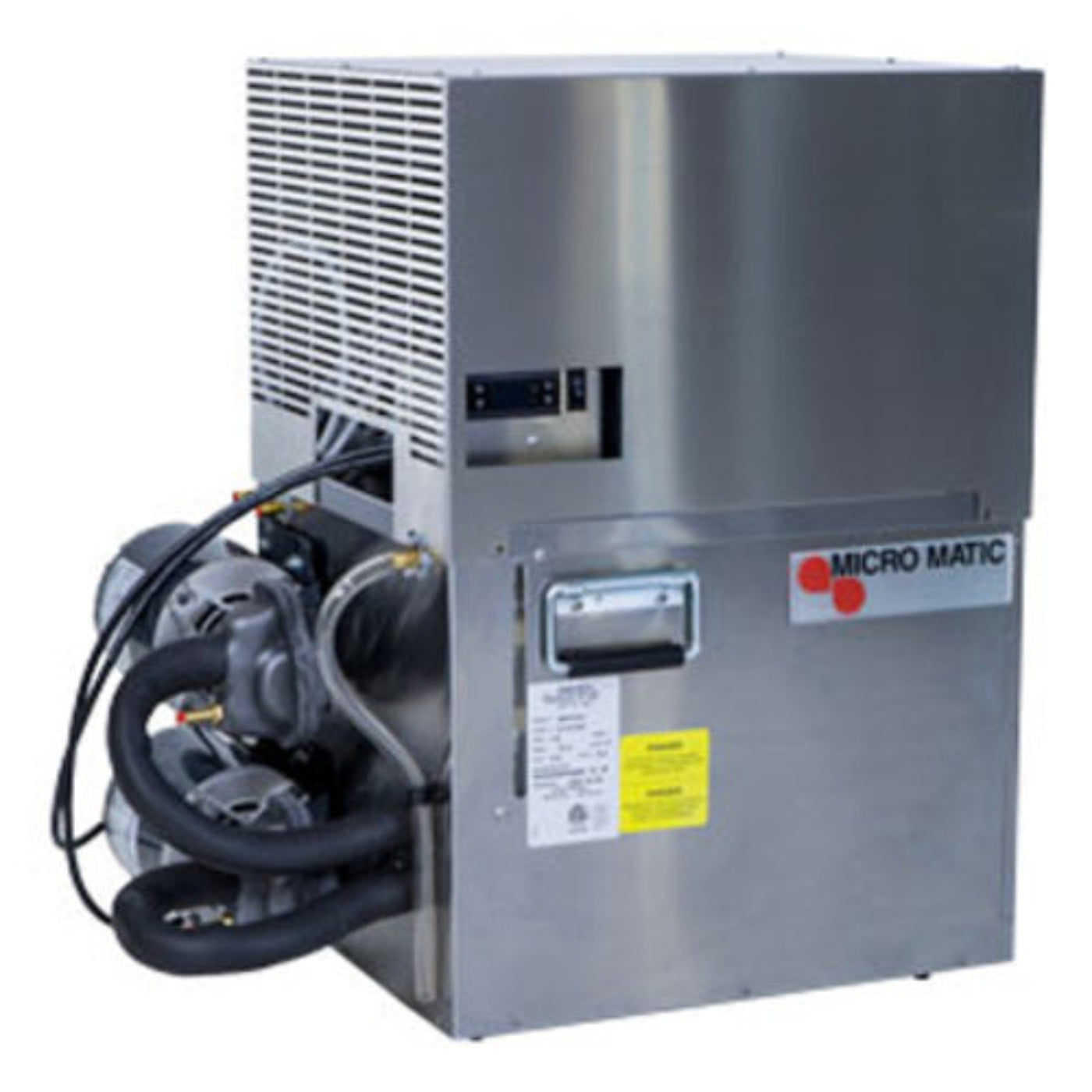

Pro-Line™ Draft Beer System Power Pack, water-cooled, 30"W x 18"D x 28-3/4"H, (2) 80 gph vane circulating pumps with 1/3 HP motor each, 11.5 gallon capacity glycol bath with exterior sight glass, digital thermostat, insulated cabinet with cover, 3/8" female NPT, R134a, 3,600 BTU, 1/2 HP compressor, 115v/60/1-ph, 20.5 amps, NEMA L5-30P, cETLus

Specifications

Drawings

• Qf_micromatic_mmpp430x-pkg-wc_cat.zip

Documents

• Cutsheet
• Video

What Our Experts Think

• Efficient Cooling: Equipped with a powerful water-cooled compressor, providing consistent and reliable cooling for optimal beverage storage.

• Dual Pump System: Features two 80 GPH circulating pumps, ensuring smooth glycol circulation for efficient cooling.

• Large Glycol Bath: Includes an 11.5-gallon glycol bath with a sight glass for easy monitoring and maintenance.

• Precise Temperature Control: Digital thermostat control allows for accurate temperature adjustments to maintain ideal drink temperatures.

• Energy Efficient: Built with expanded foam insulation, reducing compressor cycling and boosting energy efficiency.

• Compact and Space-Saving: Ideal for tight spaces with a manageable size of 30"W x 18"D x 28-3/4"H.

• Trusted Brand: Micro Matic is well-known for high-quality, reliable commercial refrigeration solutions.

Q&A

Q1: What is the Micro Matic USA Pro-Line Back Bar Cooler?
A1: The MMPP4302-PKG-WC is a high-quality back bar cooler designed for commercial use, offering efficient refrigeration for beverages, and perfect for bars, restaurants, and retail spaces.

Q3: How does the MMPP4302-PKG-WC improve energy efficiency?
A3: The cooler uses advanced insulation and eco-friendly refrigerants to ensure optimal cooling performance while reducing energy consumption, lowering operating costs.

Q4: What size is the Micro Matic Pro-Line Back Bar Cooler?
A4: The MMPP4302-PKG-WC is compact, fitting perfectly into tight spaces with a capacity suitable for storing large quantities of beverages.

Q5: Is the MMPP4302-PKG-WC easy to maintain?
A5: Yes, the cooler’s design includes a self-closing mechanism and removable components for easy cleaning and maintenance, ensuring long-lasting performance.

Q6: Can this cooler be used for both refrigeration and display?
A6: Yes, it is ideal for both storing and displaying bottles and cans, making it perfect for customer-facing environments like bars and retail spaces.

Maintenance Tips

• Glycol Solution Maintenance

• Monthly Check: Inspect the glycol bath monthly to ensure it's filled to the appropriate level.

• Replenishment: If the glycol level is low, replenish with a mixture of 2.5 parts water to 1 part Micro Matic Polar Flo glycol solution.

• Annual Replacement: Replace the glycol/water mixture every 18 months, or annually in high-humidity areas, to maintain optimal cooling efficiency.

• Condenser Coil Cleaning

• Frequency: Clean the condenser fins every 60 days to prevent dust accumulation, ensuring efficient heat exchange and system performance.

• Airflow Maintenance

• Space Requirements: Ensure there is adequate space around the unit for proper airflow.

• Ventilation: Keep vents unobstructed to prevent overheating and maintain efficient operation.

• Temperature Monitoring

• Optimal Range: Regularly check that the internal temperature remains within the optimal range of 34–38°F.

• Thermostat Adjustment: Adjust the digital thermostat as needed to maintain consistent cooling.

• Ice Buildup Prevention

• Observation: If ice accumulation is observed, allow it to melt completely.

• Solution Replacement: Replace the glycol solution with a fresh mixture to prevent system strain.

• Electrical Safety Checks

• Inspection: Periodically inspect electrical components and connections for signs of wear or damage.

• Safety Assurance: Ensure safe and reliable operation by addressing any issues promptly.

• Maintenance Log Keeping

• Documentation: Document all maintenance activities, including dates and performed tasks.

• Tracking: Maintain a log to track service history and assist in troubleshooting.
