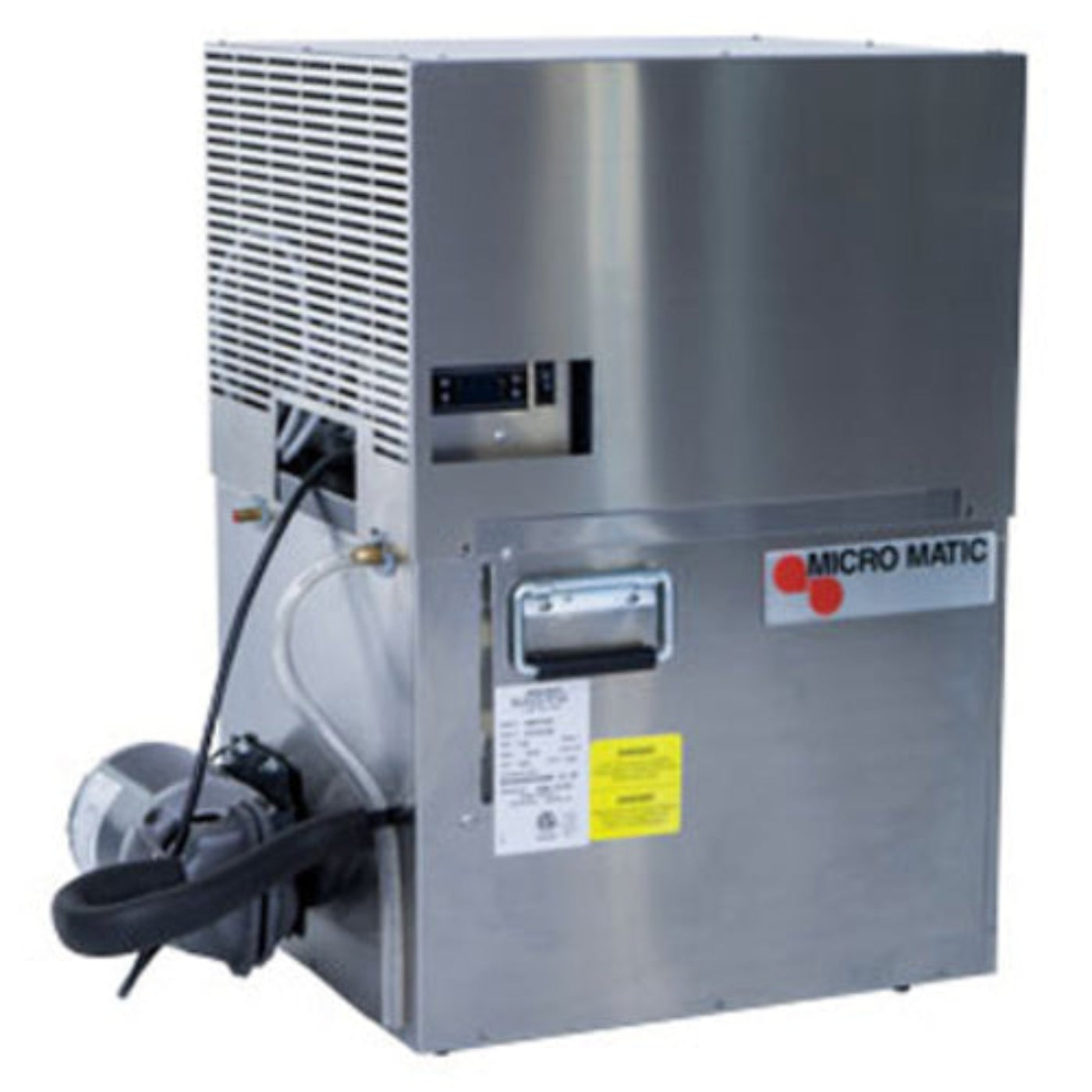

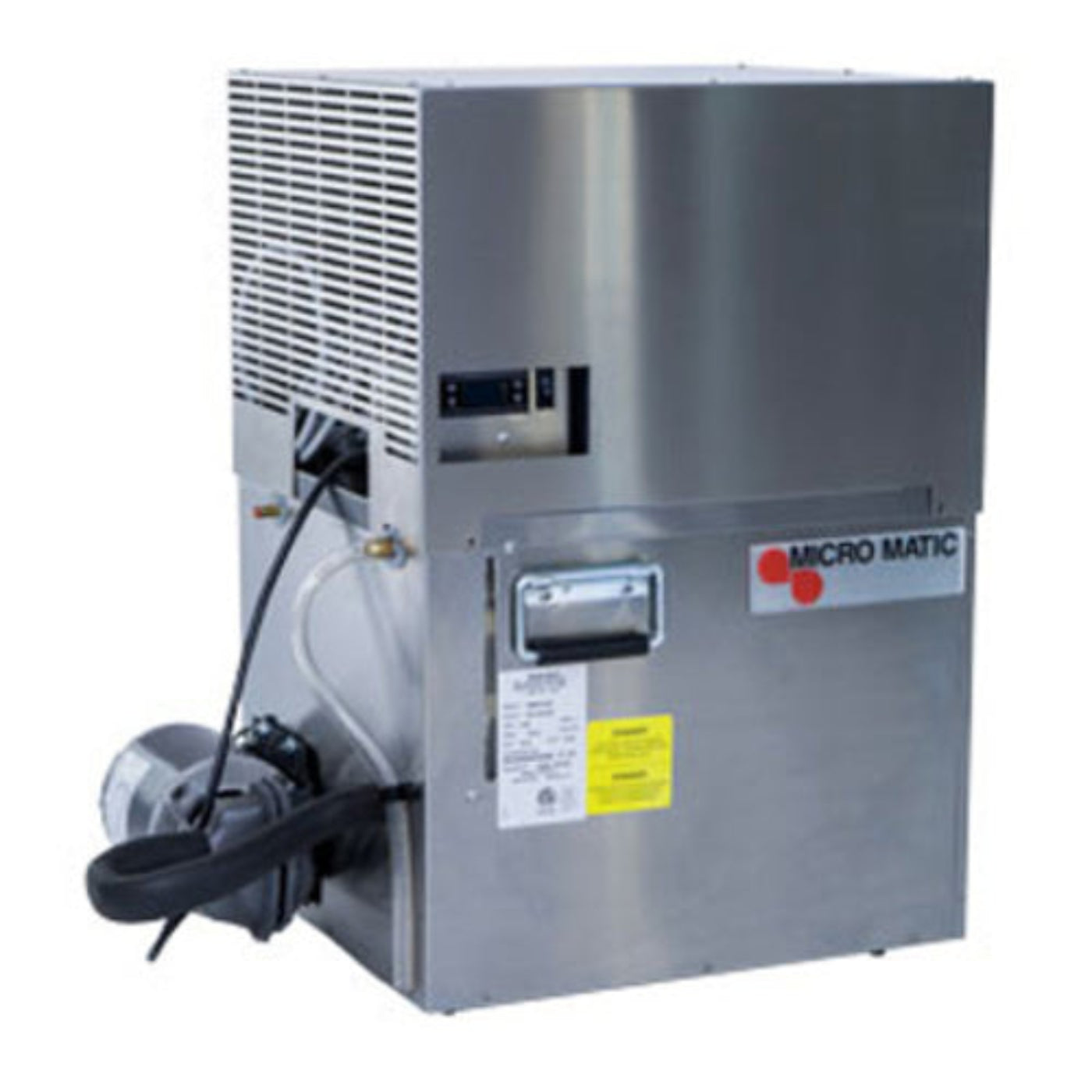

Micro Matic USA Pro-Line Back Bar Coolers - MMPP4302
Pro-Line™ Draft Beer System Power Pack, air-cooled, 30"W x 18"D x 29-3/4"H, (1) 80 gph vane circulating pump with 1/3 HP motor, 11.5 gallon capacity glycol bath with exterior sight glass, digital thermostat, insulated cabinet with cover, R134a, 3,600 BTU, 1/2 HP compressor, 115v/60/1-ph, 15.4 amps, NEMA 5-20P, cETLus
Specifications
| Manufacturer |
Micro Matic USA |
| Brand Name |
Pro-Line |
| Height |
29.75 in |
| Width |
30.0 in |
| Depth |
18.0 in |
| Shipping Weight |
157.0 lbs |
| Horsepower (HP) |
1/2 |
| Cooling Type |
Air cooled |
| Pumps |
1 |
| Pump Capacity |
80 GPH vane circulating pump with 1/3 HP motor |
| Glycol Bath Capacity |
11.5 gallons |
| Bath Features |
Exterior sight glass |
| Thermostat |
Digital |
| Cabinet |
Insulated with cover |
| Refrigerant |
R134a |
| BTU Rating |
3,600 BTU |
| Compressor |
1/2 HP |
| Electrical Requirements |
115V/60/1-Phase, 15.4 amps, NEMA 5-20P |
Drawings
Documents
What Our Experts Think
-
Efficient Cooling: Features a 3,600 BTU, 1/2 HP air-cooled compressor, providing consistent and reliable cooling for draft beer systems.
-
Glycol Circulation: Equipped with an 80 GPH vane circulating pump powered by a 1/3 HP motor, ensuring efficient glycol circulation.
-
Large Glycol Capacity: Includes an 11.5-gallon glycol bath with an exterior sight glass for easy monitoring and maintenance.
-
Precise Temperature Control: Digital thermostat allows for accurate temperature adjustments, maintaining optimal serving conditions for beverages.
-
Compact Design: With dimensions of 30"W x 18"D x 29-3/4"H, it fits well in various commercial settings without occupying excessive space.
-
Durable Construction: Housed in an insulated cabinet with a cover, designed to reduce noise and enhance thermal efficiency.
-
Energy Efficient: Operates at 115V, 60Hz, single-phase with a 15.4-amp draw, ensuring energy efficiency and compliance with safety standards.
Q&A
Q1: What is the Micro Matic MMPP4302?
A1: The MMPP4302 is a glycol-cooled power pack designed for long-draw draft beer systems, delivering 3,600 BTU of cooling power with a 1/2 HP compressor and single 80 GPH circulating pump.
Q3: What are the dimensions and weight?
A3: The unit measures approximately 30" W x 18" D x 29.75" H and weighs about 157 lbs.
Q4: What power is required?
A4: It runs on 115V, 60Hz, single-phase power and draws about 15.4 amps.
Q5: How far can it pump glycol to a draft tower?
A5: It supports trunk lines up to approximately 250 feet, depending on system setup.
Maintenance Tips
-
Clean Condenser Coils Monthly – Use a soft brush or vacuum to prevent overheating and ensure efficiency.
-
Check Door Gaskets Weekly – Wipe clean and inspect for cracks to maintain proper sealing.
-
Defrost Regularly – Prevent ice buildup to maintain optimal cooling performance.
-
Wipe Interior Surfaces – Use mild detergent to keep surfaces sanitary and odor-free.
-
Level the Unit – Ensure stable installation to avoid compressor strain.
-
Keep Vents Clear – Maintain airflow by keeping at least 2" clearance around vents.
