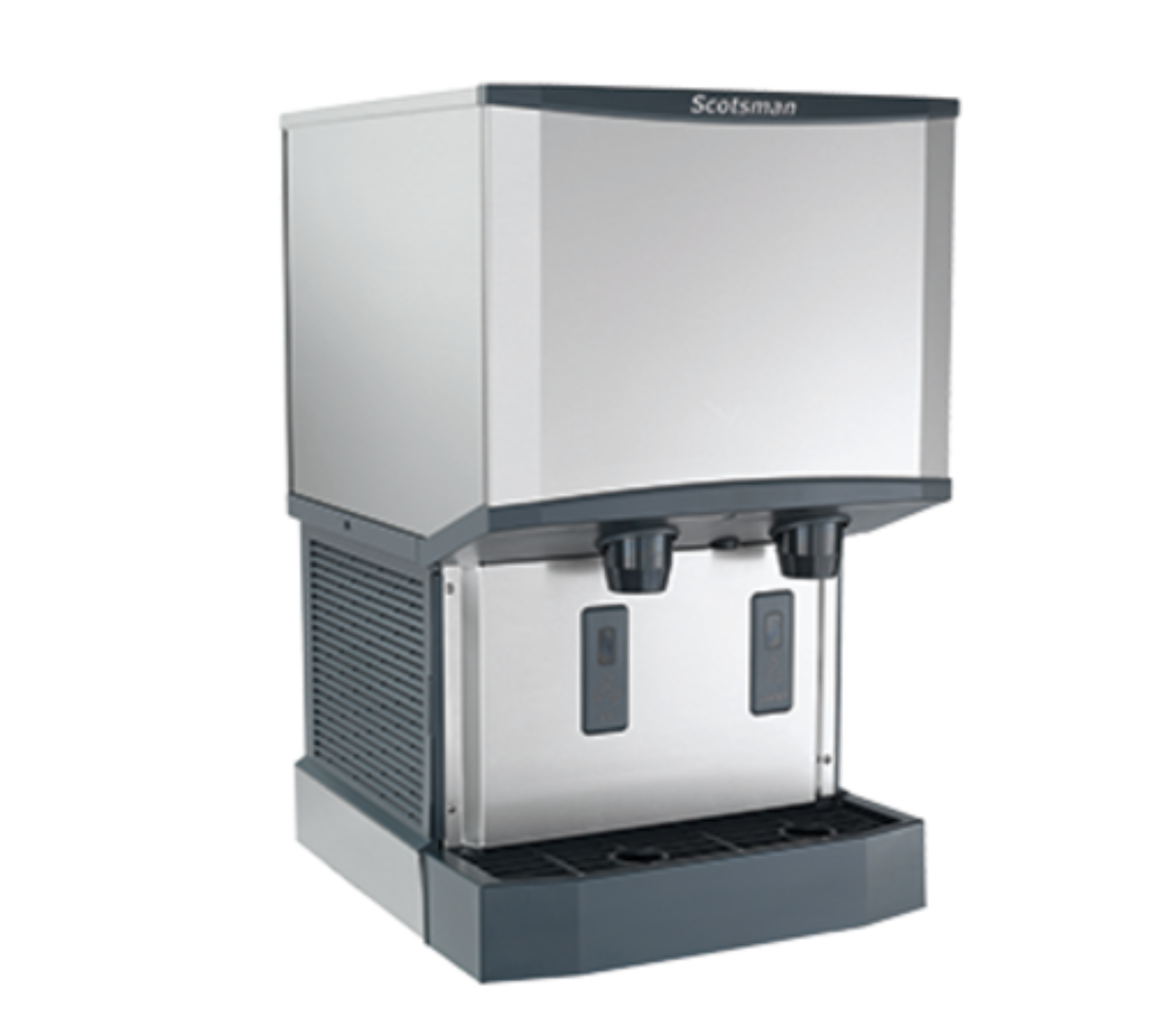

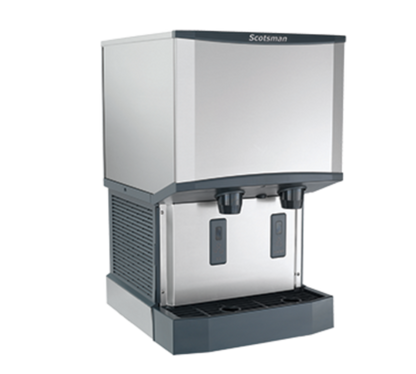

Meridian™ Ice & Water Dispenser, Touchfree® infrared dispensing, H2 Nugget Ice, air cooled, production capacity up to 500 lb/24 hours at 70°/50°, 25 lb bin storage capacity, sealed maintenance-free bearings, removable bin, removable air filter, SmoothStream™ water dispensing, removable spouts and sink, enlarged 0.8" sink drain, recessed utility chase, stainless evaporator and auger, enlarged 11" dispensing area, USB software upgrade port, unit specific QR code, stainless exterior, AgION™ antimicrobial protection, 230V/50/1 engineered and assembled in USA (Export Model, 50hz version)

Specifications

What our Experts Think

• High Production Capacity: The Scotsman HID525A-6 produces up to 500 lbs of nugget ice per day, making it ideal for establishments with high ice demands such as hospitals, large offices, and hotels.

• Compact Design: With dimensions of 21.25" W x 24.38" D x 35" H, this countertop unit is designed to fit in tight spaces, perfect for environments where space is limited.

• Touch-Free Dispensing: Features TouchFree® infrared dispensing for both ice and water, reducing the risk of cross-contamination and enhancing user convenience.

• Sanitation Features: Incorporates AgION™ antimicrobial protection molded into key components to inhibit the growth of bacteria, mold, and mildew, ensuring cleaner ice and water.

• Easy Maintenance: The unit includes a removable bin, spouts, air filter, sink, and grill, allowing for straightforward access to components for cleaning and servicing.

• Energy and Water Efficiency: Consumes 5.5 kWh per 100 lbs of ice produced and uses 12 gallons of water per 100 lbs of ice, aligning with energy and water conservation standards.

• Enhanced Service Features: Equipped with intuitive LED diagnostic lights, a unit-specific QR code for quick access to service information, and a USB drive for fast software updates, ensuring ease of maintenance.

• Durable Construction: Built with a stainless steel evaporator and exterior panels, ensuring durability and longevity in demanding environments.

Q&A

Q: What type of ice does the Scotsman HID525A-6 produce?
A: The Scotsman HID525A-6 produces chewable H² Nugget Ice, ideal for beverages and healthcare applications due to its slow-melting properties.

Q: What is the daily ice production capacity?
A: This model produces up to 500 lbs of nugget ice per day under optimal conditions (70°F air and 50°F water).

Q: What is the storage capacity?
A: The unit includes a 25 lb storage bin, suitable for moderate to high usage.

Q: What are the dimensions and weight?
A: The unit measures 21.25" W x 24.38" D x 35" H and weighs approximately 208 lbs.

Q: What voltage does the Scotsman HID525A-6 operate on?
A: The unit operates on a 230V, 50Hz, 1-phase electrical supply, suitable for export markets.

Q: Is the Scotsman HID525A-6 energy-efficient?
A: Yes, it operates at 5.5 kWh per 100 lbs of ice produced and uses 12 gallons of water per 100 lbs, exceeding federal energy-efficiency regulations.

Q: Does it include a storage bin?
A: Yes, the unit includes a 25 lb storage bin.

Q: Is the Scotsman HID525A-6 suitable for international use?
A: Yes, it is designed for export markets with a 230V/50Hz/1Ph power supply and is CE certified.

Maintenance Tips

• Regular Cleaning:

• Drip Tray & Drain System: Regularly remove debris and flush the drain with hot water to prevent clogs. Clean the drip tray and dispensing chutes with an ice machine scale remover when necessary.

• Dispensing Bin: Remove and clean the dispensing bin using warm water and mild detergent. Sanitize with a solution of 2 oz NuCalgon to 1.25 gallons of water at 95–115°F. Allow parts to air dry before reassembling.

• Air Filter: Clean the removable air filter regularly to prevent dust buildup. This will help maintain efficient air circulation.

• Water System Maintenance:

• Regularly clean and sanitize the water system to prevent microbial growth and maintain clean ice and water dispensing.
