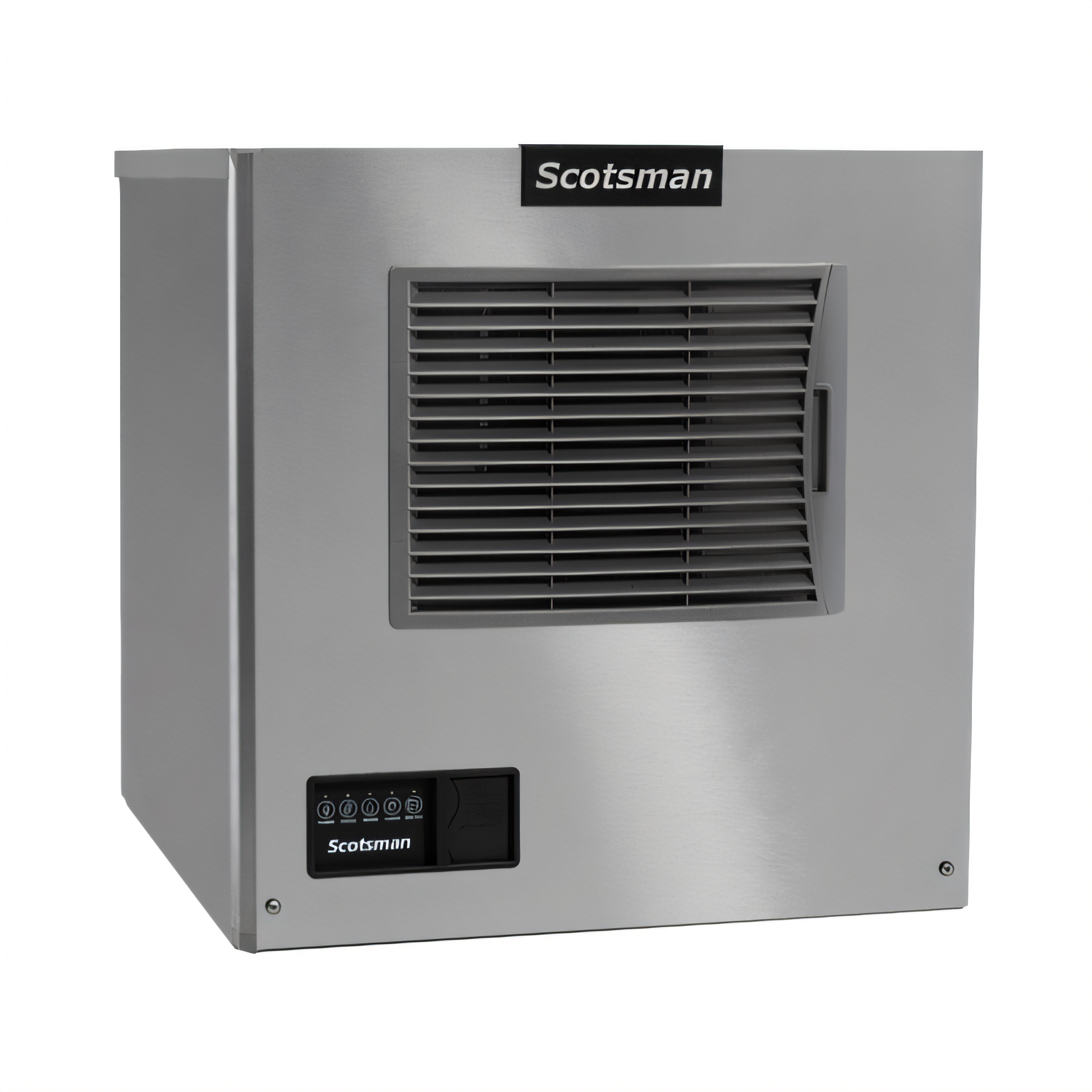

Scotsman MC0522SA-1 Prodigy ELITE Ice Machines - MC0522SA-1

Scotsman MC0522SA-1 Prodigy ELITE Ice Machines - MC0522SA-1

Prodigy ELITE Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 475 lb/24 hours at 70°/50° (340 lb AHRI certified at 90°/70°), small cube size, ICELINQ mobile app, Bluetooth  connectivIty, preservation mode, external bin full indicator, AutoAlert™ indicating lights, WaterSense adjustable purge control, one-touch cleaning, harvest assist, front facing removable air filter, unit specific QR code, stainless steel finish, AgION™ antimicrobial protection, 115v/60/1-ph, 13.5 amps, cULus, NSF, engineered and assembled in USA

Specifications

What our Experts Think

• High Production Capacity: Produces up to 475 lbs of small (half) cube ice per 24 hours under optimal conditions (70°F air / 50°F water), making it suitable for high-demand environments like cafeterias, healthcare facilities, and offices.

• Compact, Modular Design: With dimensions of 22" W x 24" D x 23" H, this air-cooled unit is designed for easy integration into various kitchen layouts.

• Advanced Monitoring: Features AutoAlert™ indicator lights and a 16-segment display for clear, real-time status updates. The external bin full indicator enhances operational efficiency.

• Smart Connectivity: Equipped with Bluetooth® technology, allowing seamless pairing with the ICELINQ® mobile app for diagnostics, settings adjustments, and guided cleanings without removing panels.

• Enhanced Hygiene: Incorporates AgION™ antimicrobial protection on key components and a front-facing removable air filter to maintain cleanliness and reduce maintenance efforts.

• Energy Efficiency: Utilizes WaterSense adjustable purge control and a preservation mode to optimize water usage and maintain ice quality, contributing to cost-effective operation.

• Certifications: NSF and cULus certified, ensuring compliance with public health and safety standards.

Q&A

Q: What is the Scotsman MC0522SA-1 Prodigy ELITE® Ice Machine?
A: The Scotsman MC0522SA-1 is a 22-inch wide, air-cooled modular ice machine from the Prodigy ELITE series, producing up to 475 lbs of small cube ice per day, designed for commercial environments.

Q: What type of ice does it produce?
A: It produces small cube ice, measuring 7/8" x 7/8" x 7/8", ideal for beverages and foodservice applications.

Q: What are the dimensions and weight of the MC0522SA-1?

A: The unit measures approximately 22" W x 24" D x 23" H and weighs around 160 lbs.

Q: What are the electrical requirements?
A: The machine operates on 115V, 60Hz, single-phase power.

Q: What certifications does this ice machine have?
A: It is NSF certified and cULus listed, ensuring compliance with safety and sanitation standards.

Q: What warranty coverage is provided?
A: Scotsman offers a 3-year parts and labor warranty on all components, a 5-year parts and labor warranty on the evaporator, and a 5-year parts warranty on the compressor and condenser.

Q: Where is the Scotsman MC0522SA-1 manufactured?
A: This ice machine is engineered and assembled in the USA.

Maintenance Tips

• Air Filter: Clean the air filter by vacuuming or rinsing it with warm water and mild detergent. Make sure it is completely dry before reinstalling it. Keeping the air filter clean ensures efficient airflow and prevents overheating.

• Inspect the Water System: Examine the water system for any mineral buildup or leaks. Ensure that the drain is clear and free of obstructions, and that water flows correctly.

• Evaporator Cleaning: Check the evaporator for any debris or ice buildup. Clean it with a soft cloth or mild cleaner if necessary. A clean evaporator ensures optimal ice production.

• Water Supply Check: Verify that the water supply is consistent, with proper pressure and flow. Clean any water lines or replace filters if required.

• Sanitize the Machine: Every six months, perform a complete sanitization of the ice machine, including the ice bin, water system, and evaporator. Use a manufacturer-approved sanitizer and follow the proper cleaning instructions.

• Inspect Ice Maker Components: Thoroughly inspect key components, including the evaporator, condenser, and water lines, for any signs of wear, scale buildup, or corrosion.
