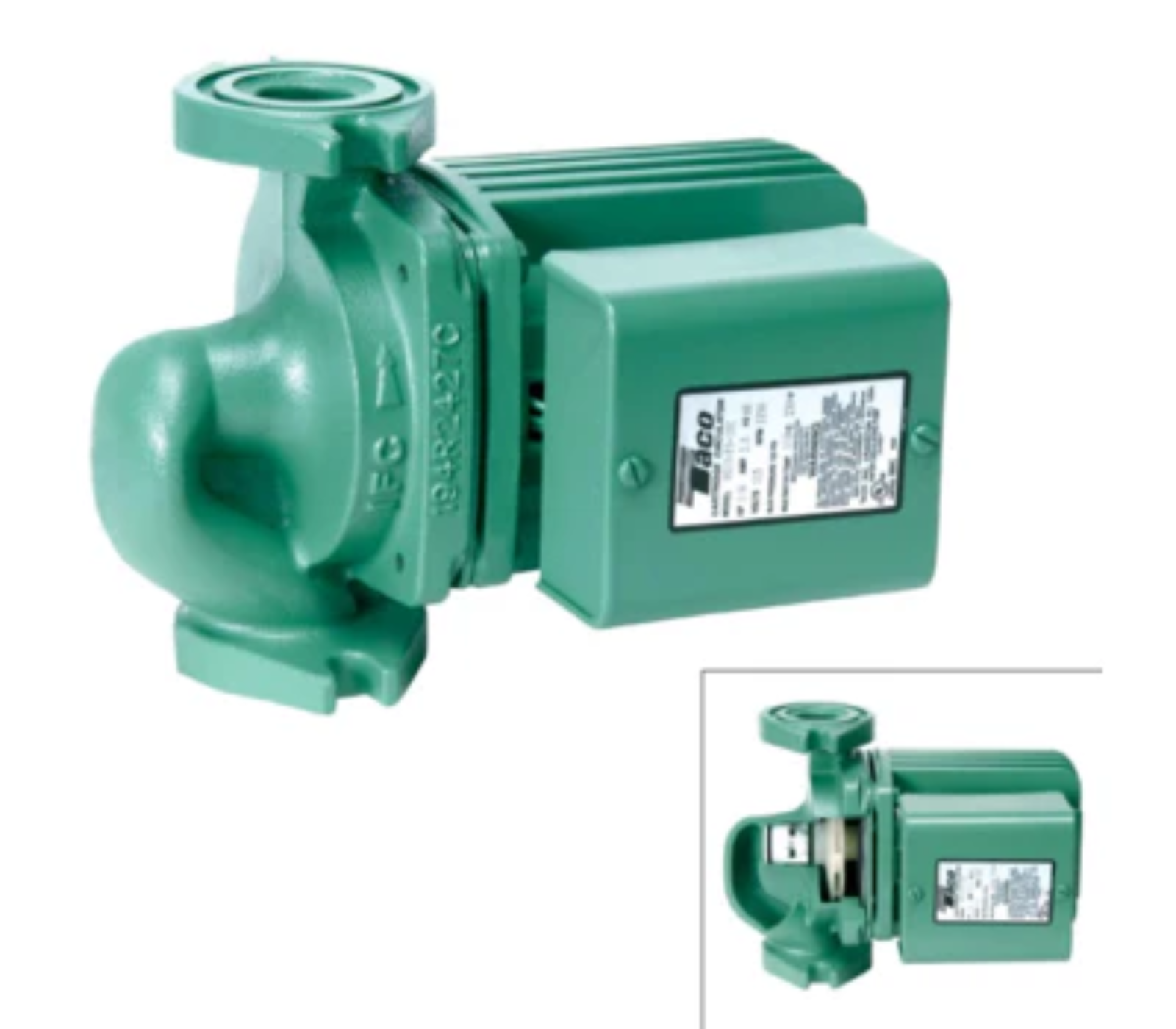

TACO 0013F3-IFC 00 Series 115 V 1/6 HP Cartridge Circulator Pump with Integral Flow Check - 0013F3-IFC
The TACO 0013F3-IFC is a reliable cartridge circulator pump designed to maintain optimal water flow in heating and cooling systems. This model operates at one hundred fifteen volts and has a power output of one-sixth horsepower. Its integral flow check allows for efficient water circulation, preventing backflow and ensuring steady system performance.
Features
- Cartridge design simplifies maintenance
- Integral flow check feature included
- Ideal for residential and commercial applications
Specifications
-
Voltage: 115 V
-
Power: 1/6 HP
-
Model: 00 Series
-
Flow Check: Integral
-
Application: Heating and cooling systems
What our Experts Think
-
Compact and Powerful
Features a 1/6 HP motor running on 115V, delivering up to 34 GPM flow and 33 feet of head—perfect for residential and light commercial hydronic systems.
-
Integral Flow Check (IFC)
Built-in check valve prevents reverse flow and eliminates the need for an external check valve, simplifying installation.
-
Easy Maintenance
Replaceable cartridge design allows servicing without removing the entire pump, saving time and cost.
-
Quiet and Energy Efficient
Operates with low noise and power consumption, enhancing comfort and reducing energy bills.
-
Versatile Applications
Suitable for zone circulators, radiant heating, hydro-air fan coils, chilled water cooling, and domestic water systems.
Q&A
Q: What is the Taco 0013F3-IFC?
A: A 1/6 HP, 115V single-phase cartridge circulator pump with an integral flow check valve to prevent backflow.
Q: What are the main specs?
A: Up to 34 GPM flow, 33 ft head, max pressure 125 PSI, operating temperature 40°F–230°F, fixed speed at 3,250 RPM.
Q: What is the integral flow check?
A: A built-in, removable check valve that eliminates the need for a separate check valve.
Q: What are its key features?
A: Replaceable cartridge design for easy servicing, self-lubricating motor, quiet operation, and compact size.
Q: What applications is it best for?
A: Hydronic heating, zoning with circulators, hydro-air fan coils, chilled water, radiant heating, and water/glycol mixtures up to 50%.
Q: Is this model currently supported?
A: Yes, it is actively supported and widely used in hydronic systems.
Maintenance Tips
-
Verify Compatibility: Ensure the circulator is suitable for your system's specifications.
-
Check Operating Modes: Regularly review and adjust operating modes (Delta-T, constant speed, set point) to match system needs.
-
Inspect for Air Bound Conditions: If the circulator is hot to the touch or emitting a plastic burning smell, it may be air bound. Check the water pressure on your boiler and purge air from the system. An automatic air vent may be needed.
-
Monitor System Pressure: Ensure the system pressure is within the recommended range to prevent issues.
-
Check for Unusual Noises: If the circulator makes noise after zone valves close, it could indicate a wiring issue or that the circulator is running against closed valves. Verify proper wiring and operation.
-
Regular Inspections: Periodically check the circulator for signs of wear or damage.
