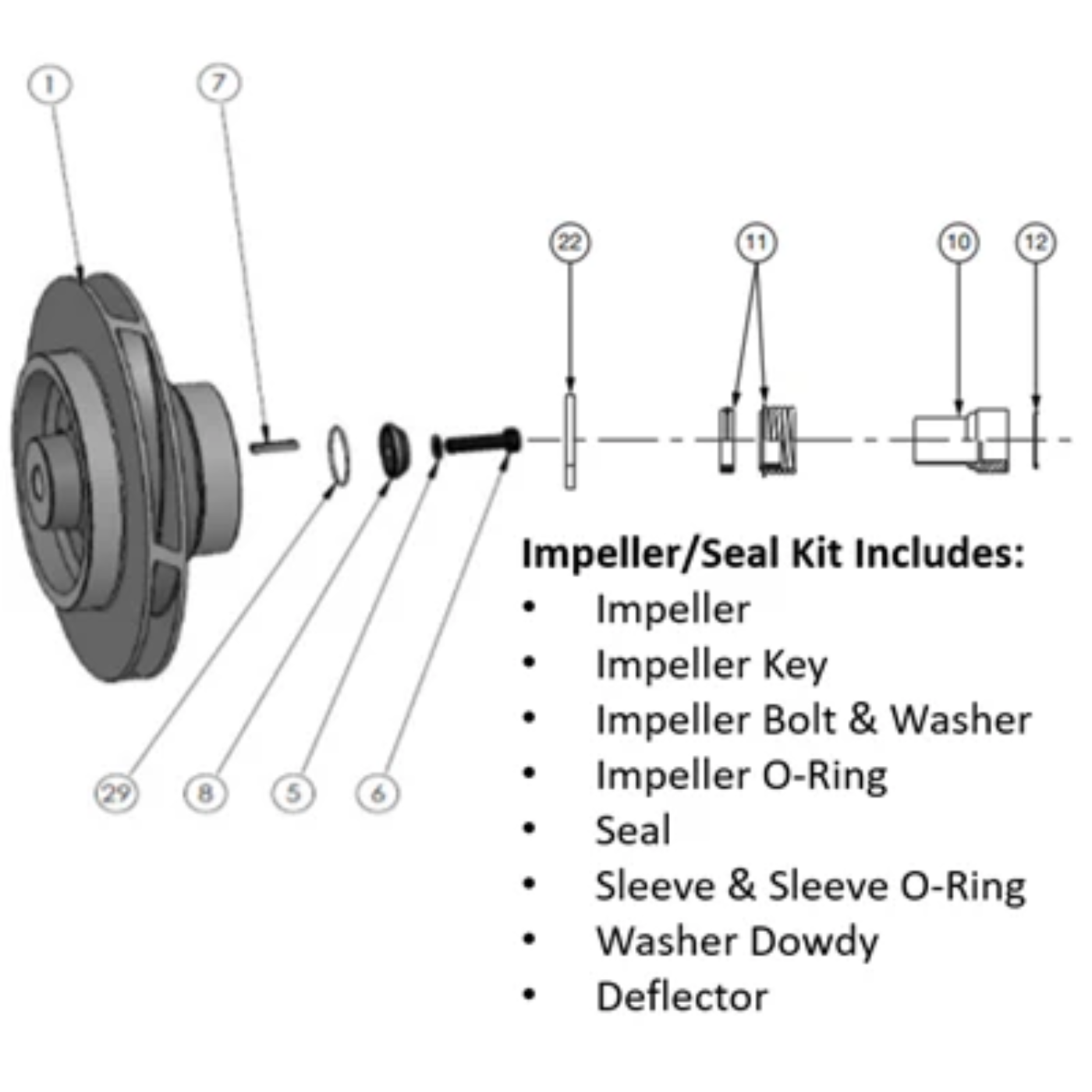

TACO KP8080D Impeller/Seal Kit CI2509D 7/8in Bore - KP8080D
The TACO KP8080D is an impeller and seal kit specifically designed for the CI2509D model with a seven-eighths inch bore. This kit is essential for maintaining the efficiency of your pump system and is compatible with motor frames ranging from one hundred forty-three to two hundred fifteen.
- Impeller and seal replacement kit
- Designed for CI2509D model
- Compatible with motor frames 143 to 215
Specifications
| Model Compatibility |
CI2509D |
| Motor Frame Compatibility |
143-215JM (H, J, K) |
| Impeller Material |
Bronze (ASTM B584-836/875) |
| Impeller Diameter |
3" x 2-1/2" Flanged |
| Shaft Sleeve Material |
Bell Bronze |
| Mechanical Seal |
SJE-801 P66/TC |
| Gasket Material |
Ethylene Propylene Rubber (EPR) |
| O-Rings |
EPR (2 pieces) |
| Slinger |
Included |
| Hardware |
Stat-O-Seal, assorted gaskets |
| Shaft Size |
1.125" |
| Seal Application |
Abrasive Glycol and/or High-Temperature Water |
| Seal Flush Line |
Flush seal line taps available for installation |
| Pump Construction |
Cast Iron with Bronze Fittings |
| Pump Class |
Centrifugal |
| Applications |
Heating, Air Conditioning, Pressure Boosting, Cooling Water Transfer, Water Supply |
| Max Fluid Temp. |
250°F (120°C) |
| Max Working Pressure |
175 PSIG (1210 KPA); Optional: 300 PSIG (2070 KPA) |
| Flow Range |
34 – 851 GPM |
| Head Range |
5′ – 373′ |
| Horsepower Range |
2 HP |
| Suction/Discharge Connections |
3" x 2-1/2" Flanged |
What our Experts Think
-
High-Quality Materials: Crafted from durable cast iron (CI), ensuring long-lasting performance in demanding applications.
-
Precision Engineering: Designed for 10 HP, 1750 RPM, 3-phase motors, providing efficient and reliable operation.
-
Easy Maintenance: The rear pullout design allows for servicing without disturbing system piping, simplifying maintenance tasks.
-
Corrosion Resistance: Features a corrosion-resistant shaft sleeve, enhancing longevity and reducing maintenance needs.
-
Versatile Compatibility: Compatible with various Taco pump models, offering flexibility in replacement and repair scenarios.
Q&A
Q: What is the TACO KP8080D Impeller/Seal Kit?
A: It's a replacement impeller and seal kit designed for TACO CI2509D pumps with a 7/8-inch bore.
Q: Which pumps are compatible with the KP8080D kit?
A: Compatible with TACO CI2509D and similar models requiring a 7/8-inch bore impeller.
Q: Why should I choose this impeller/seal kit?
A: It ensures optimal pump performance, prevents leaks, and extends pump life.
Q: Is installation easy?
A: Yes, the kit comes with components designed for straightforward replacement.
Q: Does this kit improve pump efficiency?
A: Yes, a new impeller and seal restore proper flow and reduce energy waste.
Maintenance Tips
-
Regularly inspect for leaks, unusual noises, or vibrations to detect seal wear early.
-
Use silicone-based lubricant on the shaft during seal installation to prevent damage.
-
Keep the seal flush line clean; install a filter in open systems to avoid particle buildup.
-
Maintain system fluid quality by keeping dissolved and suspended solids below 500 ppm.
-
Store the pump in a clean, dry place when not in use, covering openings to block debris.
-
Replace the seal kit promptly if leakage or performance issues persist.
