Taco SD050050-5 - 5 x 5 Suction Diffuser - SD050050-5

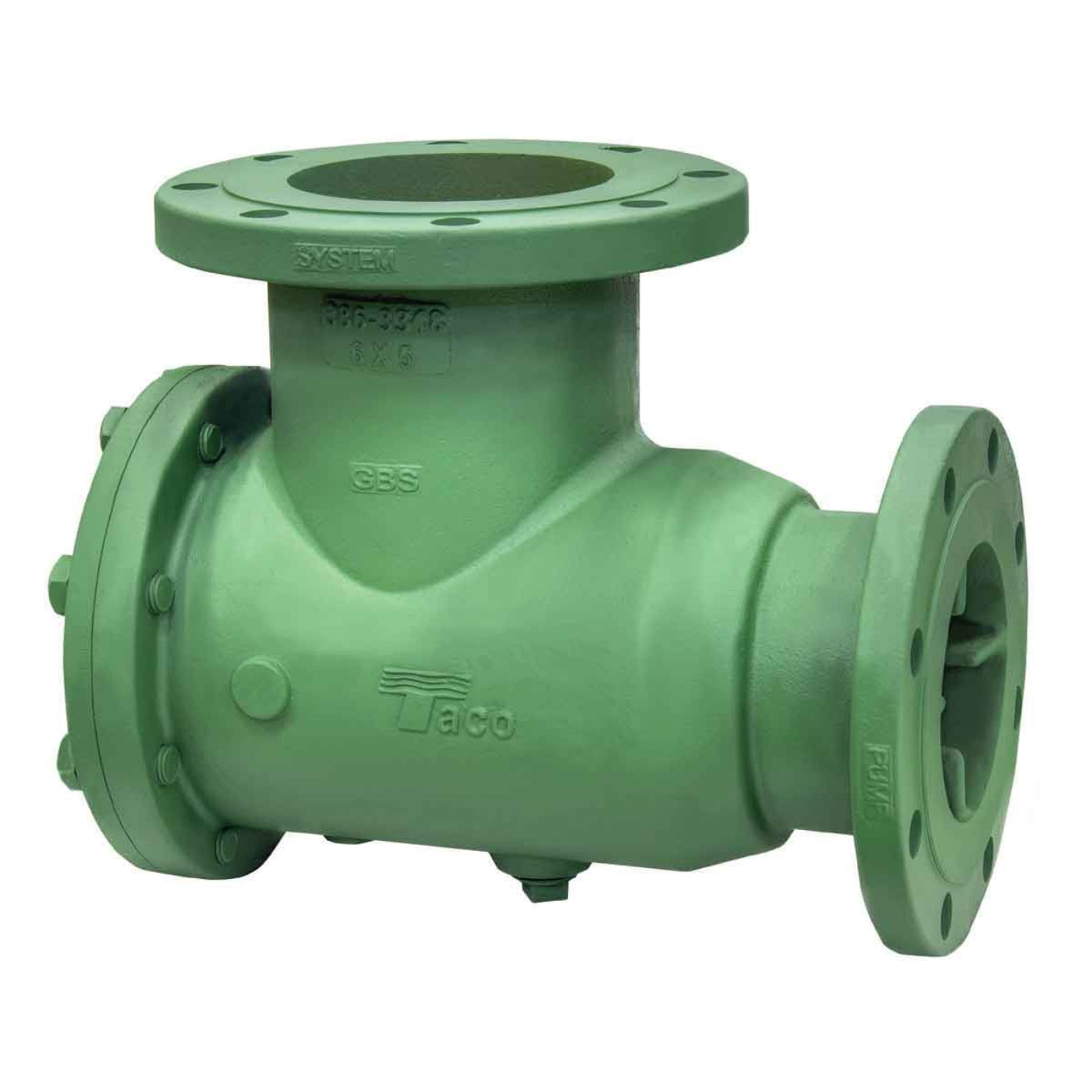

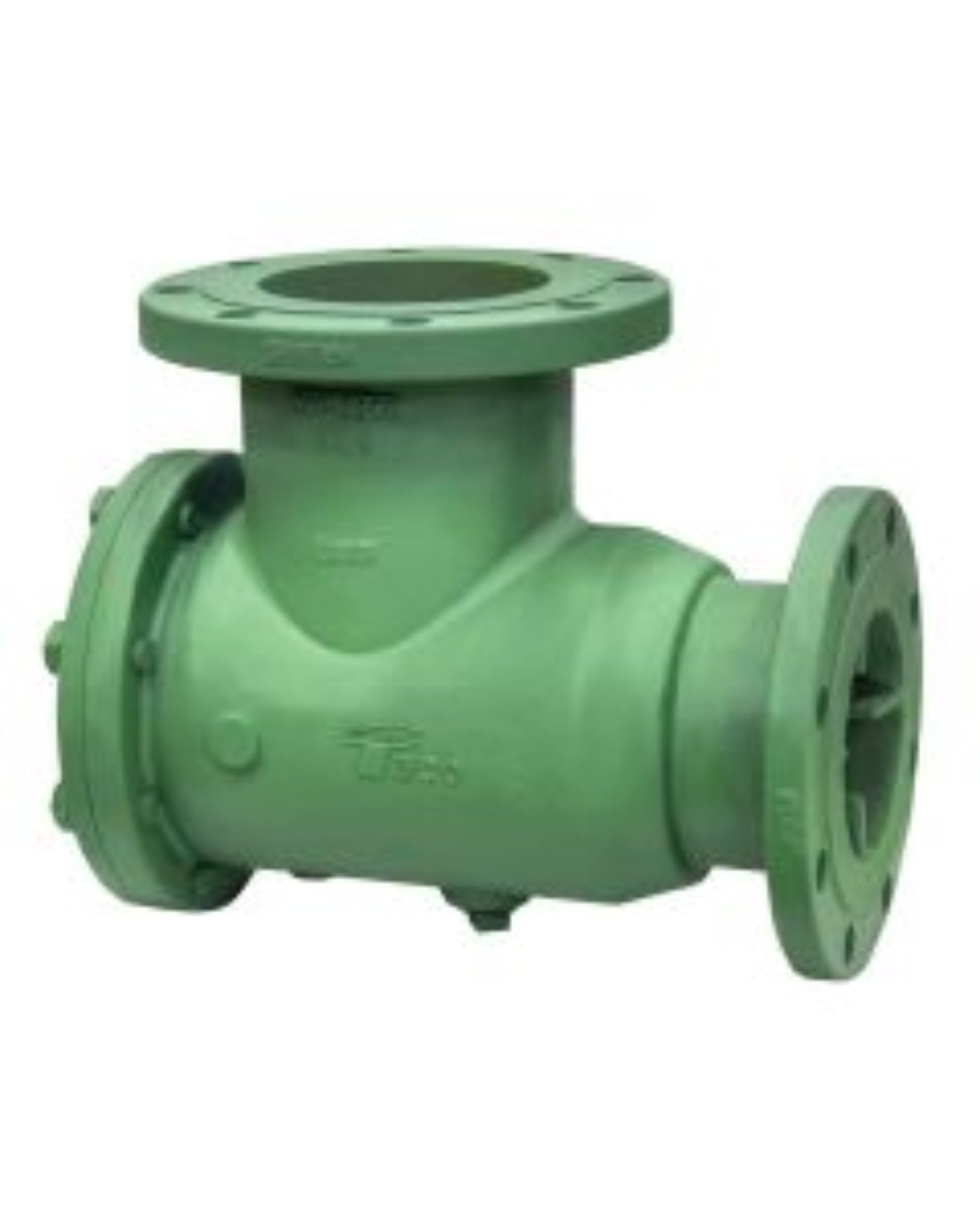

This Taco SD050050-5 suction diffuser includes five system by five pump flanged connections. It is engineered to optimize flow and prevent debris from entering pumps. Key features include integral cast straightening vanes for improved performance, an oversized body cylinder for effective functionality, and a disposable fine mesh startup strainer. The construction is robust with a ductile iron body.
Features
- Maximum operating pressure of 175 psi
- Maximum operating temperature of 250 degrees Fahrenheit
- Includes a fine mesh strainer for initial startup
Specifications
| Model |
RSP |
| Weight |
116.00 lbs |
What our Experts Think
-
Optimal Pump Performance: Cast straightening vanes ensure even suction flow, improving efficiency.
-
Built-In Strainer: Fine mesh with rear strainer pullout allows easy debris removal and maintenance.
-
Durable & Reliable: Ductile iron body withstands high pressure and temperature for long-term use.
-
Reduced Pressure Drop: Oversized cylinder design promotes smooth fluid dynamics and energy savings.
-
Versatile Applications: Ideal for hydronic heating, cooling, and HVAC systems requiring precise suction control.
-
Maintenance-Friendly Ports: Includes blow-down and metering ports for easy system monitoring.
-
Compact for Size: Despite handling 5" connections, design allows integration into system layouts efficiently.
Q&A
Q: What is the Taco SD050050-5?
A: It’s a 5 x 5 suction diffuser designed for efficient water circulation in large hydronic systems.
Q: What applications is it suitable for?
A: Ideal for commercial and industrial heating and cooling systems requiring balanced suction flow.
Q: What are its connection sizes?
A: Features 5-inch inlet and outlet connections for standard piping integration.
Q: What materials is it made from?
A: Constructed with durable, corrosion-resistant materials for long-lasting performance.
Q: Is it easy to install?
A: Yes, designed for straightforward installation and minimal maintenance.
Q: What makes it efficient?
A: Optimized flow design reduces pump strain and ensures even distribution in the system.
Maintenance Tips
-
Inspect the diffuser regularly for debris, corrosion, or damage that could restrict water flow.
-
Clean the screen and openings periodically to prevent clogging and maintain optimal suction efficiency.
-
Check mounting hardware and seals to ensure the diffuser is securely installed and leak-free.
-
Monitor water flow and system pressure to detect any reductions caused by blockages or buildup.
-
Flush the system as needed to remove sediment accumulation inside the diffuser.
-
Schedule routine inspections to maintain long-term reliability and performance.
