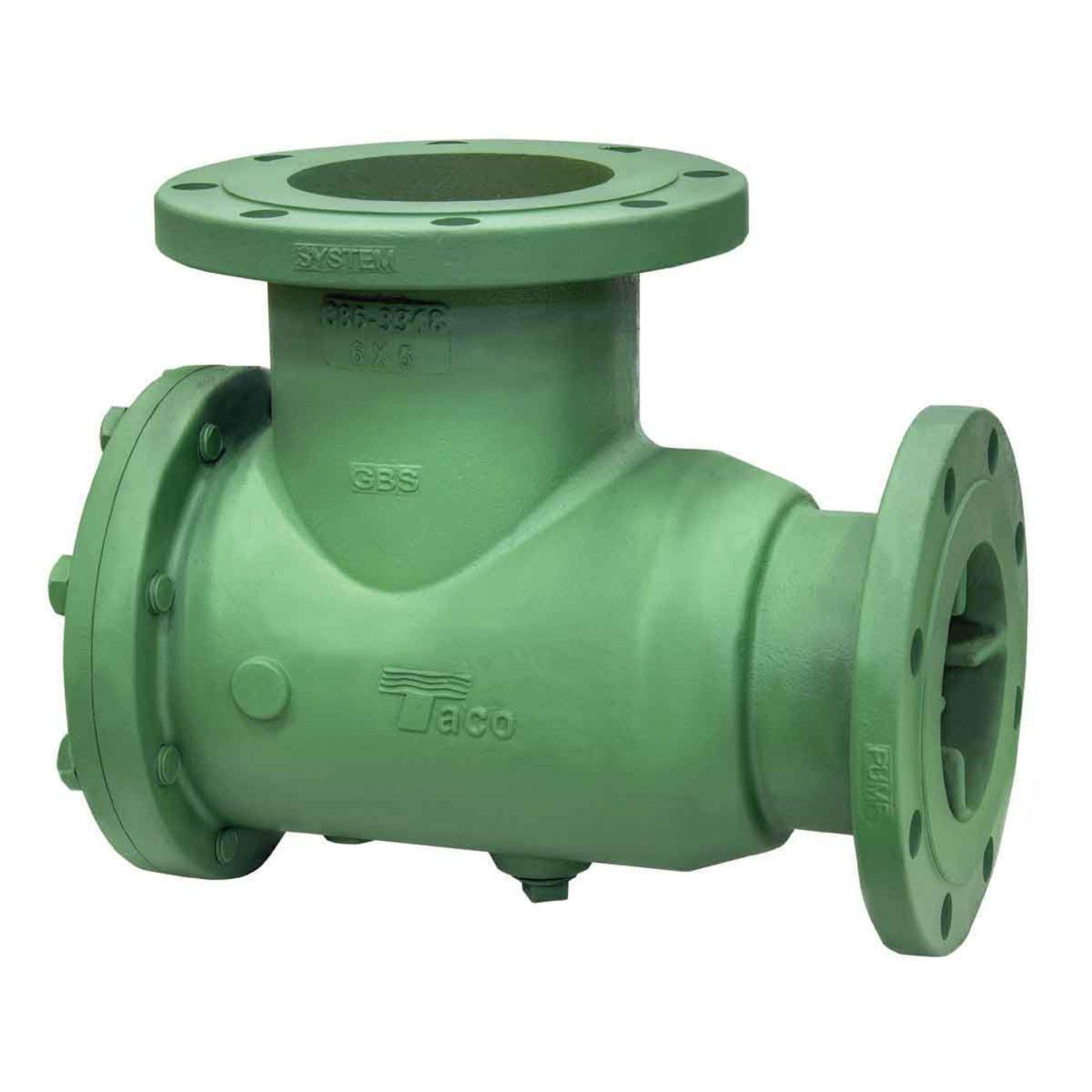

Taco SD060060-5 Suction Diffuser - SD060060-5
The Taco SD060060-5 is designed for efficient water flow in systems requiring suction diffusers. It has a six inch by six inch pump flanged connection. The diffuser includes cast straightening vanes, a large body cylinder, and a strainer for easy cleaning and maintenance. It operates effectively under a maximum pressure of 175 psi and can handle temperatures up to two hundred fifty degrees Fahrenheit.
Features
- Six inch by six inch connections
- Maximum pressure of 175 psi
- Equipped with a fine mesh start-up strainer
Specifications
| Model |
RSP |
| Maximum Operating Pressure |
175 psi |
| Maximum Operating Temperature |
250°F |
| Weight |
151.00 lbs |
What our Experts Think
-
Optimized Pump Flow: Cast straightening vanes ensure uniform suction, improving pump efficiency.
-
Built-In Strainer: Fine mesh with rear strainer pullout allows easy debris removal and maintenance.
-
Durable & Reliable: Ductile iron body withstands high pressure and temperature for long-term use.
-
Reduced Pressure Drop: Oversized cylinder design promotes smooth fluid dynamics and energy savings.
-
Versatile Applications: Ideal for hydronic heating, cooling, and HVAC systems requiring precise suction control.
-
Maintenance-Friendly Ports: Includes blow-down and metering ports for easy system monitoring.
-
Compact Integration: Despite 6" connections, design fits efficiently into system layouts.
Q&A
Q: What is the Taco SD060060-5?
A: It’s a 6" x 6" flanged suction diffuser with a rear strainer pullout (RSP) design, engineered to streamline water flow and protect pumps in large hydronic systems.
Q: What are its key features?
-
Material: Ductile iron body for durability.
-
Flow Efficiency: Integral cast straightening vanes and oversized cylinder minimize pressure drop.
-
Maintenance: Rear strainer pullout and disposable fine mesh strainer for easy cleaning.
-
Connections: ANSI Class 125 flanged.
-
Performance: Maximum operating pressure 175 psi, temperature up to 250°F.
Q: What applications is it suitable for?
A: Ideal for commercial and industrial heating, cooling, and water systems requiring efficient fluid circulation and pump protection.
Maintenance Tips
-
Inspect the diffuser regularly for debris, corrosion, or damage that could restrict water flow.
-
Clean the screen and openings periodically to prevent clogging and maintain optimal suction efficiency.
-
Check mounting hardware and seals to ensure the diffuser remains securely installed and leak-free.
-
Monitor system water flow and pressure to detect any reductions caused by buildup or blockages.
-
Flush the system as needed to remove sediment accumulation inside the diffuser.
-
Schedule routine inspections to ensure long-term reliability and performance of the system.
