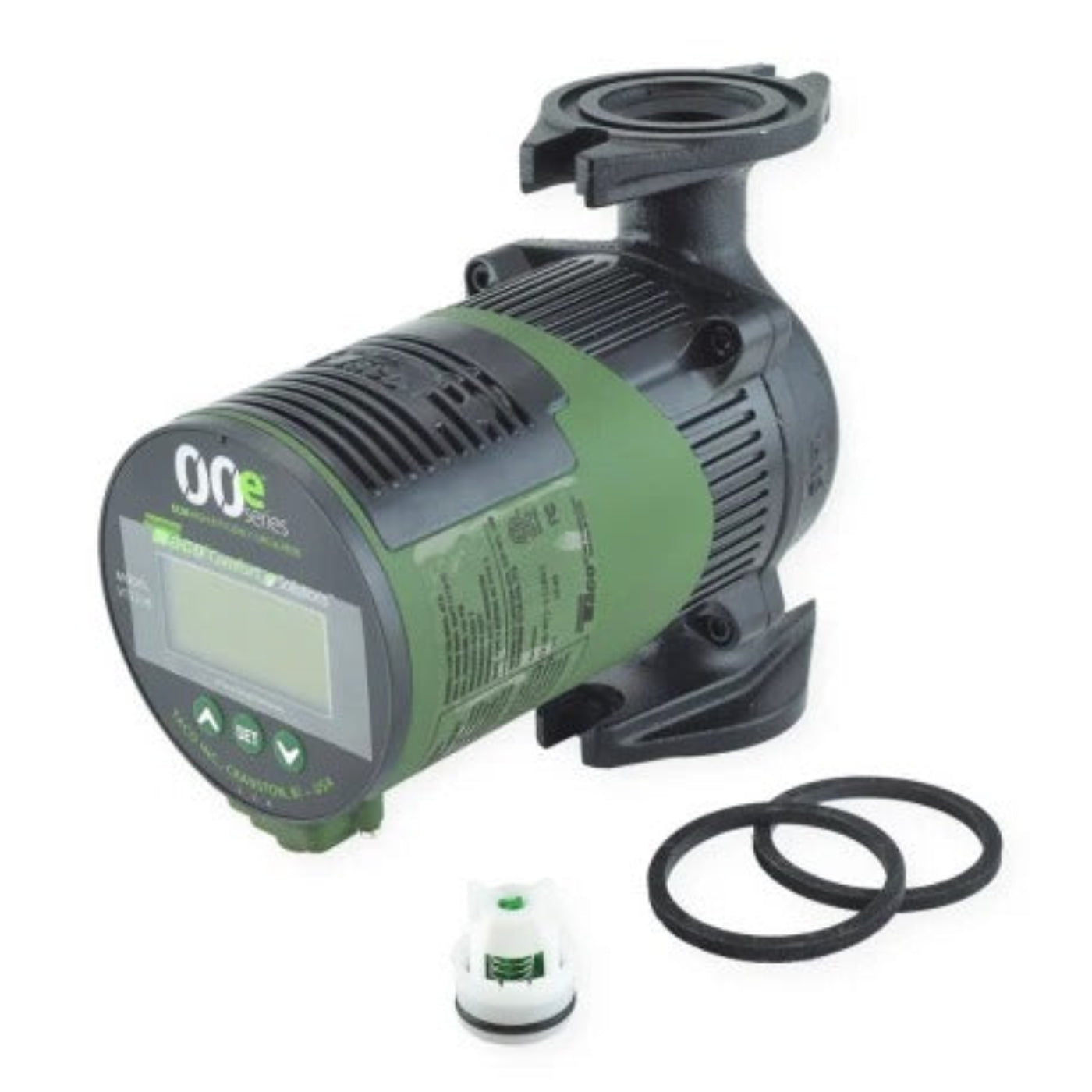

TACO VT2218 Circulator High-Efficiency ECM - VT2218
The TACO VT2218 ECM High-Efficiency Circulator is designed for optimal system performance. This circulator features two temperature sensors for accurate Delta-T readings. The device uses an infinitely variable speed ECM motor, allowing it to operate using up to eighty-five percent less electricity than traditional models. The bright LCD screen provides easy visibility, while the simple push-button navigation ensures straightforward mode selection.
Features
- Innovative BIO BARRIER protects against system contaminants.
- SureStart feature automatically purges air and unblocks the pump.
- Delta-T operation maximizes efficiency and comfort.
Specifications
-
Flow Range: 0-18 GPM
-
Head Range: 0-22 ft
-
Max. Operating Pressure: 125 PSI
-
Min. Water Temp.: 36°F (2°C)
-
Max. Water Temp.: 230°F (110°C)
-
Voltage: 110-120V
-
Max. Watts: 58
-
Max. Amp Rating: 0.67
-
Operating Power: 9W - 58W
-
Amperage: 0.67 A
-
Frequency of Rotation: 1650 - 4200 RPM
-
Casing: Cast Iron
-
Maximum Shut-off Head: 22 ft
-
Frequency: 50/60 Hz
-
Motor: Single Phase
What our Experts Think
-
Precision Delta-T Control
Uses two temperature sensors to maintain exact differential temperature, optimizing energy use and system comfort.
-
Multiple Operation Modes
Offers five modes including Delta-T, fixed speeds, set point heating/cooling, and boiler protection for versatile system integration.
-
Energy Efficient ECM Motor
High-efficiency permanent magnet motor delivers up to 85% energy savings over traditional pumps.
-
Intuitive Backlit Display
Shows mode, temperature, flow, power consumption, and system status for easy monitoring and adjustments.
-
Durability Features
Includes protective BIO Barrier® against contaminants and SureStart® technology for automatic air purging and unblocking.
-
Quiet Running
Engineered for whisper-quiet operation, ideal for both residential and commercial installations.
-
Wide Application
Suitable for zone valves, radiant loops, snowmelt, hydro-air systems, and constant speed uses like indirect water heaters.
Q&A
Q: What is the Taco VT2218?
A: The Taco VT2218 is a high-efficiency ECM (Electronically Commutated Motor) circulator pump designed for hydronic heating and cooling systems.
Q: What applications is the VT2218 suitable for?
A: Ideal for closed-loop hydronic systems, including radiant heating, snowmelt systems, hydro-air fan coils, and zoning with zone valves. It can also be used in constant speed mode for zoning with circulators, indirect water heaters, or primary boiler loops.
Q: Is it compatible with water/glycol mixtures?
A: Yes, the VT2218 is acceptable for use with water or a maximum of 50% water/glycol solution.
Q: What additional components are included?
A: The VT2218 comes with sensors and an Integral Flow Check (IFC®) included.
Maintenance Tips
-
Ensure circulator matches your system’s specifications.
-
Adjust operating modes (Delta-T, constant speed, set point) to system needs.
-
Purge air from the system to prevent air binding and overheating.
-
Maintain proper system pressure within recommended range.
-
Check for unusual noises indicating wiring or valve issues.
-
Inspect regularly for wear, leaks, or damage.
