Tuxedo MR6.5K-38 6,500 lb Mid-Rise Portable Scissor Lift - MR6.5K-38
Tuxedo 6,500 lb Mid-Rise Portable Scissor Lift
Updated Design & Increased Capacity!

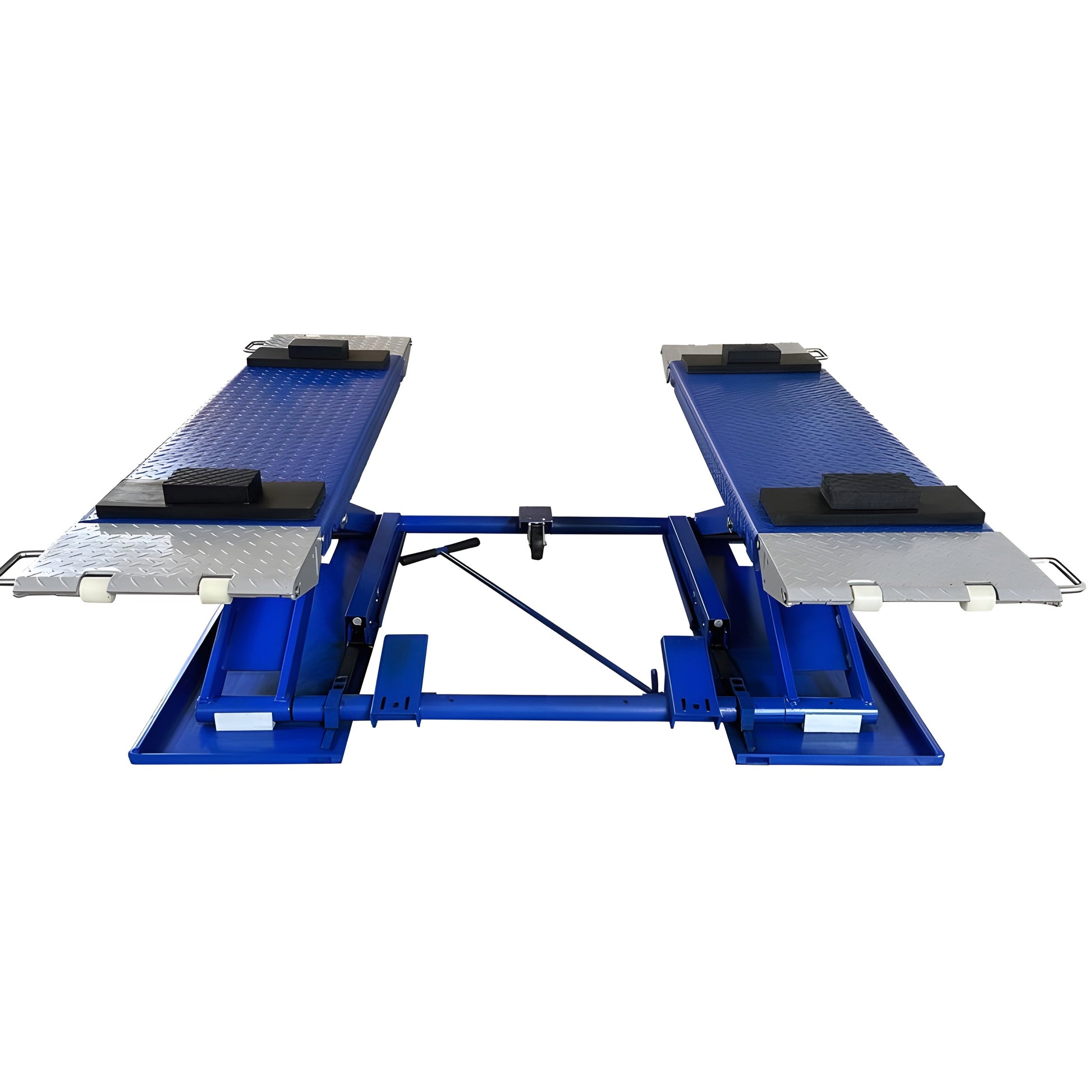

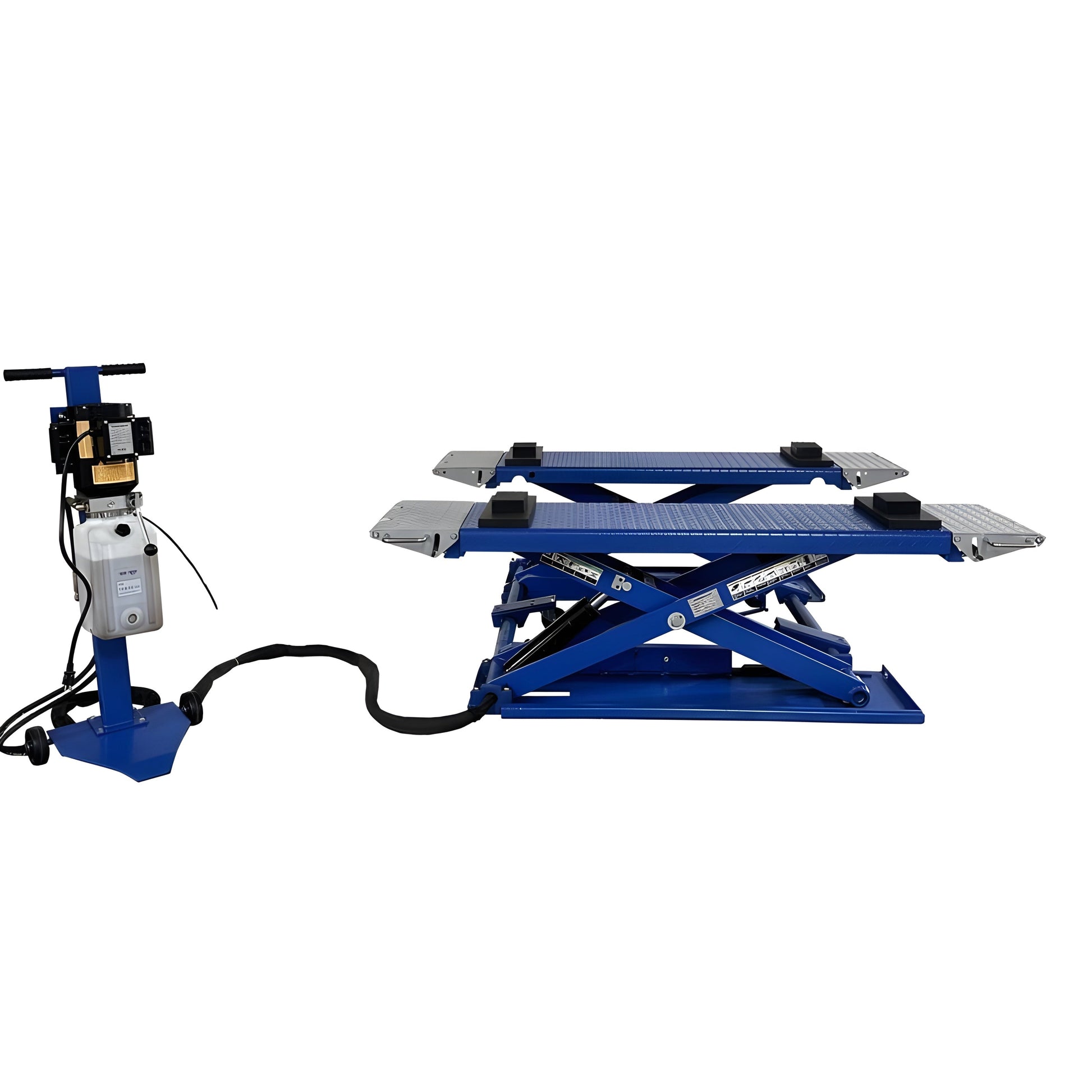

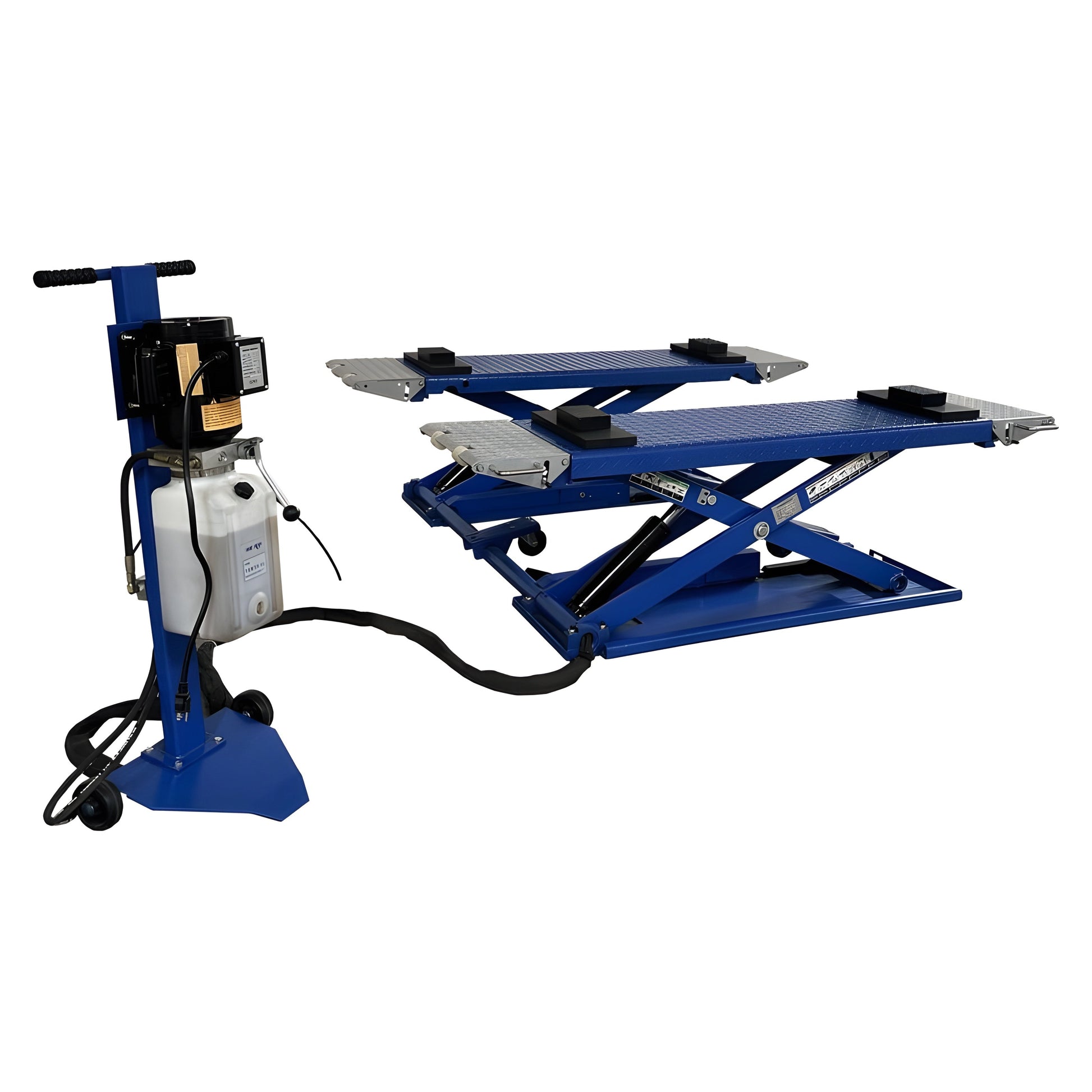

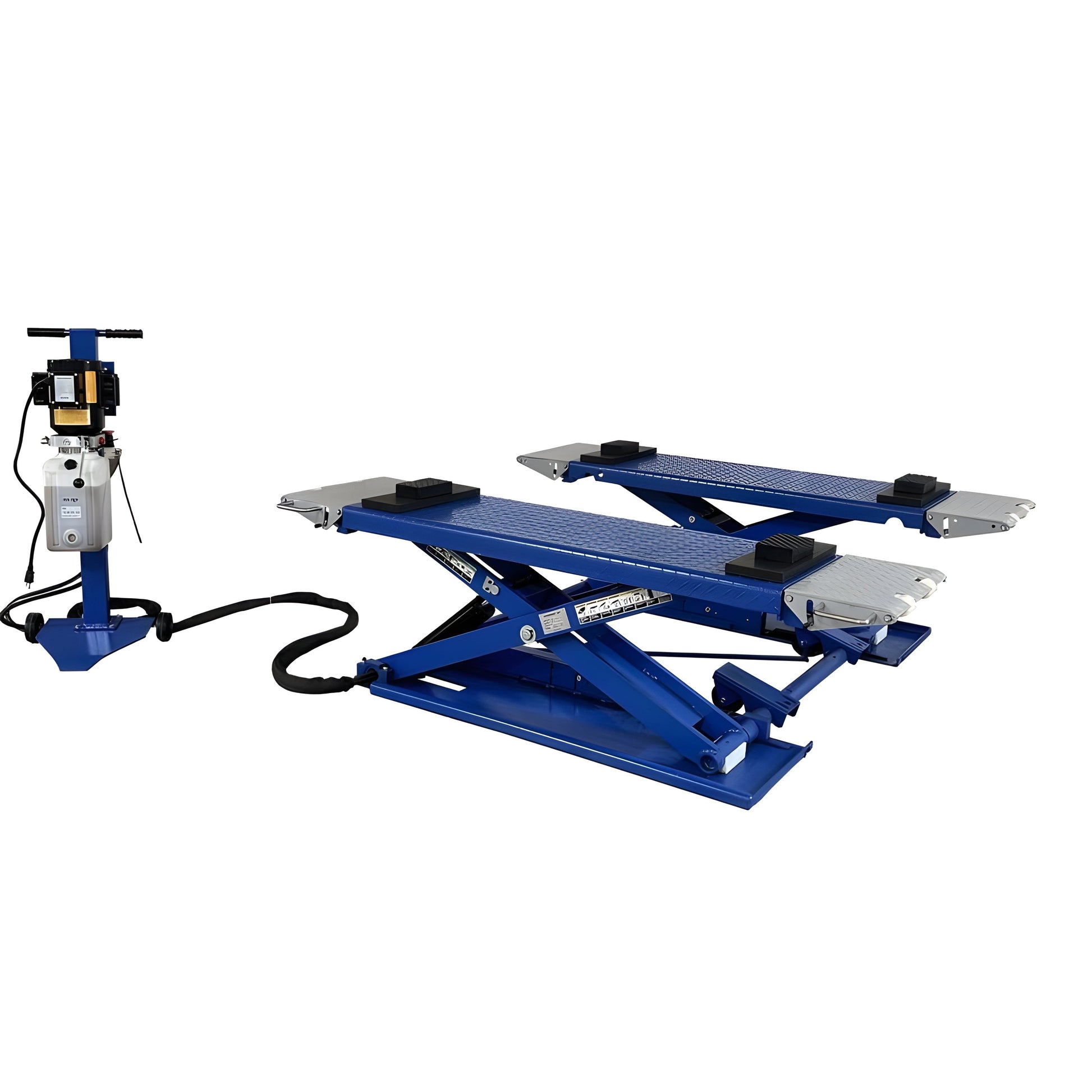

The MR6.5K-38 is a portable 6,500 lb. hydraulic mid-rise scissor frame lift, equipped with twin hydraulic cylinders, pneumatic single point / double lock release system designed to lift cars & light trucks to a comfortable working height of 38. The lift comes standard with load bearing flip-up runway extensions, rubber spacer blocks, along with a power unit dolly, lift wheel kit & tow bar for convenient portability feature.The improved MR6.5K-38 lift now includes an additional weight capacity of 500 lbs. along with flat top platforms as part of the improved design. The improved MR6.5K-38 is built for years of trouble-free service for brake work, wheel service, inspections & detailing applications.
Features
- 6,500 Lbs Capacity

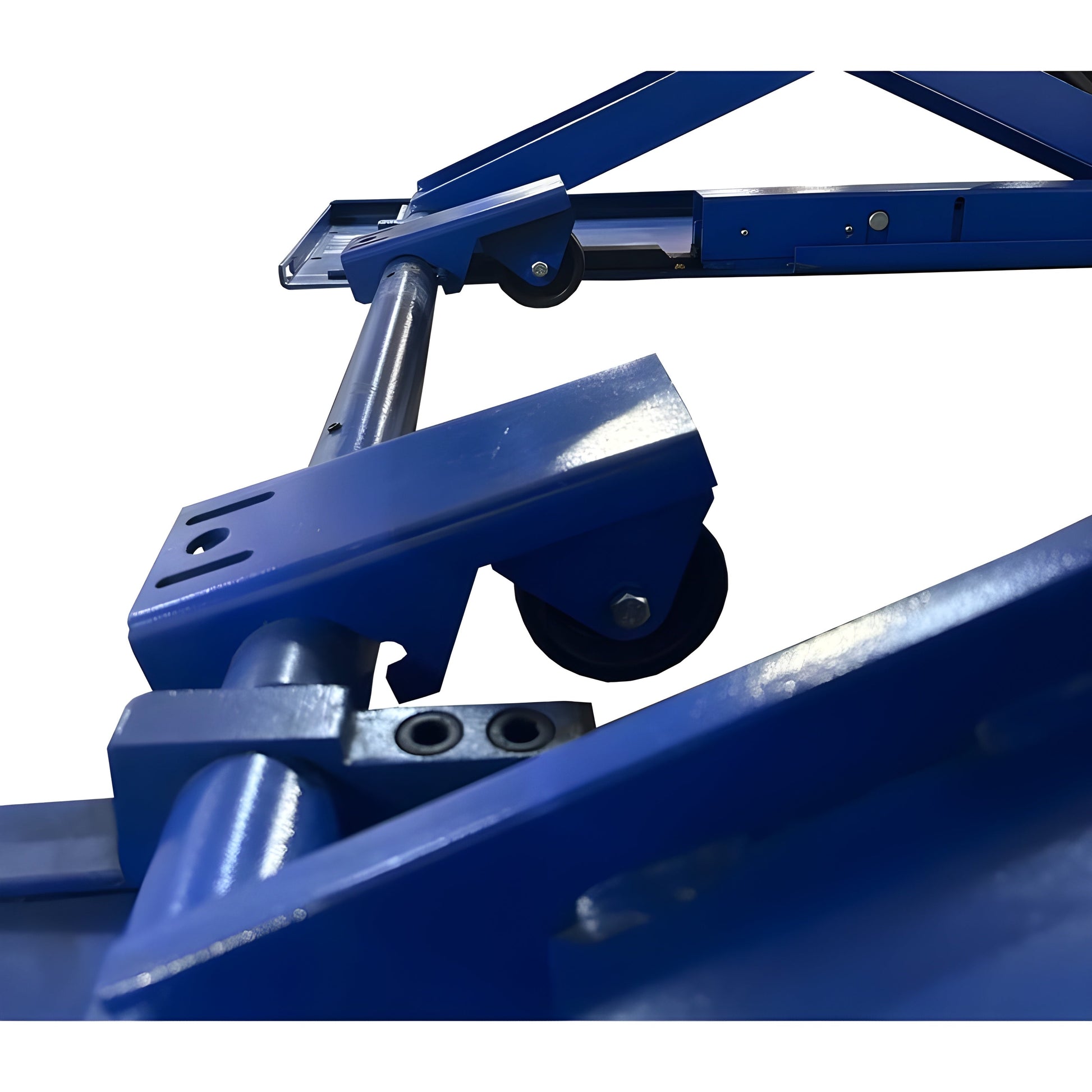

- Portable Lift Design With Wheel Kit & Tow Bar

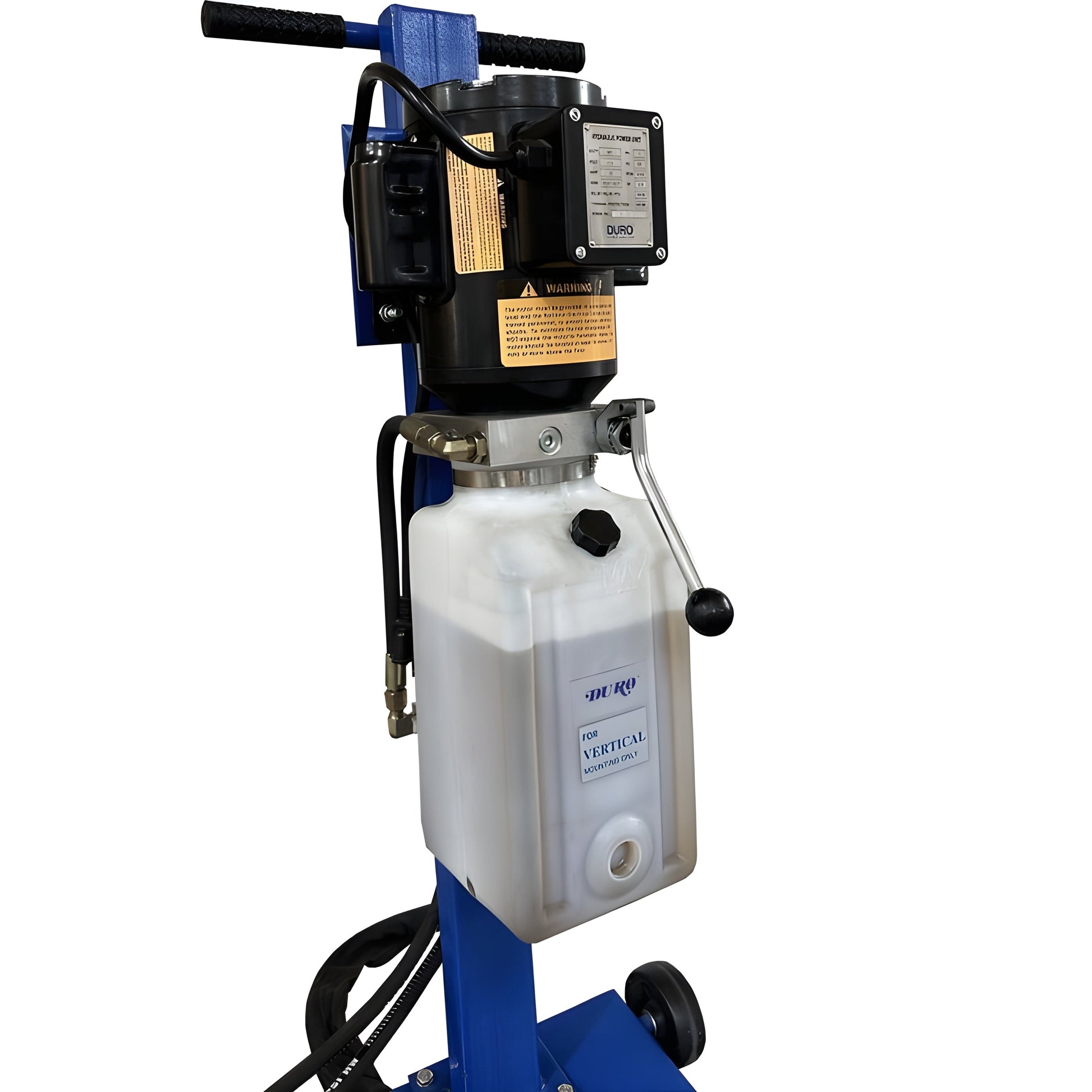

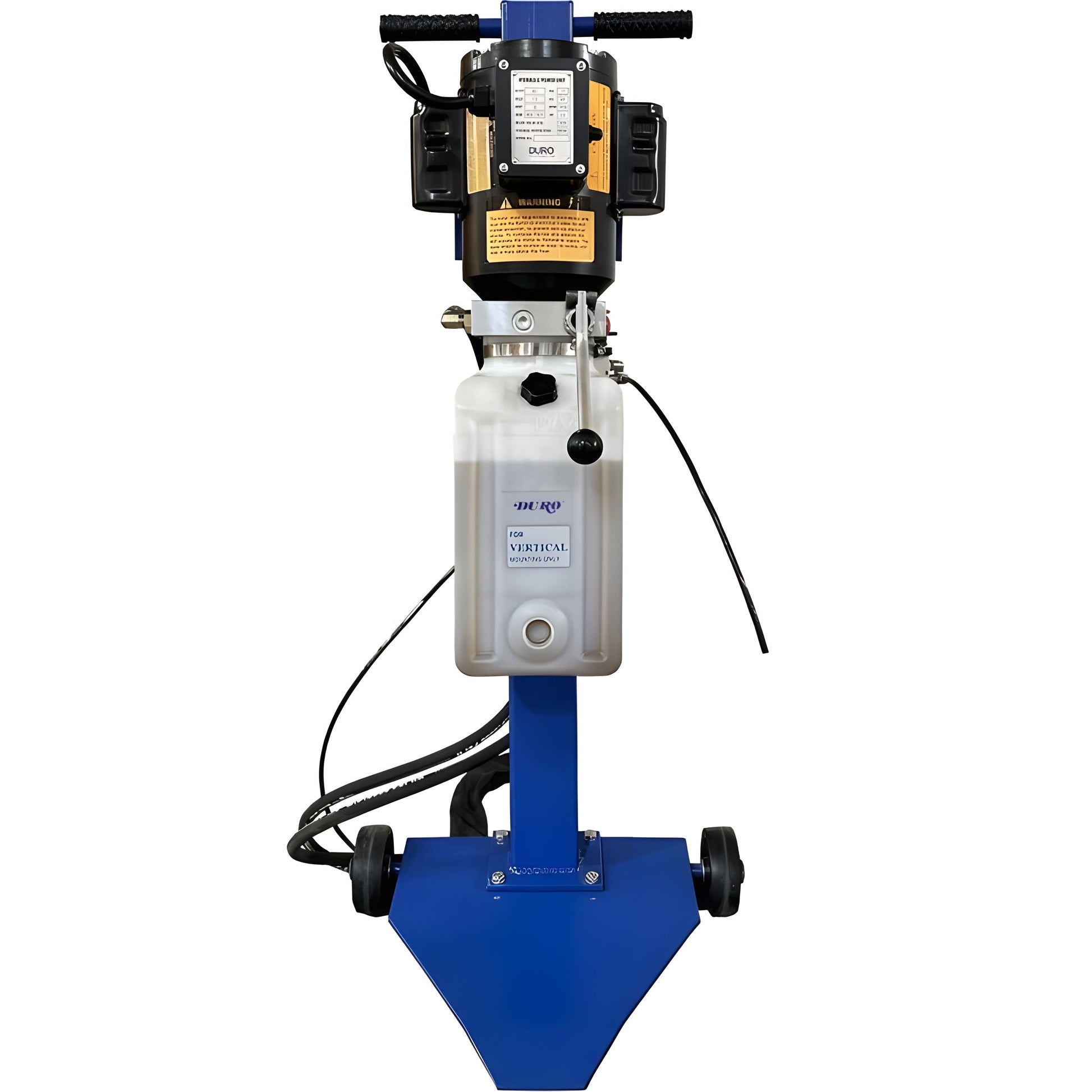

- Portable Dolly Mounted Power Unit
- Low Drive Over Height Of 4"
- Pneumatic Single Point Double Lock
- Release System
- Load Bearing Flip-Up Runway Extensions
- Rubber Spacer Blocks Included Optional Mr6K-38-Suv Adapter For
- Suv Frame Lifting
Specifications
| Lift Model: |
MR6.5K-38 |
| Capacity: |
6,500 lb. |
| Overall Length: |
77" |
| Overall Width: |
75-1/4" |
| Lifting Height: |
38" |
| Min. Pad Height: |
4" |
| Lifting Height with Adapters: |
39-1/2" |
| Width Between Runways: |
33-1/4" |
| Width of Runways: |
18-3/16" |
| Lifting Speed: |
40S |
| Pad Length: |
56" |
| Ship Weight: |
1,355 lbs |
| Power: |
115V - 20 Amp - 1PH |
| Air Supply: |
90 - 125 PSI |
Manual
Tuxedo MR6.5K-38 6,500 lb Mid-Rise Portable Scissor Lift Manual
What Our Experts Think
-
6,500 lb Capacity – The Tuxedo MR6.5K-38 Mid-Rise Portable Scissor Lift offers exceptional lifting power, supporting up to 6,500 lbs for cars, trucks, and light-duty vehicles.
-
Portable & Convenient – Designed for easy mobility, it allows for quick repositioning around the shop, providing flexibility for various vehicle maintenance tasks.
-
Mid-Rise Lifting – Provides efficient access to the undercarriage, making it ideal for tire changes, oil changes, and general repairs without the need for a full-size lift.
-
Compact Design – Space-saving and versatile, this lift is perfect for smaller garages or shops that require high performance in limited space.
-
Durable & Reliable – Constructed with robust materials for long-lasting durability, ensuring consistent, safe performance over time.
Q&A
Q: What is the weight capacity of the Tuxedo MR6.5K-38 Mid-Rise Portable Scissor Lift?
A: The Tuxedo MR6.5K-38 has a 6,500 lb weight capacity, making it perfect for lifting a wide range of vehicles, including cars, trucks, and SUVs.
Q: What is the maximum lifting height of the Tuxedo MR6.5K-38?
A: This lift offers a lifting height of 38 inches, providing easy access for maintenance and repairs.
Q: Is the Tuxedo MR6.5K-38 portable?
A: Yes, the MR6.5K-38 is designed to be portable, with wheels for easy movement and storage, making it ideal for various shop layouts and mobile service use.
Q: What makes the Tuxedo MR6.5K-38 stand out?
A: Key features include a high 6,500 lb capacity, a compact and portable design, sturdy construction, and non-slip rubber pads for secure vehicle lifting.
Q: Is the Tuxedo MR6.5K-38 easy to use?
A: Yes, it offers user-friendly operation with quick setup, making it a great choice for both professional and home garages.
Maintenance Tips
-
Lubricate Moving Parts – Regularly lubricate all moving parts such as scissor arms and pivot points to ensure smooth operation and reduce wear.
-
Inspect Hydraulic System – Check hydraulic fluid levels and inspect for any leaks in the hydraulic lines or cylinders. Replace or top up fluid as needed.
-
Examine Lift Pads – Ensure lift pads are clean and in good condition. Replace if worn or damaged to maintain safety and stability.
-
Check Cables and Hoses – Inspect cables and hydraulic hoses for wear, cracks, or leaks. Replace any damaged parts immediately to prevent malfunctions.
-
Tighten All Fasteners – Periodically check bolts, nuts, and other fasteners to make sure they are properly tightened, ensuring the stability of the lift.
-
Test Lift Functionality – Before each use, test the lift for smooth and responsive movement. Ensure it raises and lowers without issues.
-
Clean and Maintain the Lift – Keep the lift clean, removing dirt, grease, and debris to prevent wear and maintain the overall lifespan of the equipment.
