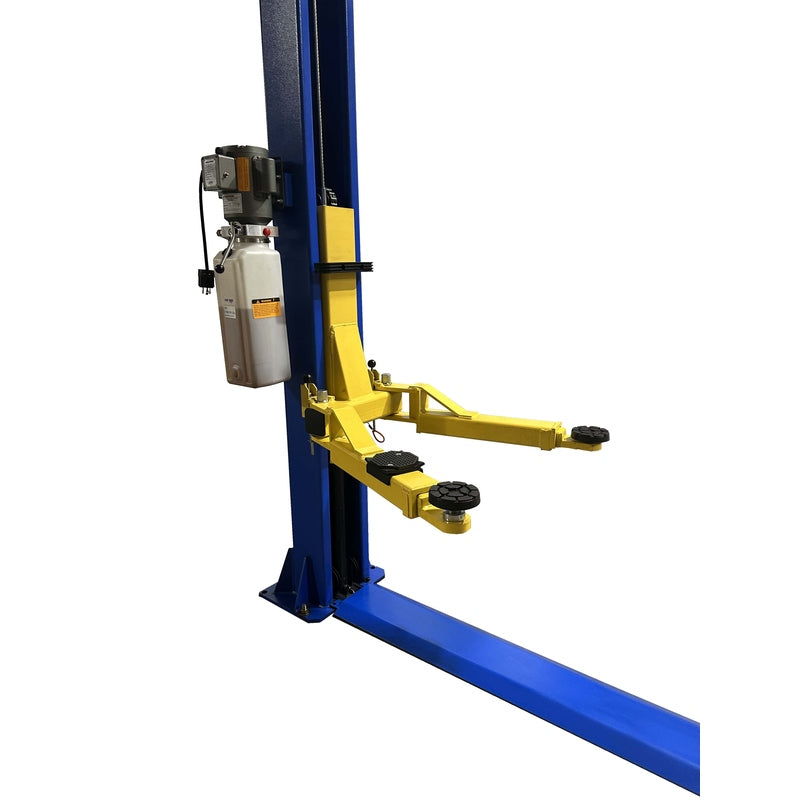

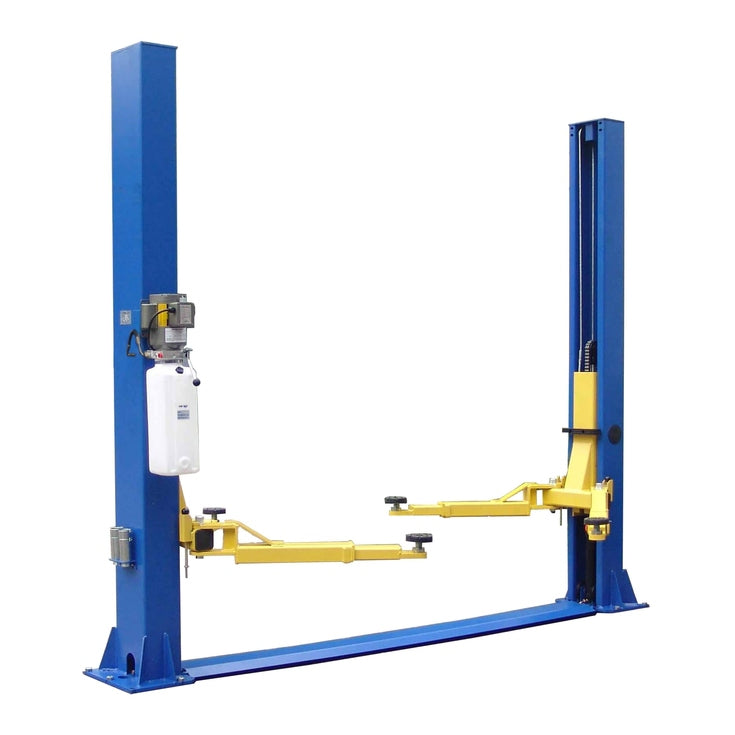

Tuxedo 9,000 lb Two Post Floor Plate - Symmetric - TP9KFX
The new TP9KFX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the best Two Post Lift values in the industry!
Features
- 9,000 lbs capacity

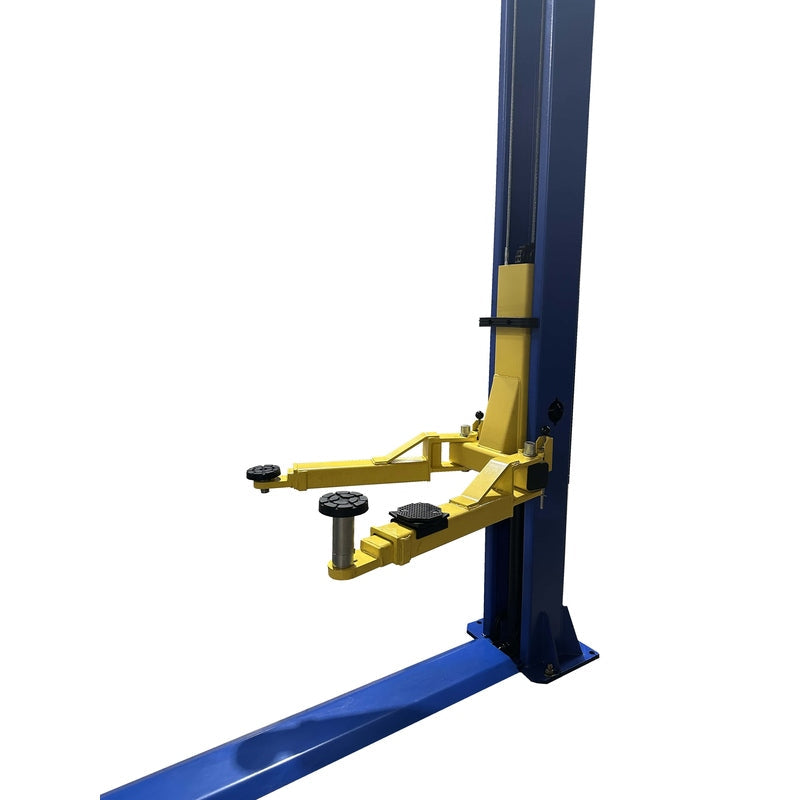

- Symmetric Arms

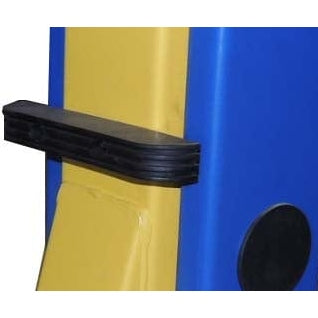

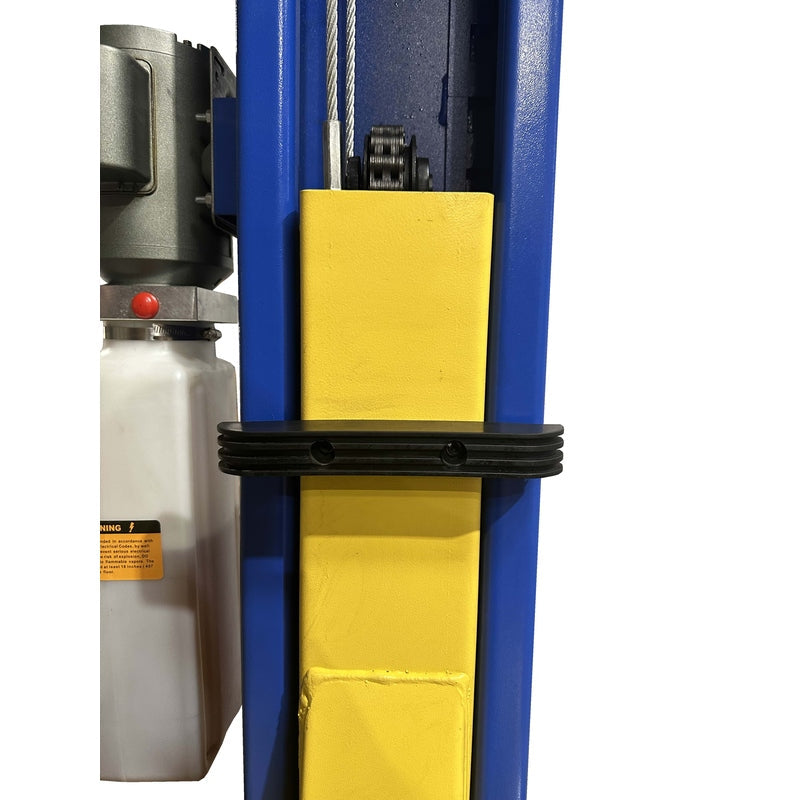

- Rubber Door Guards

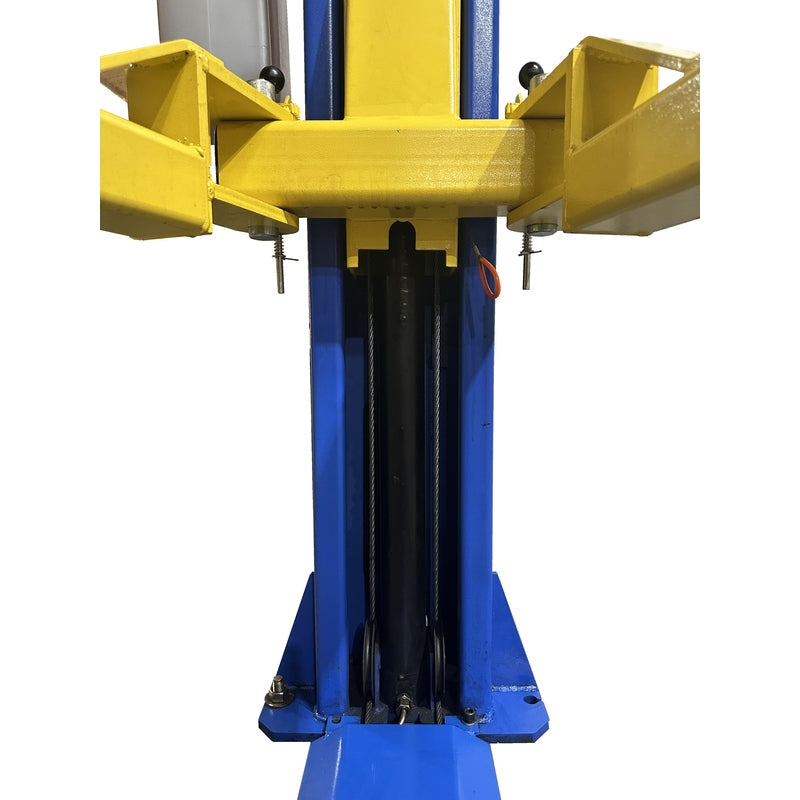

- Chain Drive Cylinders
- Dual Point Lock Release

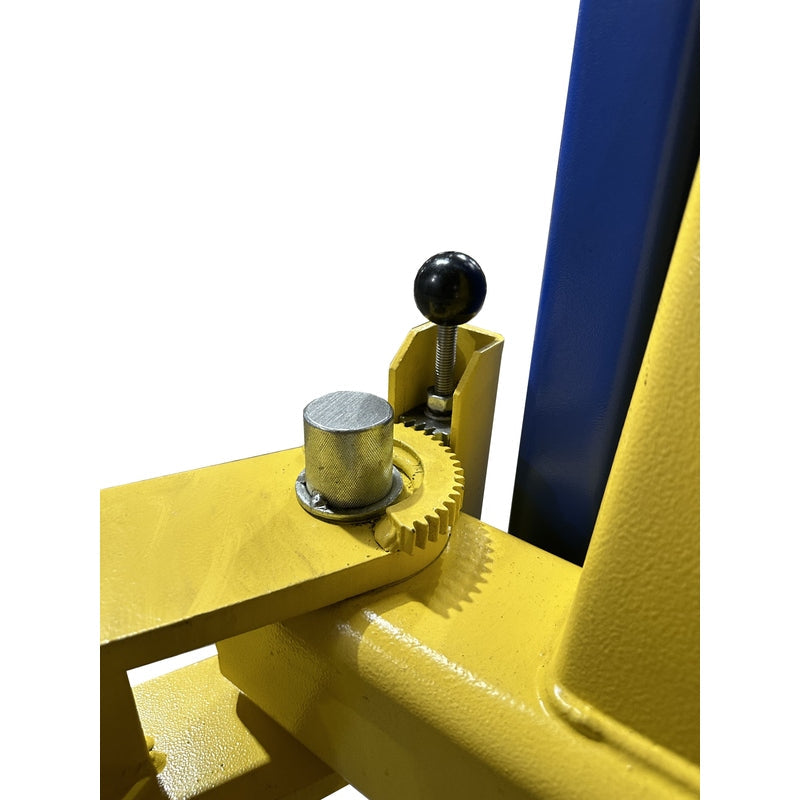

- Auto Arm Restraint System

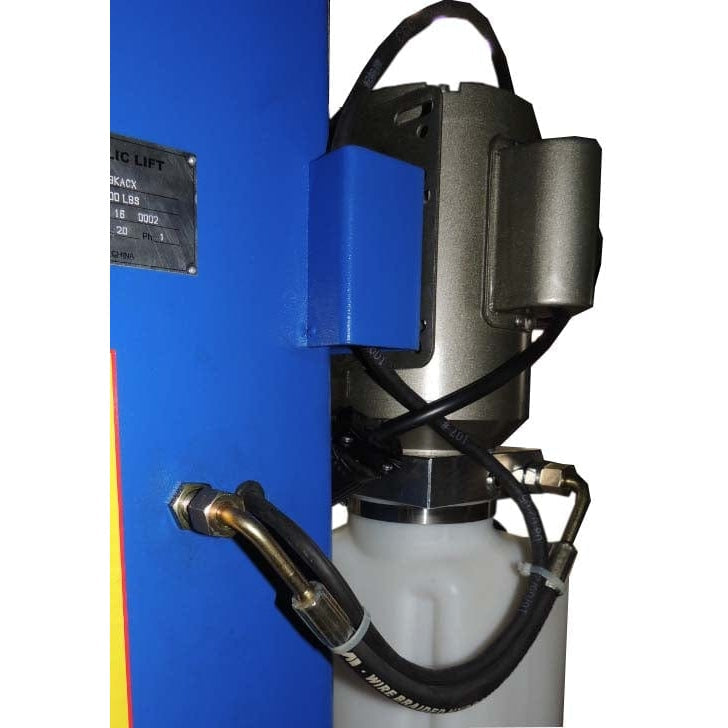

- Internal Hose routing

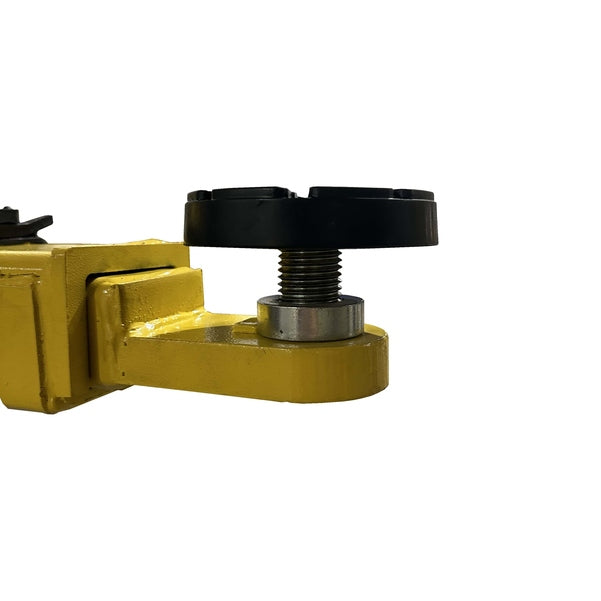

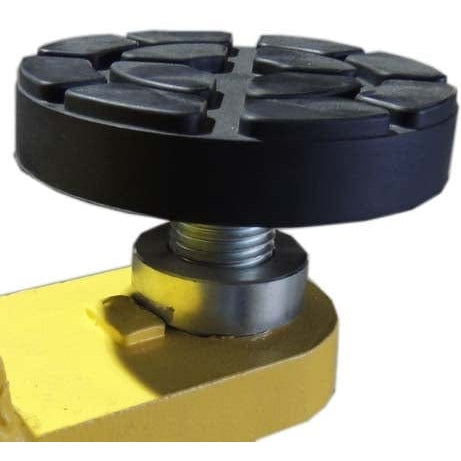

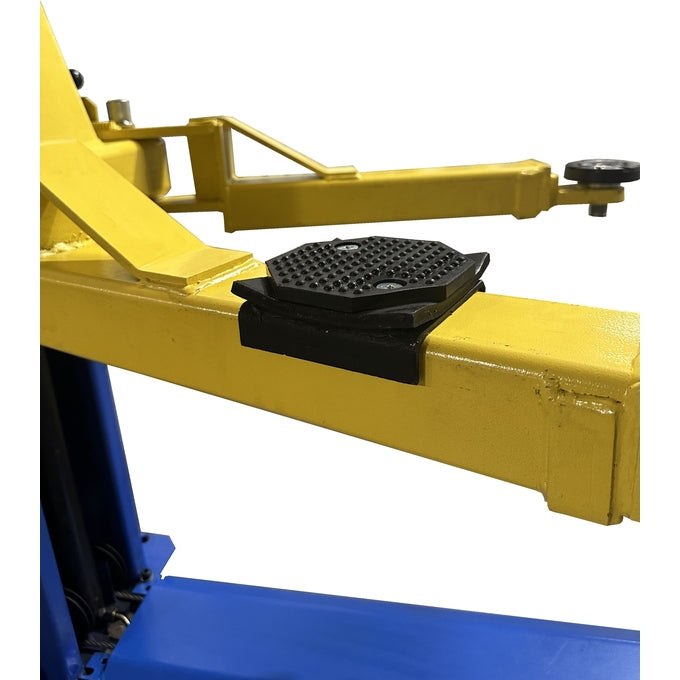

- Low profile Spin Up Lift Pads

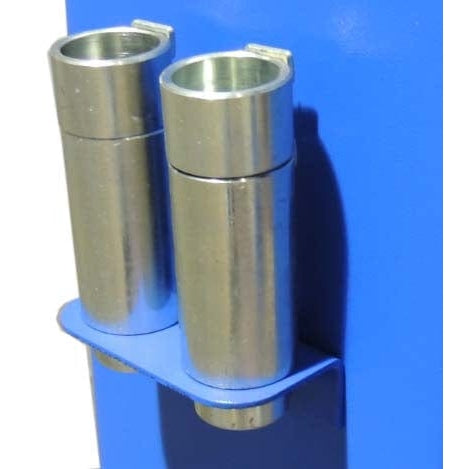

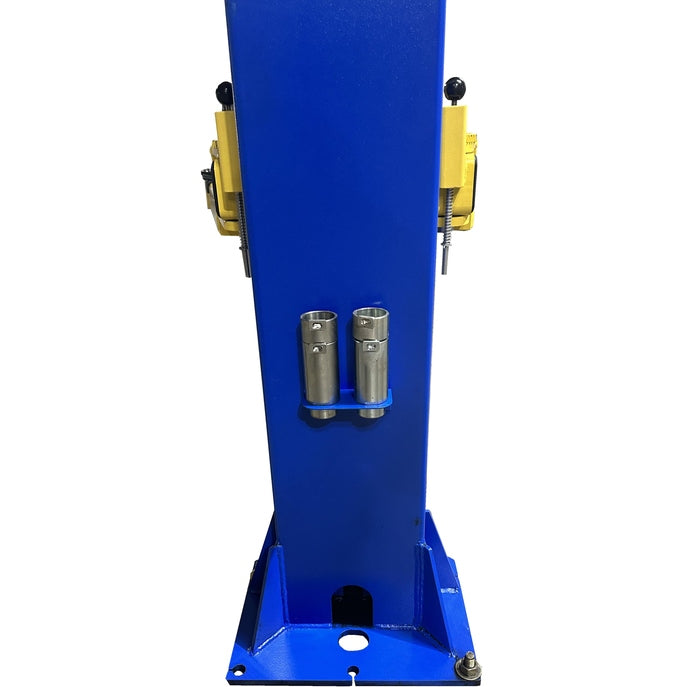

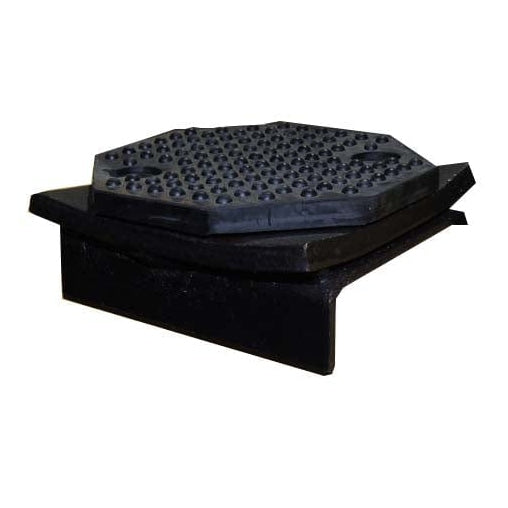

- Stackable Adapters Included

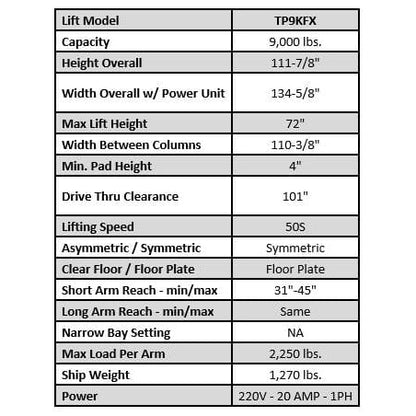

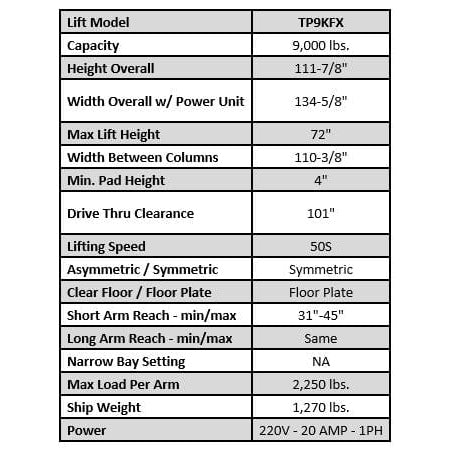

Specifications
| Lift Model |
TP9KFX |
| Capacity |
9,000 lbs. |

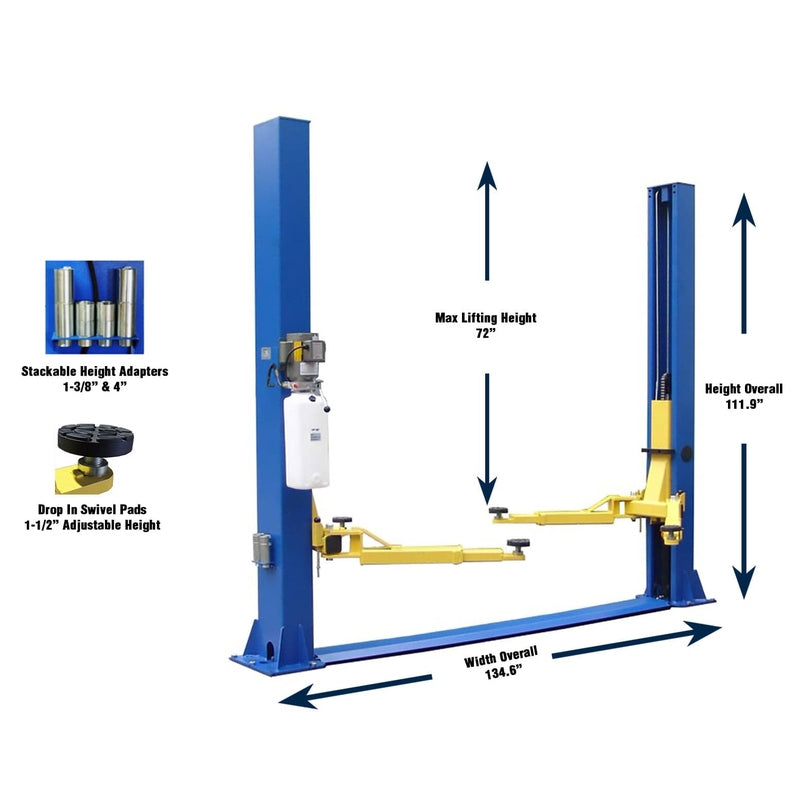

| Height Overall |
111-7/8" |
| Width Overall w/ Power Unit |
134-58" |
| Max Lift Height |
72" |
| Width Between Columns |
110-3/8" |
| Min. Pad Height |
4" |
| Drive Thru Clearance |
101" |
| Lifting Speed |
50S |
| Asymmetric / Symmetric |
Symmetric |
| Clear Floor / Floor Plate |
Floor Plate |
| Short Arm Reach min/max |
31"-45" |
| Long Arm Reach min/max |
Same |
| Narrow Bay Setting |
NA |
| Max Load Per Arm |
2,250 lbs. |

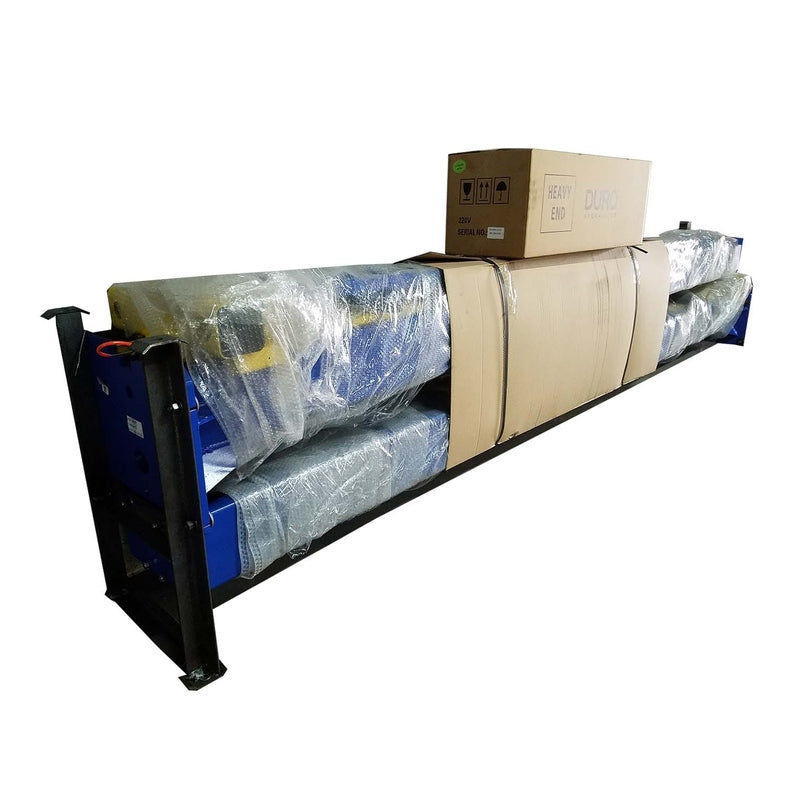

| Ship Weight |
1,270 lbs |

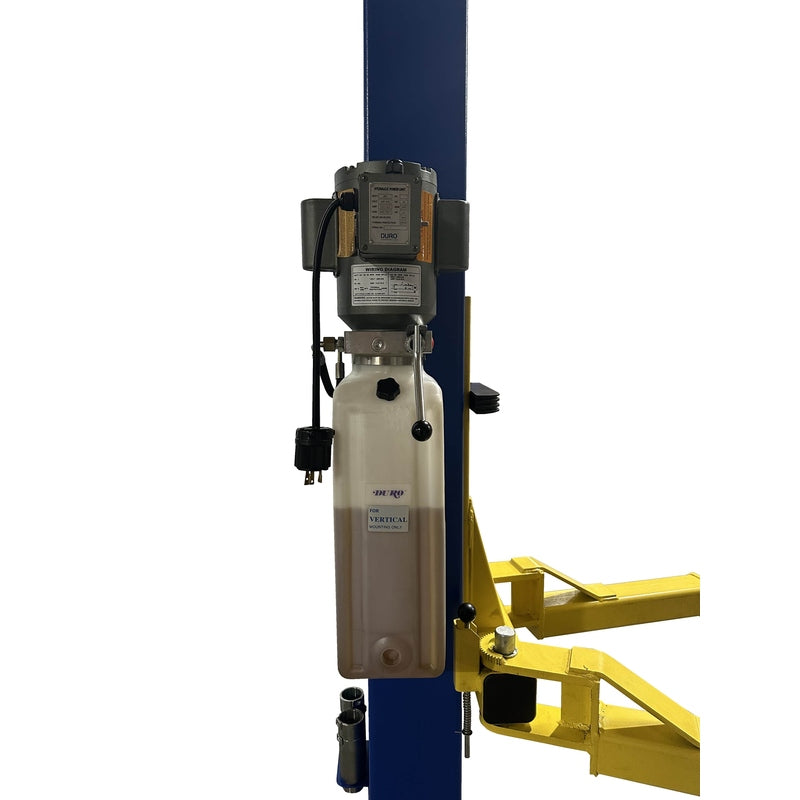

| Power |
220V 20 AMP 1 PH |
Manual
Tuxedo TP9KFX 9,000 lb 2 Post Lift Manual
What Our Experts Think
-
9,000 lb Lifting Capacity – Ideal for cars, SUVs, and light trucks.
-
Floor Plate Design – Perfect for low-ceiling garages while maintaining stability.
-
Symmetric Arm Configuration – Provides balanced lifting for secure vehicle positioning.
-
Heavy-Duty Steel Construction – Ensures durability for long-term shop use.
-
Dual-Point Lock Release – Enhances safety with an easy-to-use locking mechanism.
Q&A
Q: What is the Tuxedo TP9KFX Two-Post Lift used for?
A: The Tuxedo TP9KFX is a 9,000 lb capacity two-post floor plate lift, designed for lifting cars, SUVs, and light trucks in auto repair shops and service centers.
Q: What does "Floor Plate" mean?
A: A floor plate lift has a reinforced plate across the floor, covering hydraulic lines and cables, making it ideal for low-ceiling garages.
Q: Is this lift symmetric or asymmetric?
A: The TP9KFX is a symmetric lift, meaning the arms extend evenly to provide a balanced load distribution for various vehicle types.
Q: What is the maximum lifting height?
A: It lifts vehicles up to 72 inches, providing ample workspace underneath.
Q: Is this lift suitable for commercial use?
A: Yes! Its sturdy build, reliable lifting power, and ease of use make it perfect for auto repair shops, dealerships, and fleet maintenance facilities.
Maintenance Tips
-
Inspect Before Use – Check hydraulic lines, cables, and bolts for leaks, wear, or looseness.
-
Lubricate Moving Parts – Apply grease to lift arms, carriage slides, and pulleys regularly.
-
Monitor Hydraulic Fluid – Maintain proper levels and replace if contaminated.
-
Test Safety Locks – Ensure locks engage properly before operating the lift.
-
Keep It Clean – Remove dirt and debris to prevent corrosion and ensure smooth function.
-
Follow Load Limits – Do not exceed the 9,000 lb capacity for safe operation.
