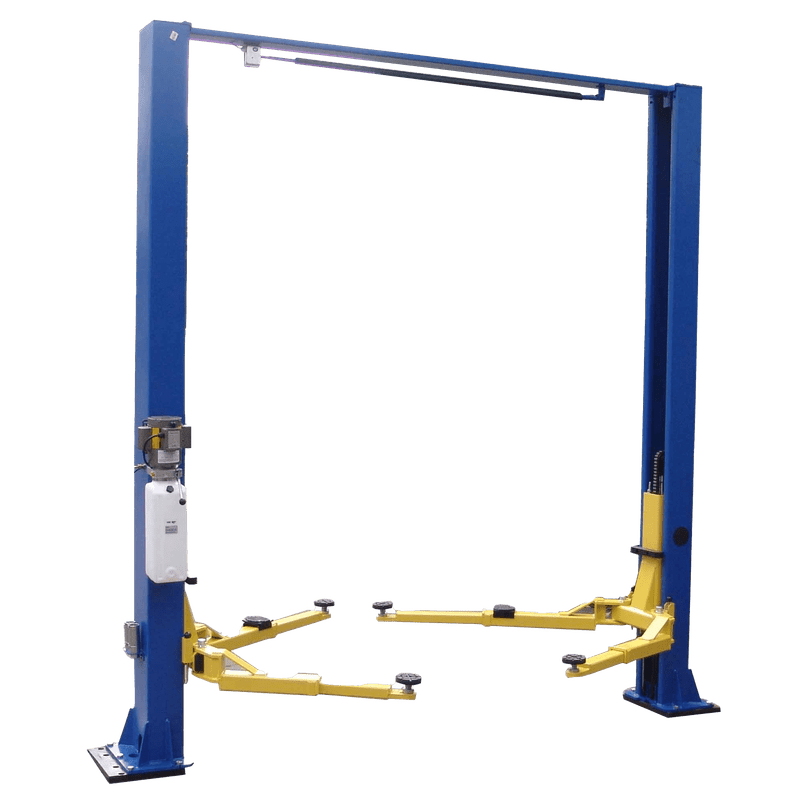

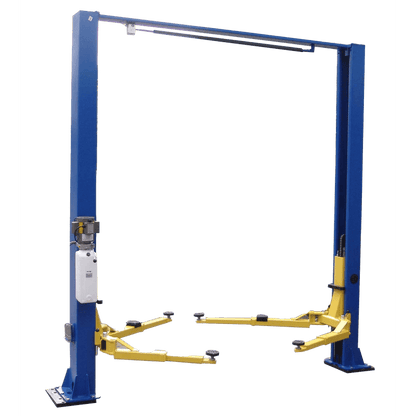

Tuxedo TP9KSCX 9,000 lb Two Post Clear Floor - Symmetric - TP9KSCX
The new TP9KSCX Two Post, Clear Floor & Floor Plate Lifts have been redesigned to now include standard features with Single Piece Column construction, Internal Hose routing, Padded Overhead Shut-Off Bar with Kill Switch, Reduced overall Width, Drop-In Adjustable Swivel Pads with Height Adapters & Rubber Door Guards, making these models one of the best Two Post Lift values in the industry!
Features
- 9,000 lbs capacity
- Symmetric Arms

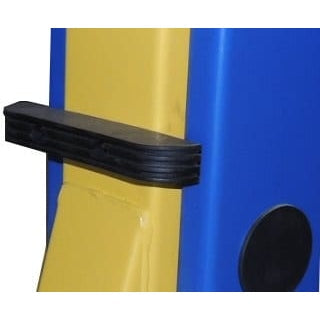

- Rubber Door Guards
- Chain Drive Cylinders
- Dual Point Lock Release
- Auto Arm Restraint System
- Single Piece Column

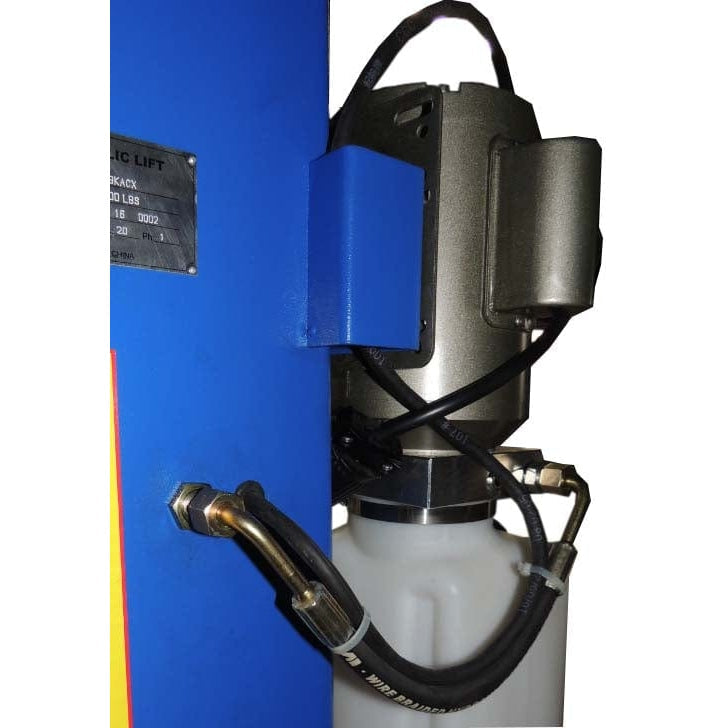

- Internal Hose routing

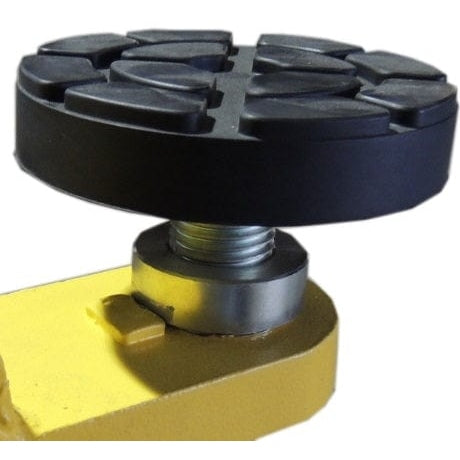

- Low profile Spin Up Lift Pads

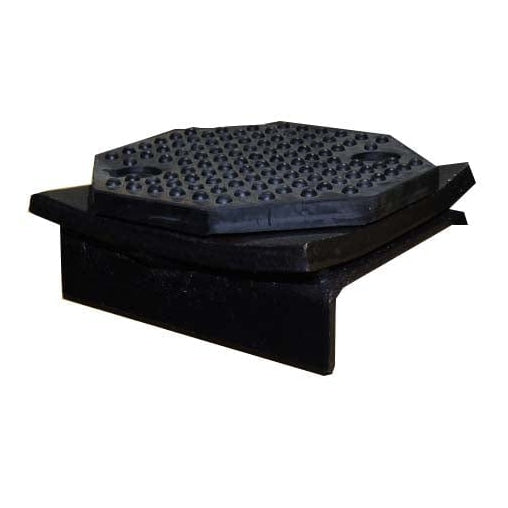

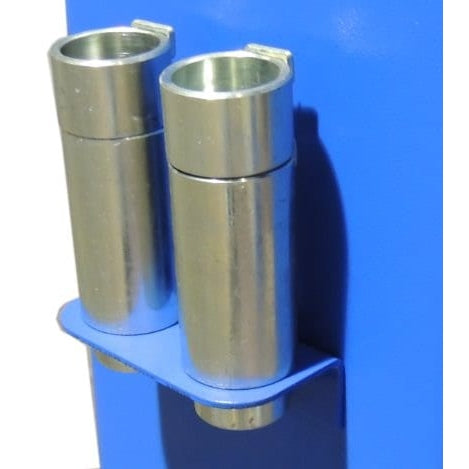

- Stackable Adapters Included

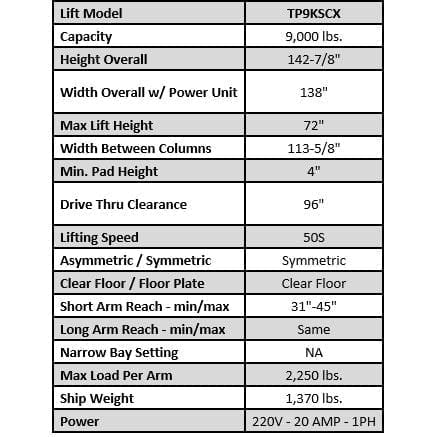

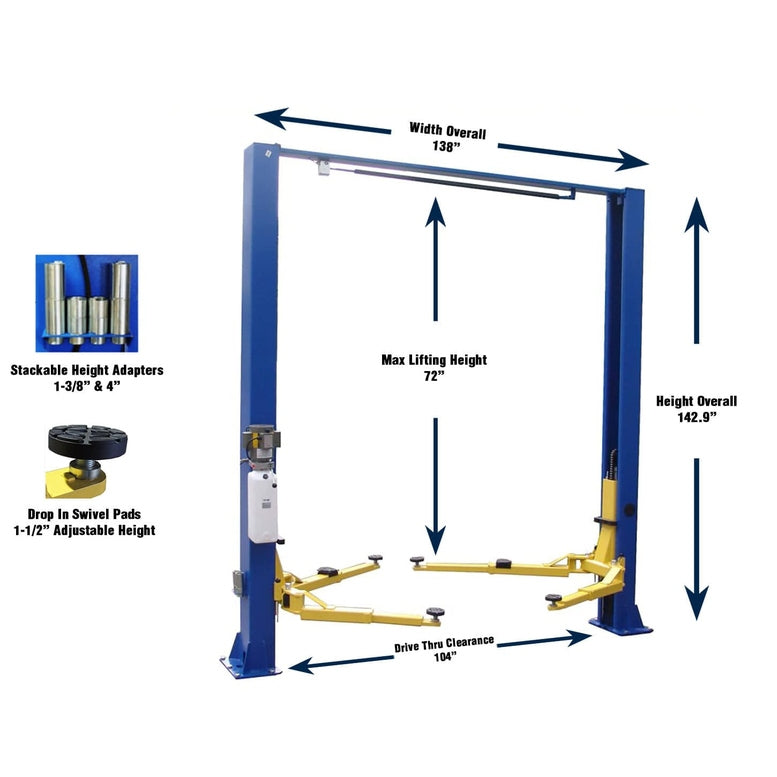

Specifications
| Lift Model |
TP9KSCX |
| Capacity |
9,000 lbs. |
| Height Overall |
142-7/8" |
| Width Overall w/ Power Unit |
138" |
| Max Lift Height |
72" |
| Width Between Columns |
113-5/8" |
| Min. Pad Height |
4" |
| Drive Thru Clearance |
96" |
| Lifting Speed |
50S |
| Asymmetric / Symmetric |
Symmetric |
| Clear Floor / Floor Plate |
Clear Floor |
| Short Arm Reach min/max |
31"-45" |
| Long Arm Reach min/max |
Same |
| Narrow Bay Setting |
NA |
| Max Load Per Arm |
2,250 lbs. |
| Ship Weight |
1,370 lbs |
| Power |
220V 20 AMP 1 PH |
Manual
Tuxedo TP9KSCX 9,000 lb 2 Post Lift Manual
What our Expect Think
-
Capacity: This Tuxedo TP9KSCX is designed to handle up to 9,000 lbs, making it suitable for most cars, trucks, and vans.
-
Clear Floor Design: The clear floor feature ensures unobstructed access to the vehicle’s underside, making it easier to work on components without interference from the lift arms.
-
Symmetric Configuration: The symmetric design provides even lifting power, ensuring that vehicles are lifted in a balanced and stable manner. This is ideal for those working on vehicles that require precise lifting and stable support.
-
Durability and Stability: Constructed with heavy-duty materials, this lift is engineered for long-lasting durability and stability during operation, making it an excellent choice for commercial or professional garages.
-
Dual Hydraulic Lifting System: The lift uses a powerful hydraulic system that provides smooth and efficient lifting, ensuring a reliable operation every time.
Q&A
Q: What is the maximum vehicle weight that the TP9KSCX can lift?
A: The Tuxedo TP9KSCX is designed to lift vehicles up to 9,000 lbs. This makes it ideal for most standard cars, trucks, and SUVs, but it may not be suitable for larger vehicles like heavy-duty trucks or commercial vehicles.
Q: Is the lift easy to install?
A: Yes, the Tuxedo TP9KSCX comes with detailed installation instructions. However, due to its size and complexity, it is recommended to have professional installation, especially if you are unfamiliar with installing two-post lifts.
Q: Can this lift be used for vehicles with low ground clearance?
A: Yes, the Tuxedo TP9KSCX features low-profile lifting arms that allow for better access to vehicles with lower ground clearance. It’s perfect for working on sports cars, sedans, and other low-sitting vehicles.
Q: How long does the hydraulic system last?
A: With proper maintenance, the hydraulic system of the Tuxedo TP9KSCX is designed for long-lasting performance. Regular checks for fluid levels, seals, and general upkeep will ensure the system operates smoothly for many years.
Maintenance Tips
-
Regularly Inspect for Wear: Check cables, hydraulic hoses, and lifting components for signs of wear or damage.
-
Lubricate Moving Parts: Keep moving parts such as arms, pivots, and cables lubricated to ensure smooth operation.
-
Check for Loose Bolts: Tighten bolts and nuts regularly to maintain stability and safety.
-
Clean After Use: Keep the lift clean and free of grease, dirt, and debris to prevent build-up.
-
Inspect Hydraulics: Regularly check hydraulic fluid levels and address leaks immediately.
