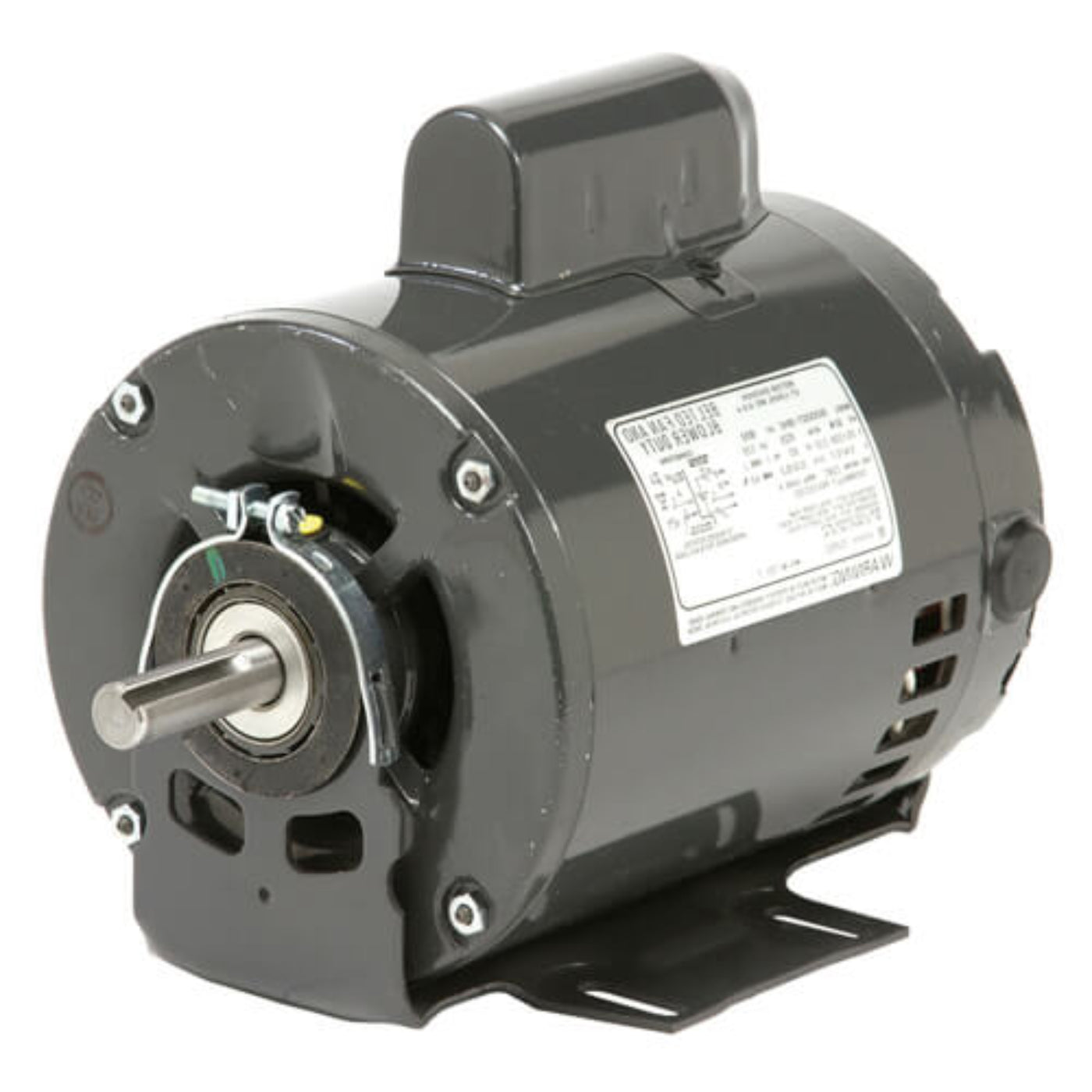

The U.S. Motors D1CP1PH9 is a general purpose single phase ODP cradle motor designed for various industrial applications. This motor delivers one horsepower and operates at a speed of three thousand six hundred RPM. It features an open drip proof (ODP) enclosure, making it suitable for use in environments where moisture is present. The D1CP1PH9 motor is ideal for air compressors, pumps, and conveyor systems.

Product Highlights

This motor provides reliable performance for continuous duty applications. It is known for its durability and efficiency.

Features

• 1 horsepower
• 60 Hz frequency
• 115/230 voltage rating

Specifications

What our Experts Think

• 1 HP Output:
  Delivers consistent power at 3450 RPM, suitable for various general-purpose applications.

• Single Phase Operation:
  Compatible with 115/230V, 60 Hz single-phase power systems, offering flexibility for different setups.

• Open Drip Proof (ODP) Enclosure:
  Allows air circulation for cooling while providing protection against falling dirt and moisture, ideal for indoor use.

• Cradle Mounting:
  Designed for easy and secure installation, facilitating stable operation.

• NEMA 56H Frame:
  Standard frame size for compatibility with a wide range of equipment.

• Capacitor Start, Capacitor Run Motor:
  Provides high starting torque and efficient operation, making it ideal for applications that require a strong startup force.

• Service Factor of 1.25:
  Allows the motor to handle occasional overloads, enhancing its resilience.

• Class B Insulation:
  Ensures the motor can operate at higher temperatures, contributing to its longevity.

• Reversible Rotation:
  Provides flexibility in installation and operation.

• Ball Bearings:
  Ensures smooth and reliable performance over time.

Q&A

Q: What is this motor typically used for?
A: Ideal for fans, blowers, pumps, and light-duty machinery in clean, dry indoor environments.

Q: What are the advantages of a cradle base?
A: The cradle base provides stable, easy-to-install support—especially useful for replacing motors in older equipment designs.

Q: What are the benefits of the ODP enclosure?
A: ODP allows airflow through the motor for efficient cooling, making it suitable for indoor applications with minimal exposure to dust or moisture.

Q: Is the D1CP1PH9 motor reversible?
A: Yes, the motor supports reversible rotation, enhancing flexibility in installation.

Q: Does the motor include overload protection?
A: No, external overload protection is recommended, as it does not have built-in thermal protection.

Q: What is the operating temperature range?
A: Suitable for ambient temperatures up to 40°C, rated for continuous duty.

Maintenance Tips

1. Clean Air Path Regularly

• ODP motors are air-cooled and require unobstructed airflow. Use compressed air to blow out dust and debris.

2. Check Mount Stability

• Ensure the cradle base is secure. Loose mounting can lead to vibration, noise, and premature bearing wear.

3. Monitor Temperature

• Avoid overheating by running the motor in well-ventilated areas and within its rated ambient temperature.

4. Inspect Capacitors

• Check for swelling or leakage on both the run and start capacitors. Replace if worn, as faulty capacitors cause poor startup and reduced performance.

5. Lubricate Bearings (If Applicable)

• If your version has serviceable bearings, apply light-duty electric motor grease per the schedule. Over-lubrication can cause issues.

6. Inspect Electrical Connections

• Ensure wiring is tight and insulation is intact. Loose terminals may cause arcing or performance issues.

7. Test Motor Rotation

• Always verify rotation direction before connecting to load. Reverse if needed, following wiring diagram.
