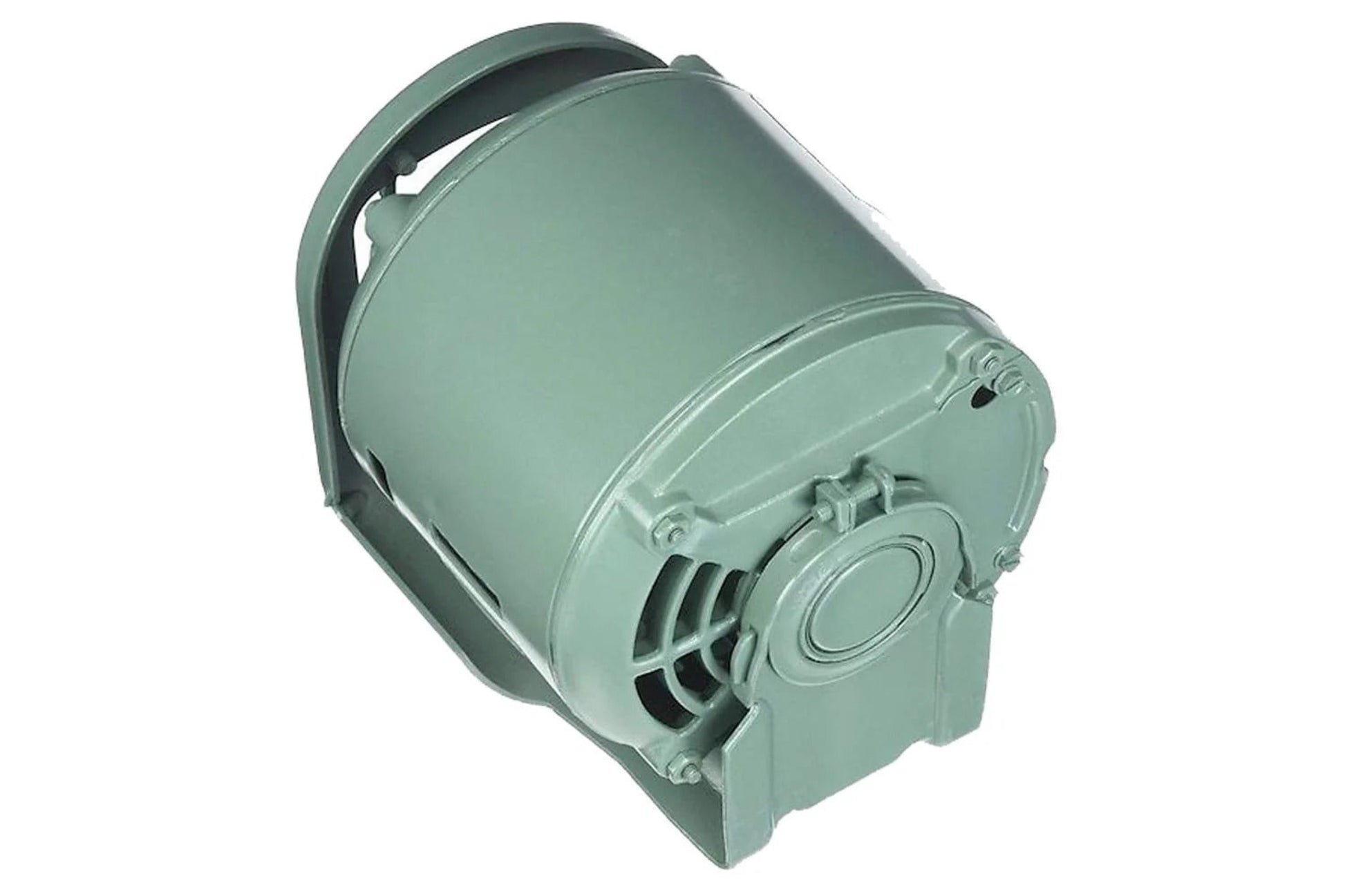

Taco C714D 1-1/2 HP Motor - C714D
The TACO C714D is a 1-1/2 HP motor suitable for Taco Comfort Solutions pumps. It operates at a speed of 1750 RPM and is compatible with three-phase systems, specifically 208-230/460V at 60Hz. This motor features an open drip-proof (ODP) enclosure and has a 145 JM frame with feet for stability.
- Designed for high ambient temperatures up to forty degrees Celsius.
- Counterclockwise rotation viewed from the shaft end.
- Includes AEGIS shaft grounding compliant with MG1-12.55.
Specifications
| Model |
C714D |
| Horsepower (HP) |
1.5 HP |
| Speed (RPM) |
1750 RPM |
| Voltage |
208-230/460V |
| Frequency |
60 Hz |
| Phase |
3-Phase |
| Enclosure Type |
Open Drip Proof (ODP) |
| Frame Size |
145JM |
| Service Factor |
1.15 |
| Rotation |
Counterclockwise (CCW) as viewed from shaft end |
| Ambient Temperature |
Up to 40°C |
| Shaft Type |
Standard shaft with keyway |
| Mounting Type |
Rigid base with feet |
| Starting Method |
Across-the-line |
| Shaft Grounding |
AEGIS shaft grounding (meets MG1-12.55) |
| UPC |
687752982817 |
What our Experts Think
-
High-Quality Materials: Crafted from durable cast iron (CI), ensuring long-lasting performance in demanding applications.
-
Precision Engineering: Designed for 1.5 HP, 1750 RPM, 3-phase motors, providing efficient and reliable operation.
-
Corrosion Resistance: Features a corrosion-resistant shaft sleeve, enhancing longevity and reducing maintenance needs.
-
Versatile Compatibility: Compatible with various Taco pump models, offering flexibility in replacement and repair scenarios.
Q&A
Q: What is the Taco C714D motor?
A: A 1.5 HP, 1750 RPM, 3-phase motor designed for Taco pumps.
Q: What voltage does it operate on?
A: 208-230/460V at 60Hz.
Q: What enclosure type does it have?
A: Open Drip Proof (ODP) suitable for indoor use.
Q: Is it energy efficient?
A: Yes, it meets premium efficiency standards.
Q: What is the service factor?
A: 1.15 for reliable, durable performance.
Q: What is the frame size and mounting type?
A: 145T frame with JM foot mount.
Q: Is it suitable for variable speed use?
A: Yes, compatible with Taco variable speed pumps.
Q: Where can I get installation and maintenance info?
A: Refer to the motor’s user manual.
Maintenance Tips
-
Regular Inspection: Periodically check for leaks, unusual noises, or vibrations, which may indicate issues with the motor or connected components.
-
Lubrication: Ensure that bearings are properly lubricated to minimize friction and wear. Use manufacturer-recommended lubricants.
-
Cooling System Maintenance: Keep the motor's cooling system clean and unobstructed to prevent overheating. Regularly inspect and clean cooling fins and ventilation openings.
-
Electrical Connections: Inspect all electrical connections for signs of wear, corrosion, or loose connections. Tighten and clean as necessary to maintain efficient operation.
-
Overload Protection: Verify that overload protection devices are functioning correctly to prevent motor damage during abnormal operating conditions.
-
Storage: If the motor is not in use for an extended period, store it in a dry, clean environment to prevent moisture ingress and corrosion.
