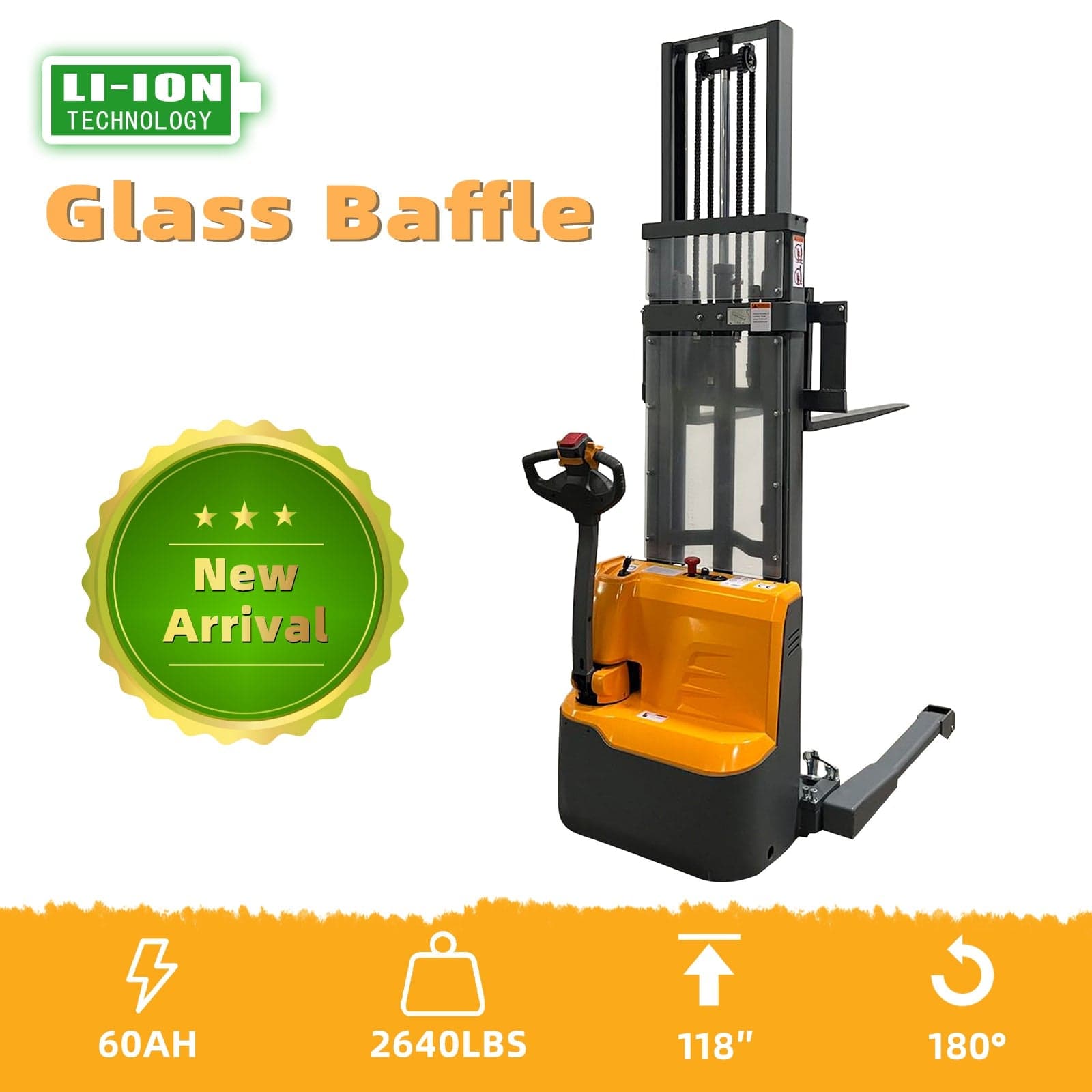

Apollolift Forklift Lithium Battery Full Electric Walkie Stacker 2640lbs Cap. Straddle Legs. 118" lifting A-3035

Apollolift Forklift Lithium Battery Full Electric Walkie Stacker 2640lbs Cap. Straddle Legs. 118" lifting A-3035

by Apollolift
SKU a-3035
$6,237.00 - $6,237.00
$6,237.00
$6,237.00 - $6,237.00
$6,237.00

THE BEST CHOICE FOR NARROW SITE

  • 650-watt drive motor, 2,200-watt lift motor.
  • Forks are adjustable to fit most pallets.
  • Use lithium battery free to maintain.
  • Both sides of button for lifting and lowering operation.
  • Multi-function display shows the working hours, battery status and low-voltage protection.



MODEL NO. LOAD CAPACITY BATTERY CAPACITY HEIGHT RAISED WHEEL DIAMETER WT(LBS)
A-3038
 2,640 lbs 24V/105AH 98'' 7.7" 1,250
A-3042
 2,640 lbs 24V/105AH 118'' 7.7" 1,270
A-3022 3,300 lbs 24V/125AH 98'' 7.7" 1,420
A-3023 3,300 lbs 24V/125AH 118'' 7.7" 1,466
A-3035 2,640lbs 24V/60AH 118" 7.7" 1,270


DIMENSIONS

  • Overall Length: 70"
  • Recommended Aisle Width: 89.7"
  • Turning Radius : 58.6"
  • Mast Height Lowered: 84.4'
  • Mast Height Raised : 141.7''
  • Load center : 23.6"
  • Ground Clearance: 1.38"

FORKS

  • Fork height, Lowered : 3.15''
  • Adjustable Forks: 7.8"-31.5"
  • Thickness: 1.3"
  • Width: 3.9"
  • Length: 42"

STRADDLE LEGS

  • Height: 4.7"
  • Adjustable range: 44" - 60"

FEATURES

  • 24V/60Ah lithium batteries with heating film.
  • 24V/25A Built-in Charger.
  • Quick fully charge time 2-3 hours, 6 hours service per charge.
  • Smooth rolling polyurethane wheels.180° steering arc.

SPEED

  • Travel speed(laden/unladen) : 2.8/3.1mph
  • Lifting speed(laden/unladen) : 3.5/5.5inch/s
  • Lowering speed(laden/unladen) : 4.7/3.9inch/s
  • Not explosion proof.
  • This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
  • Fully charge battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the forklift once a month even it's not in use.

    Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
