CMA Dishmachines Energy Mizer Undercounter Dishwashers - GL-X

CMA Dishmachines Energy Mizer Undercounter Dishwashers - GL-X

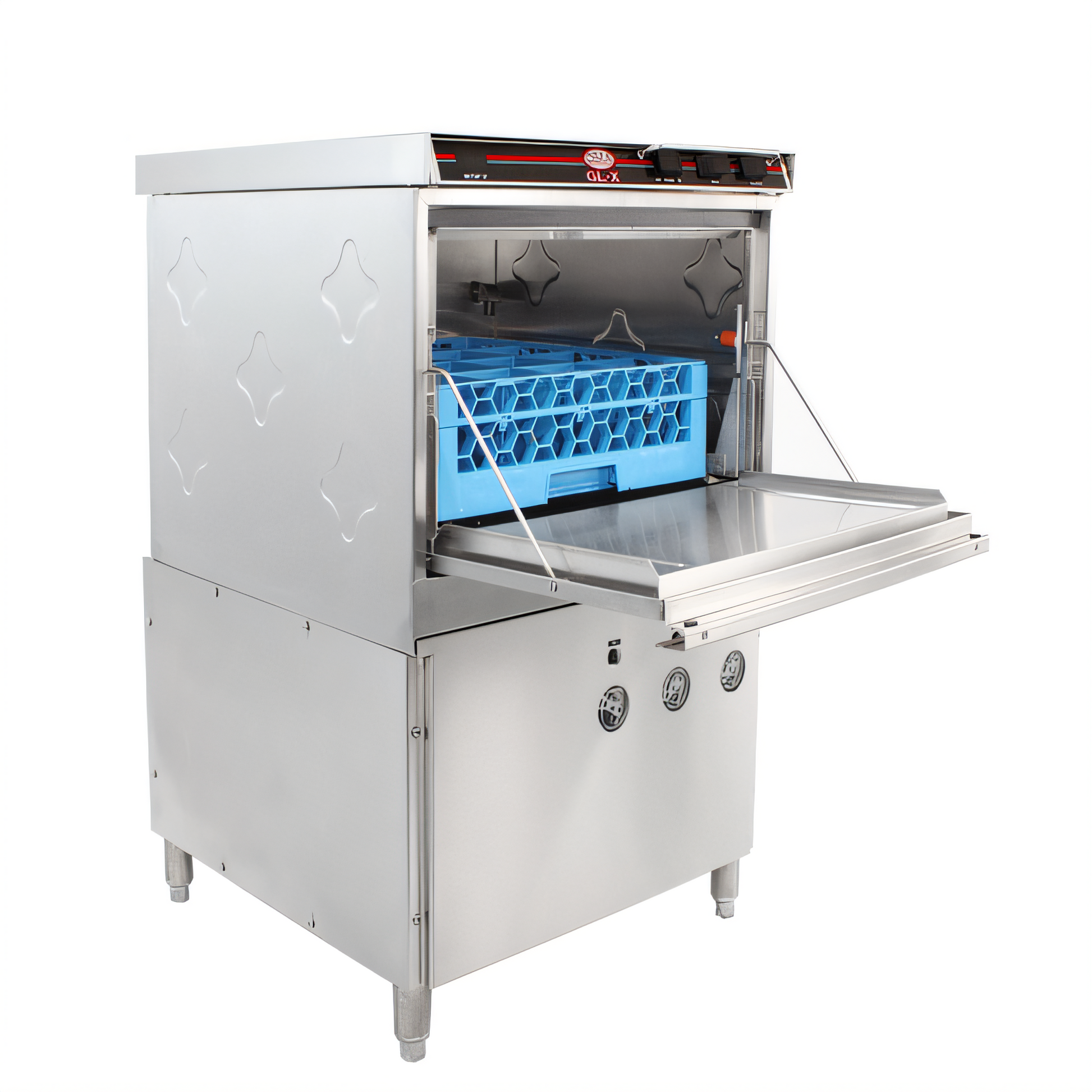

Energy Mizer Glass Washer, underbar type, 24"W cabinet, (30) racks/hour, low temperature chemical sanitizing with built-in chemical dispenser, deliming system, upper & lower stainless steel wash arms with reinforced end caps, built-in sustainer heater, electrical components housed in stainless steel drawer, stainless steel construction, pumped drain, 11-1/4"H door opening, includes (1) 16-compartment rack, 1 HP wash pump, NSF, cULus

Specifications

Drawings

• Aqsl_cmadish_gl_x_e.dwg
• Aqsl_cmadish_gl_x_f.dwg

Documents

• Cutsheet
• Owner's manual
• Diagram
• Parts manual

What our Experts Think

• High Efficiency: Cleans up to 30 racks (approximately 1,080 glasses) per hour with a 2-minute full cycle.

• Low-Temperature Operation: Utilizes chemical sanitizing at low temperatures, eliminating the need for booster heaters and reducing energy consumption.

• Built-In Sustainer Heater: Maintains the wash tank temperature between cycles, ensuring consistent cleaning performance.

• Hot Water Assurance System: Guarantees that incoming rinse water temperature is maintained, meeting health and safety standards.

• Space-Saving Design: Compact undercounter unit with a 24" width, 24-3/4" depth, and 39" height, fitting easily into tight kitchen spaces.

• Durable Construction: Made entirely of stainless steel for long-lasting durability and resistance to corrosion.

• Advanced Features: Includes upper and lower stainless steel wash arms, built-in chemical dispensers, a deliming system, and a pumped drain for flexible installation.

• User-Friendly Controls: Features a "works-in-a-drawer" design that allows easy access for maintenance and service.

Q&A

Q: What is the CMA GL-X?
A: The CMA GL-X is a low-temperature undercounter glasswasher designed for commercial kitchens, focusing on energy-efficient and hygienic glassware cleaning.

Q: How many racks can the GL-X clean per hour?
A: It can clean up to 30 racks per hour, making it suitable for high-volume environments.

Q: What is the wash cycle time?
A: The GL-X has a total cycle time of around 2 minutes, including wash, rinse, and dwell times.

Q: How much water does the GL-X use?
A: The GL-X uses only 1.7 gallons of water per cycle, making it highly water-efficient.

Q: Does it require a floor drain?
A: No, the GL-X features a pumped drain system, so it doesn't require a floor drain during installation.

Q: Is it energy-efficient?
A: Yes, the GL-X is part of CMA's Energy Mizer® series, reducing both energy and water consumption.

Q: What is the maximum glassware clearance?
A: The GL-X accommodates glassware up to 11-1/4" in height.

Q: What is the voltage requirement?
A: The GL-X operates on a 115V electrical supply.

Maintenance Tips

 Daily Cleaning

• Remove and clean trays, screens, and curtains.

• Clean wash and rinse arms using the provided cleaning drill and brush.

• Drain and clean the wash tank and soap tank.

• Reassemble all components and ensure proper alignment.

2. Weekly Maintenance

• Remove and clean upper and lower wash and rinse arms, including end plugs.

• Clean spray tubes with the provided cleaning drill and brush.

• Check and clean the detergent tank and overflow drain tube.

• Reinstall all components and verify proper operation.

3. Chemical System Checks

• Prime detergent, rinse aid, and sanitizer pumps as needed.

• Adjust chemical concentrations to maintain proper sanitizing levels.

• Ensure the rinse temperature is set to 140°F for effective sanitization.

4. Water Quality Maintenance

• Use chlorine test papers to verify a 50 ppm chlorine level in the final rinse.

• Regularly check and clean the water inlet and drain connections to prevent clogs.

5. Troubleshooting

• If the machine fails to operate, check for power issues or faulty components.

• Refer to the  for detailed troubleshooting steps.
